Tripp Lite B157-002-VGA video splitter DisplayPort 2x VGA

Tripp Lite B157-002-VGA video splitter DisplayPort 2x VGA

2-Port DisplayPort to VGA Hub, DP1.2, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2-PORT DISPLAYPORT TO VGASPLITTER 1080P 1920X1080 60HZB157-002-VGA 812302 Register free see stock
D&H 2Port DP to VGA Splitter B157002VGA
Ingram Micro DISPLAYPORT TO VGA SPLITTER 2W5369
TD Synnex 2-PORT DISPLAYPORT TO VGA SPLITTER TAA 4384265

Related Products

Description

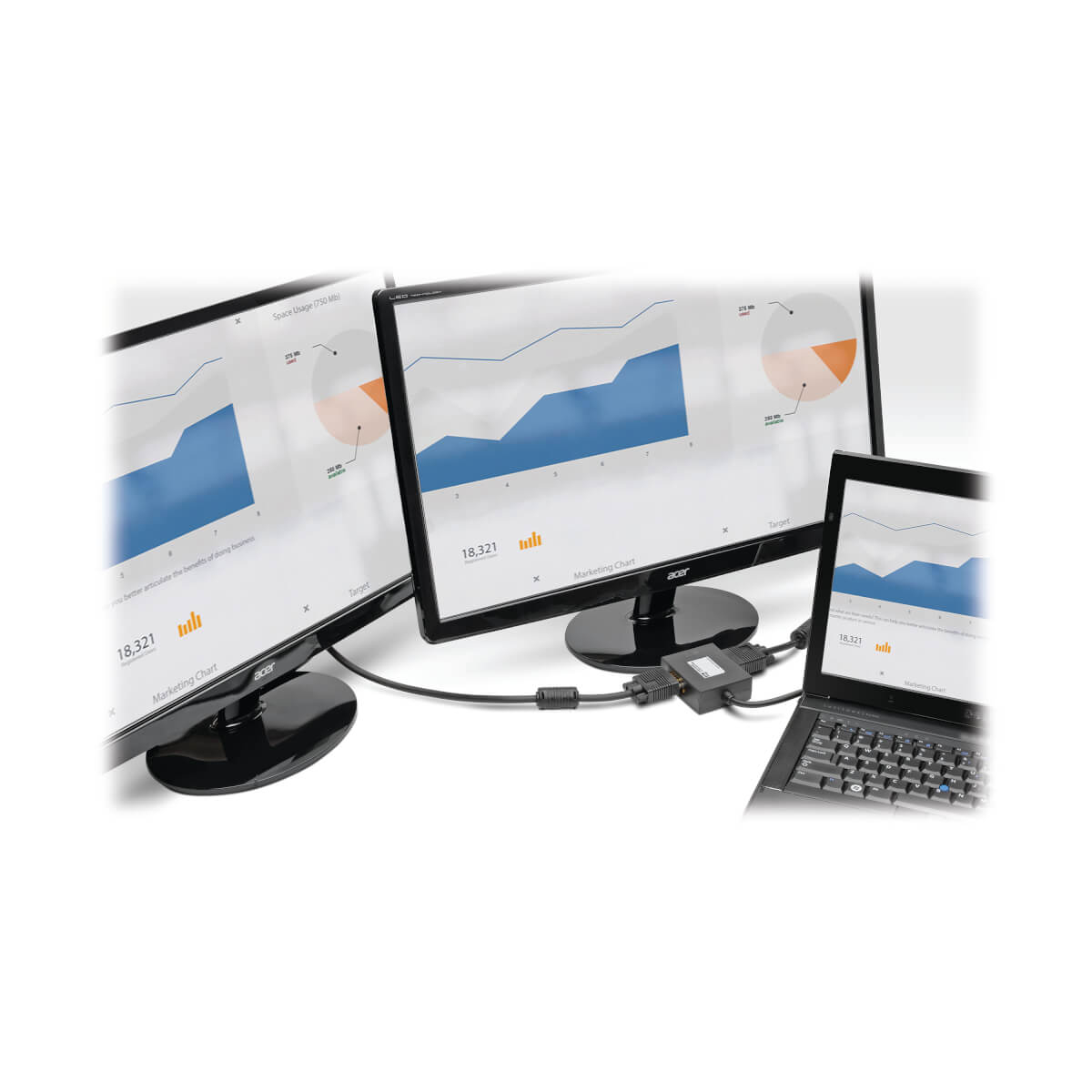

The B157-002-VGA 2-Port DisplayPort to VGA Splitter converts and splits a DisplayPort video signal for display on two VGA-enabled monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, retail settings, trade shows and classrooms, this compact splitter features a built-in DisplayPort cable that connects to the source. It lets you use your existing VGA displays instead of buying new DisplayPort monitors or docking stations.

The B157-002-VGA supports video resolutions up to 1080p @ 60 Hz (1920 x 1080), as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.

Specifications

Ports & interfaces
Video ports quantity2
Video port typeDisplayPort
Video out2x VGA
Connector(s)DisplayPort
Cable length35.8" (0.91 m)
Features
LED indicatorsStatus
Maximum refresh rate60 Hz
Windows operating systems supportedYes
Mac operating systems supportedYes
Supported graphics resolutions1920 x 1080 (HD 1080)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Supported video modes1080p
Plug and PlayYes
Product colourBlack
CertificationTAA, RoHS
Cable length35.8" (0.91 m)
Country of originTaiwan
Packaging data
Package weight9.52 oz (270 g)
Package depth5.6" (142.2 mm)
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Packaging content
ManualYes

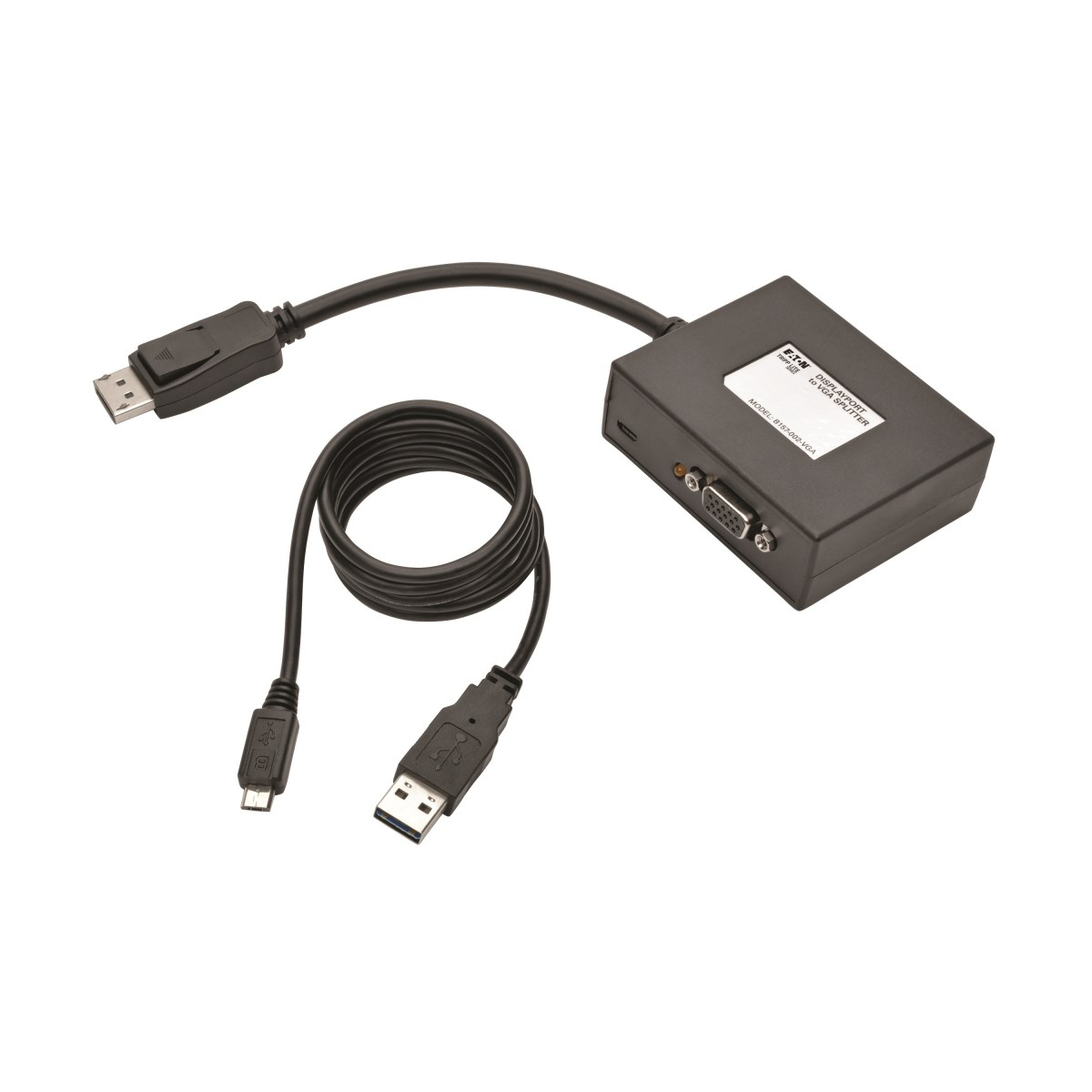

Cables includedMicro-USB
Video
Maximum refresh rate60 Hz
Supported graphics resolutions1920 x 1080 (HD 1080)
Maximum resolution1920 x 1080 pixels
Full HDYes
HDCPYes
Supported video modes1080p
Colour
Product colourBlack
Certificates
CertificationTAA, RoHS
Indication
LED indicatorsStatus
Technical details
Connection to PCYes
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Video out2x VGA
Plug and PlayYes
System requirements
Windows operating systems supportedYes
Mac operating systems supportedYes
Weight & dimensions
Package weight9.52 oz (270 g)
Package depth5.6" (142.2 mm)
Package width7.9" (200.7 mm)
Package height1.7" (43.2 mm)
Logistics data
Master (outer) case width18" (457.2 mm)
Master (outer) case length8.4" (213.4 mm)
Master (outer) case height6" (152.4 mm)
Master (outer) case gross weight6 lbs (2.72 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332191493
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
