Tripp Lite B155-004-DP-V2 video splitter Mini DisplayPort 4x DisplayPort

Tripp Lite B155-004-DP-V2 video splitter Mini DisplayPort 4x DisplayPort

-Port Mini DisplayPort 1.2 to DisplayPort Multi-Stream Transport (MST) Hub, 3840 x 2160 (4K x 2K) UHD

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

4-PORT MINI DISPLAYPORTTO DISPLAYPORT MULTISTREAM TRANSPORT HUB

 814871 Register free see stock

Related Products

Description

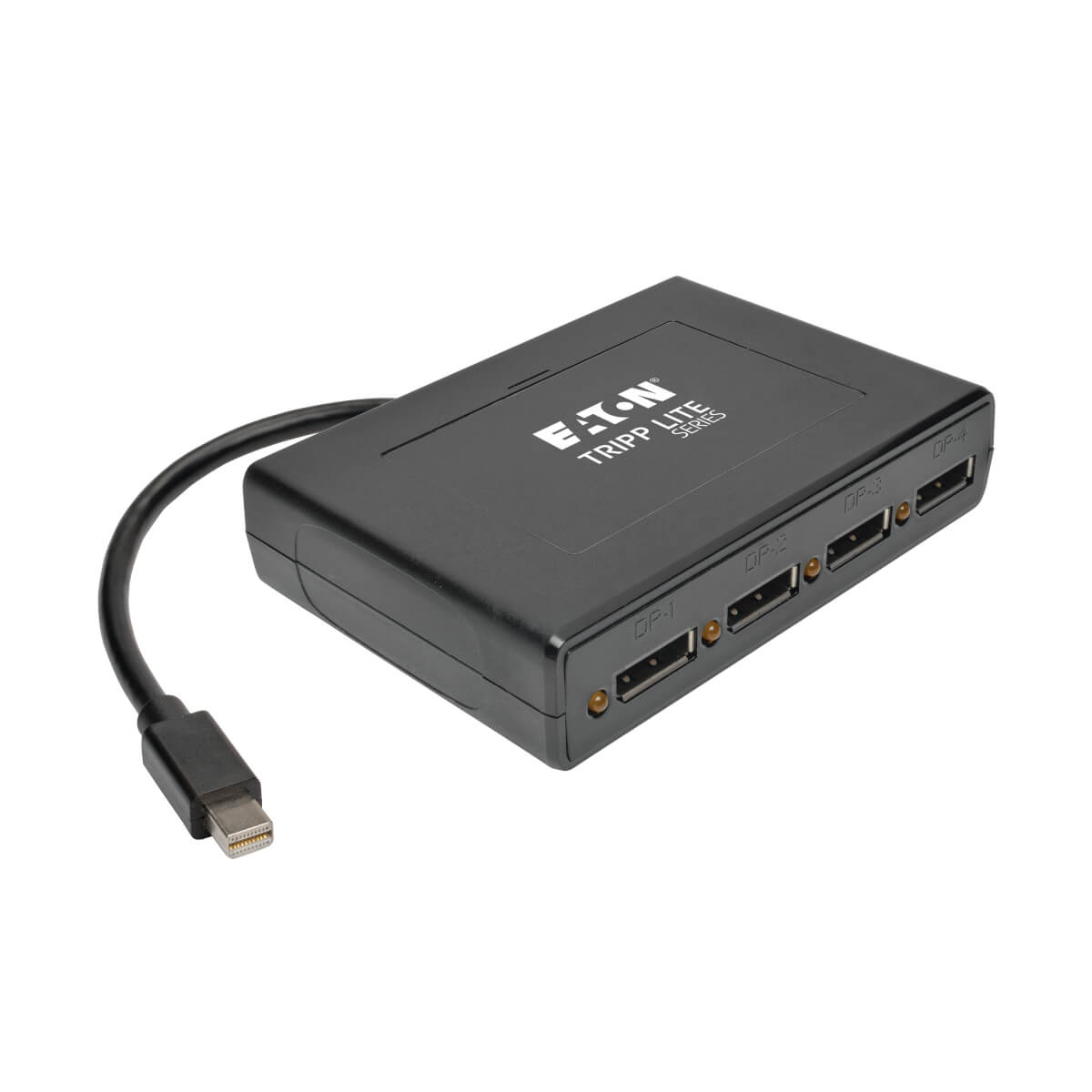

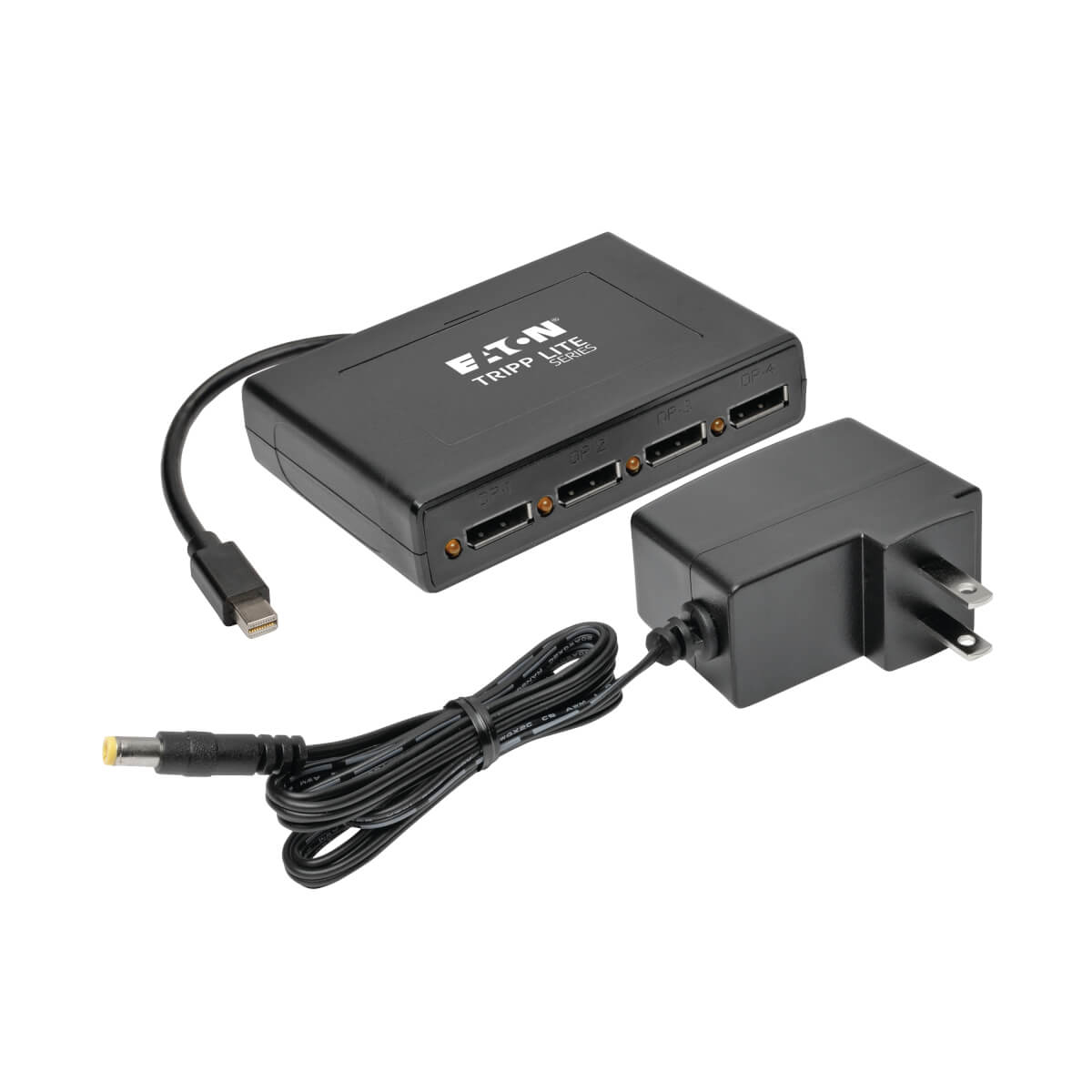

The B155-004-DP-V2 4-Port Mini DisplayPort 1.2 to DisplayPort MST Hub connects four DisplayPort monitors to the Mini DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four into one large monitor in video wall mode.

The B155-004-DP-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor. In video wall mode, this hub supports expanded video resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.

This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a Mini DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B155-004-DP-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Connects Up to 4 DisplayPort Monitors to Your Computer’s Mini DisplayPort
- Ideal for digital signs in schools, churches, conference rooms, trade shows and retail settings

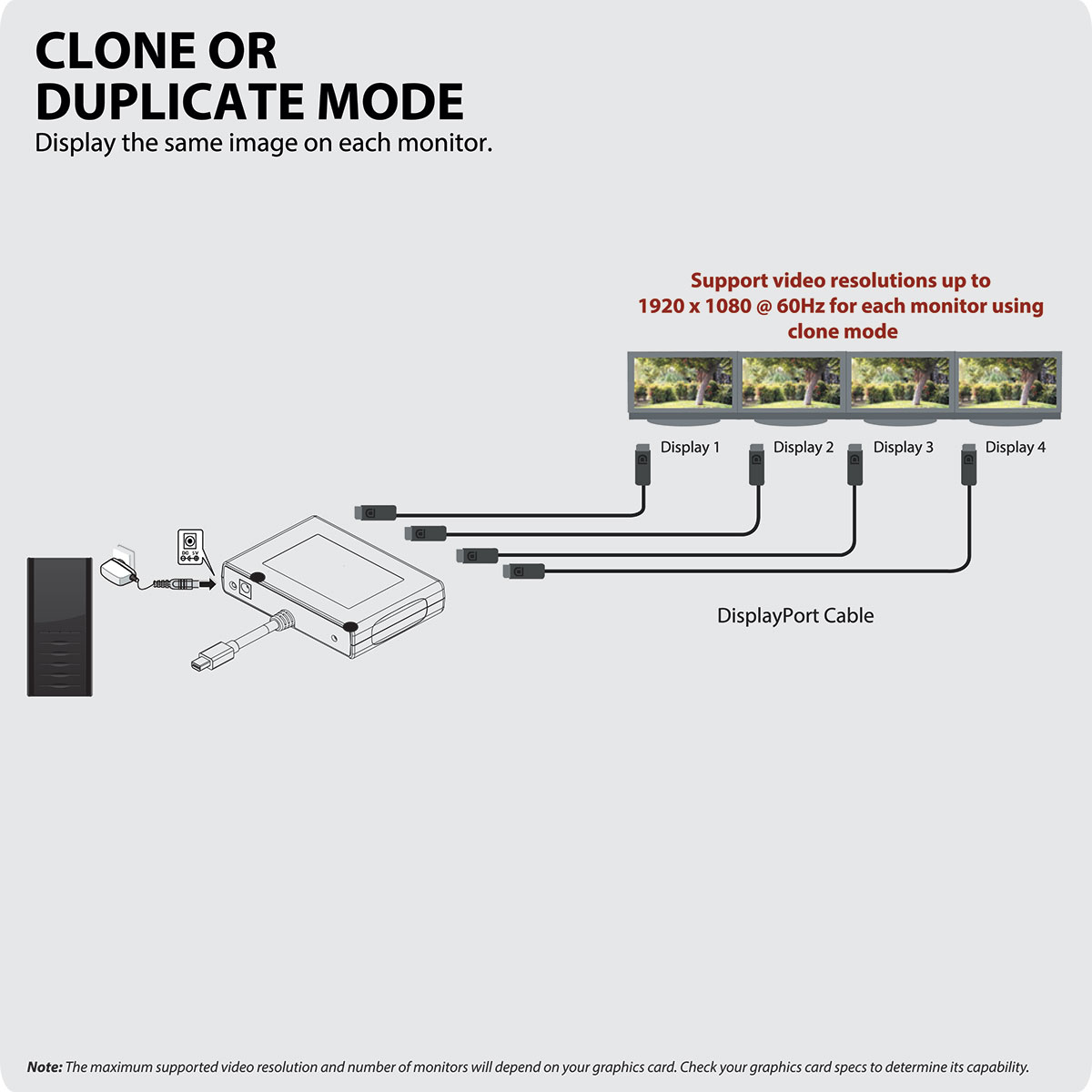

- Displays same image on 4 monitors simultaneously in mirror mode

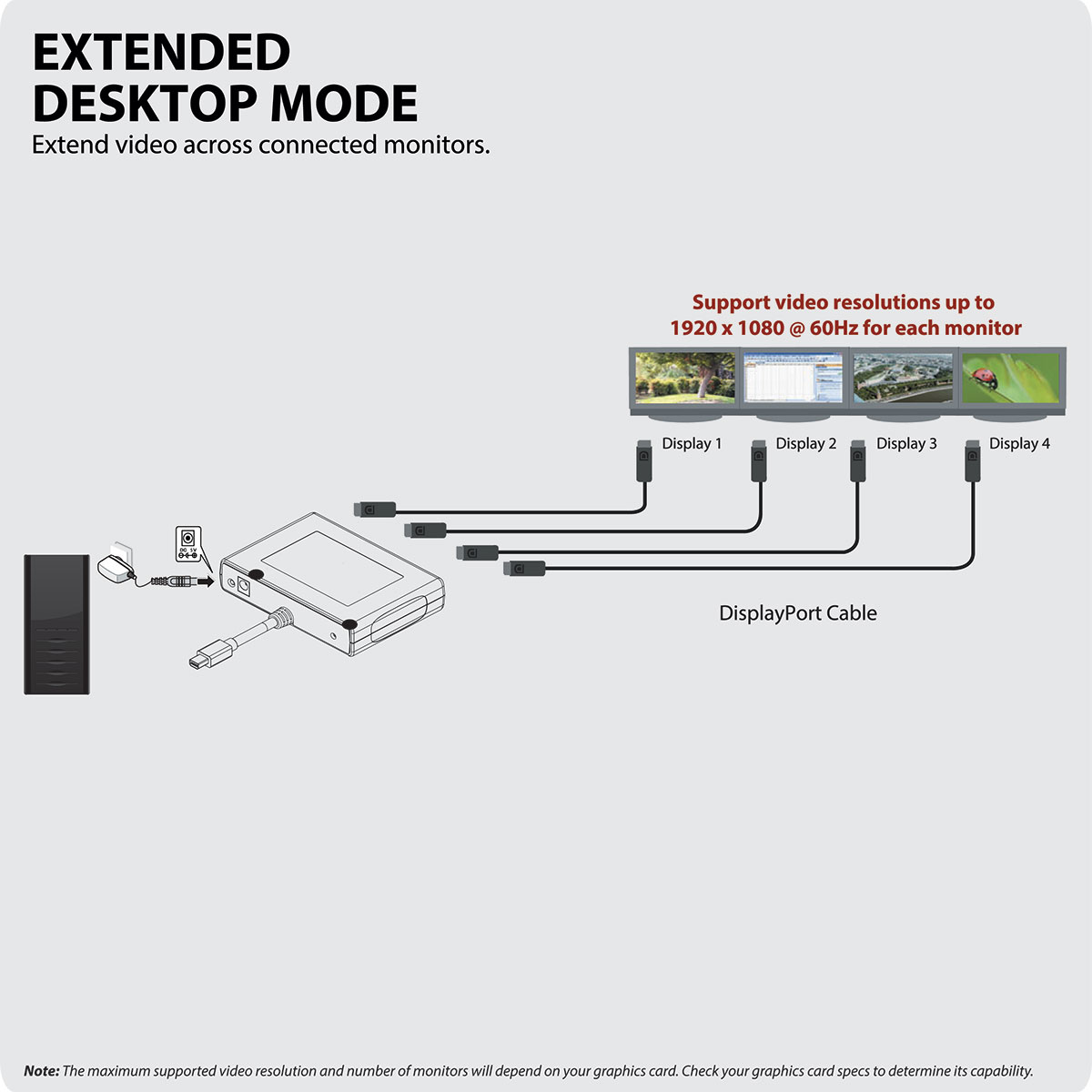

- Extends desktop across 4 monitors in extended mode

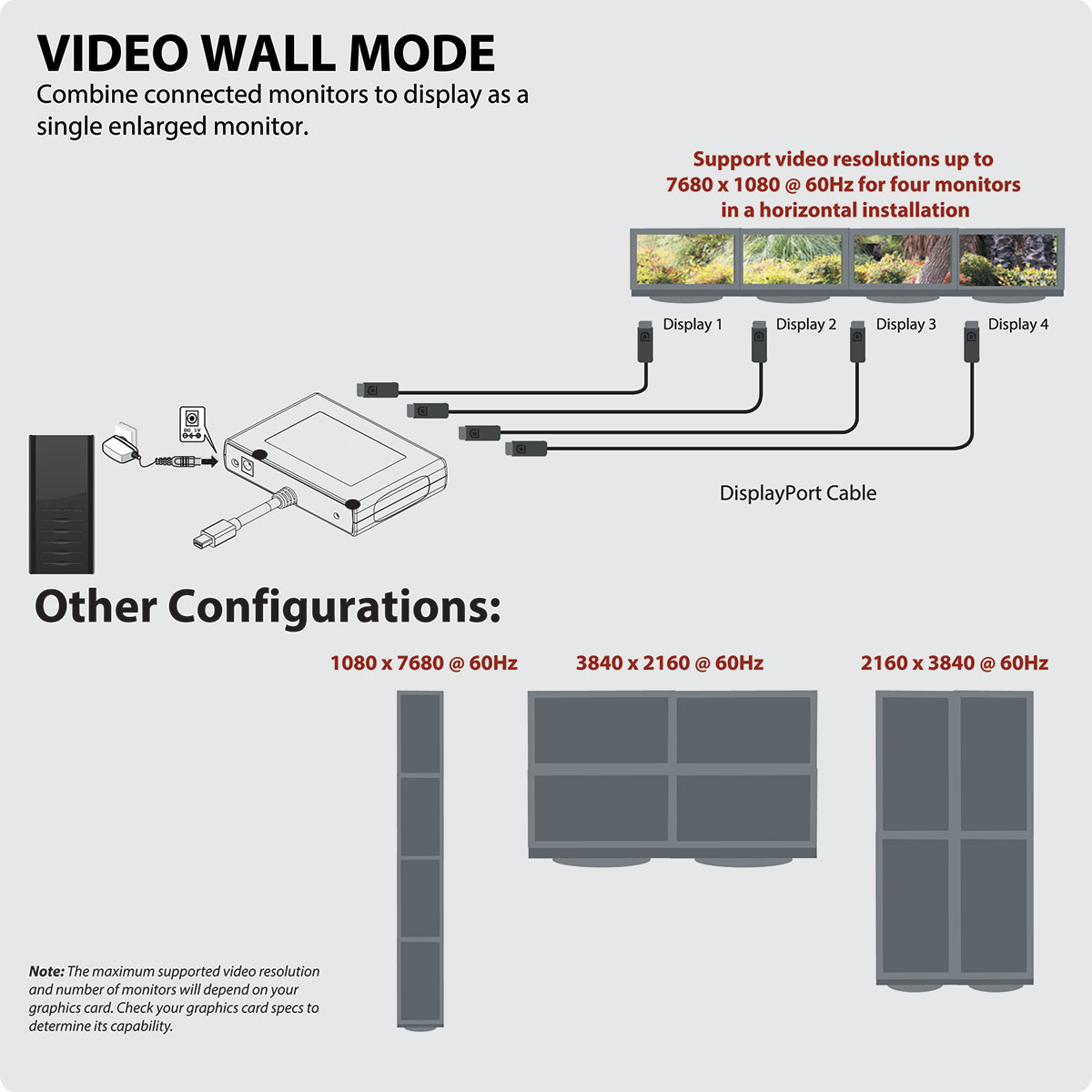

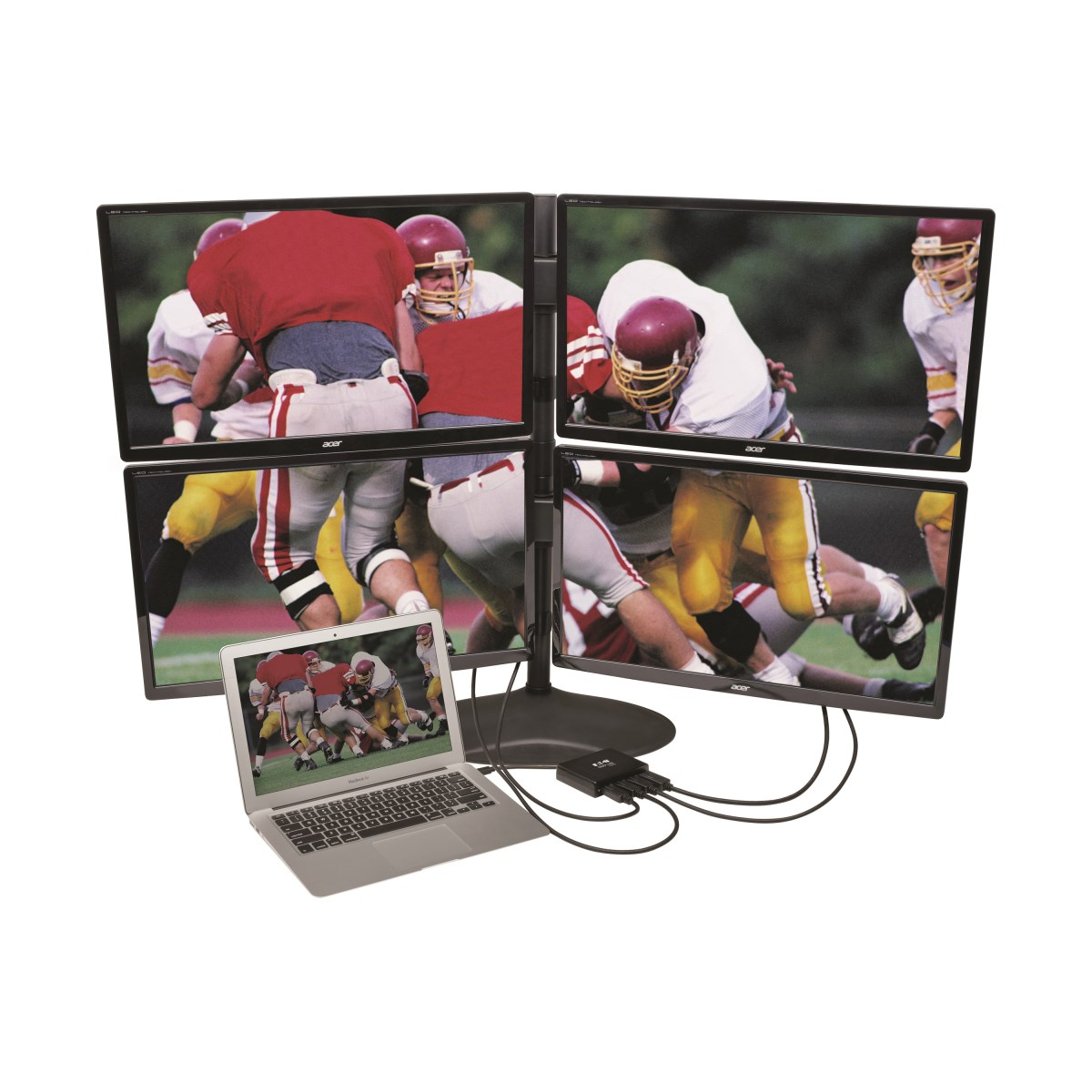

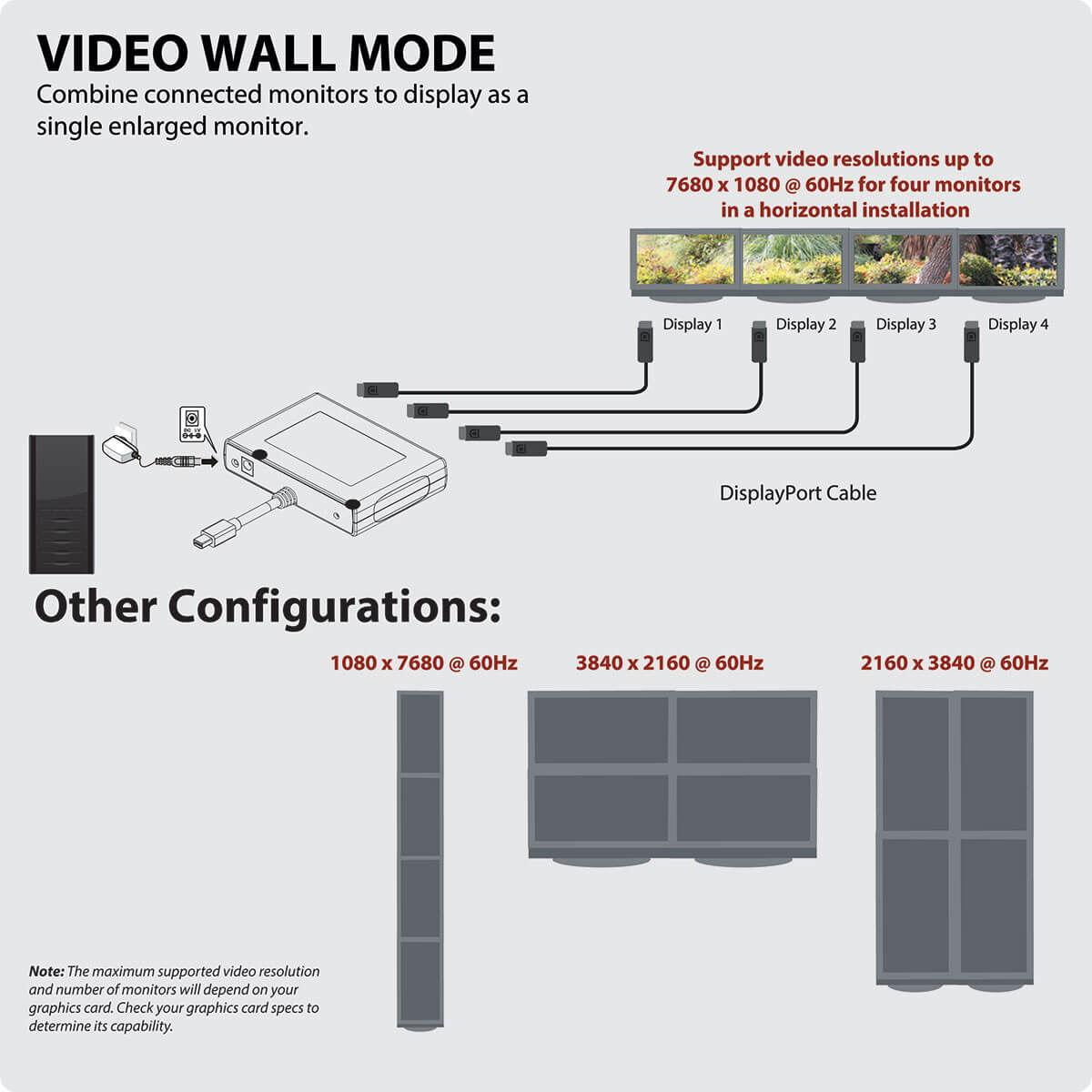

- Combines 4 monitors into one large monitor in video wall mode

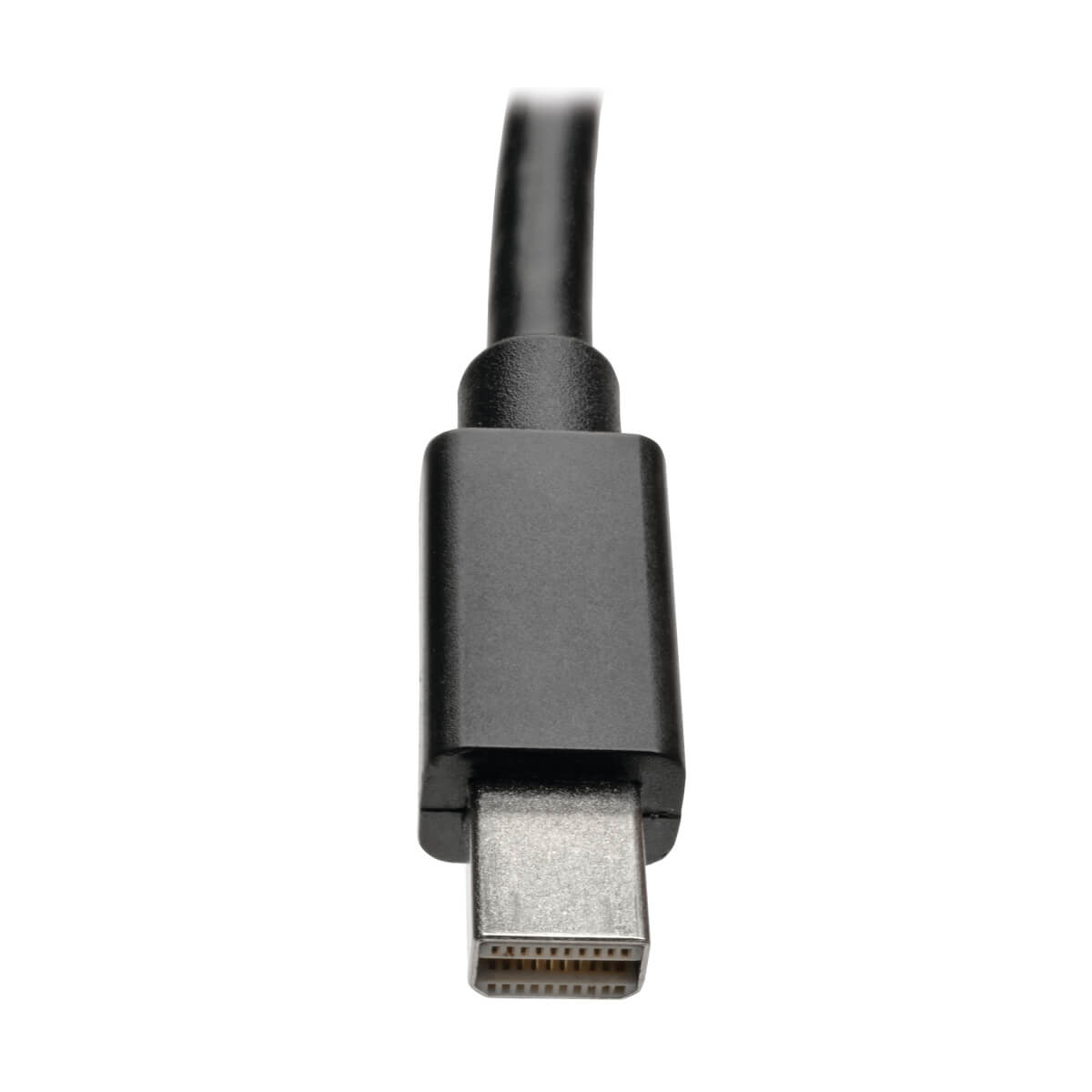

- Built-in 6 in. cable connects directly to Mini DisplayPort source

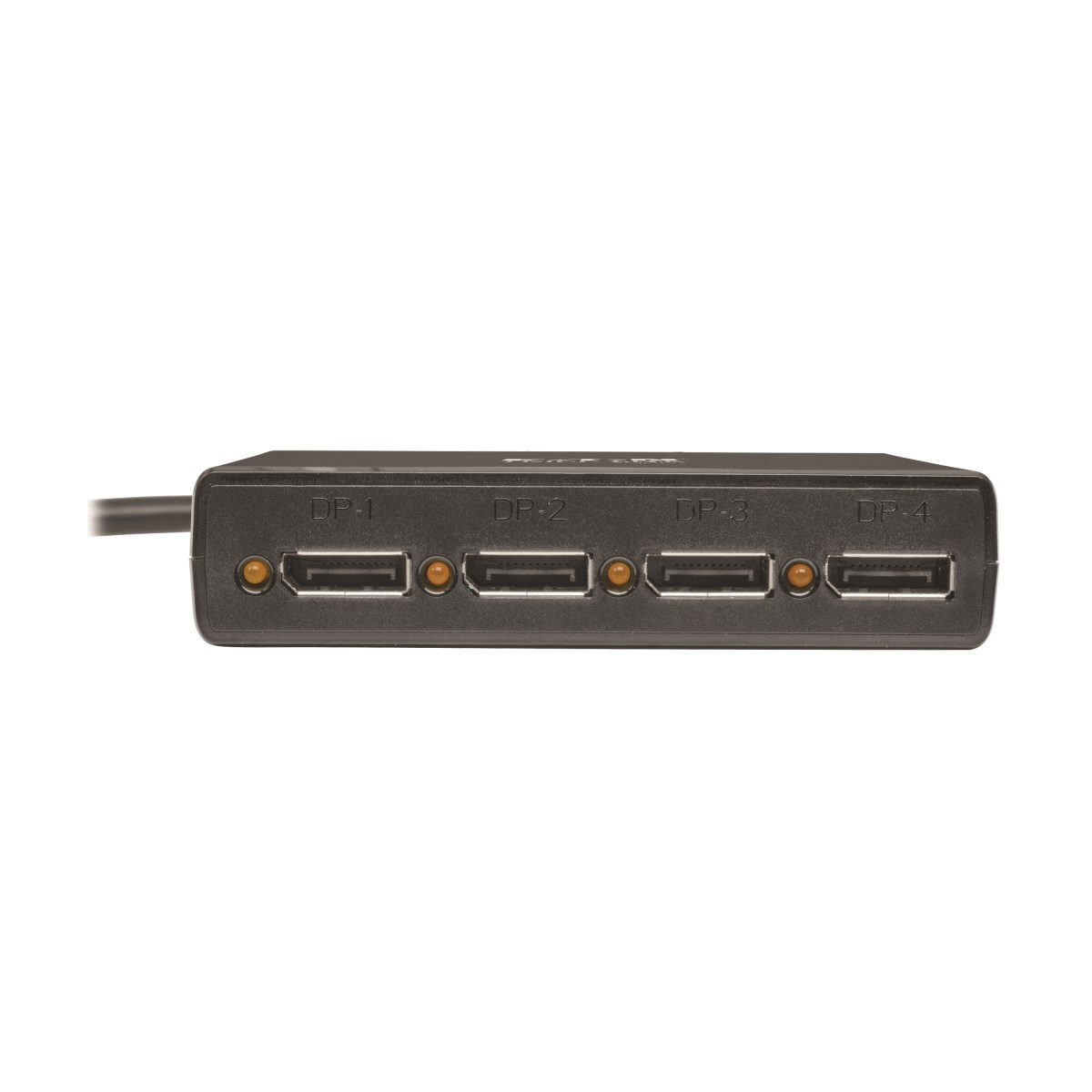

- LEDs indicate when monitors are receiving a signal

Meets the Latest Performance Standards
- Supports HD video resolutions up to 1920 x 1080 per monitor

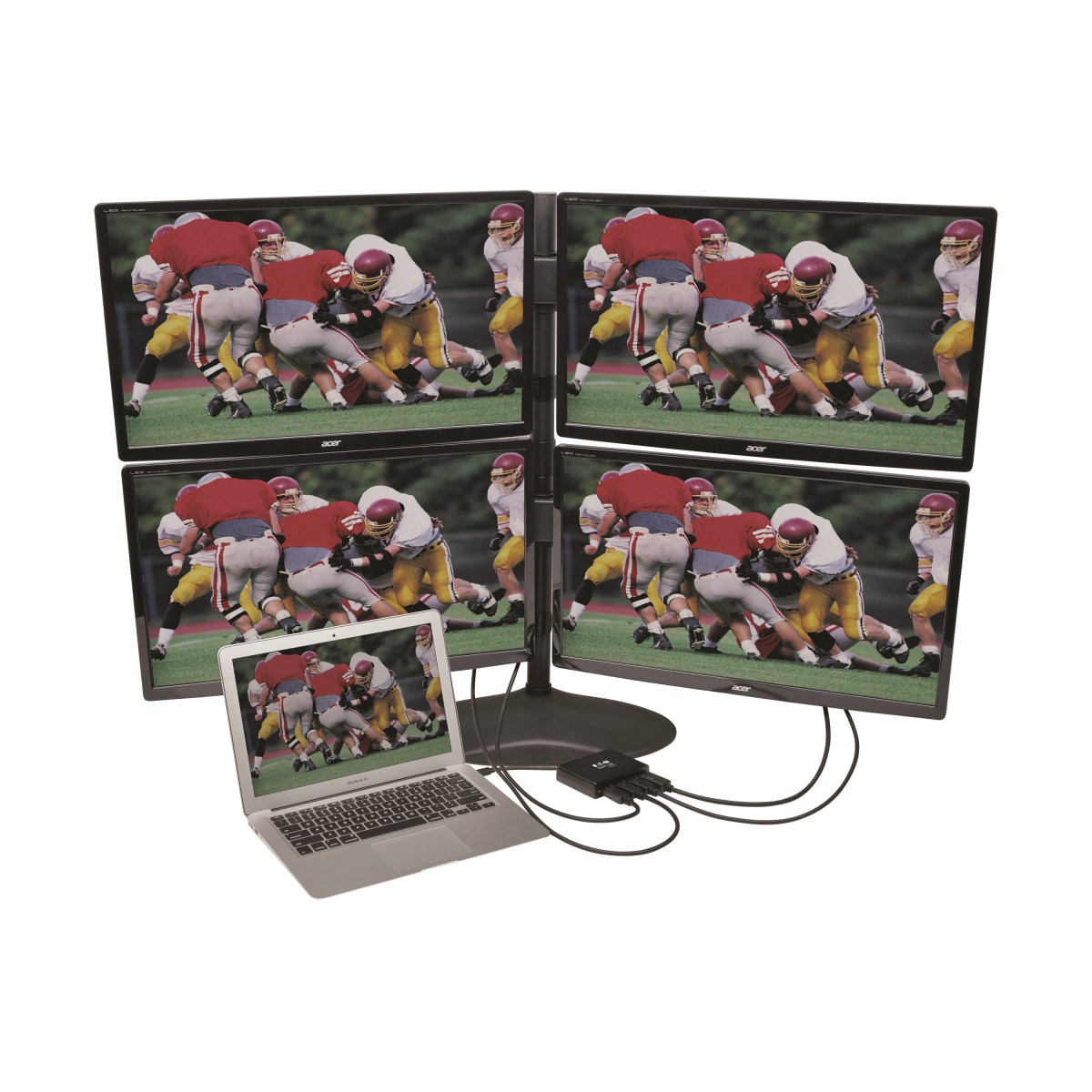

- Supports expanded resolutions in video wall mode, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration
- Supports HDCP, EDID and DDC
- Supports 48-bit Deep Color (16 bits per channel)
- Supports DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
- Backward compatible with DisplayPort 1.1 and 1.1a

Easy to Use Almost Anywhere
- Works with all operating systems
- Plug and play—no software or drivers required

TAA Compliant
Complies with Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Ports & interfaces
Video ports quantity4
Video port typeMini DisplayPort
Video out4x DisplayPort
Connector(s)Mini DisplayPort 1.2
Cable length5.91" (0.15 m)
Features
Dolby technologiesDTS-HD, Dolby TrueHD
Colour depth48 bit
Supported graphics resolutions1920 x 1080 (HD 1080), 3840 x 2160
Maximum resolution3840 x 2160 pixels
Full HDYes
HDCPYes
Supported video modes1080i, 1080p
Plug and PlayYes
Product colourBlack
CertificationCE, FCC, RoHS, REACH
Cable length5.91" (0.15 m)
Country of originTaiwan
Power
Input current0.5 A
Output current2 A
USB poweredNo
Output voltage5 V
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Weight & dimensions
Weight4.94 oz (140 g)
Dimensions (WxDxH)4.29 x 3 x 0.945" (109 x 76.2 x 24 mm)
Package weight12.7 oz (360 g)
Package depth6.4" (162.6 mm)
Package width2.17" (55.1 mm)
Package height8.3" (210.8 mm)
Packaging data
Package weight12.7 oz (360 g)
Package depth6.4" (162.6 mm)
Package width2.17" (55.1 mm)
Package height8.3" (210.8 mm)
Video
Colour depth48 bit
Supported graphics resolutions1920 x 1080 (HD 1080), 3840 x 2160
Maximum resolution3840 x 2160 pixels
Full HDYes
HDCPYes
Supported video modes1080i, 1080p
Colour
Product colourBlack
Certificates
CertificationCE, FCC, RoHS, REACH
Technical details
Dolby technologiesDTS-HD, Dolby TrueHD
Supported audio channels7.1
Package width2.17" (55.1 mm)
Package height8.3" (210.8 mm)
Video out4x DisplayPort
Plug and PlayYes
Logistics data
Master (outer) case width6.8" (172.7 mm)
Master (outer) case length22.5" (571.5 mm)
Master (outer) case height9.1" (231.1 mm)
Master (outer) case gross weight8.51 lbs (3.86 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332193404
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
