Tripp Lite B126-2A0 AV extender AV receiver Black

Tripp Lite B126-2A0 AV extender AV receiver Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B126-2A0
  • EAN: 0373321807284 0037332180728
2-Port HDMI over Cat5 / Cat6 Active Extender / Splitter, Remote Receiver for Video and Audio, 1080p @ 60 Hz, Up to 60.96 m (200-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

2-PORT HDMI OVER CAT5 ACTIVEEXTENDER, REMOTE UNIT

 641794 Register free see stock

Related Products

Description

The B126-2A0 HDMI over Cat5/Cat6 Active Remote Receiver works with Tripp Lite’s B126-002 or B126-004 transmitter to extend an HDMI signal and split it to two projectors, monitors or televisions. It’s ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source. The receiver uses HDMI cable (see Tripp Lite’s P568-Series) to connect to the monitors and Cat5e/6 cable to receive the signal from the transmitter or a remote repeater in the chain (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series).The B126-2A0 can extend a 1080i (60 Hz) signal up to 60.96 m (200-ft.), a 1080p (60 Hz) signal up to 45.72 m (150-ft.) and a 3D signal up to 38.1 m (125-ft.) You can connect up to three B126-110 remote repeaters in the chain for a maximum of six HDMI displays and full signal extension of 213.36 m (700-ft.) (1080i), 152.4 m (500-ft.) (1080p) or 121.9 m (400-ft.) (3D).In addition to crystal-clear video, the B126-2A0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- Built-in equalization control lets you adjust monitor image

- Works in tandem with Tripp Lite’s B126-002 or B126-004 transmitter unit
- Extends a 1080i (60 Hz) signal up to 200 ft., a 1080p (60 Hz) signal up to 45.72 m (150-ft.) and a 3D signal up to 38.1 m (125-ft.)
- Connect up to 3 B126-110 remote repeaters to the chain for maximum signal range of 213.36 m (700-ft.) (1080i), 152.4 m (500 feet) (1080p) and 121.9 m (400 feet) (3D)
- Connects to previous link in the chain with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Works with all operating systems and HDMI video sources
- Supports HD resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter
- Supports 24-bit True Color (8 bits per channel) and HDCP

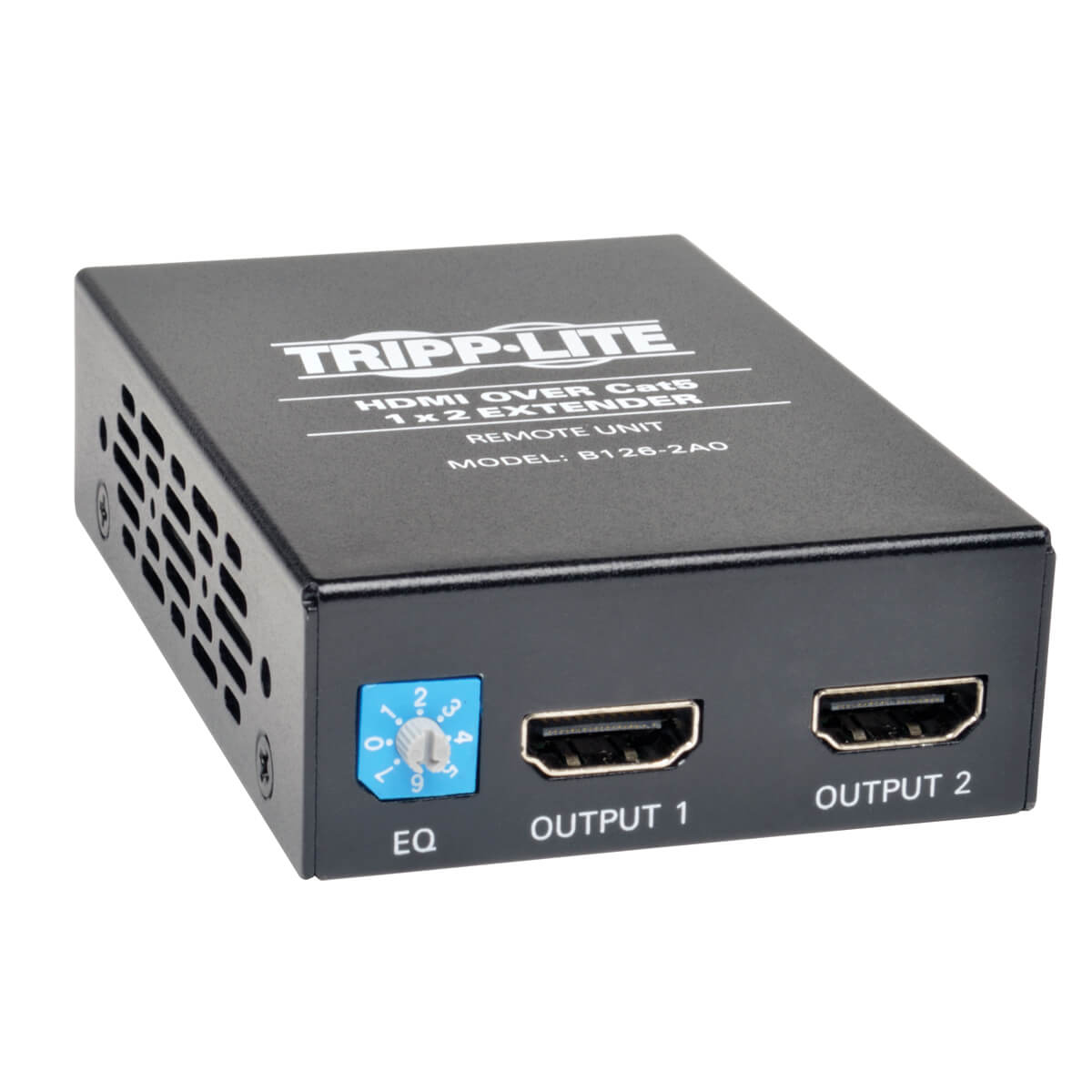

- Built-in equalization control lets you adjust the image on the local monitor
- Plug-and-play engineering—no software or drivers to download and install
- Connects quickly to monitors with HDMI cable, such as Tripp Lite’s P568-Series

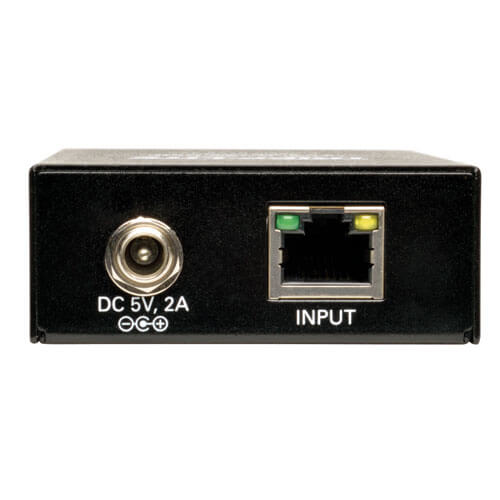

- LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain
- Included mounting hardware lets you install the unit on a wall, rack or pole
- International AC Adapter B110-INT required for use with UK, European, and Australian power connections

Specifications

Features
TypeAV receiver
Maximum resolution1920 x 1200 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance2401.6" (61 m)
Product colourBlack
Ports & interfaces
RJ-45 input ports1
Number of HDMI outputs2
DC-in jackYes
Power
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Operating voltage5 V
Current2 A
Operational conditions
Operating relative humidity (H-H)20 - 90%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Weight & dimensions
Width2.5" (63.5 mm)
Height1" (25.4 mm)
Depth3.6" (91.4 mm)
Weight6.35 oz (180 g)
Dimensions (WxDxH)1 x 2.5 x 3.6" (25.4 x 63.5 x 91.4 mm)
Packaging data
Package depth7.2" (182.9 mm)
Package width6.3" (160 mm)
Package height2.2" (55.9 mm)
Package weight19 oz (540 g)

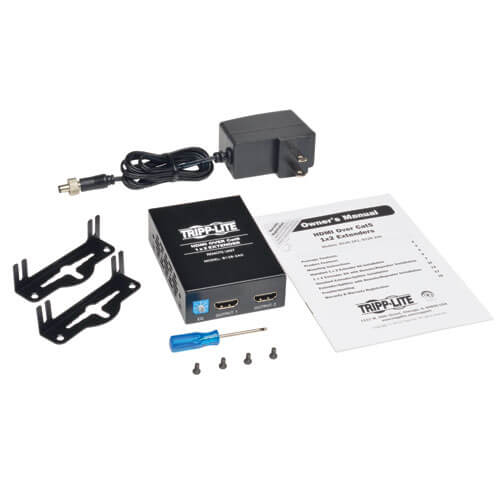

Packaging content
Warranty cardYes
AC adapter includedYes
ManualYes
Technical details
Country of originTaiwan
Logistics data
Master (outer) case width13.4" (340.4 mm)
Master (outer) case length22.8" (579.1 mm)
Master (outer) case height8.7" (221 mm)
Master (outer) case gross weight22 lbs (10 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332180725
