Tripp Lite SRW10US rack cabinet 10U Wall mounted rack Black

Tripp Lite SRW10US rack cabinet 10U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRW10US
  • EAN: 0037332154828 0373321548286
SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "SMARTRACK 10U WALL MT CABINETADJUSTABLE MOUNTING DEPTH FROM3"" TO 20.5"" INCHES" 452678 Register free see stock
Arlington Industries 10U HINDGED 20.5" WALL MOUNT RACK TRPSRW10US
ASI Corp Tripp Lite Accessory SRW10US 10U Wall Mount Rack Enclosure Cabinet Retail 106031
BlueStar TRIPP LITE, CABINET, 10U WALL MOUNT/RACK ENCLOSURE SRW10US
D&H SmartRack 10U Wall Mount Enclo SRW10US
Ingram Micro 10U WALL MOUNT RACK ENCLOSURE DF0820
ScanSource Tripp Lite 10U Wall Mount Rack Enclosure POW-SRW10US
TD Synnex 10U WM RACK ENCLOSURE W/ HINGED BACK 2740950

Related Products

Description

The SRW10US SmartRack® 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

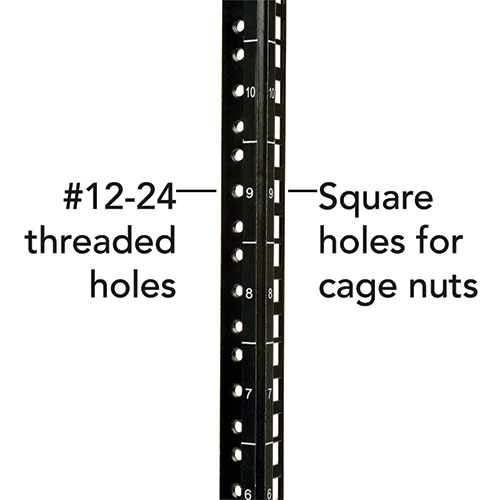

The SRW10US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

Specifications

Weight & dimensions
Package depth24.1" (612.9 mm)
Package width26.4" (670.1 mm)
Package height24.3" (616 mm)
Package weight59.1 lbs (26.8 kg)
Width23.6" (600.2 mm)
Depth21.6" (549.4 mm)
Height21.6" (547.6 mm)
Weight53.4 lbs (24.2 kg)
Maximum weight capacity200 lbs (90.7 kg)
Features
Rack capacity10U
TypeWall mounted rack
Maximum weight capacity200 lbs (90.7 kg)
Product colourBlack
CertificationEIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20, UL 60950
Packaging data
Package depth24.1" (612.9 mm)
Package width26.4" (670.1 mm)
Package height24.3" (616 mm)
Package weight59.1 lbs (26.8 kg)
Technical details
Package width26.4" (670.1 mm)
Package height24.3" (616 mm)
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity10U
Colour
Product colourBlack
Certificates
CertificationEIA-310-E, IEC 60297-3-100, RoHS, DIN 41494, IP20, UL 60950
Logistics data
Master (outer) case width26.4" (670.1 mm)
Master (outer) case length24.1" (612.9 mm)
Master (outer) case height24.3" (616 mm)
Master (outer) case gross weight59.1 lbs (26.8 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
