Tripp Lite SRW26USDPG rack cabinet 26U Wall mounted rack Black

Tripp Lite SRW26USDPG rack cabinet 26U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRW26USDPG
  • EAN: 0037332189745
SmartRack 26U UPS-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 26U WALL MOUNT RACKENCLOSURE CABINET HINGEDDEEP ACRYLIC WINDOW 812739 Register free see stock
ASI Corp CS SRW26USDPG SmartRack 26U UPS-Depth Wall-Mount Half-Height Rack 264303
D&H 26U Wall Mount Rack Enc Cabint SRW26USDPG
Ingram Micro 26U WALL MOUNT RACK ENCLOSURE 4A0210
TD Synnex 26U WM RACK DEEP HINGED W/ACRYLIC WINDOW 4453563

Related Products

Description

The SRW26USDPG SmartRack® 26U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).

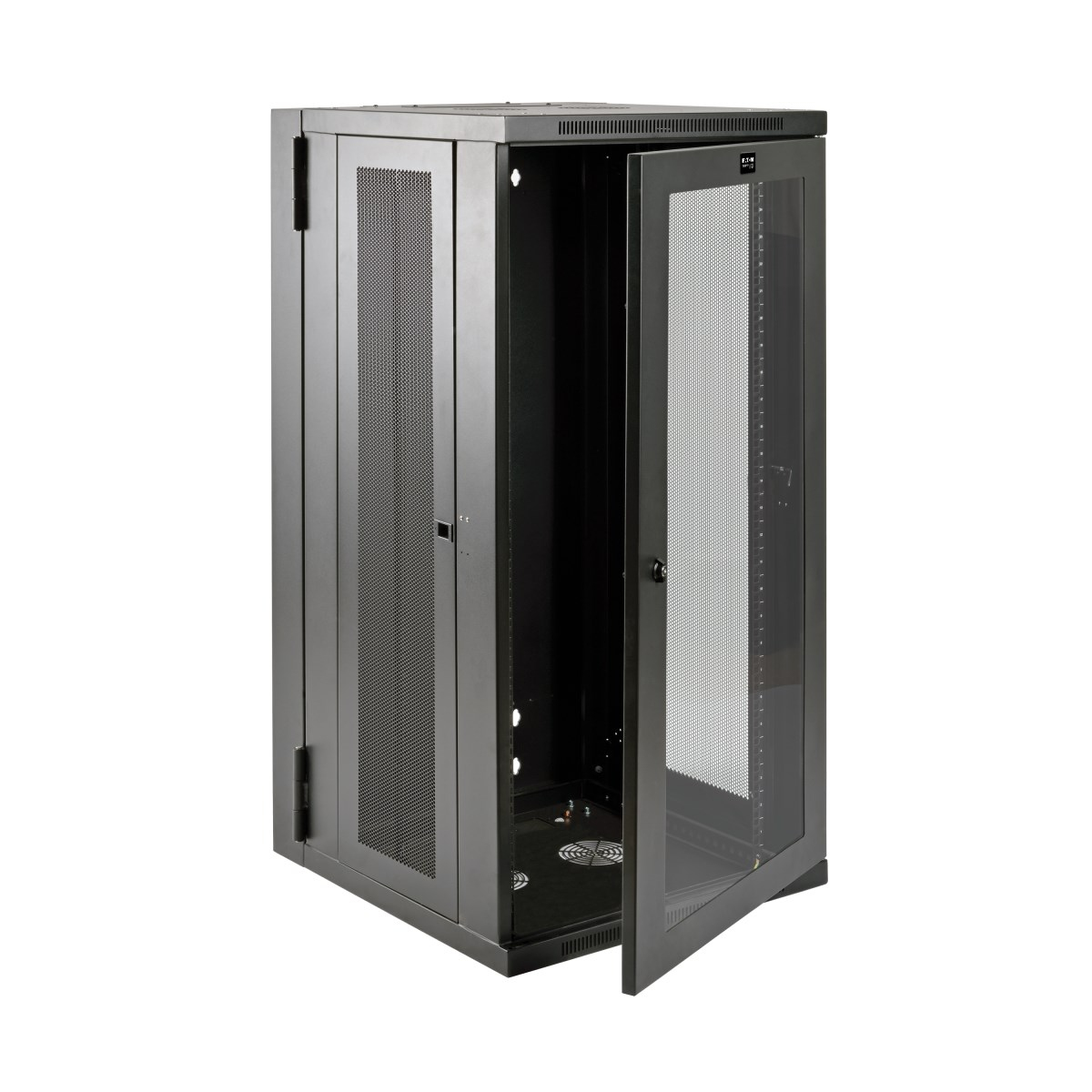

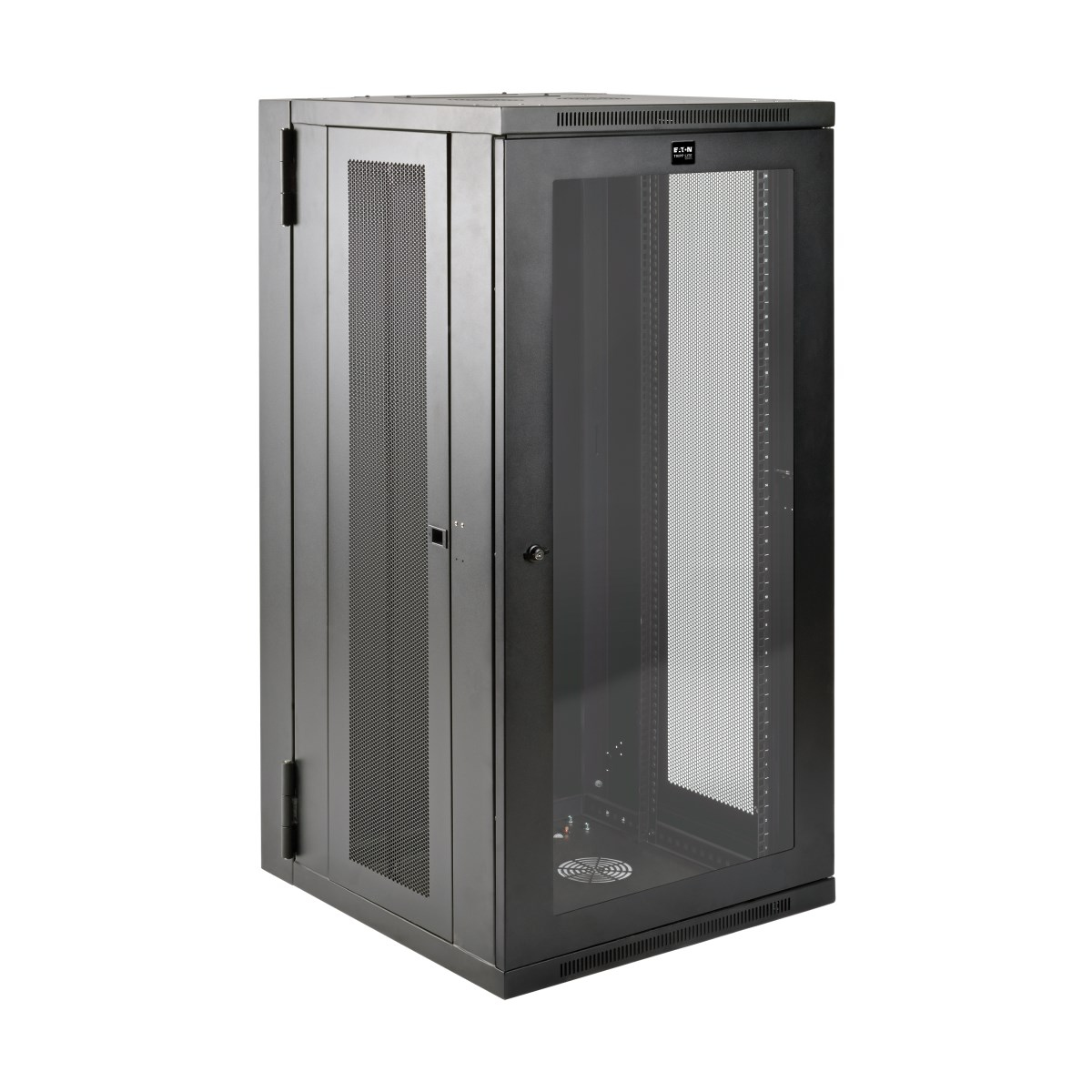

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

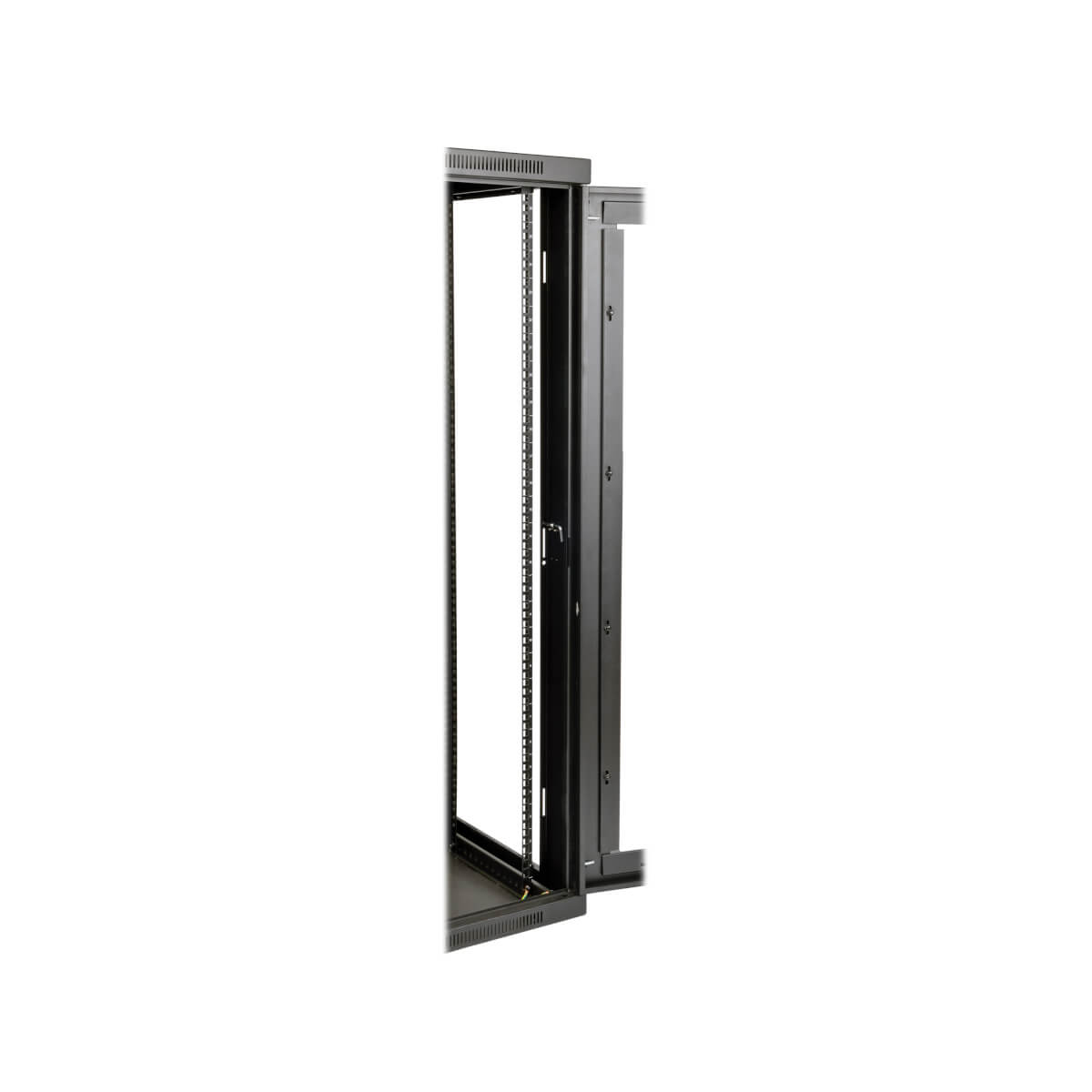

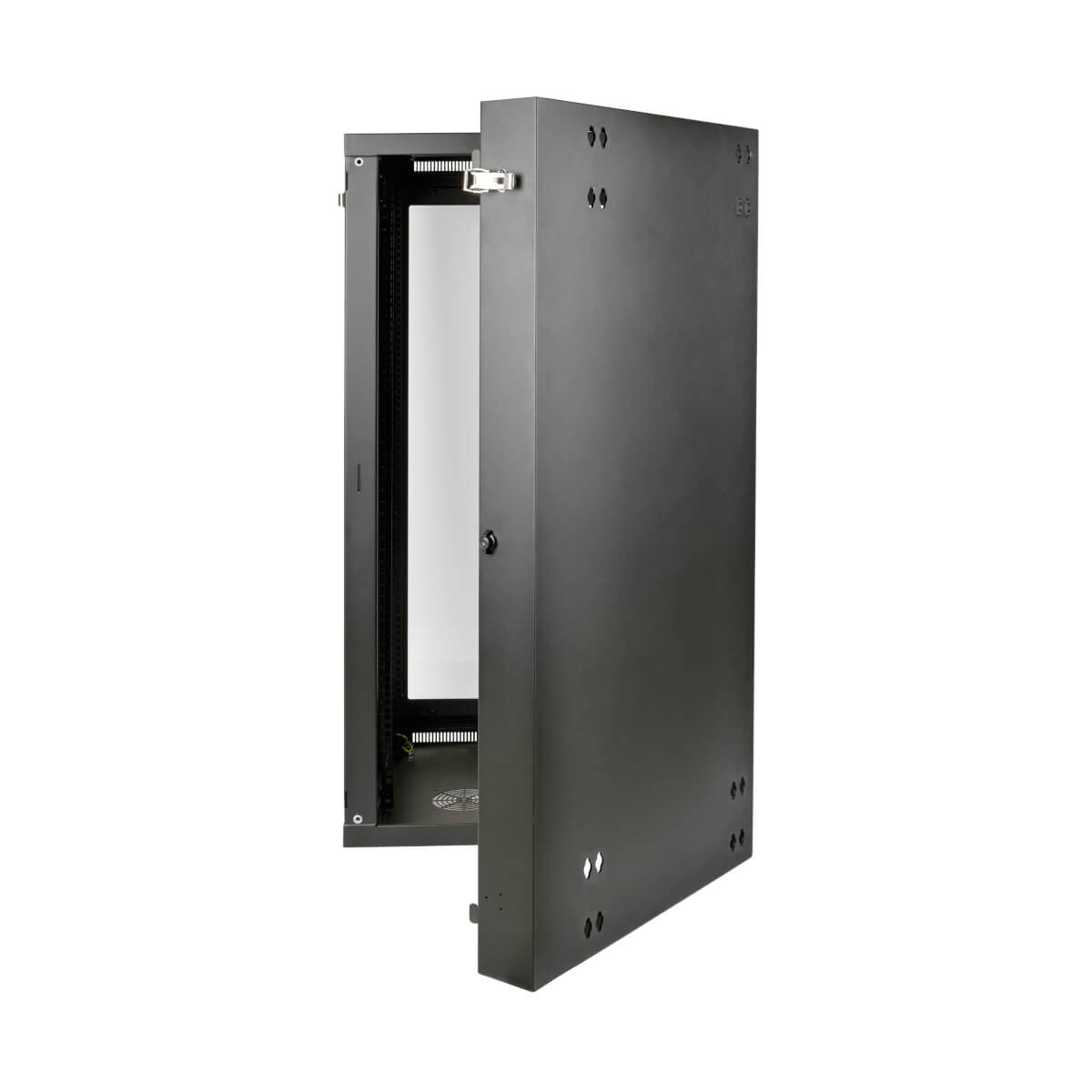

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW26USDPG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

Specifications

Weight & dimensions
Package depth29.9" (760 mm)
Package width27.9" (709.9 mm)
Package height55.1" (1400 mm)
Package weight158.1 lbs (71.7 kg)
Width23.6" (599.9 mm)
Depth25.5" (648 mm)
Height49.6" (1260.6 mm)
Weight123.7 lbs (56.1 kg)
Maximum weight capacity250 lbs (113.4 kg)
Packaging content
Wall mounting kitYes
ManualYes
Features
Key lockYes
Rack capacity26U
International Protection (IP) codeIP20
TypeWall mounted rack
Maximum weight capacity250 lbs (113.4 kg)
MaterialSteel
Product colourBlack
CertificationEIA-310-D, IEC 60297-3-100, RoHS
Packaging data
Wall mounting kitYes
ManualYes
Package depth29.9" (760 mm)
Package width27.9" (709.9 mm)
Package height55.1" (1400 mm)
Package weight158.1 lbs (71.7 kg)
Technical details
Package width27.9" (709.9 mm)
Package height55.1" (1400 mm)
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity26U
International Protection (IP) codeIP20
Colour
Product colourBlack
Certificates
CertificationEIA-310-D, IEC 60297-3-100, RoHS
Material
MaterialSteel
Logistics data
Master (outer) case width27.9" (709.9 mm)
Master (outer) case length29.9" (760 mm)
Master (outer) case height55.1" (1400 mm)
Master (outer) case gross weight158.1 lbs (71.7 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
