SmartRack 12U Switch-Depth Wall-Mount Small Rack Enclosure for Harsh Environments, Hinged Back, 230V

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTRACK 12U IP54SWITCH-DEPTH WALL-MOUNT RACKENCLOSURE CABINET 9808822 Register free see stock
D&H SmartRack 12U IP54 Swch Depth SRWX12USNEMA
Ingram Micro RACK ENCLOSURE SVR CABINET 8JQ226
TD Synnex 12U Rack Enclosure Hinged Back 230V 6740945

Related Products

Description

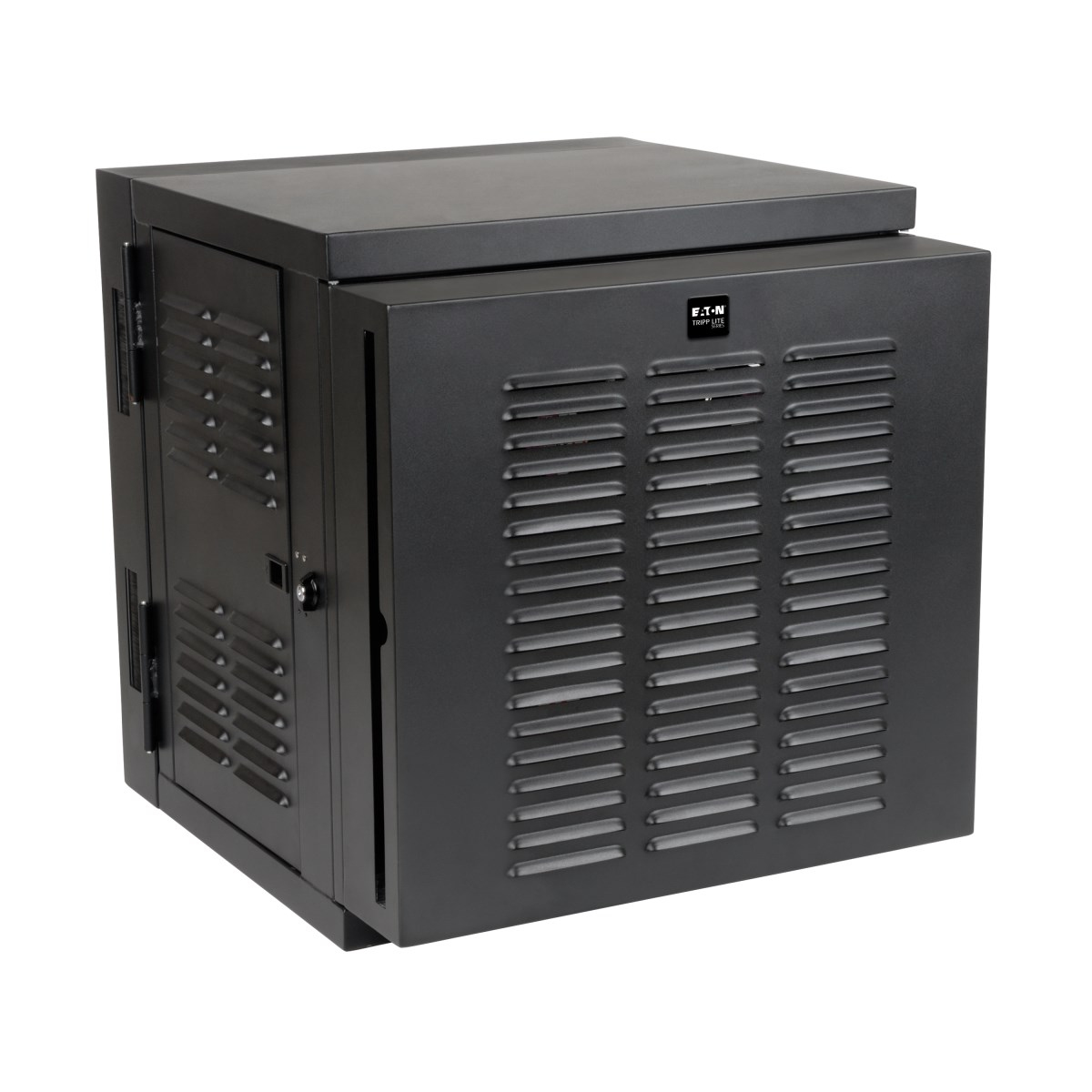

The SRWX12USNEMA SmartRack® Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house standard 19-inch (48.3 cm) rack equipment in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs and warehouses. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 lbs (90.7 kgs).

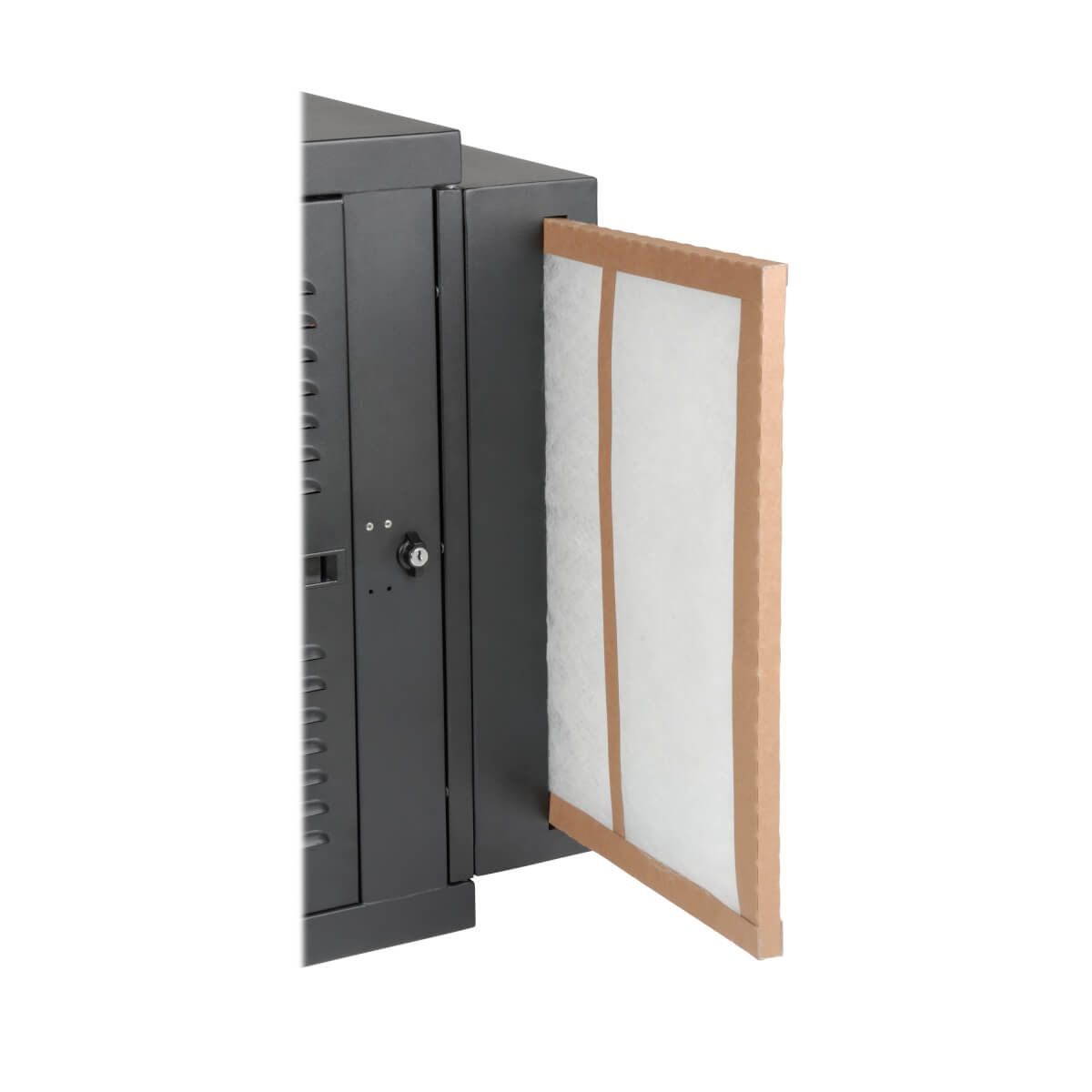

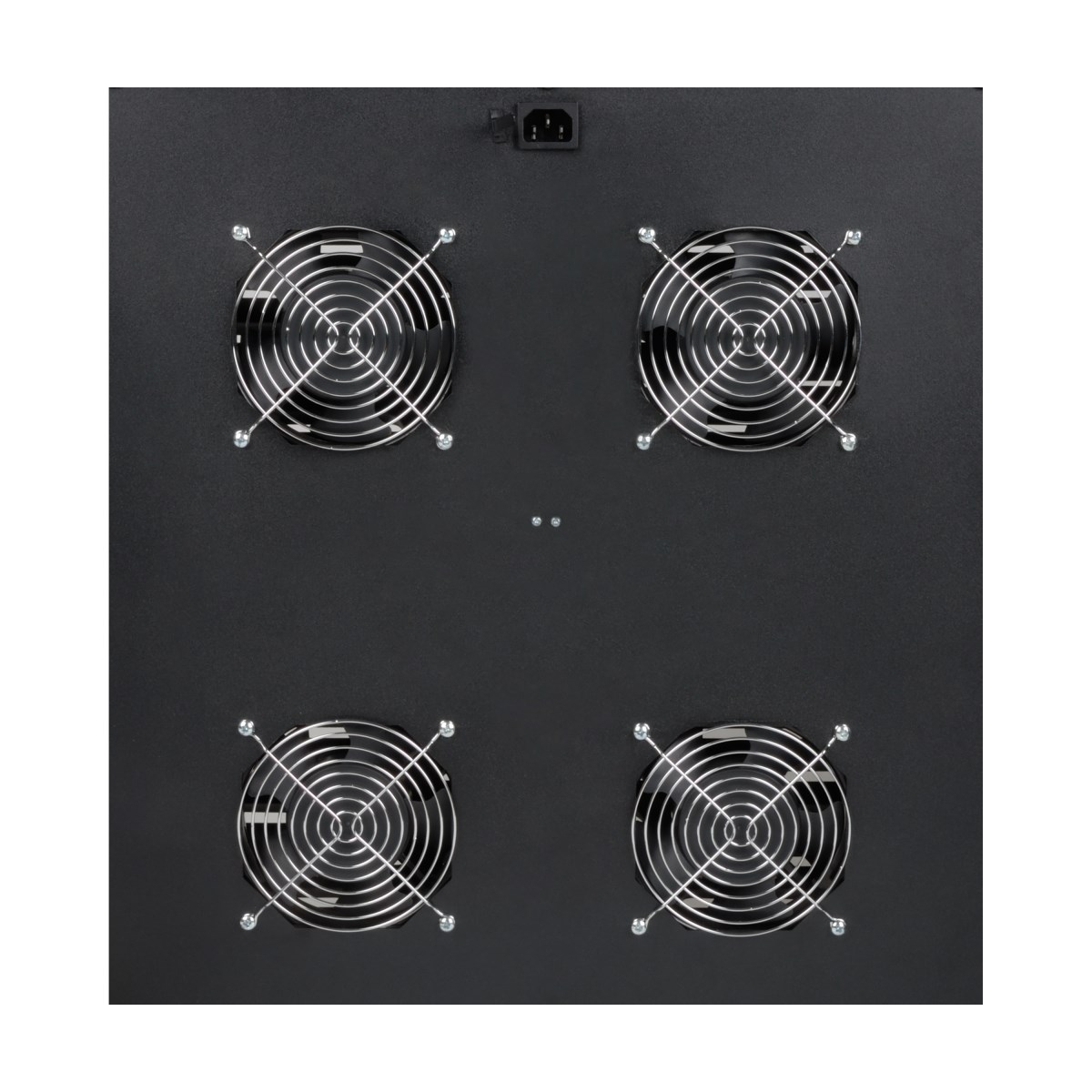

The SRWX12USNEMA protects sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its built-in air filters, louvered vents on the front door and side panels, sealed gasket around the door frames and brush strips around cable access points prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off-the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool.

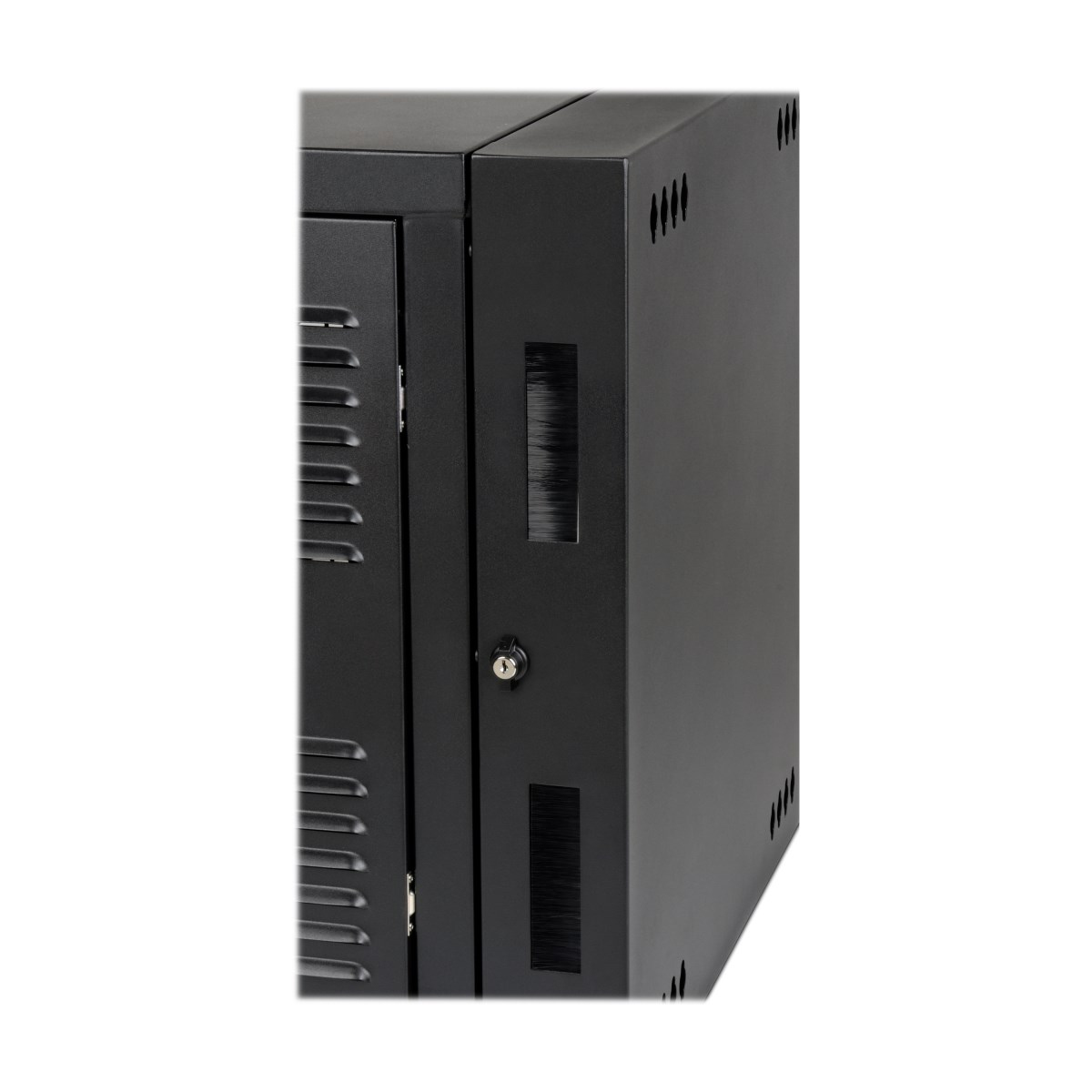

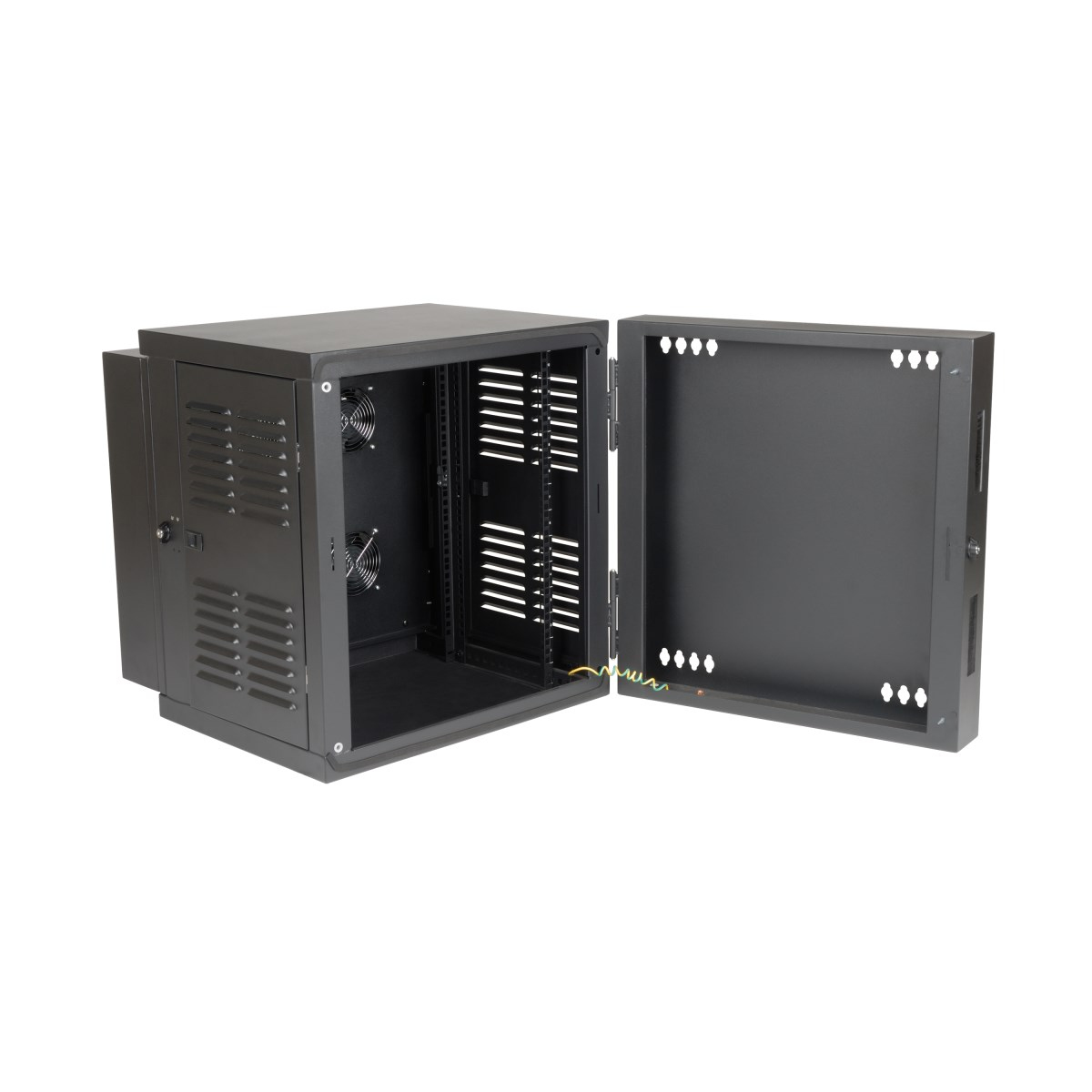

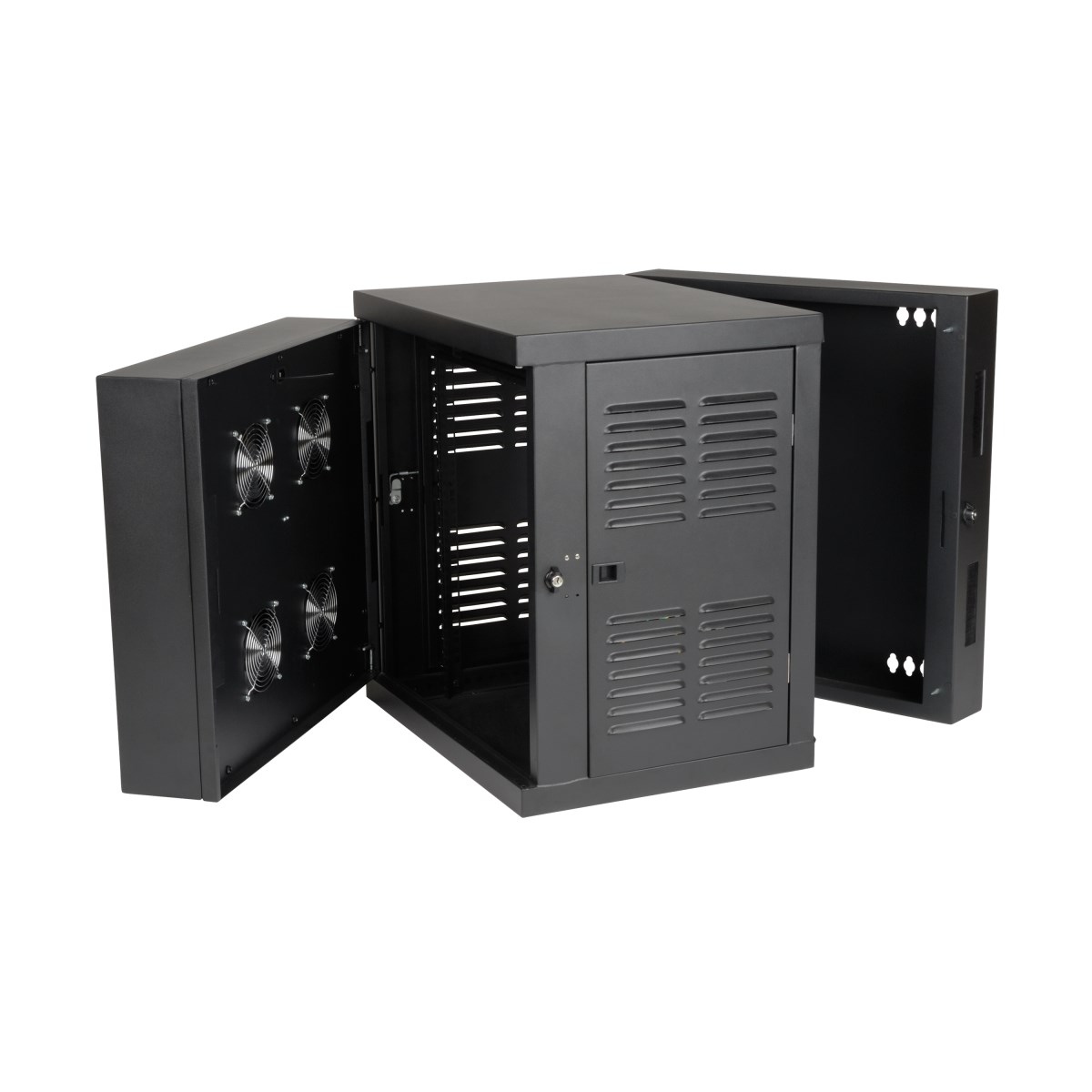

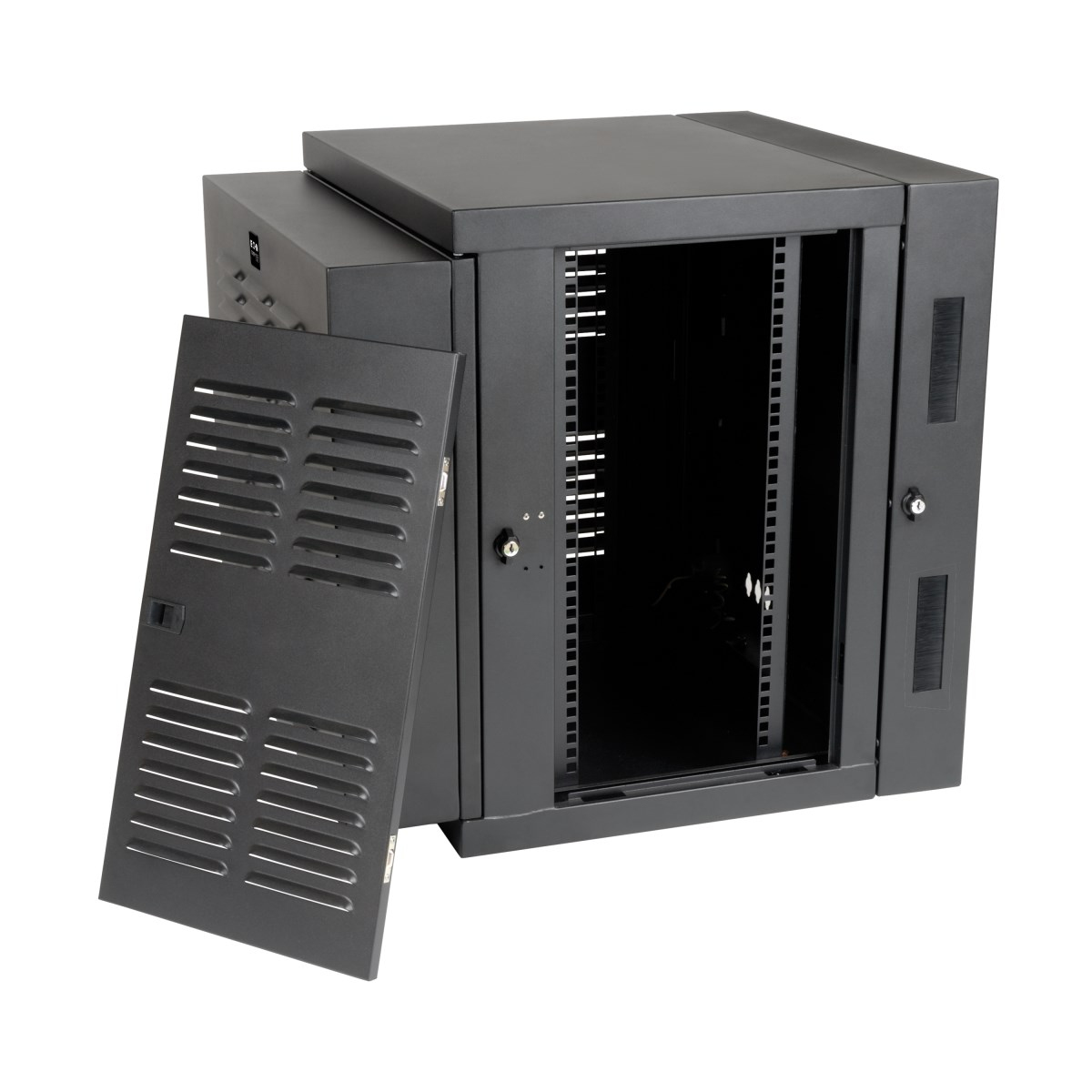

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The reversible doors can open left or right. The doors and side panels lock securely to help prevent damage, tampering or theft. Convenient ports on the back door allow easy cable routing.

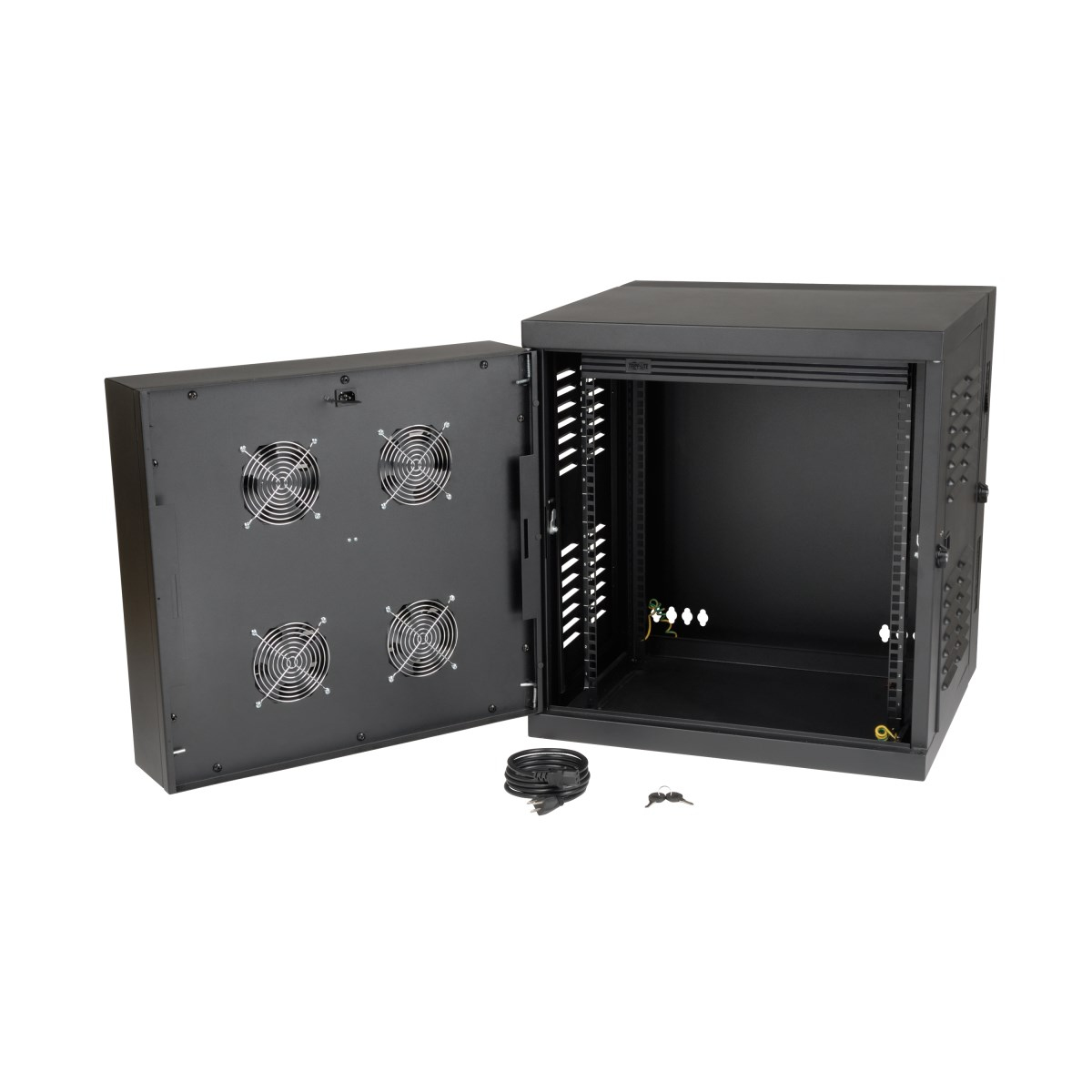

The SRWX12USNEMA comes fully assembled and ready to mount to the wall. Square mounting holes and numbered rack spaces make equipment installation easy. The adjustable vertical mounting rails house equipment up to 20.5 inches (52.1 cm) deep, such as network switches and patch panels.

Specifications

Features
Cables includedAC
Easy mountingYes
Compatible rack width19"
International Protection (IP) codeIP54
TypeRack cabinet
Rack capacity12U
Maximum weight capacity200 lbs (90.7 kg)
Product colourBlack
Built-in fanYes
LockingYes
Harmonized System (HS) code8517.79.0000
Country of originChina
Cooling
Built-in fanYes
Weight & dimensions
Package width26" (660.4 mm)
Package height28" (711.2 mm)
Package depth29" (736.6 mm)
Package weight93 lbs (42.2 kg)
Width23.6" (600 mm)
Weight81.1 lbs (36.8 kg)
Height25.1" (637 mm)
Depth26.4" (671.1 mm)
Maximum weight capacity200 lbs (90.7 kg)
Packaging data
Package width26" (660.4 mm)
Package height28" (711.2 mm)
Package depth29" (736.6 mm)
Package weight93 lbs (42.2 kg)
Quantity per pack1 pc(s)
Packaging content
Cables includedAC
Screws includedYes
Technical details
TypeRack cabinet
Rack capacity12U
Compliance certificatesRoHS
Colour
Product colourBlack
Logistics data
Master (outer) case width26" (660.4 mm)
Master (outer) case length29" (736.6 mm)
Master (outer) case height28" (711.2 mm)
Master (outer) case gross weight93 lbs (42.2 kg)
Products per master (outer) case1 pc(s)
Harmonized System (HS) code8517.79.0000
