Tripp Lite SRW26USG rack cabinet 26U Wall mounted rack Black

Tripp Lite SRW26USG rack cabinet 26U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRW26USG
  • EAN: 0037332187390
SmartRack 26U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window, Hinged Back

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 26U WALL MOUNT RACK ENCLOSURECAB W HINGED ACRYLIC WINDOWSRW26USG 812740 Register free see stock
ASI Corp AC SRW26USG SmartRack 26U LP Wall-Mount Rack Enclosure Cabinet RTL 248514
BlueStar TRIPP LITE, 26U WALL MOUNT RACK ENCLOSURE CABINET W/ HINGED ARYLIC WINDOW, BLACK SRW26USG
D&H 26U WM RACK ACRYLIC SRW26USG
Ingram Micro 26U WALL MOUNT RACK ENCLOSURE 2T2166
TD Synnex 26U WM RACK ENCLOSURE W/ ACRYLIC WINDOW 4367815

Related Products

Description

The SRW26USG SmartRack® 26U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).

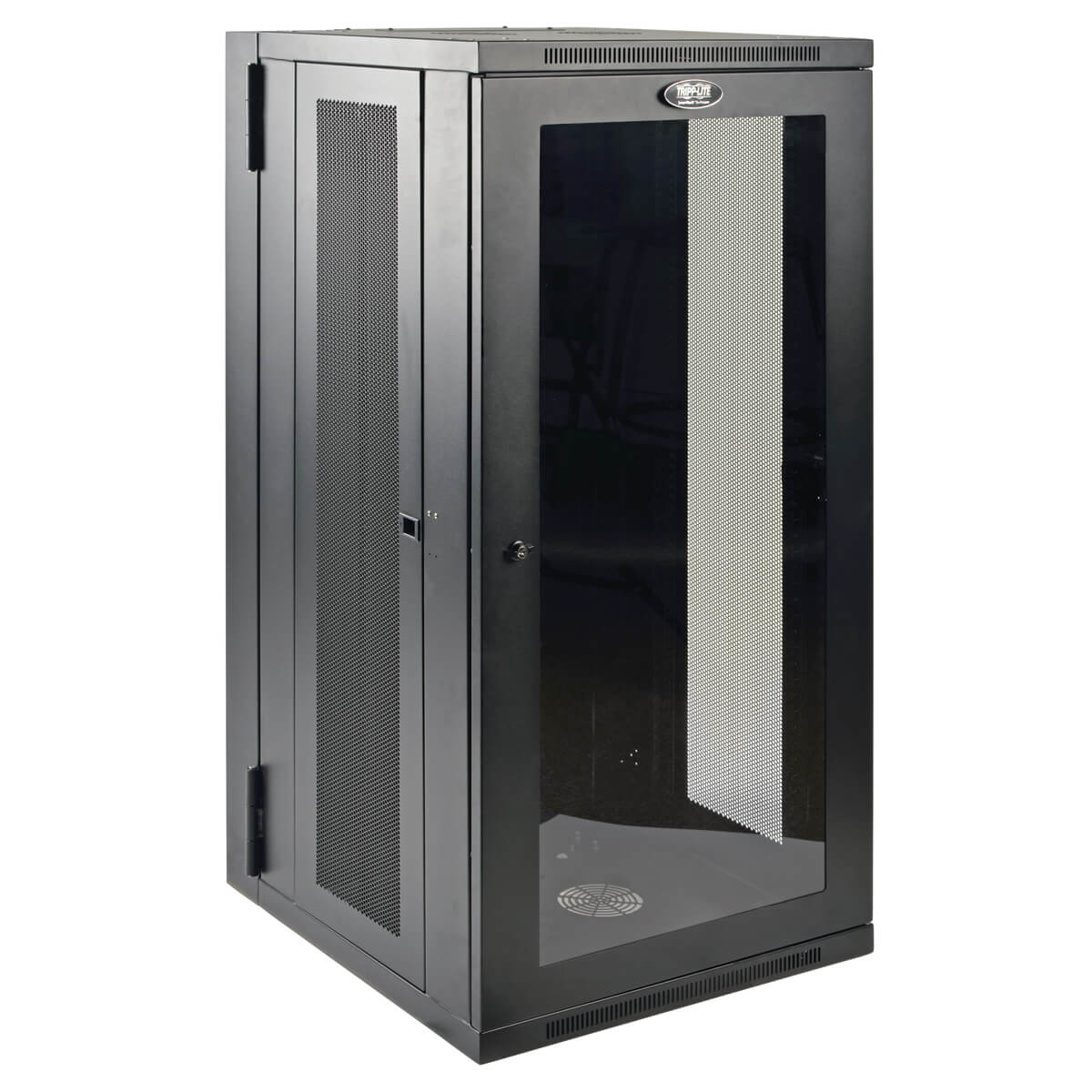

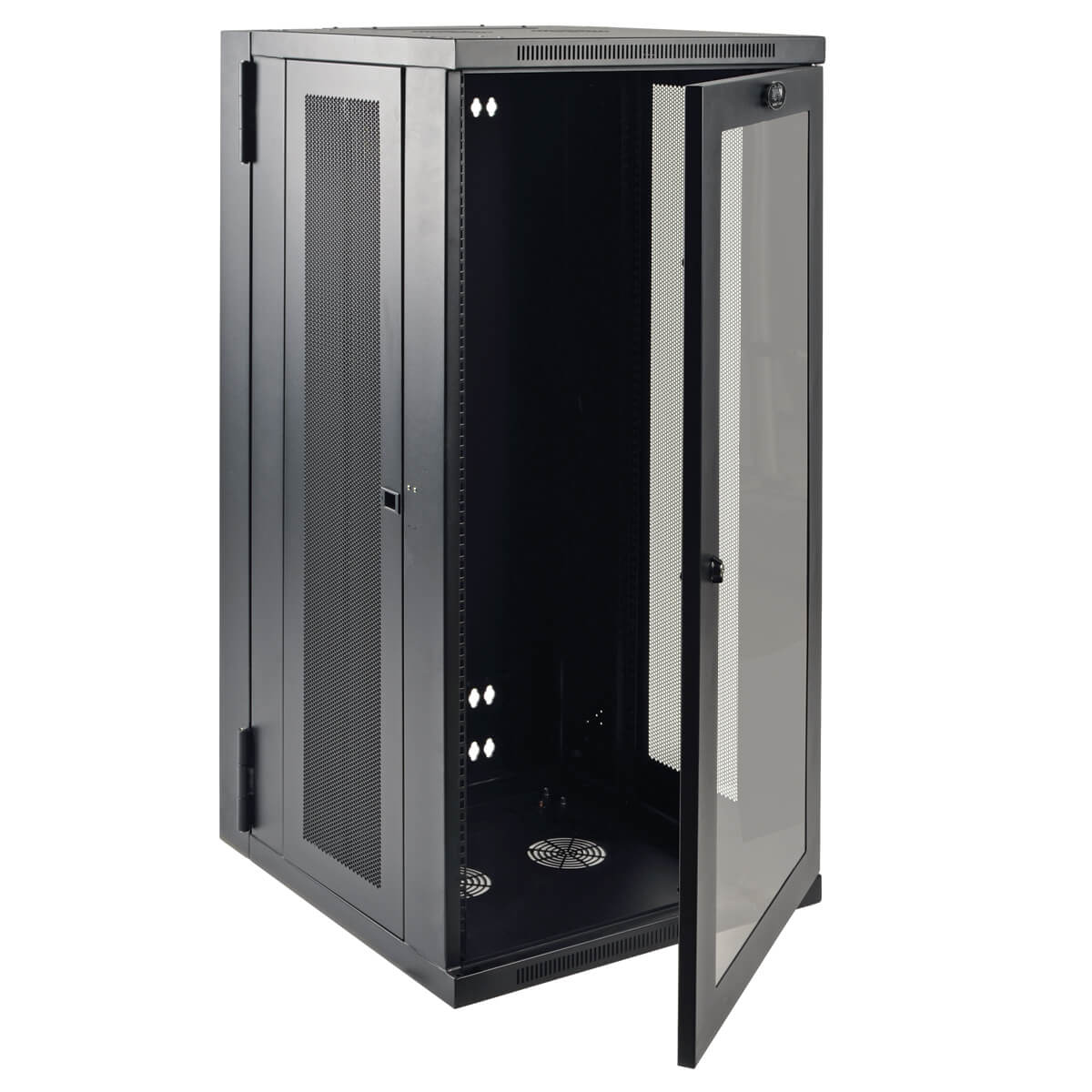

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment readouts without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

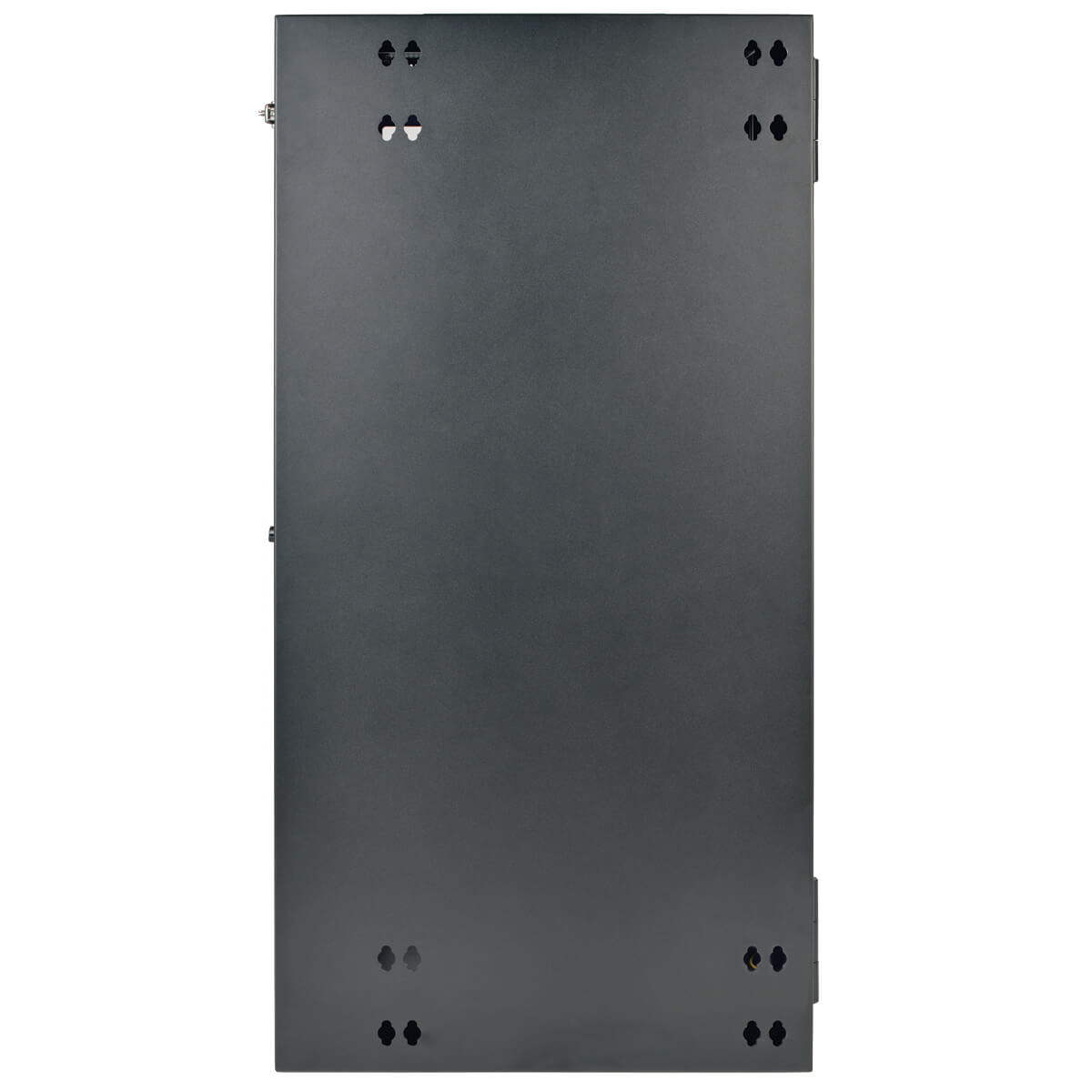

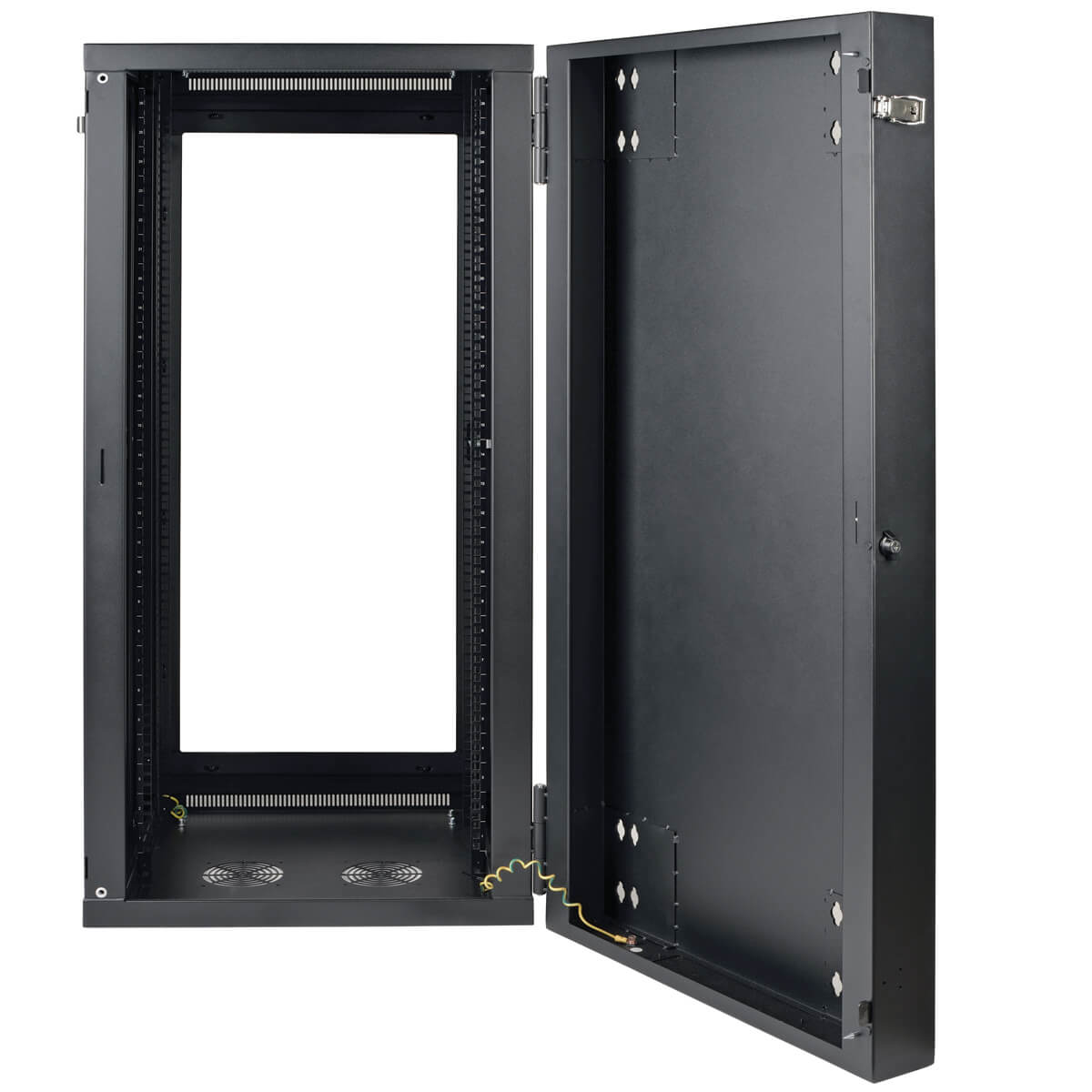

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

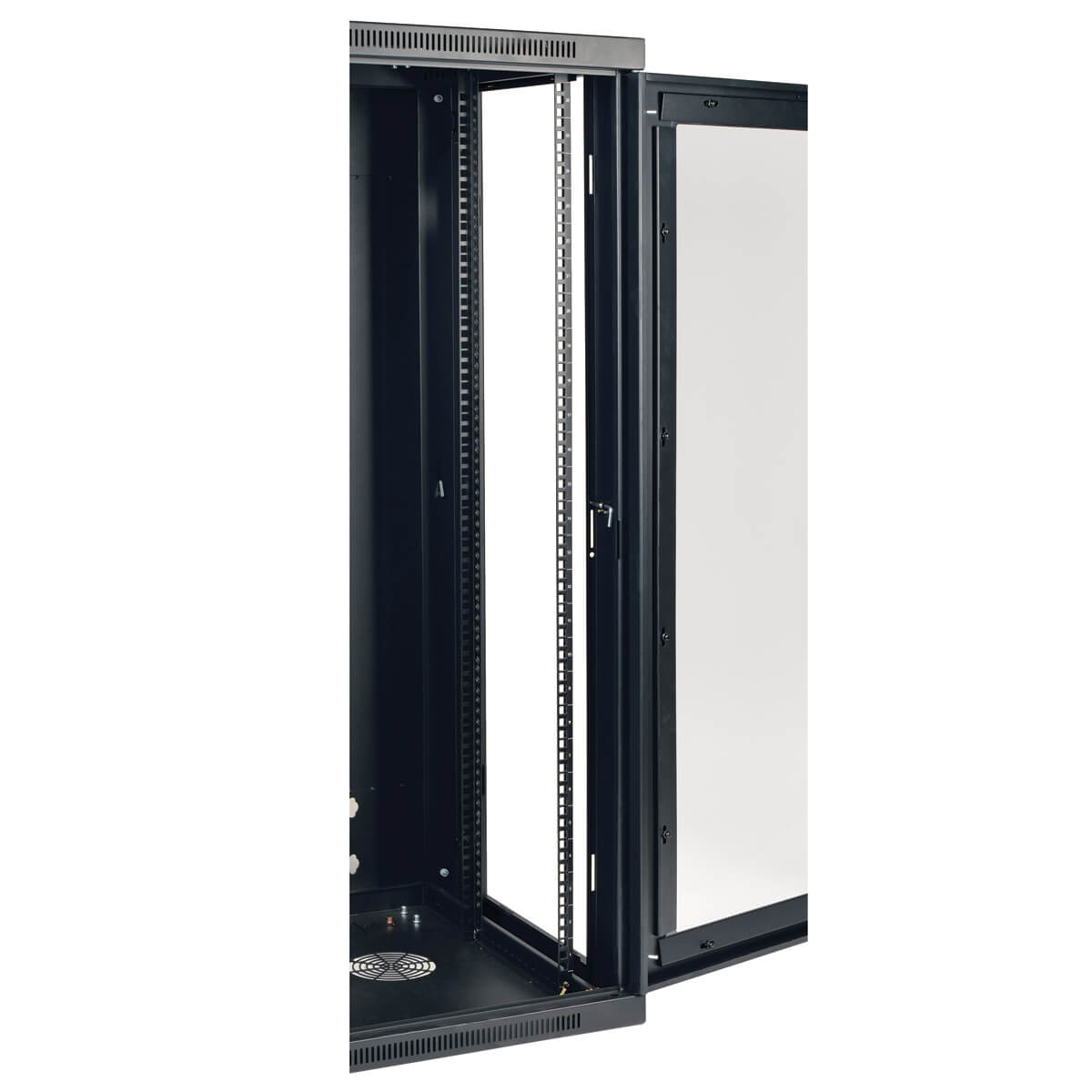

The SRW26USG comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

Specifications

Features
Size (imperial)19"
Key lockYes
Frame typeClosed
Rack capacity26U
TypeWall mounted rack
Maximum weight capacity250 lbs (113.4 kg)
MaterialSteel
Product colourBlack
Weight & dimensions
Package depth24" (609.6 mm)
Package width22" (558.8 mm)
Package height55" (1397 mm)
Package weight143.1 lbs (64.9 kg)
Width23.6" (599.4 mm)
Depth21.6" (548.6 mm)
Height49.7" (1262.4 mm)
Weight125 lbs (56.7 kg)
Size (imperial)19"
Maximum weight capacity250 lbs (113.4 kg)

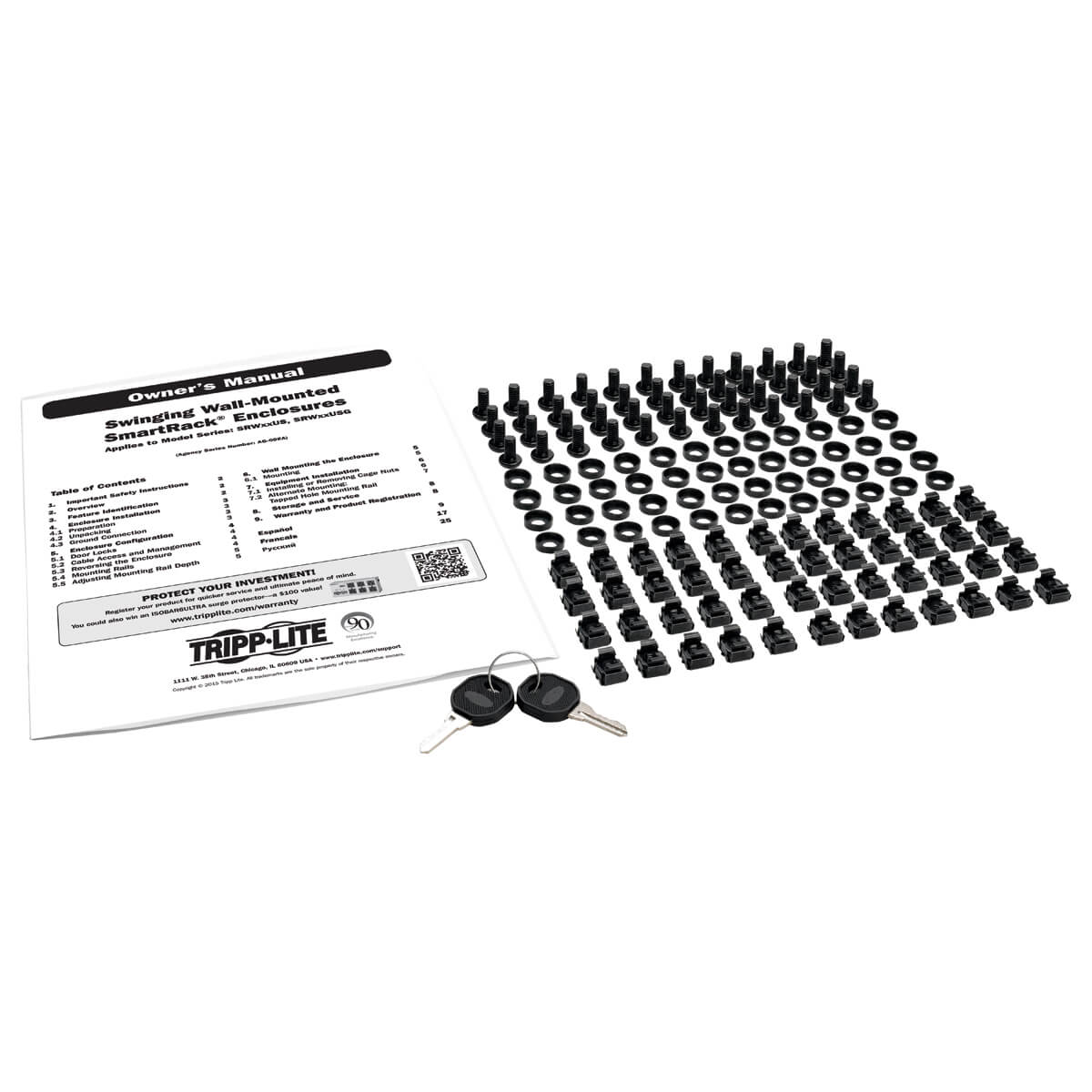

Packaging content
Wall mounting kitYes
ManualYes
Mounting kitYes
Packaging data
Wall mounting kitYes
ManualYes
Mounting kitYes
Package depth24" (609.6 mm)
Package width22" (558.8 mm)
Package height55" (1397 mm)
Package weight143.1 lbs (64.9 kg)
Technical details
Package width22" (558.8 mm)
Package height55" (1397 mm)
TypeWall mounted rack
Size (imperial)19"
Harmonized System (HS) code8517.79.0000
Rack capacity26U
Colour
Product colourBlack
Material
MaterialSteel
Logistics data
Master (outer) case width22" (558.8 mm)
Master (outer) case length24" (609.6 mm)
Master (outer) case height55" (1397 mm)
Master (outer) case gross weight143.1 lbs (64.9 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
