Tripp Lite SRW26US rack cabinet 26U Wall mounted rack Black

Tripp Lite SRW26US rack cabinet 26U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRW26US
  • EAN: 0037332154842 0708326849845 03 ...6849845 0373321548422 0778890689451 0021112252453more
SmartRack 26U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Hinged Back

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 26U WALL MOUNT RACK ENCLOSURECABINET HINGED LOW PROFILESWITCH-DEPTH 565551 Register free see stock
Arlington Industries 26U HINDGED 20.5" WALL MOUNT RACK TRPSRW26US
BlueStar TRIPP LITE, 26U WALL MOUNT RACK ENCLOSURE CABINET HINGED WALLMOUNT SRW26US
D&H SmartRack 26U Wall Mount Enclo SRW26US
Ingram Micro 26U WALL MOUNT RACK ENCLOSURE DF0388
ScanSource Tripp Lite 26U Wall Mount Rack Enclosure POW-SRW26US
TD Synnex 26U WM RACK ENCLOSURE W/ HINGED BACK 2736683

Related Products

Description

The SRW26US SmartRack® 26U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds (113.4 kilograms).

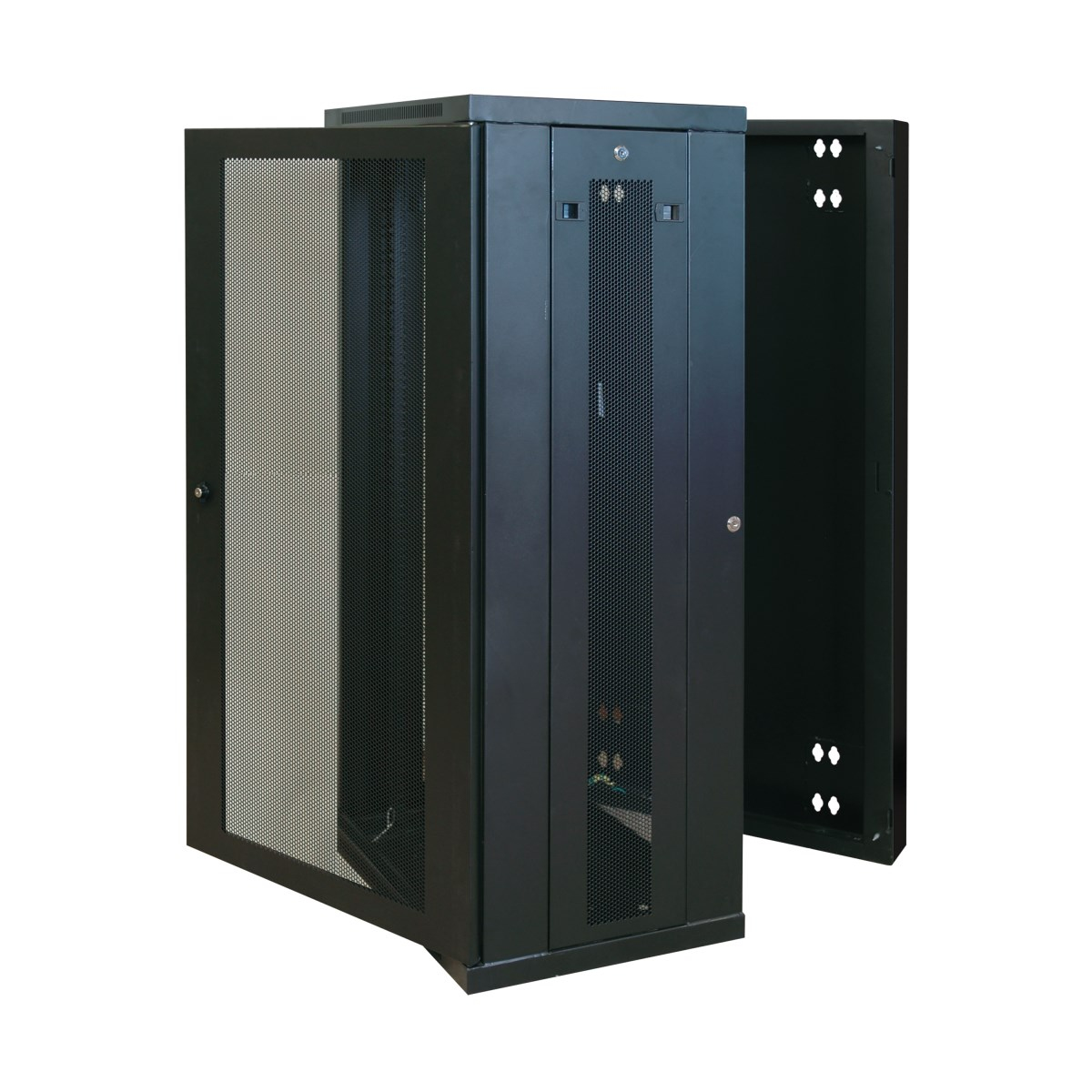

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW26US comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.

Specifications

Weight & dimensions
Package depth55" (1397 mm)
Package width24" (609.6 mm)
Package height22" (558.8 mm)
Package weight142 lbs (64.4 kg)
Width23.6" (599.4 mm)
Depth21.6" (548.6 mm)
Height49.7" (1262.4 mm)
Weight125 lbs (56.7 kg)
Maximum weight capacity250 lbs (113.4 kg)
Packaging content
Wall mounting kitYes
ManualYes
Features
Rack capacity26U
TypeWall mounted rack
Maximum weight capacity250 lbs (113.4 kg)
Product colourBlack
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, IP20, RoHS, UL 60950
Packaging data
Wall mounting kitYes
ManualYes
Package depth55" (1397 mm)
Package width24" (609.6 mm)
Package height22" (558.8 mm)
Package weight142 lbs (64.4 kg)
Technical details
Package width24" (609.6 mm)
Package height22" (558.8 mm)
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity26U
Colour
Product colourBlack
Certificates
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, IP20, RoHS, UL 60950
Logistics data
Master (outer) case width24" (609.6 mm)
Master (outer) case length55" (1397 mm)
Master (outer) case height22" (558.8 mm)
Master (outer) case gross weight142 lbs (64.4 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
