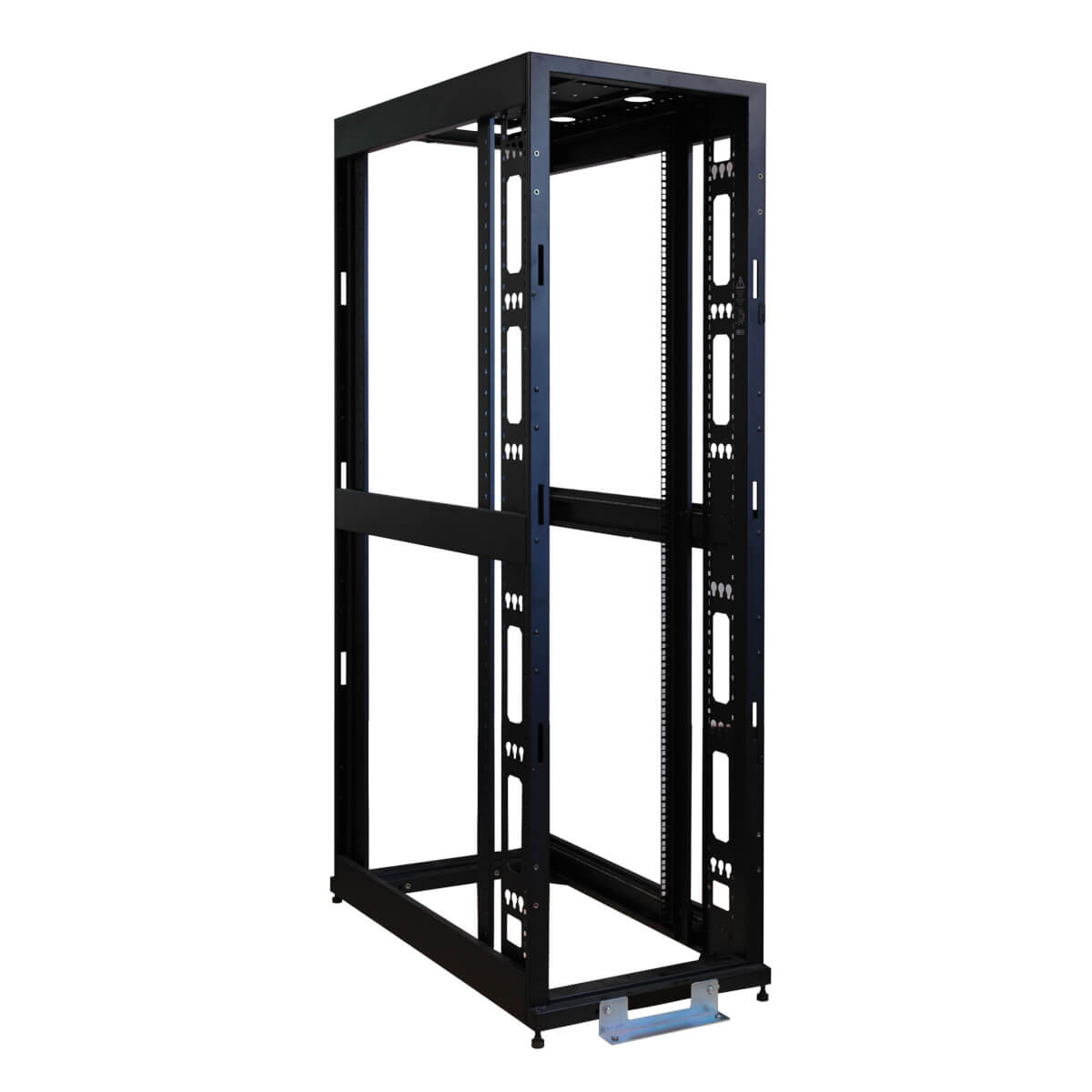

Tripp Lite SR45UBMDEXPND rack cabinet 45U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR45UBMDEXPND
  • EAN: 0037332174765 0373321747658
45U SmartRack 4-Post Mid-Depth Open Frame Rack

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "45U 4-POST OPEN FRAME RACKCABINET 36"" DEPTH NO SIDES" 565488 Register free see stock
D&H 45U 4Post Open Frame Rack Cbnt SR45UBMDEXPND
Ingram Micro 45U 4 POST OPEN FRAME RACK QZ8452
TD Synnex 45U 4-POST OPEN FRAME RACK 36" DEPTH 3468607

Related Products

Description

The SR45UBMDEXPND offers 36-inch (927 mm) depth opposed to the standard 42 inches.

The SR45UBMDEXPND is a 45U SmartRack® enclosure with no doors and no side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR45UBMDEXPND houses 3,000 pounds (1360.8 kilograms) of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 28.75 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

All components of the SR45UBMDEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR45UBMDEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

Specifications

Weight & dimensions
Package depth37.8" (960.1 mm)
Package width26" (660.4 mm)
Package height90.3" (2292.4 mm)
Package weight190 lbs (86.2 kg)
Width23.6" (600.2 mm)
Depth36" (914.4 mm)
Height83.7" (2127.2 mm)
Weight140 lbs (63.5 kg)
Maximum weight capacity3000.1 lbs (1360.8 kg)
Features
Rack capacity45U
TypeFreestanding rack
Maximum weight capacity3000.1 lbs (1360.8 kg)
Product colourBlack
CertificationUL60950; RoHS; CE
Packaging data
Package depth37.8" (960.1 mm)
Package width26" (660.4 mm)
Package height90.3" (2292.4 mm)
Package weight190 lbs (86.2 kg)
Package dimensions (WxDxH)26 x 37.8 x 90.2" (660.4 x 960 x 2292.3 mm)
Technical details
Package width26" (660.4 mm)
Package height90.3" (2292.4 mm)
TypeFreestanding rack
Harmonized System (HS) code8517.79.0000
Rack capacity45U
Colour
Product colourBlack
Certificates
CertificationUL60950; RoHS; CE
Logistics data
Master (outer) case width26" (660.4 mm)
Master (outer) case length37.8" (960.1 mm)
Master (outer) case height90.3" (2292.4 mm)
Master (outer) case gross weight190 lbs (86.2 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
Other features
Package dimensions (WxDxH)26 x 37.8 x 90.2" (660.4 x 960 x 2292.3 mm)
