Tripp Lite B126-1P0-MINI AV extender AV transmitter & receiver Black

Tripp Lite B126-1P0-MINI AV extender AV transmitter & receiver Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B126-1P0-MINI
  • EAN: 0037332200402
HDMI over Cat5/6 Passive Extender, Low-Profile Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA

Trade Prices

Distributor Product SKU Stock Updated Price
BlueStar TRIPP LITE, HDMI OVER CAT5, PASSIVE, LOW-PROFILE, 1080P B126-1P0-MINI Register free see stock
Ingram Micro HDMI OVER CAT5 EXTENDER 9K6468
TD Synnex HDMI OVER CAT5E / CAT6 EXTENDER RECEIVER 4906904

Related Products

Description

The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's recommended for digital signage, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

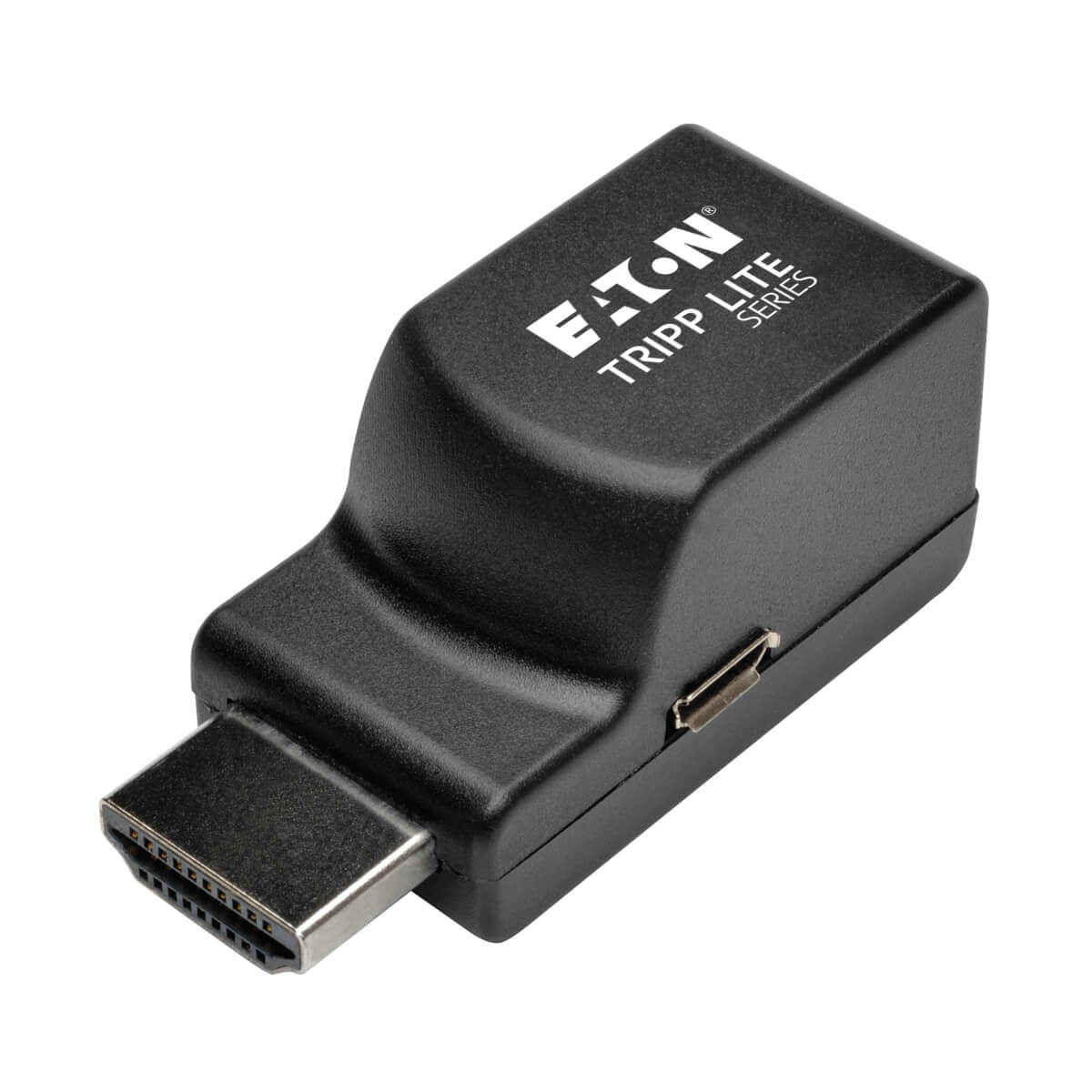

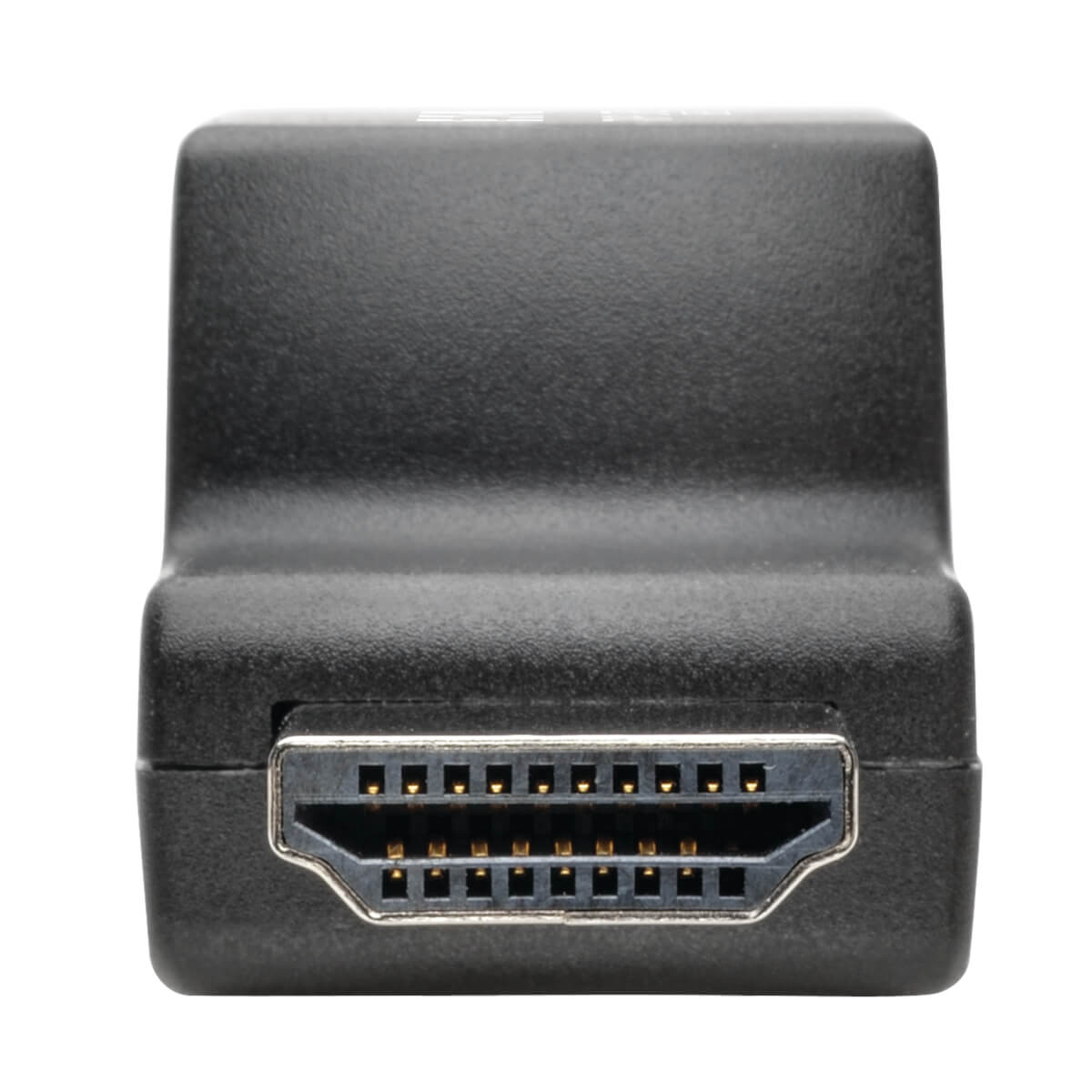

The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI's built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 meters) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 meters) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (N202-Series) between this unit and the transmitter.

In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.

Specifications

Features
HDCPYes
Colour depth24 bit
Audio output channels7.1 channels
Plug and PlayYes
Maximum refresh rate60 Hz
CertificationTAA
TypeAV transmitter & receiver
Maximum resolution1600 x 1200 pixels
Cable types supportedCat5, Cat6
Maximum transfer distance1200.8" (30.5 m)
Supported video modes480i, 480p, 720p, 1080i, 1080p
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900, 1600 x 1200 (UXGA)
Product colourBlack
Ports & interfaces
USB ports quantity1
Ethernet LANYes

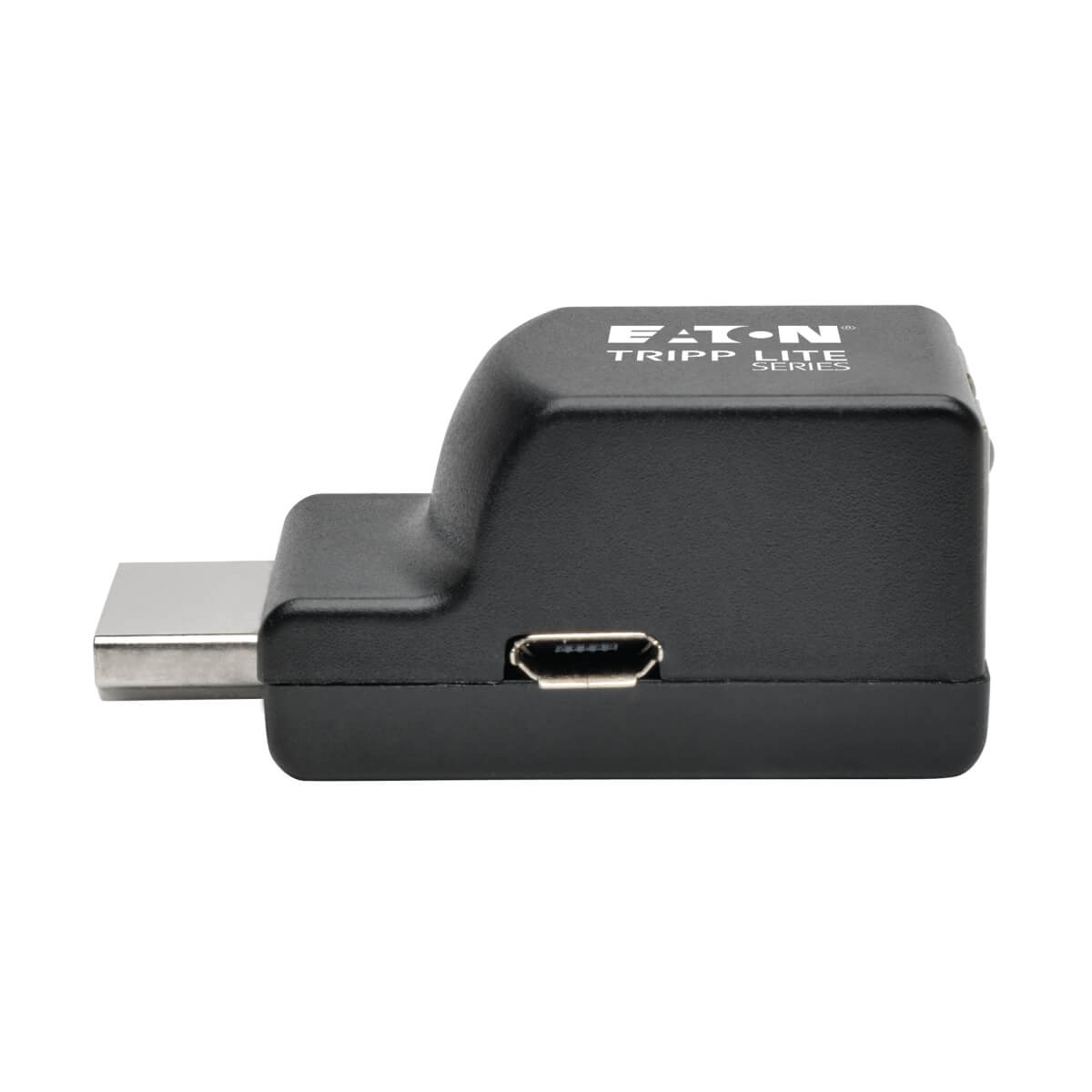

USB connector typeMicro-USB B

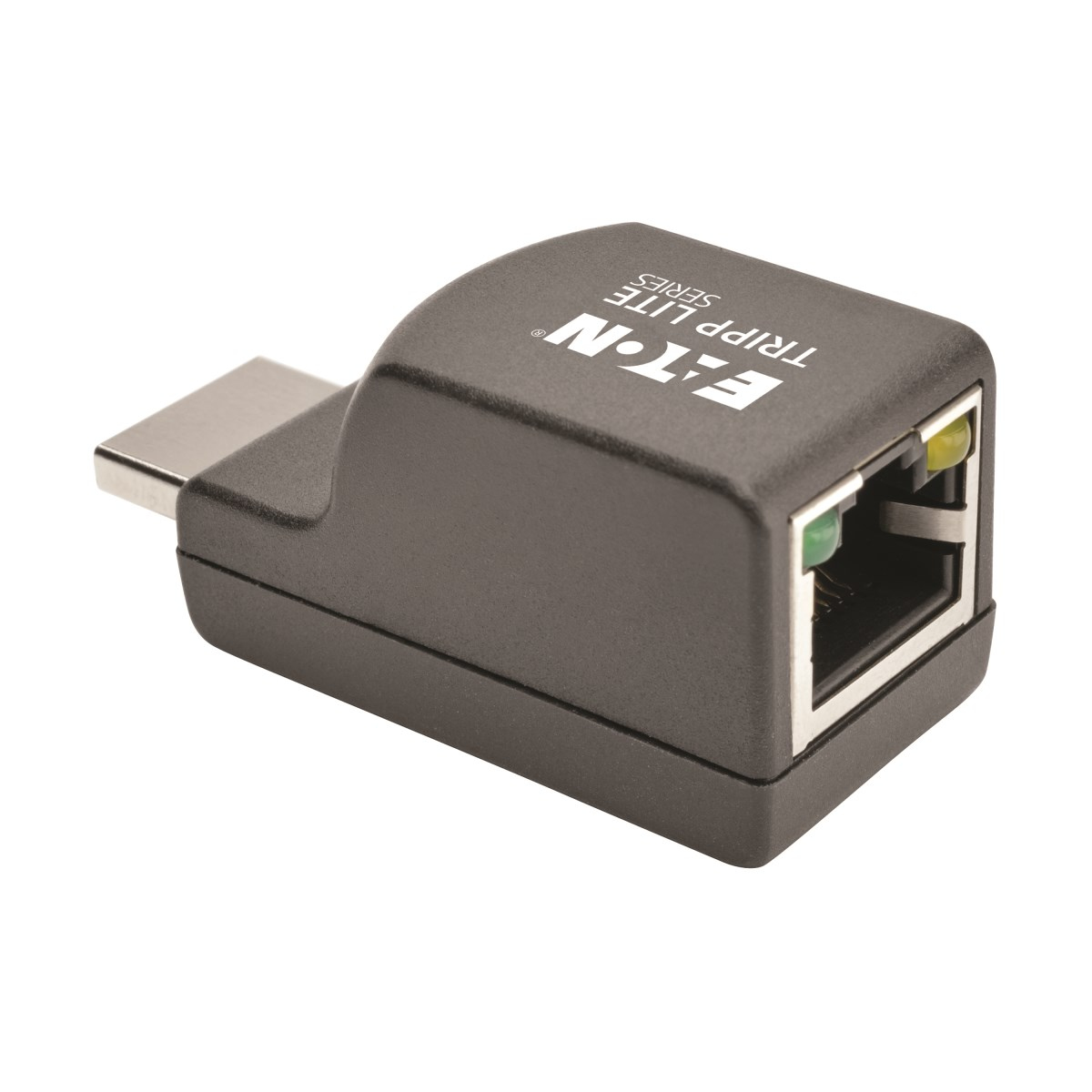

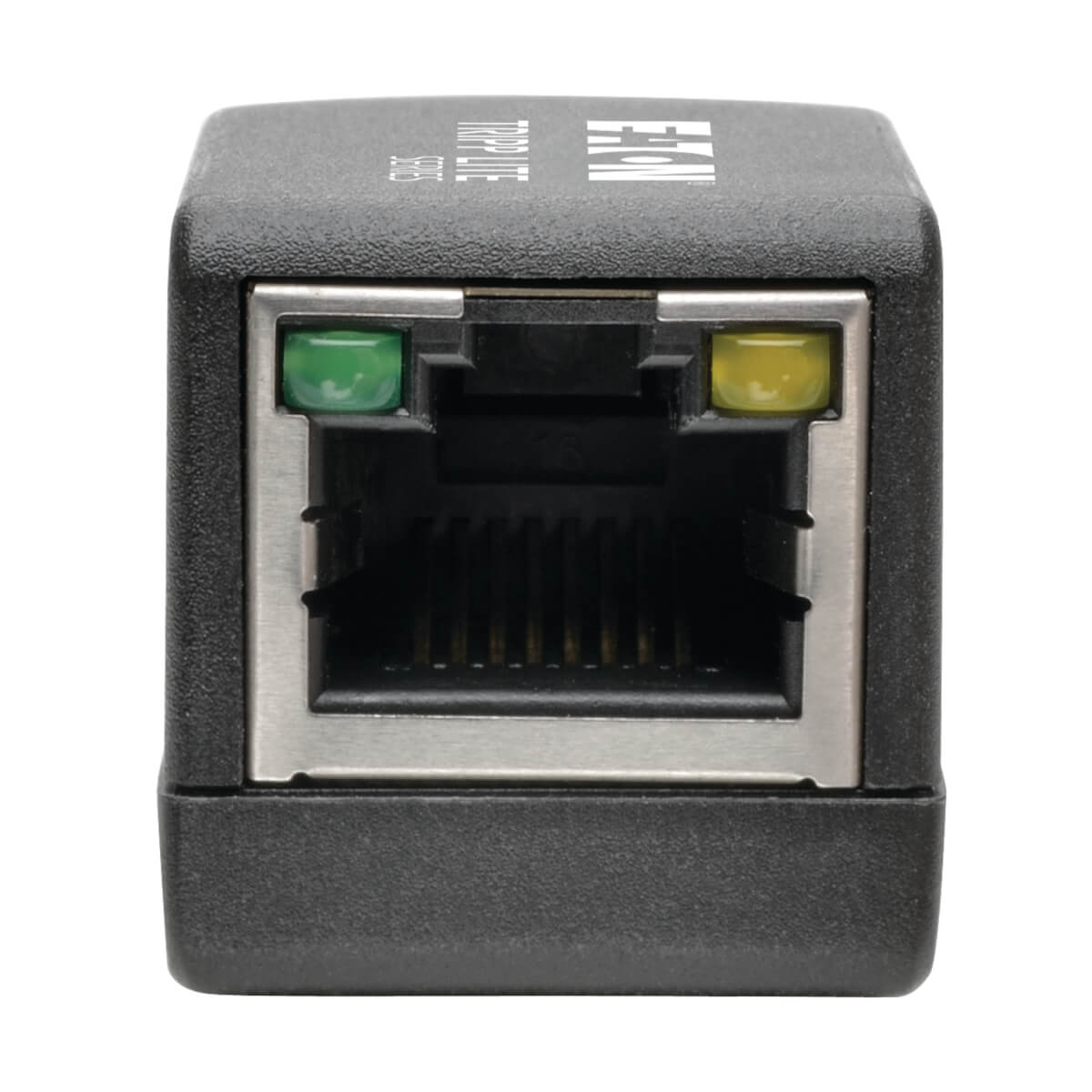

RJ-45 input ports1
HDMI in1
Operational conditions
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-20 - 60 °C
Operating temperature (T-T)0 - 40 °C
Packaging data
Package depth4.8" (121.9 mm)
Package width5.9" (149.9 mm)
Package height1.3" (33 mm)
Package weight3.17 oz (90 g)
Packaging content

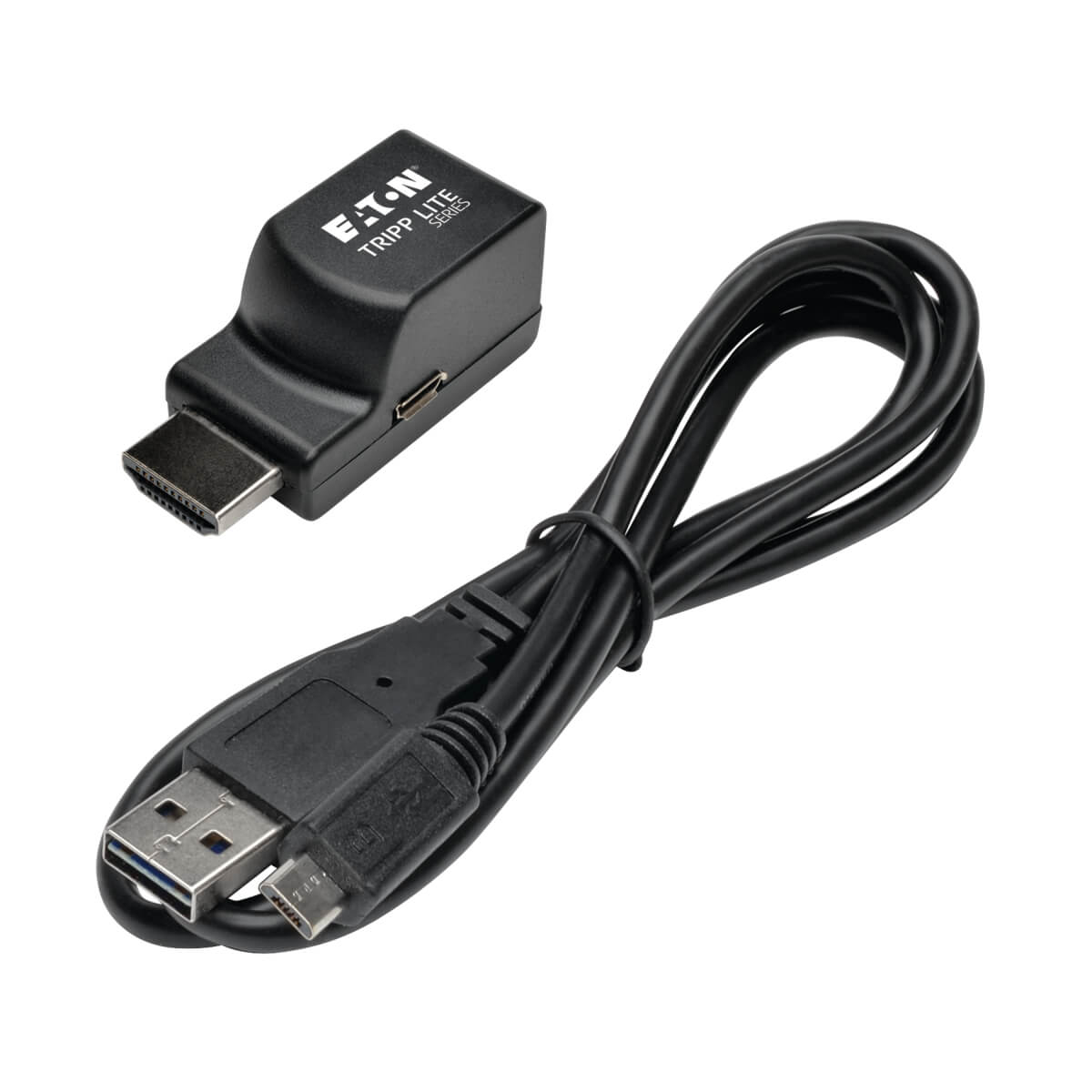

Cables includedMicro-USB
Technical details
Country of originTaiwan
Quantity1
Compliance certificatesRoHS
Logistics data
Master (outer) case width13.6" (345.4 mm)
Master (outer) case length6.7" (170.2 mm)
Master (outer) case height5.4" (137.2 mm)
Master (outer) case gross weight32.1 oz (910 g)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332200409
