Tripp Lite B126-1A1-POC AV extender AV transmitter & receiver Black

Tripp Lite B126-1A1-POC AV extender AV transmitter & receiver Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B126-1A1-POC
  • EAN: 0037332193117
HDMI over Cat5 Active Extender Kit, Power over Cable, Box-Style Transmitter/Receiver Audio/Video, 1080p, Up to 125 Ft.

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter HDMI OVER CAT5/CAT6ACTIVE EXTENDER KIT AUDIOVIDEO 1080P 125FT 812276 Register free see stock
BlueStar TRIPP LITE, HDMI OVER CAT5/CAT6 ACTIVE EXTENDER KIT AUDIO VIDEO 1080P 125FT B126-1A1-POC
D&H HDMI Over Cat5 Cat6 Active Ext B1261A1POC
Ingram Micro HDMI CAT5 EXTENDER KIT VIDEO 4A2721
TD Synnex HDMI OVER CAT5 ACTIVE EXTENDER BOX POC 4534464

Related Products

Description

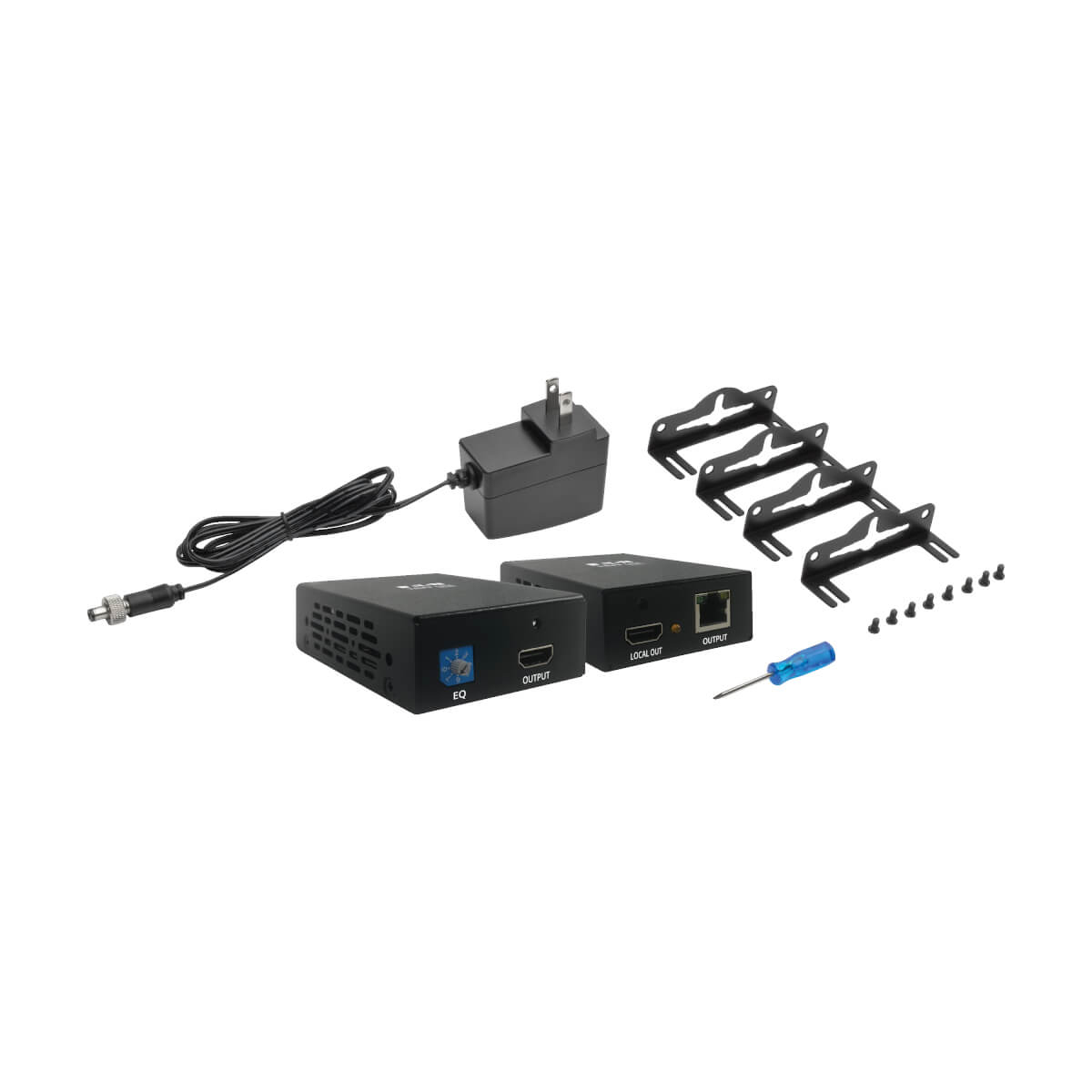

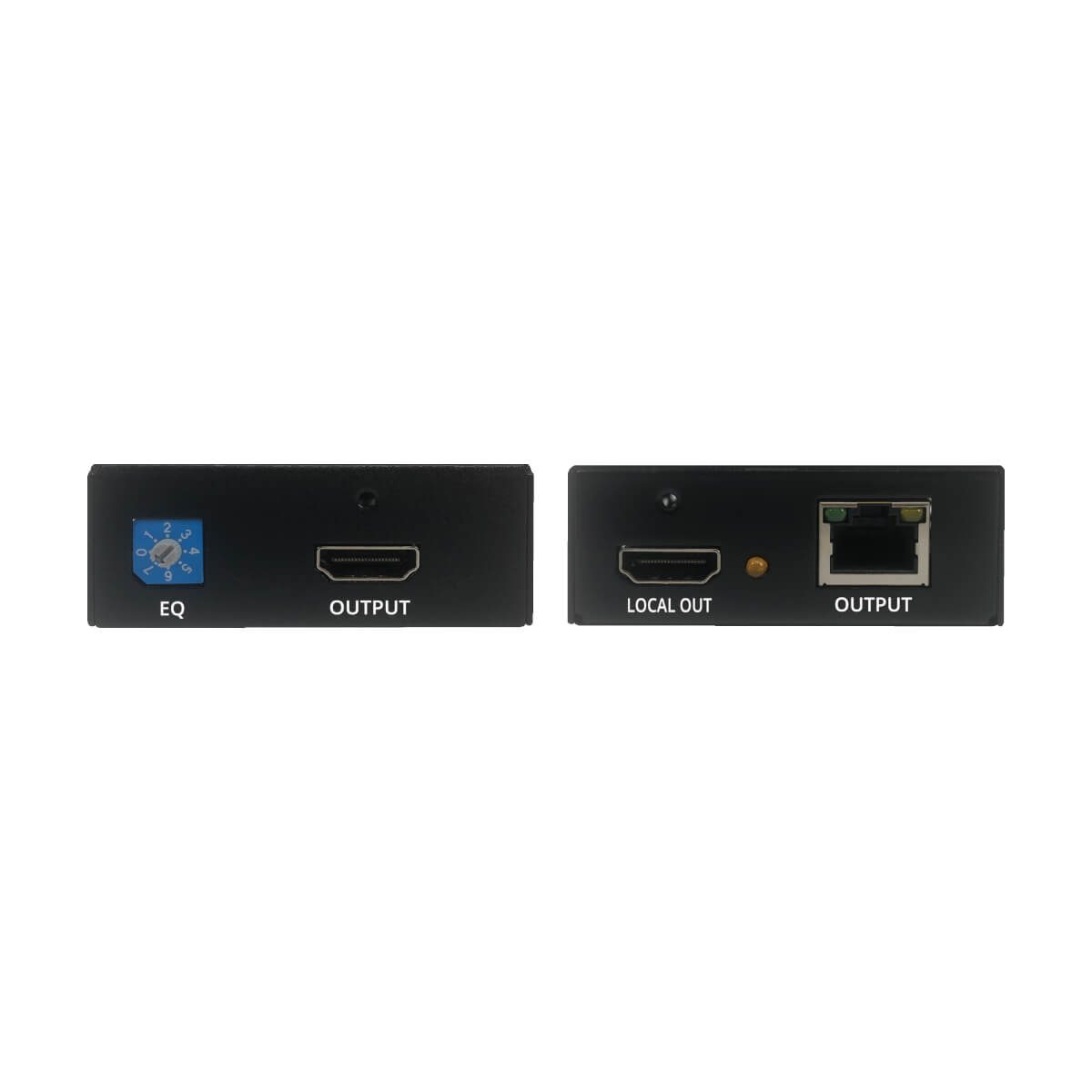

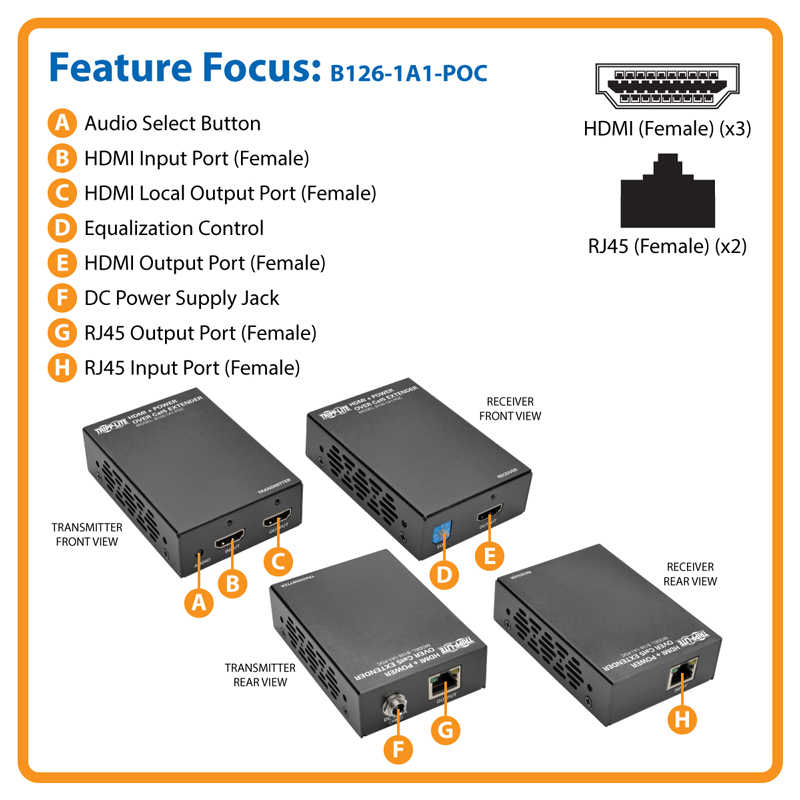

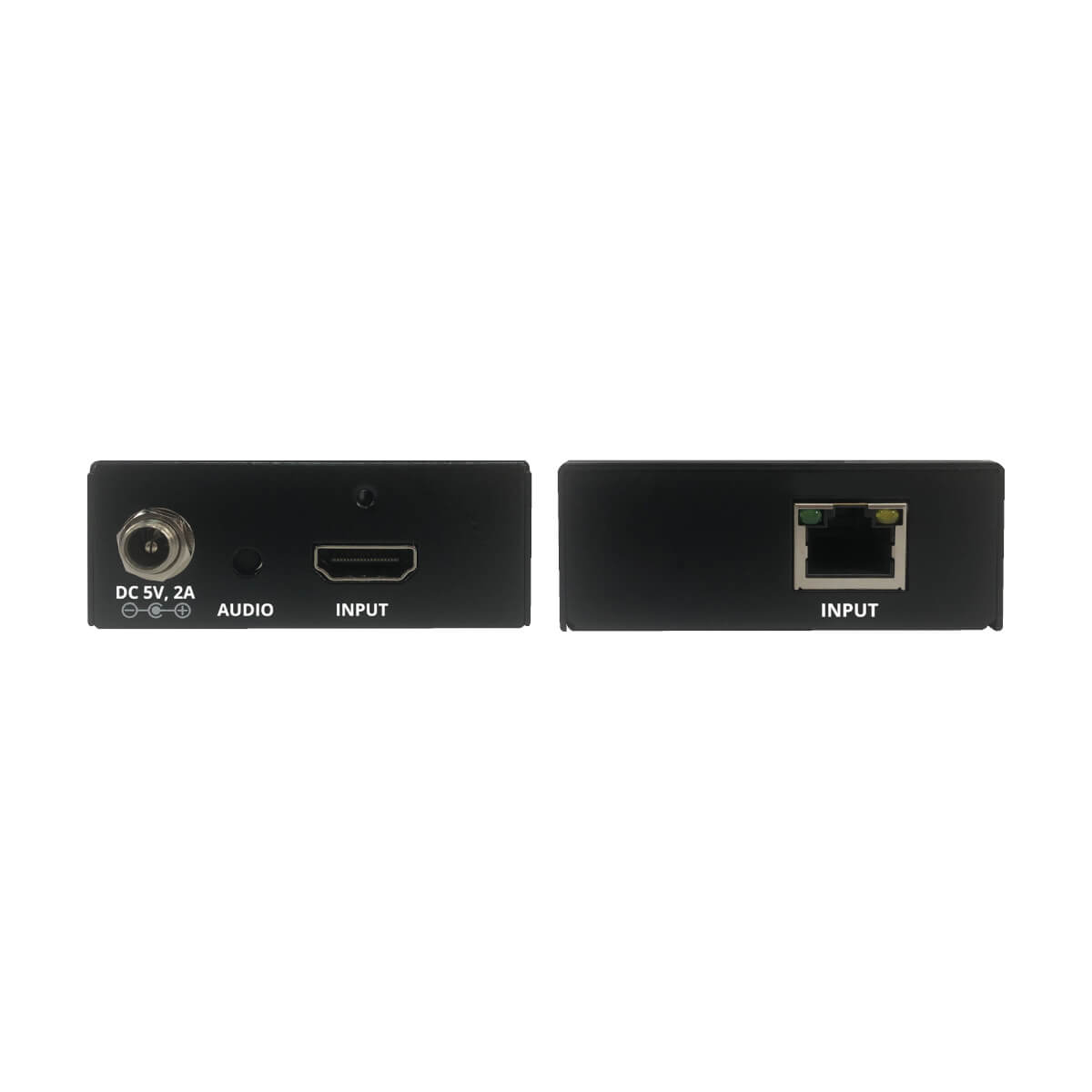

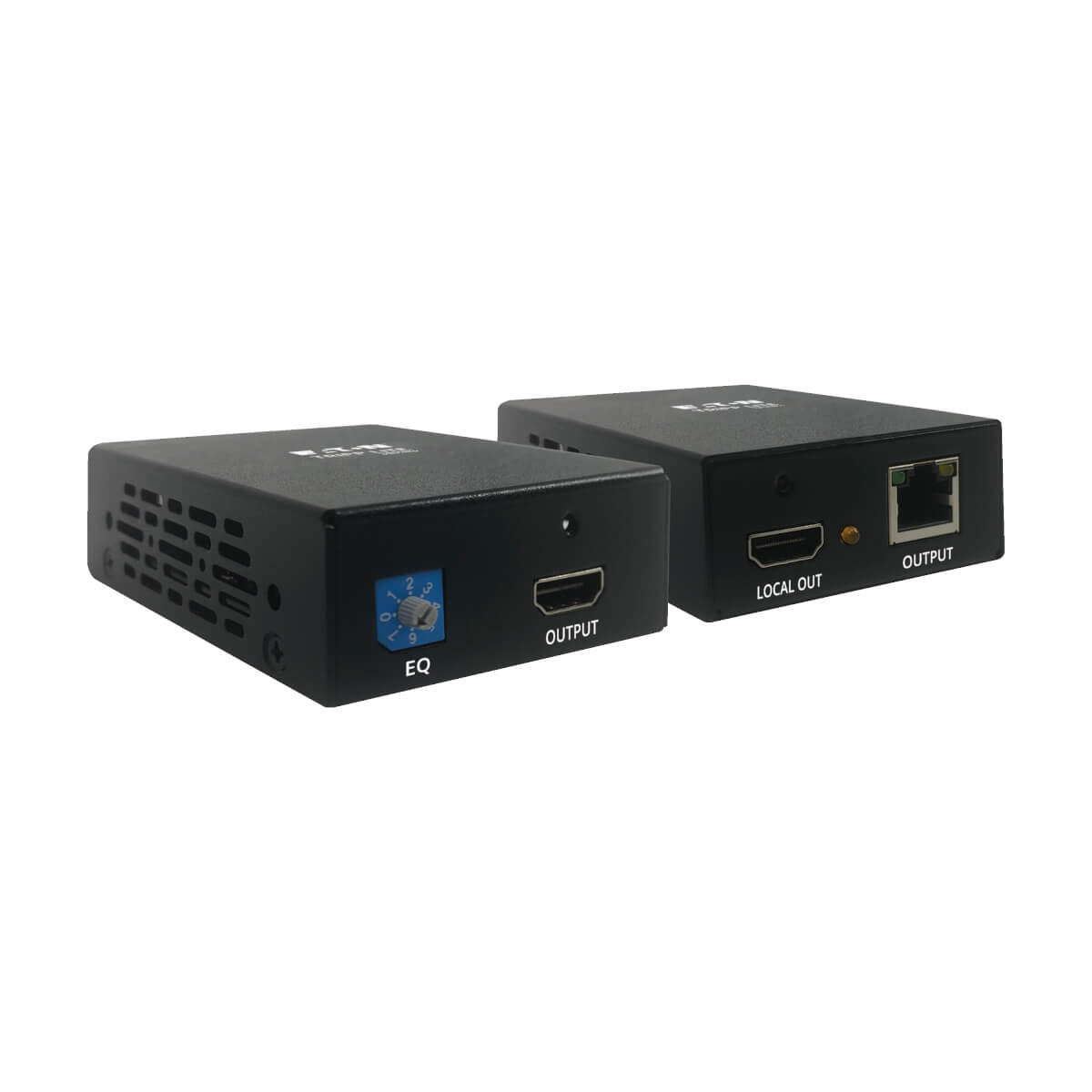

The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (see Tripp Lite’s P569-Series) connects an optional local display and the audio/video source, such as a Blu-ray™ player, to the transmitter’s HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.

The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Extends High-Definition Signals
- Extends a 1080p (@ 60 Hz) signal up to 125 ft.
- Transmitter and receiver connect with one Cat5e/6/6a cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use
- Plug-and-play engineering—no software or drivers to download and install
- Works with all operating systems and HDMI video sources
- Units connect quickly to monitors with HDMI cable, such as Tripp Lite’s P569-Series
- LEDs indicate at a glance when the units are receiving power and an HDMI signal
- Included mounting hardware lets you install the units on a wall, rack or pole

TAA Compliant
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Features
Colour depth24 bit
Audio output channels7.1 channels
Plug and PlayYes
TypeAV transmitter & receiver
Maximum resolution1600 x 1200 pixels
Cable types supportedCat5e, Cat6, Cat6a
Maximum transfer distance1500" (38.1 m)
Supported video modes480i, 480p, 720p, 1080i, 1080p
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA)
LED indicatorsYes
Product colourBlack
Ports & interfaces
RJ-45 input ports1
RJ-45 output ports1
HDMI in1
Number of HDMI outputs2
Packaging data
Package depth6.46" (164.1 mm)
Package width8.43" (214.1 mm)
Package height2.17" (55.1 mm)
Package weight22.9 oz (650 g)
Packaging content
ManualYes
Technical details
Country of originTaiwan
Compliance certificatesRoHS
Logistics data
Master (outer) case width22.6" (573 mm)
Master (outer) case length6.89" (175 mm)
Master (outer) case height8.94" (227.1 mm)
Master (outer) case gross weight14.9 lbs (6.77 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332193114
