HDMI over Cat5/6 Active Extender Kit, Box-Style Transmitter & Receiver for Video and Audio, 1080p @ 60 Hz, Up to 61 m (200-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter HDMI OVER CAT 5 ACTIVEEXTENDER KIT 521887 Register free see stock
Arlington Industries TAA HDMI OVER CAT5/6 TRANSMITTER 150' TRPB126-1A1
BlueStar TRIPP LITE, HDMI OVER CAT5 / CAT6 ACTIVE EXTENDER KIT 1080P 60HZ TAA GSA B126-1A1
D&H HDMI Over Cat5 Active Extender B1261A1
Ingram Micro HDMI CAT5/CAT6 ACTIVE EXTENDER DP8830
ScanSource HDMI Over Cat5/6 Active Video POW-B1261A1
TD Synnex HDMI OVER CAT5/6 ACTIVE EXTENDER BOX A/V 2813594

Related Products

Description

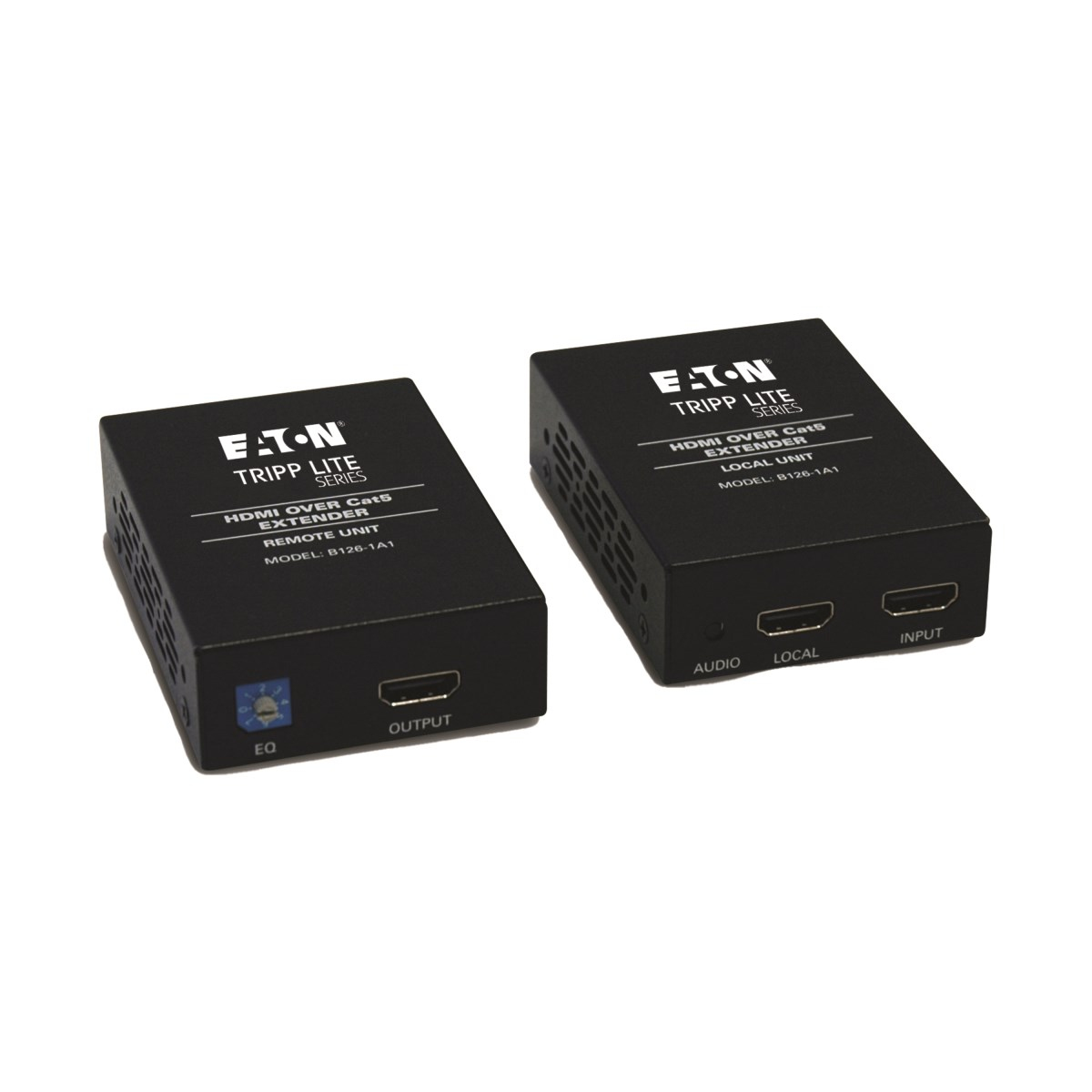

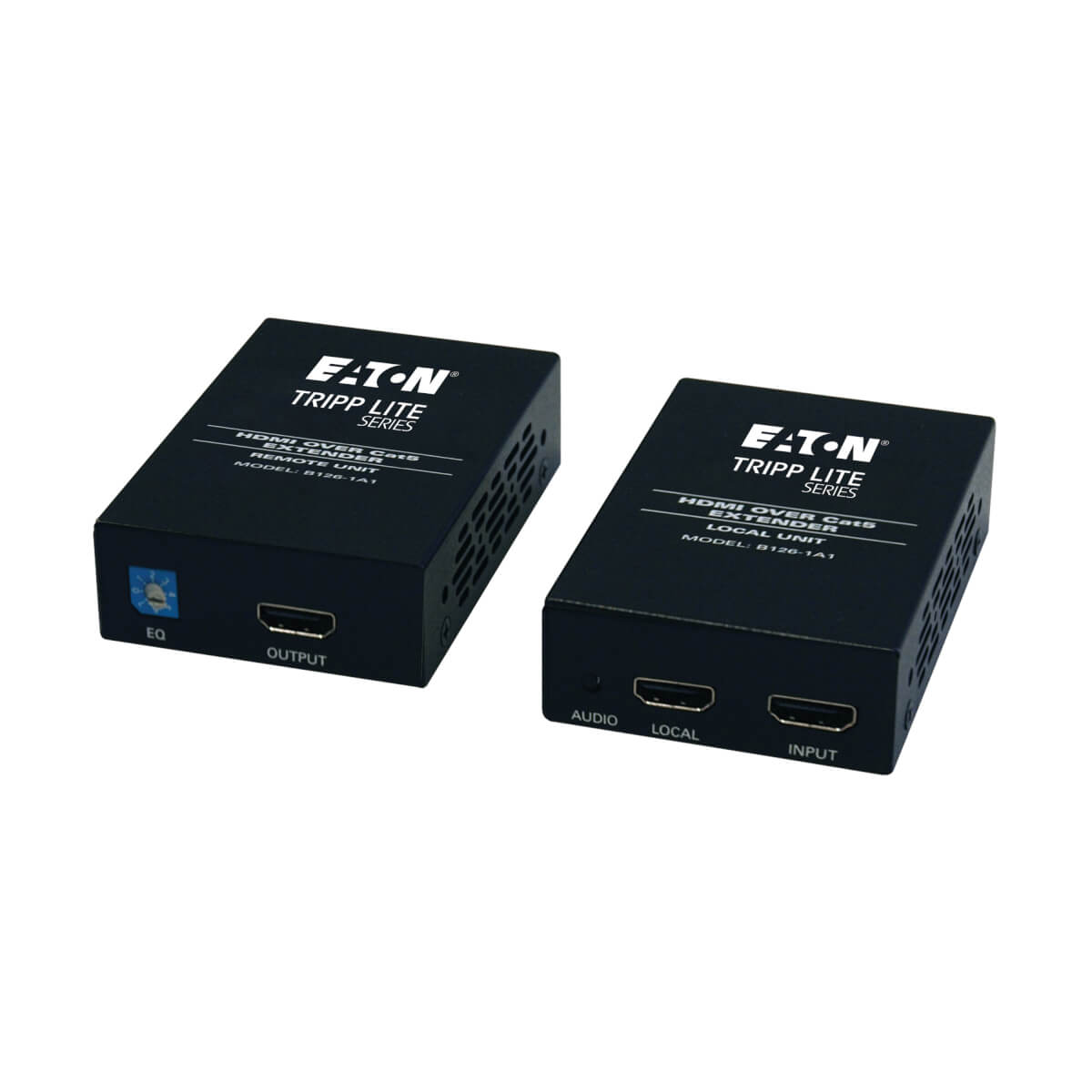

The B126-1A1 HDMI over Cat5/Cat6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the source is located farther than conventional cables allow.

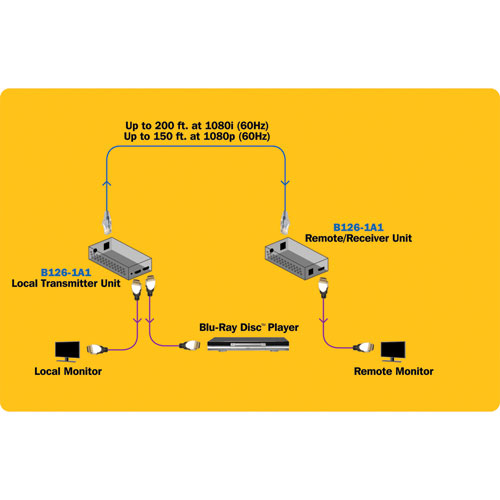

HDMI cable (see Tripp Lite’s P568-Series) connects a monitor and the audio/video source to the transmitter’s HDMI ports and another monitor to the receiver. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series).

The B126-1A1 can extend a 1080i (60 Hz) signal up to 61 m (200-ft.), a 1080p (60 Hz) signal up to 46 m (150-ft.) and a 3D signal up to 38 m (125-ft.) You can also connect up to three B126-110 remote repeaters in the chain (using Cat5e/6 cable) for a total of five HDMI displays and full signal extension of 213 m (700-ft.) (1080i), 152 m (500-ft.) (1080p) or 122 m (400-ft.) (3D).

In addition to crystal-clear video, the B126-1A1 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.
- Supports high-definition video resolutions up to 1080p (60 Hz)
- Supports stereo and 7.1-channel surround sound audio
- Works with all operating systems and HDMI video sources
- Plug and play—no software or drivers to install
- Built-in equalization control lets you adjust monitor image

System Requirements
- For international use, the B110-INT power supply can
be purchased separately; it features plugs for the UK, Europe, and Australia

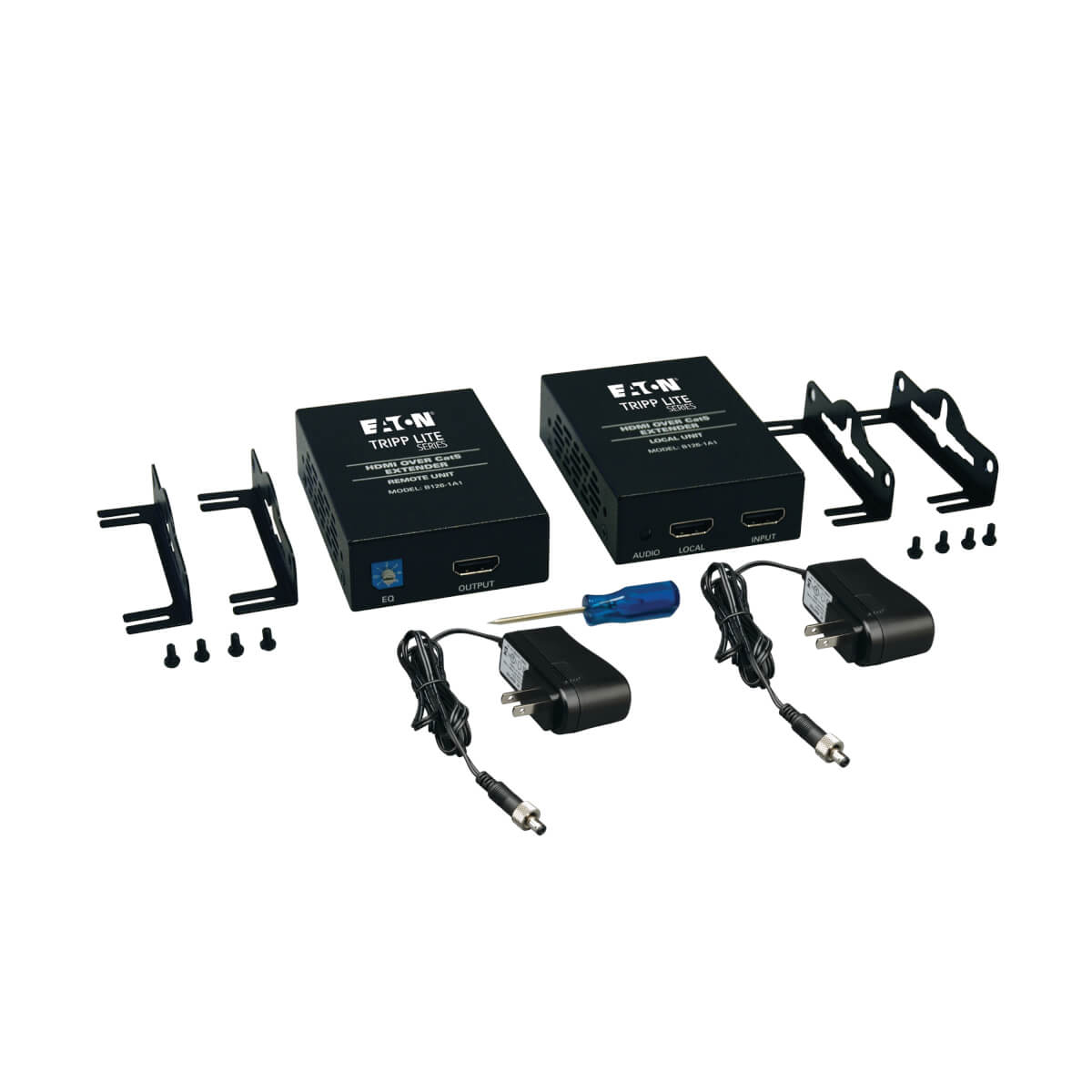

- Transmitter unit
- Receiver unit
- Screwdriver for adjusting equalization
- (2) External Power Supplies with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.)
- Mounting hardware
- Owner’s Manual

- Extends a 1080i (60 Hz) signal up to 61 m (200-ft.), a 1080p (60 Hz) signal up to 46 m (150-ft.) and a 3D signal up to 38 m (125-ft.)
- Connect up to 3 B126-110 remote repeaters in between the transmitter and receiver for maximum signal range of 213 m (700-ft.) (1080i), 152 m (500-ft.) (1080p) and 122 m (400-ft.) (3D)

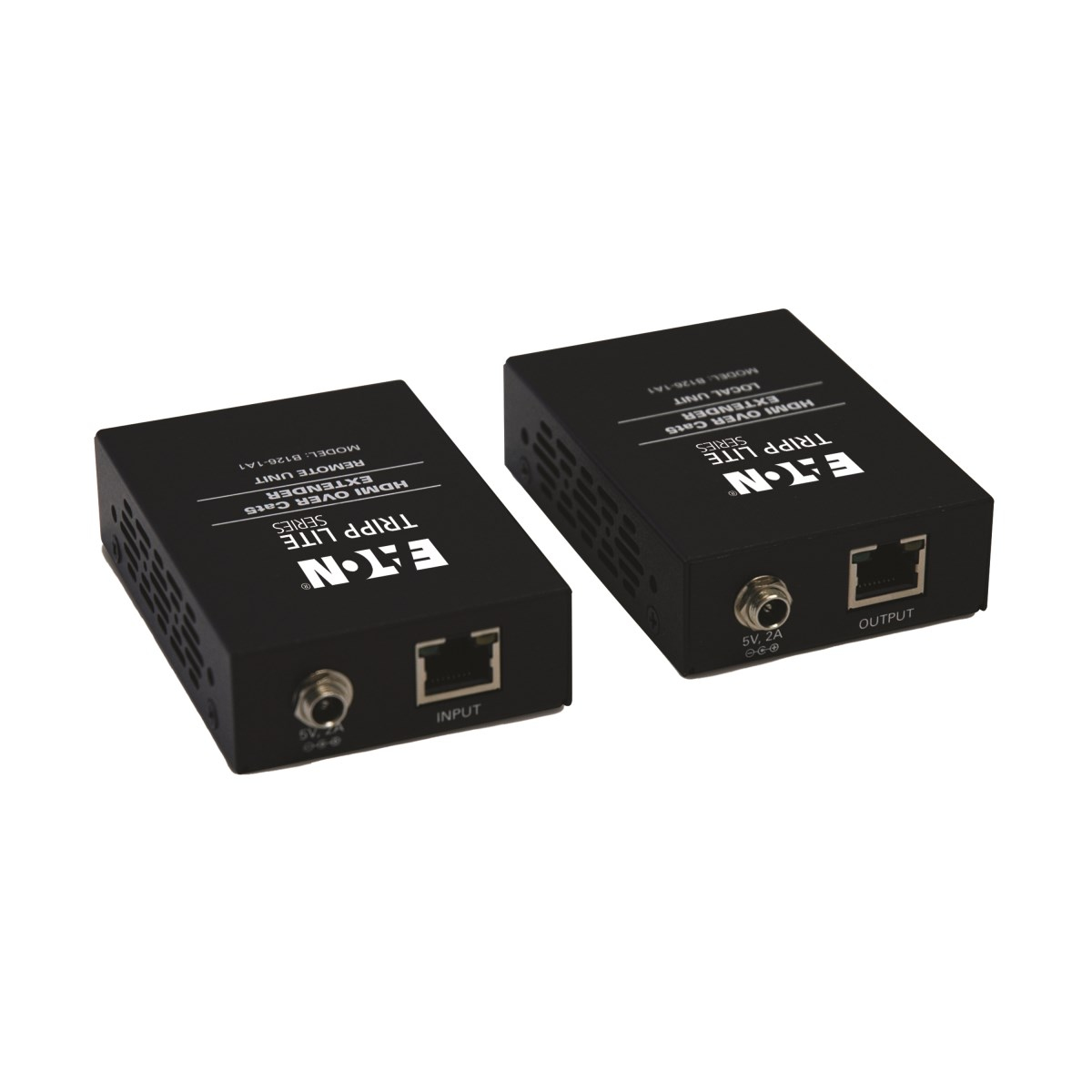

- Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Built-in equalization control lets you adjust the image on the local monitor
- Plug-and-play engineering—no software or drivers to download and install
- Works with all operating systems and HDMI video sources
- Units connect quickly to monitors with HDMI cable, such as Tripp Lite’s P568-Series
- LEDs indicate at a glance when the unit is receiving power and a signal from the previous link in the chain
- Included mounting hardware lets you install the units on a wall, rack or pole

Specifications

Ports & interfaces
Video ports quantity3
Video port typeHDMI
Video outHDMI
Ethernet LAN (RJ-45) ports2
Cable types supportedCat5e, Cat6
Features
LED indicatorsYes
Full HDYes
HDCPYes
Supported video modes1080i, 1080p
Plug and PlayYes
Product colourBlack
3DYes
Country of originTaiwan
Network
Cable types supportedCat5e, Cat6
Power
Input current0.5 A
Output current2 A
Output voltage5 V
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Packaging data
Package weight27.2 oz (770 g)
Package depth8.3" (210.8 mm)
Package width6.2" (157.5 mm)
Package length8.31" (21.1 cm)
Package height2.2" (55.9 mm)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 90%
Video
Full HDYes
HDCPYes
Supported video modes1080i, 1080p
3DYes
Colour
Product colourBlack
Indication
LED indicatorsYes
Technical details
Supported audio channels7.1
Package width6.2" (157.5 mm)
Package length8.31" (21.1 cm)
Package height2.2" (55.9 mm)
Video outHDMI
Plug and PlayYes
Weight & dimensions
Package weight27.2 oz (770 g)
Package depth8.3" (210.8 mm)
Package width6.2" (157.5 mm)
Package length8.31" (21.1 cm)
Package height2.2" (55.9 mm)
Logistics data
Master (outer) case width9.1" (231.1 mm)
Master (outer) case length22.6" (574 mm)
Master (outer) case height6.9" (175.3 mm)
Master (outer) case gross weight17.7 lbs (8.03 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332158922
Harmonized System (HS) code8525.50.3035
