Tripp Lite B126-1A1-IR AV extender AV transmitter & receiver Black

Tripp Lite B126-1A1-IR AV extender AV transmitter & receiver Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B126-1A1-IR
  • EAN: 0037332191328
HDMI over Cat5/6 Active Extender Kit w/ IR Control, Box-Style Transmitter & Receiver, Video/Audio, 1080p, Up to 125-ft.

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter HDMI OVER CAT5/CAT5E/CAT6ACTIVE EXTENDERKIT IR CONTROL 1080P 812275 Register free see stock

Related Products

Description

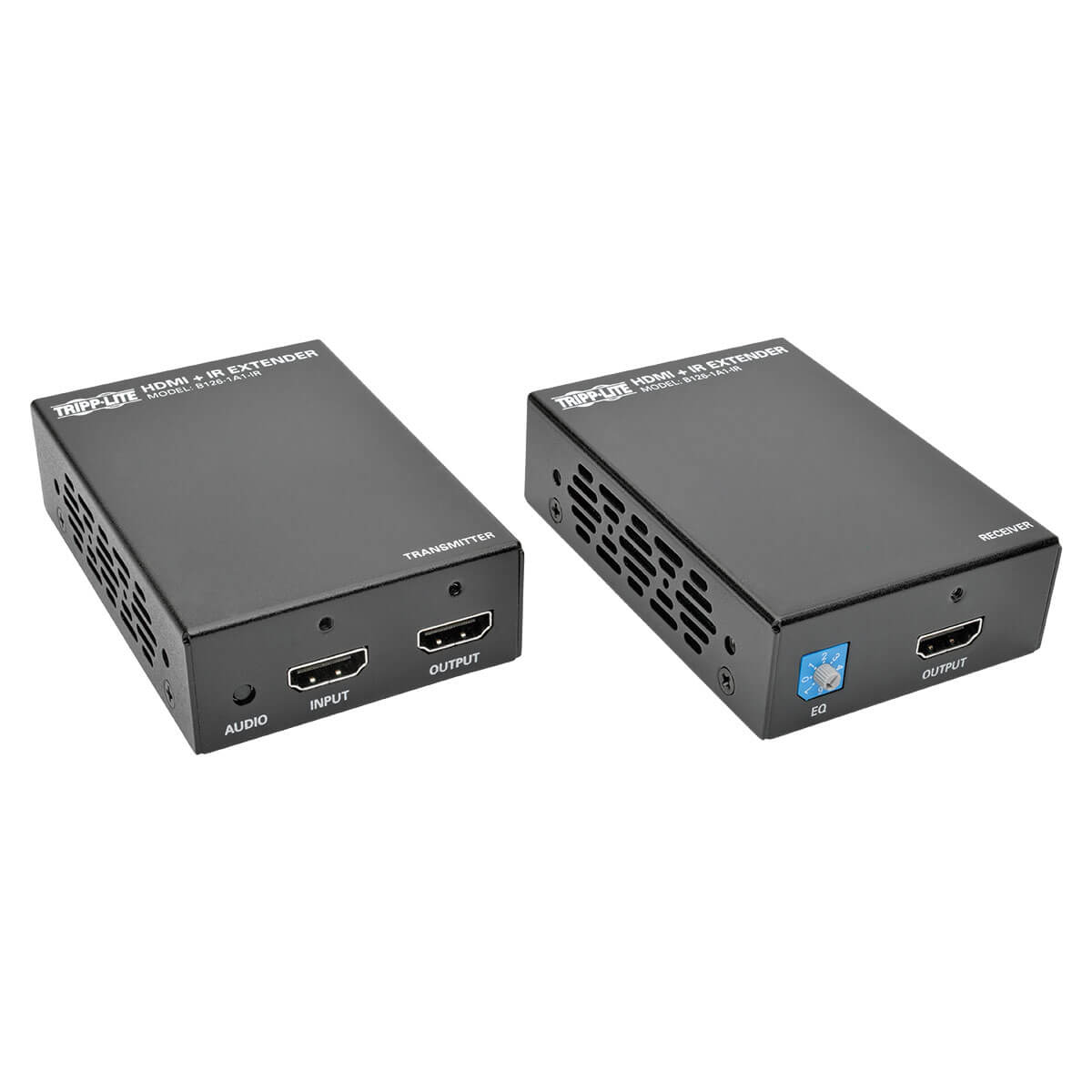

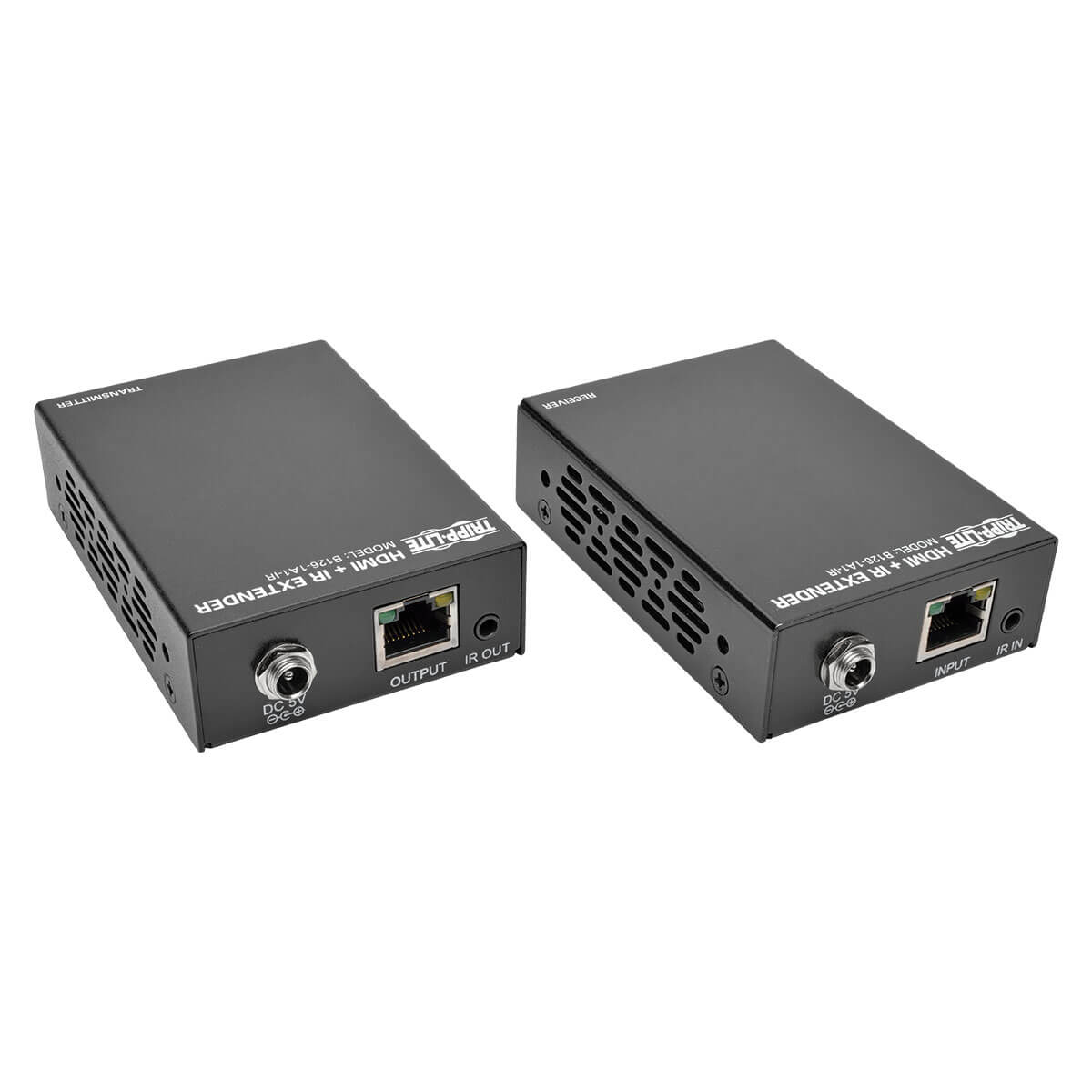

The B126-1A1-IR HDMI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend HDMI audio/video and IR remote control signals to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.

HDMI cable (see Tripp Lite’s P569-Series) connects a local display and the audio/video source to the transmitter unit and a remote display to the receiver unit. Cat5e/6 cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). Included IR-IN and IR-OUT cables allow you to control the video source, such as a Blu-ray™ player, while standing at the remote display.

The B126-1A1-IR can extend a 1080p (60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-IR delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio. Built-in equalization control lets you fine-tune the image quality at each remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.


Extends High-Definition Signals
- Extends a 1080p (60 Hz) signal up to 125 ft.
- IR functionality lets you control your Blu-ray player while standing at the remote display
- Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP
- Built-in equalization control lets you adjust the image on the local monitor

Easy to Set Up and Use
- Plug-and-play engineering—no software or drivers to download and install
- Works with all operating systems and HDMI sources
- Units connect quickly to source and displays with HDMI cable, such as Tripp Lite’s P569-Series
- Units install on a wall, rack or pole with the included hardware

TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Features
HDCPYes
Colour depth24 bit
Audio output channels7.1 channels
Plug and PlayYes
TypeAV transmitter & receiver
Maximum resolution1600 x 1200 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance2401.6" (61 m)
Supported video modes480i, 480p, 720p, 1080i, 1080p
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+)
Product colourBlack
Ports & interfaces
RJ-45 input ports1
RJ-45 output ports1
HDMI in2
Number of HDMI outputs1
DC-in jackYes
Packaging data
Package depth2.2" (55.9 mm)
Package width6.5" (165.1 mm)
Package height8.43" (214.1 mm)
Package weight28.9 oz (820 g)

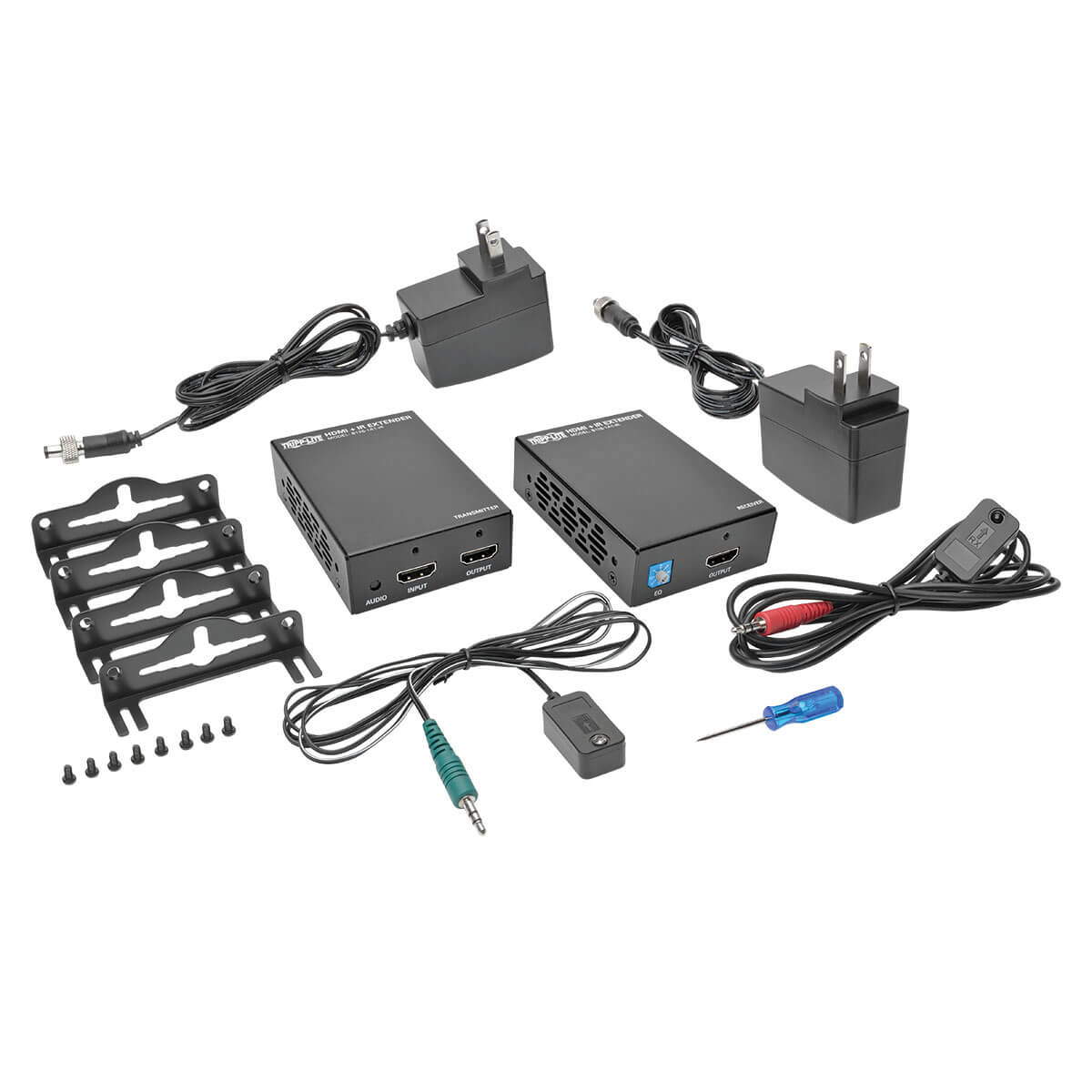

Packaging content
Cables includedIR
ManualYes
Technical details
Country of originTaiwan
Compliance certificatesRoHS
Logistics data
Master (outer) case width6.89" (175 mm)
Master (outer) case length8.94" (227.1 mm)
Master (outer) case height22.6" (573 mm)
Master (outer) case gross weight18.2 lbs (8.27 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332191325
