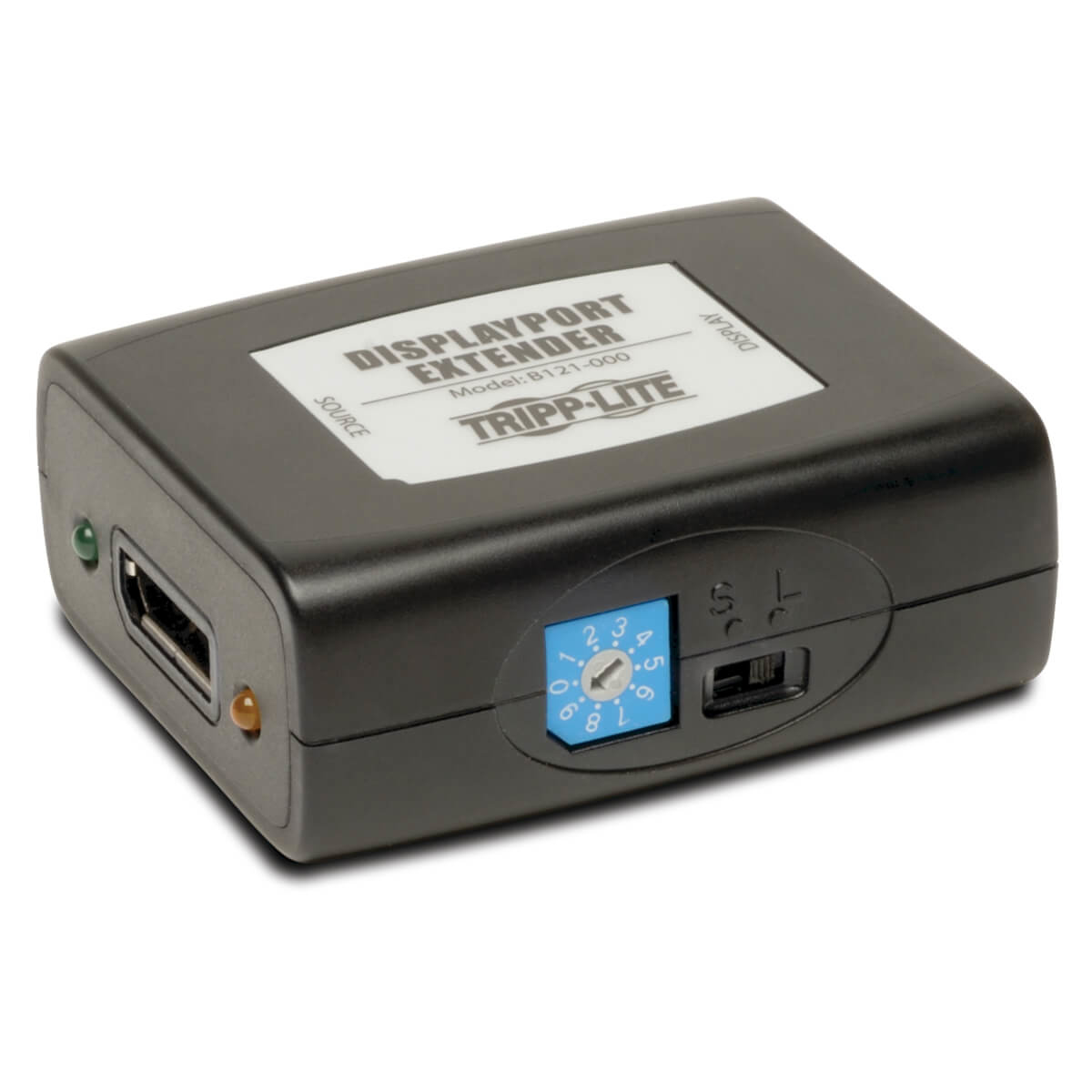

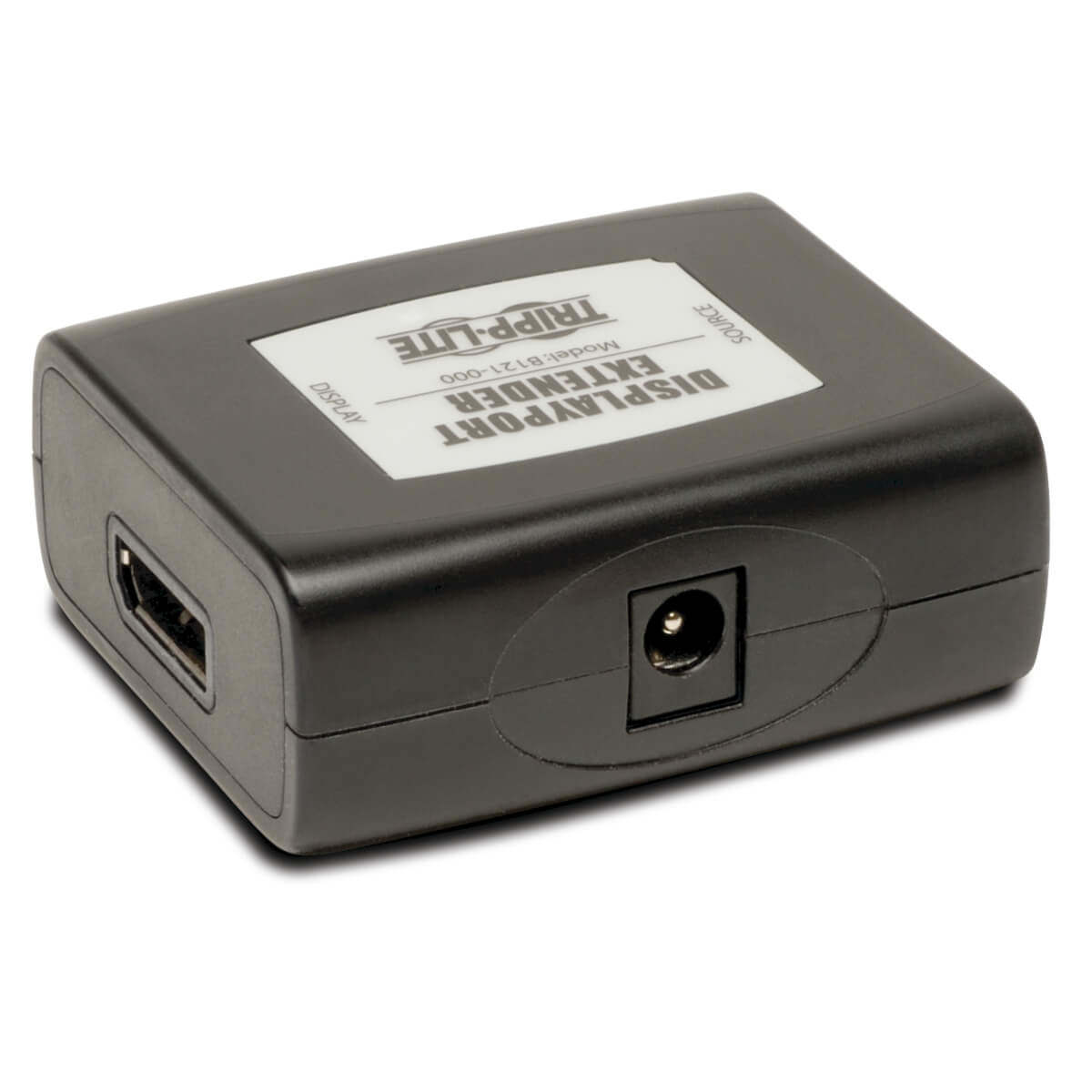

Tripp Lite B121-000 AV extender AV transmitter Black

Tripp Lite B121-000 AV extender AV transmitter Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B121-000
  • EAN: 0037332175502 0021111540773 03 ...1540773 0373321755028more
DisplayPort Extender Equalizer, Repeater for Video & Audio 1920 x 1200 at 60Hz / 1080p (Displayport F/F), Up to 45.72 m (150-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter DISPLAYPORT ACTIVE EXTENDERSIGNAL BOOSTER DISPLAYPORT 565114 Register free see stock
Ingram Micro DISPLAYPORT ACTIVE EXTENDER QR9026
TD Synnex DISPLAYPORT EXTENDER VIDEO REPEATER TAA 3440482

Related Products

Description

Tripp Lite's B121-000 DisplayPort Signal Extender increases the distance a Displayport signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz, as well as a maximum distance of 45.72 m (150-ft.) from the source. Use P580-Series Displayport cables in most applications. When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B121-000, and the shorter cable (4.88 m (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP compliant.

- Extend a Displayport signal up to 45.72 m (150-ft.) from the source
- Supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p.
- When extending a 1920 x 1200 @ 60Hz (or 1080p @ 60Hz) signal more than 30.5 m (100 ft.), use cable made with 24Awg wiring
- Built-in Equalization control to adjust the video image
- Displayport v1.1a compliant

- Extend a Displayport signal up to 45.72 m (150-ft.) from the source
- Supports computer video resolutions up to 1920 x 1200 @ 60Hz, and HD resolutions up to 1080p @ 60Hz
- Use P580-Series Displayport Cables
- When extending a 1920x1200 @ 60Hz (or 1080p @ 60Hz) video signal more than 30.5 m (100-ft.), use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
- Built-in Equalization control to adjust the video image
- HDCP compliant

Specifications

Features
TypeAV transmitter
Maximum resolution1920 x 1080 pixels
Maximum transfer distance1801.2" (45.8 m)
Supported video modes1080p
Supported graphics resolutions1920 x 1080 (HD 1080)
LED indicatorsYes
Product colourBlack
Ports & interfaces
DC-in jackYes
Power
External power adapterYes
Power requirements100-240V, 50/60Hz
Operating voltage240 V
Current0.5 A
Weight & dimensions
Width2.5" (63.5 mm)
Height0.902" (22.9 mm)
Depth2" (50.8 mm)
Weight1.76 oz (50 g)
Packaging data
Package depth7.2" (182.9 mm)
Package width2.25" (57.2 mm)
Package height6" (152.4 mm)
Package weight9.52 oz (270 g)
Packaging content
ManualYes
Technical details
Country of originTaiwan
Number of connectors2
Connector typeDisplay Port
Logistics data
Master (outer) case width13.4" (340.4 mm)
Master (outer) case length22.7" (576.6 mm)
Master (outer) case height9" (228.6 mm)
Master (outer) case gross weight13.5 lbs (6.12 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332175509
