Tripp Lite B127-008-H video splitter HDMI

Tripp Lite B127-008-H video splitter HDMI

8-Port HDMI over Cat6 Splitter/Extender, Transmitter for Video/Audio, 4K 60 Hz, PoC, 125 ft., TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 8PT 4KHDMI OVER CAT6 SPLITTER(30X5) - 0801505 10317328 Register free see stock
Ingram Micro HDMI CAT6 EXTENDER SPLITTER 7YV942
TD Synnex HDMI OVER CAT6 EXTENDER SPLITTER 8-PORT 5892185

Related Products

Description

Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
This eight-port transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-008-H extends 4K video and stereo audio signals from an HDMI source device to eight HDMI displays up to 125 feet (38 meters) away via user-supplied Cat6 cabling.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks

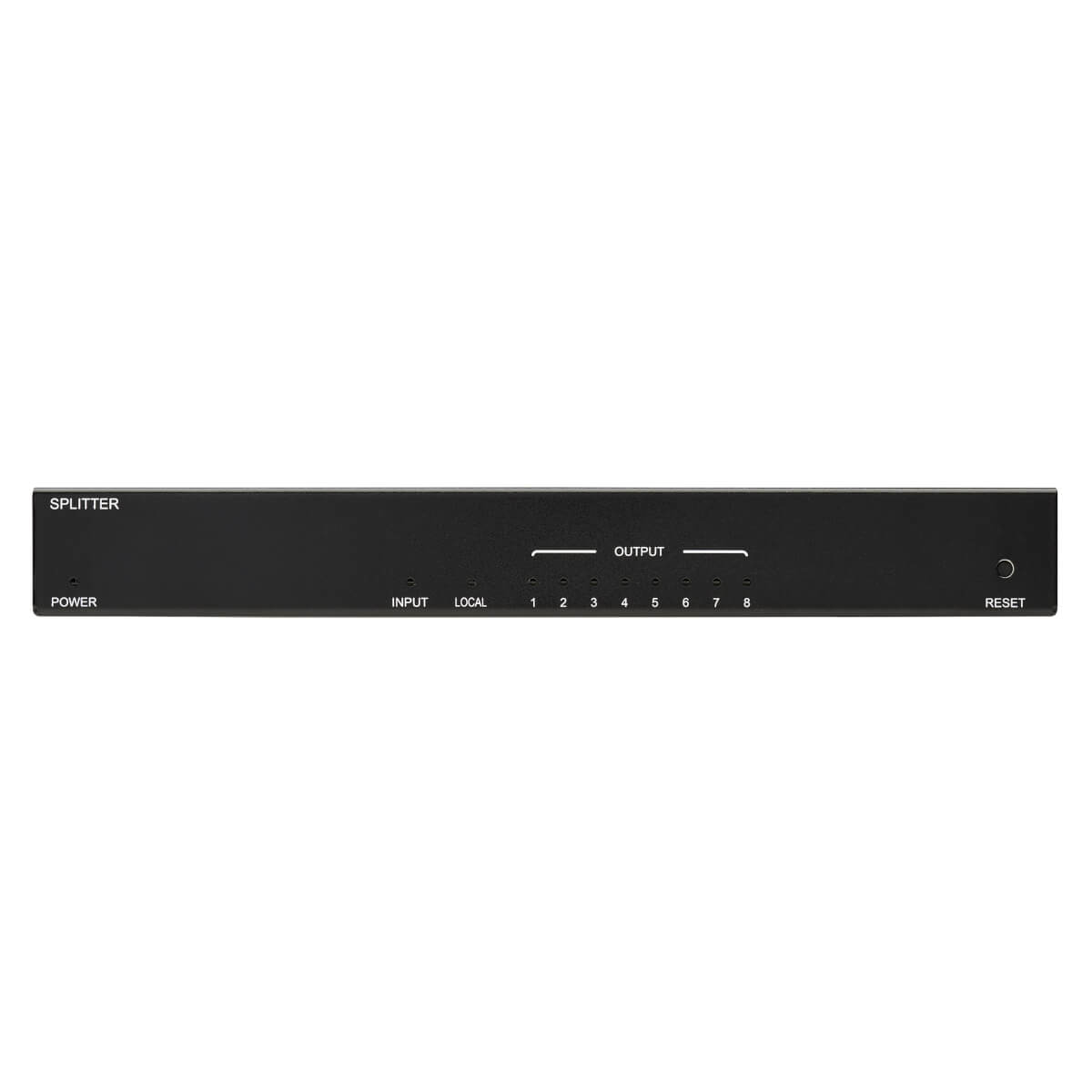

Built-in Power over Cable (PoC) technology powers the connected B127-Series receivers over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers away from an AC outlet.

Transmits Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127-008-H supports Ultra HD video resolutions up to 4K x 2K (3840 x 2160) at 60 Hz, as specified in HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. The transmitter is capable of carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. The B127-008-H also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Daisy-Chain Multiple Transmitters to Add More Displays

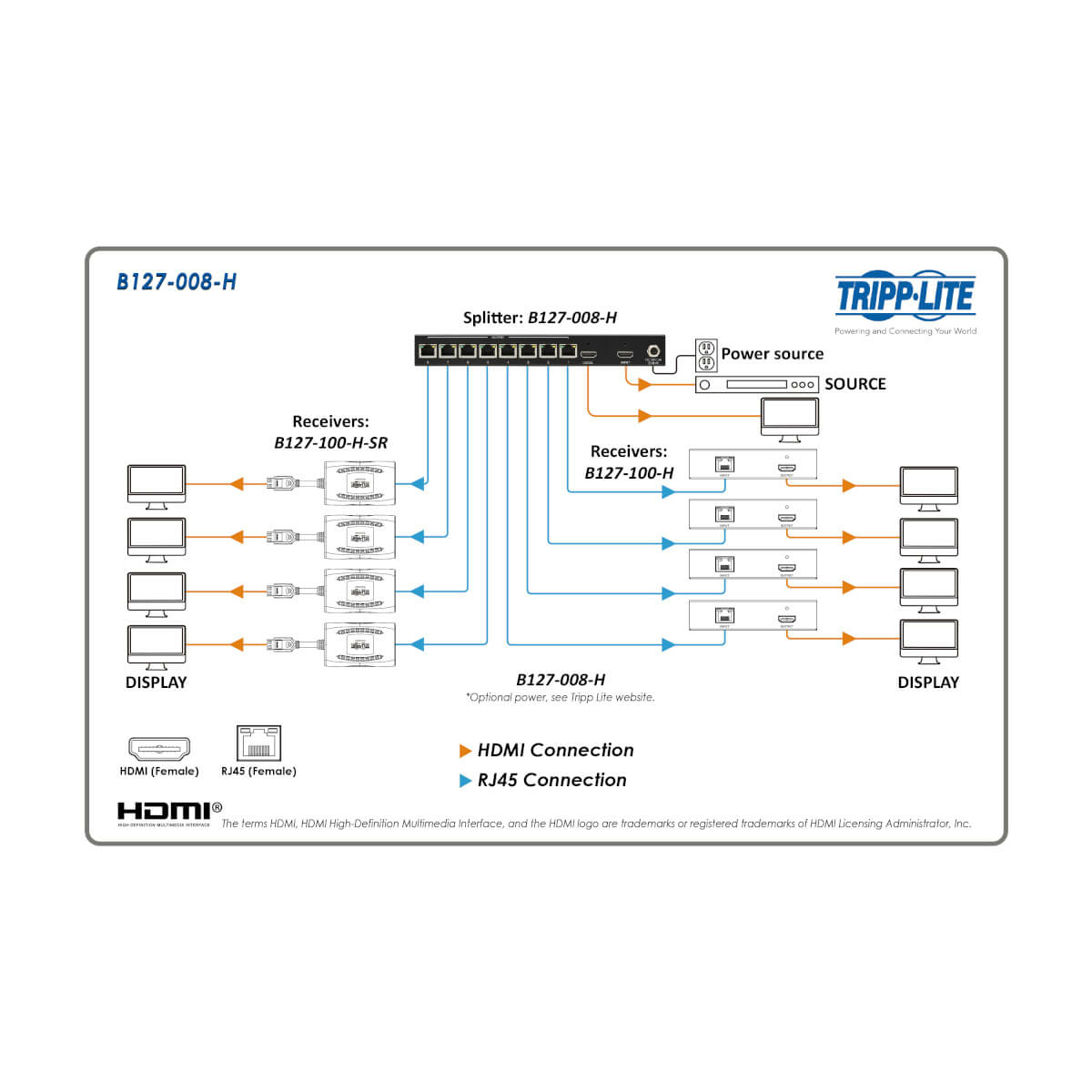

An HDMI output is included for connecting up to three additional B127-008-H transmitters, each of which splits the original HDMI signal into eight. You can also connect an optional display to monitor the image connected to the receivers up to 125 feet away.

Plug-and-Play Operation for Quick Setup and Immediate Use
The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied HDMI cable (such as P568- or P569-Series). Then, connect the transmitter to a B127-100-H, B127-200-H or B127-100-H-SR remote receiver using Cat6 Ethernet cable (such as N202-Series cable).

TAA-Compliant for GSA Schedule Purchases
The B127-008-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Specifications

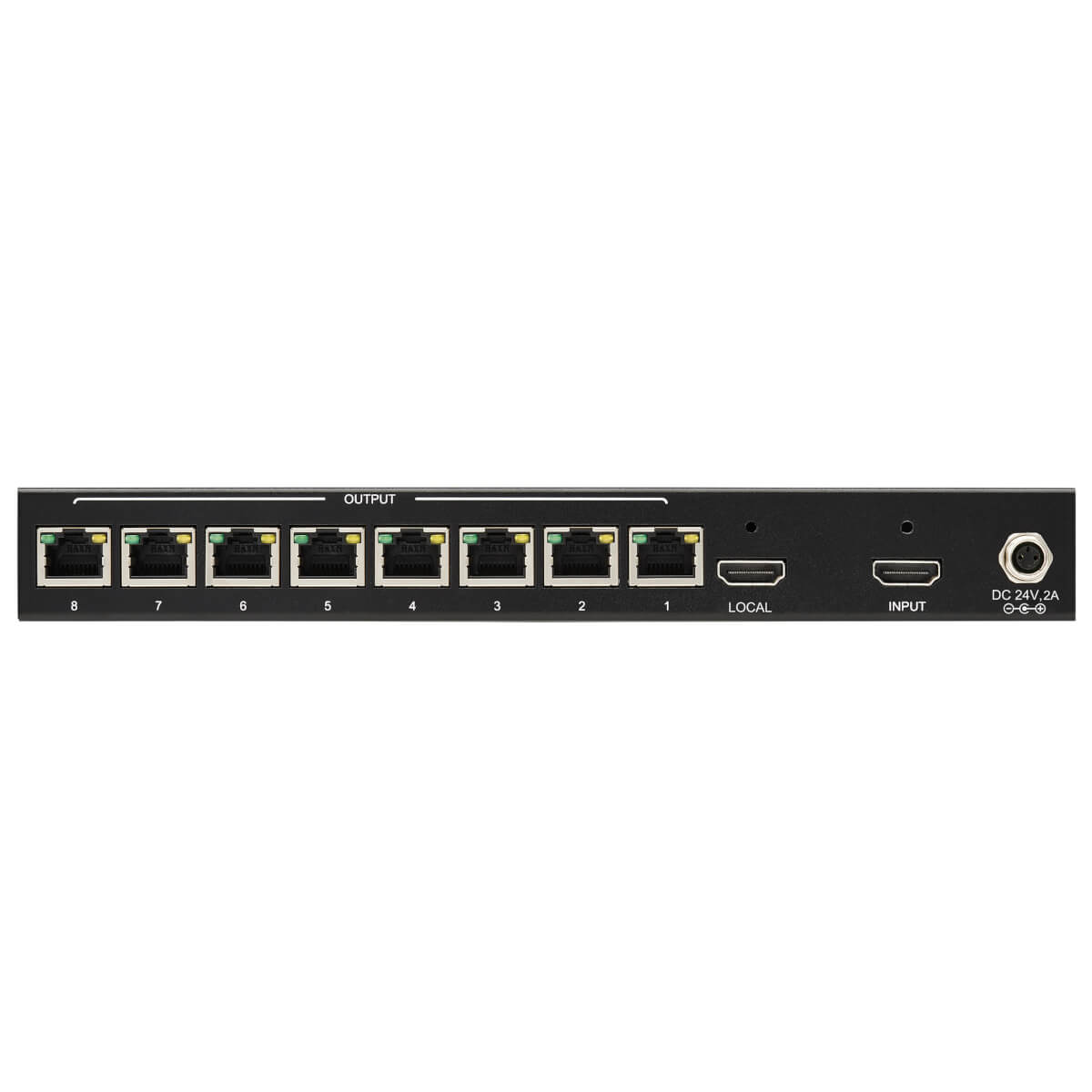

Ports & interfaces
Video ports quantity2
Video port typeHDMI
Video outHDMI
HDMI version2.0
Ethernet LAN (RJ-45) ports8
DC-in jackYes
Cable types supportedCat6, HDMI
Ethernet LANYes
Features
Rack mountingYes
LED indicatorsYes
Housing materialMetal
Maximum refresh rate60 Hz
Dolby technologiesDTS-HD, Dolby TrueHD
Maximum resolution3840 x 2160 pixels
HDCPYes
Maximum operating distance1496.1" (38 m)
Product colourBlack
CertificationCE, FCC, REACH
3DYes
HD type4K Ultra HD
Country of originTaiwan
Network
Cable types supportedCat6, HDMI
Ethernet LANYes
Power
Input current1.5 A
Output current2 A
Output voltage24 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Weight & dimensions
Weight22.9 oz (650 g)
Width9.25" (235 mm)
Depth3.94" (100 mm)
Height1.17" (29.7 mm)
Package weight22.9 oz (650 g)
Package typeBox
Package depth6.46" (164.1 mm)
Package width13.9" (352 mm)
Package height2.17" (55.1 mm)
Packaging data
Package weight22.9 oz (650 g)
Package typeBox
Package depth6.46" (164.1 mm)
Package width13.9" (352 mm)
Package height2.17" (55.1 mm)

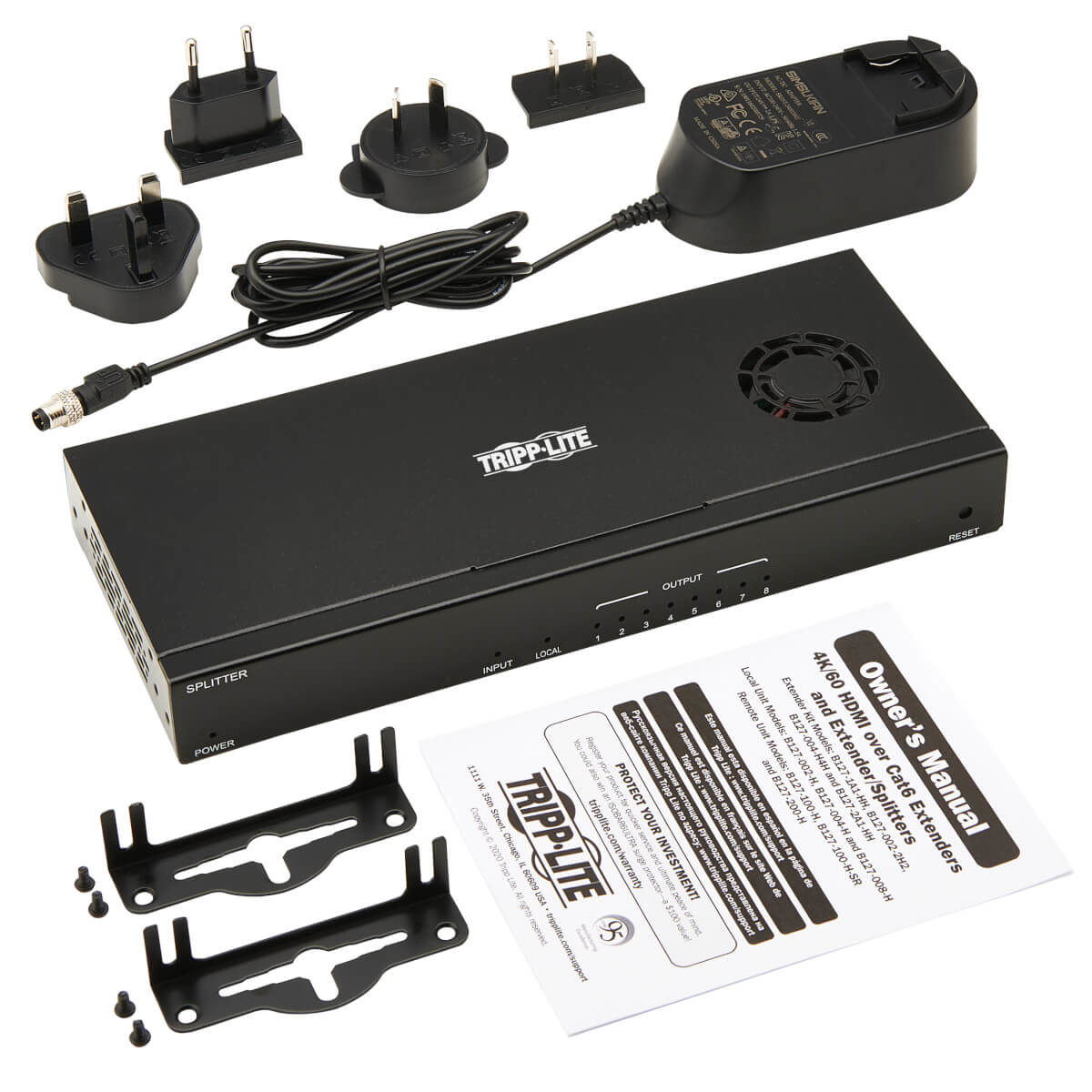

Packaging content
AC adapter includedYes
Included power plug typesAU, EU, NA, UK
ManualYes
Package typeBox
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 85%
Storage relative humidity (H-H)0 - 85%
Video
Maximum refresh rate60 Hz
Maximum resolution3840 x 2160 pixels
HDCPYes
3DYes
Colour
Product colourBlack
Certificates
CertificationCE, FCC, REACH
Indication
LED indicatorsYes
Technical details
Rack mountingYes
Housing materialMetal
Dolby technologiesDTS-HD, Dolby TrueHD
Package width13.9" (352 mm)
Package height2.17" (55.1 mm)
Video outHDMI
Maximum operating distance1496.1" (38 m)
HDMI version2.0
Compliance certificatesRoHS
Logistics data
Master (outer) case width23.1" (586 mm)
Master (outer) case length14.8" (374.9 mm)
Master (outer) case height7.76" (197.1 mm)
Master (outer) case gross weight24.5 lbs (11.1 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332239041
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
