Tripp Lite B132-100-1 video splitter VGA

Tripp Lite B132-100-1 video splitter VGA

  • Brand: Tripp Lite
  • Category:
  • SKU: B132-100-1
  • EAN: 0037332160126 7044447801298 03 ...7801298 0373321601264 0021113144399more

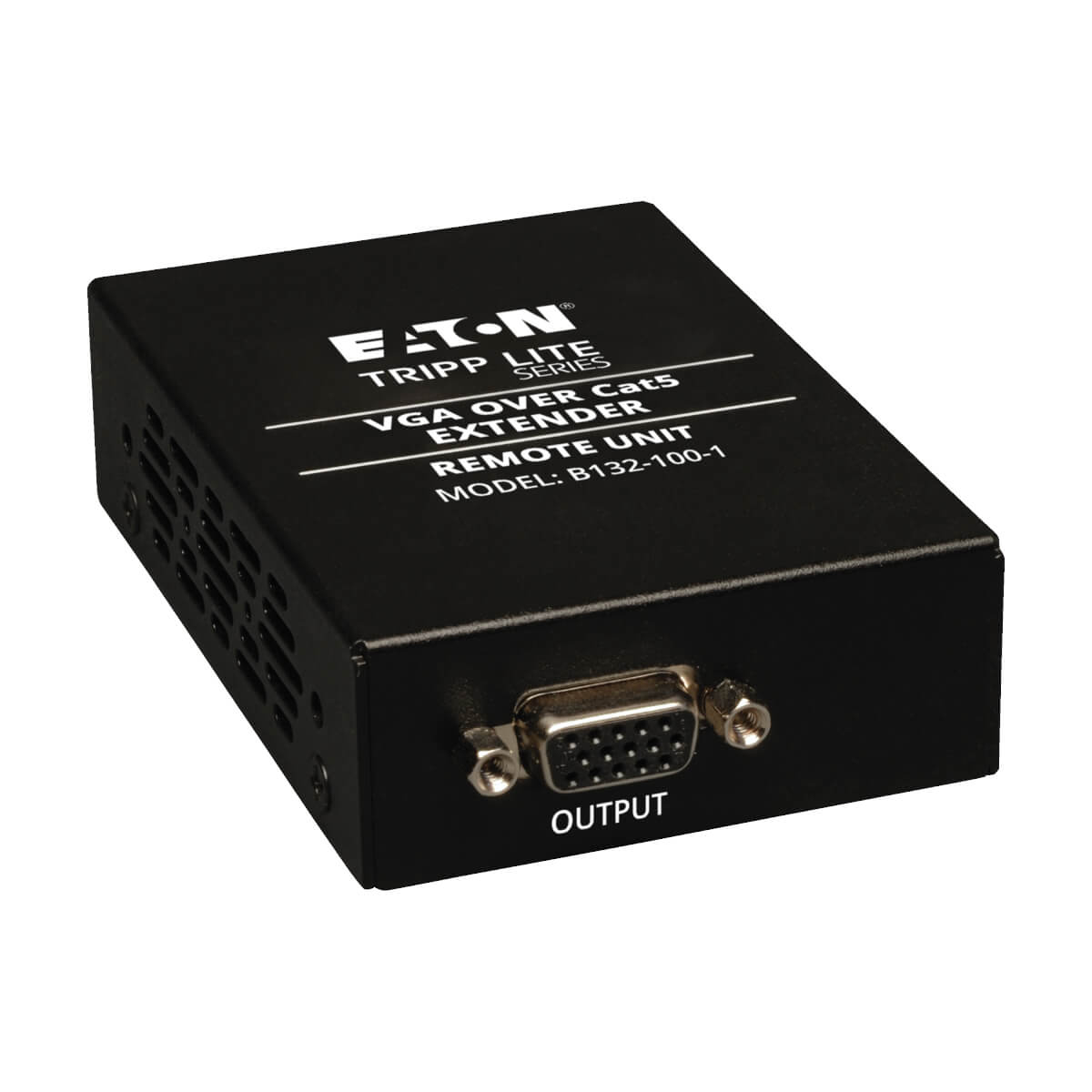

VGA over Cat5/Cat6 Extender, Box-Style Receiver, 1920x1440 at 60Hz, Up to 305 m (1,000-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter VGA OVER CAT5 RECEIVER FORUSE W/ B132-002-1 565144 Register free see stock
Ingram Micro VGA OVER CAT5 / CAT6 EXTENDER KA1912
TD Synnex VGA OVER CAT5/6 EXTENDER BOX KIT 60HZ 2880406

Related Products

Description

Tripp Lite's B132-100-1 works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) video signal up to 305 m (1,000-ft.) 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc.
- Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) video signal up to 305 m (1,000-ft.)
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K
System Requirements
International AC Adapter B110-INT required for use with UK, European, and Australian power connections

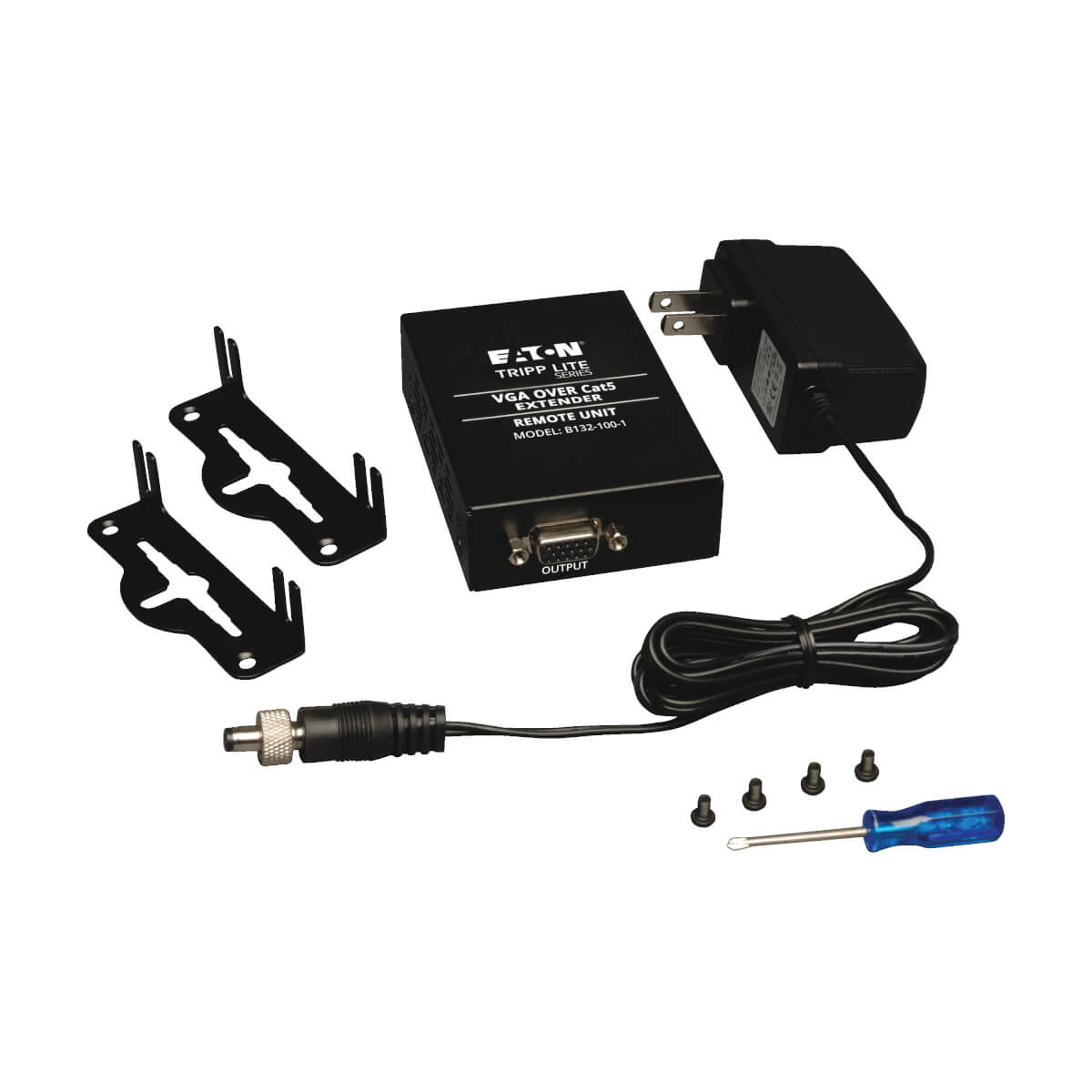

- Extender remote (Receiver) unit
- Mini-Screwdriver for EQ/Gain adjustment
- Mounting Hardware
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 1.52 m (5-ft.)
- Owner’s Manual
- Works with a B132-002-2 or B132-004-2 local transmitter unit to extend a 1920 x 1440 (60Hz) video signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) video signal up to 305 m (1,000-ft.)
- 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
- For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K

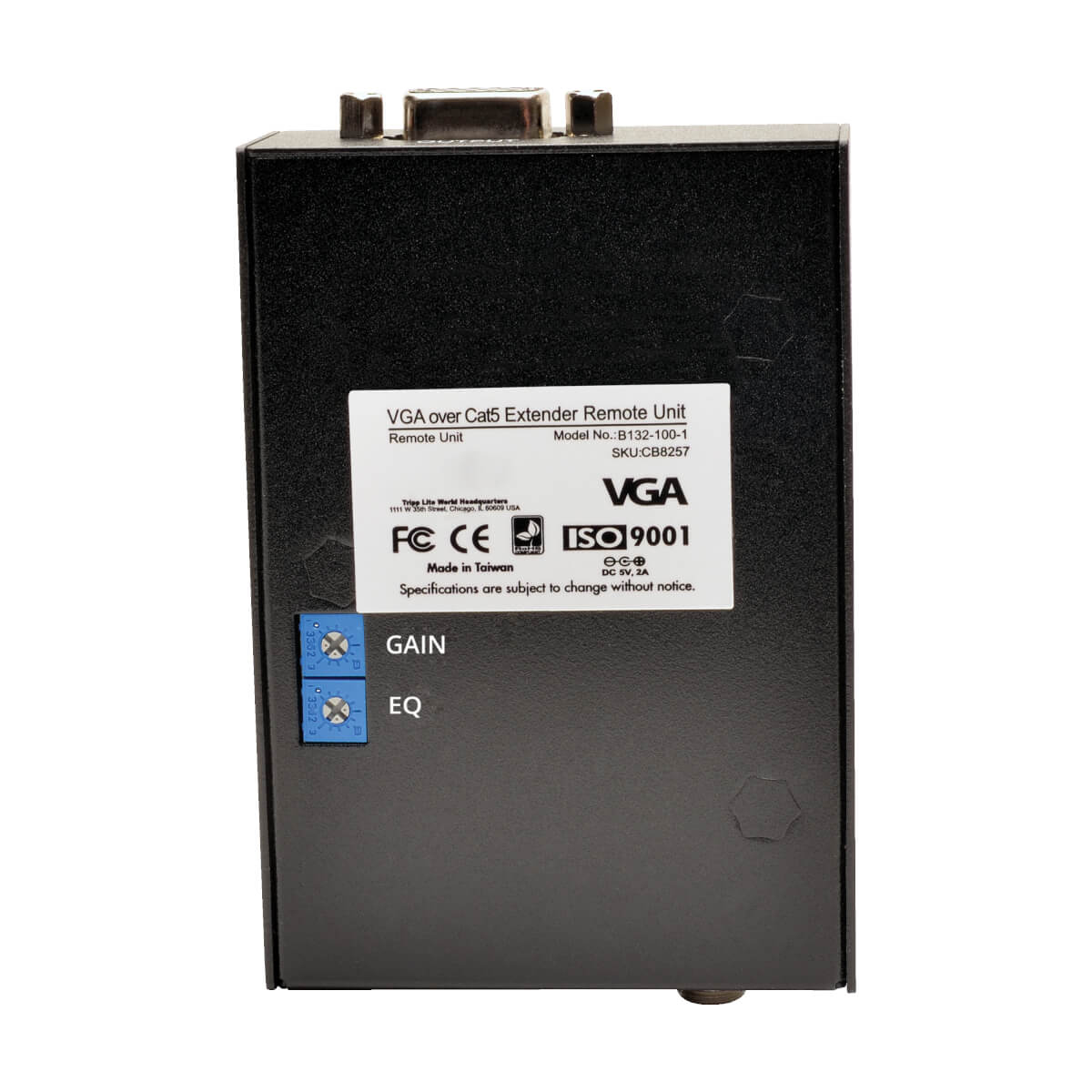

- Features built-in Equalization and Gain controls to adjust the video image
- Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted
- Ideal for digital signage situations, such as retail, schools, churches, etc..
- 1 year limited waranty

Specifications

Ports & interfaces
Video ports quantity1
Video port typeVGA
Video outVGA

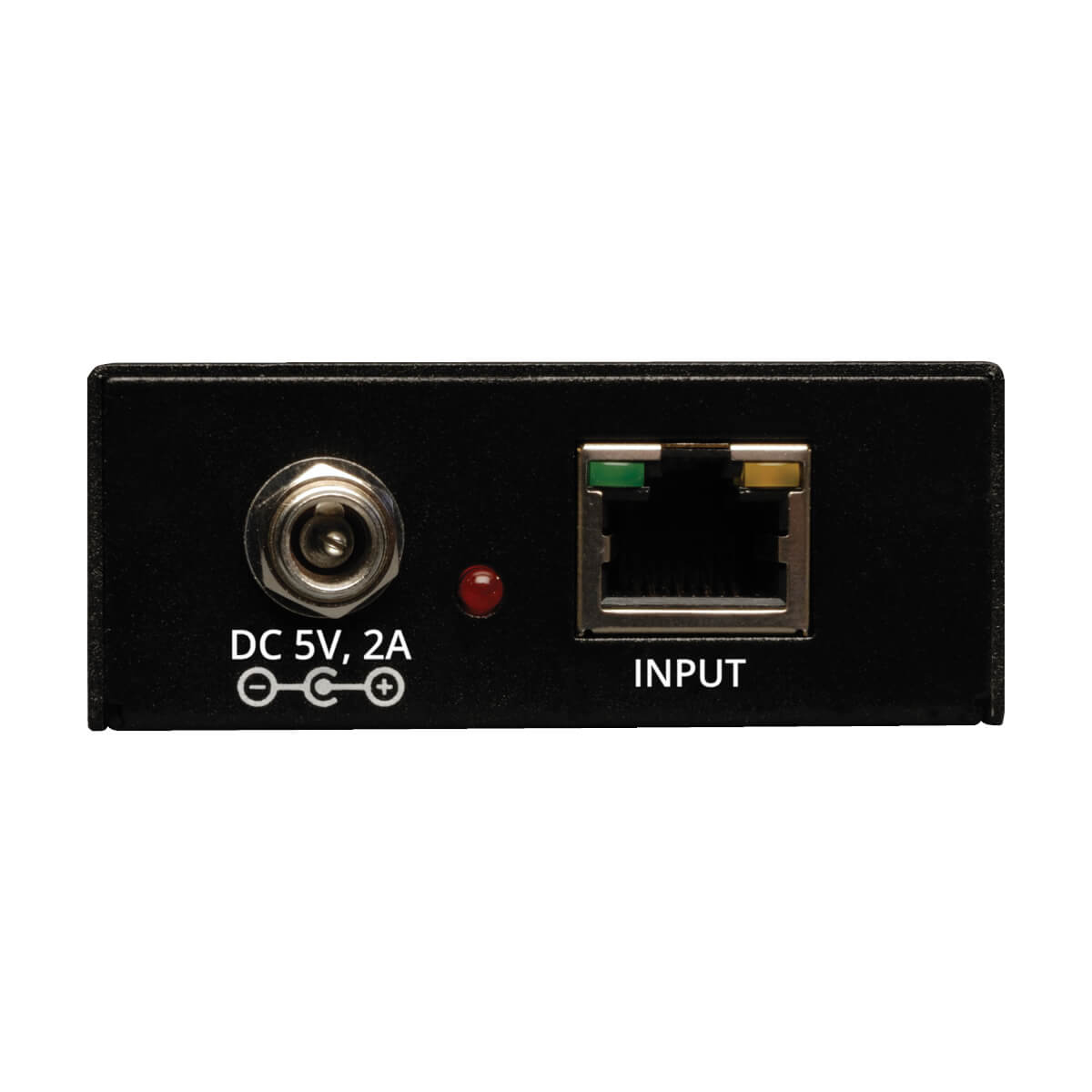

Ethernet LAN (RJ-45) ports1
DC-in jackYes
Ethernet LANYes
Features
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1440 pixels
Power LEDYes
Product colourBlack
CertificationTAA
Country of originTaiwan
Network
Ethernet LANYes
Power
Output voltage5 V
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Weight & dimensions
Width2.5" (63.5 mm)
Depth3.6" (91.4 mm)
Height1" (25.4 mm)
Package weight15.9 oz (450 g)
Package depth6.5" (165.1 mm)
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Packaging data
Package weight15.9 oz (450 g)
Package depth6.5" (165.1 mm)
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Video
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1440 pixels
Colour
Product colourBlack
Certificates
CertificationTAA
Indication
Power LEDYes
Technical details
Package width7.2" (182.9 mm)
Package height2.2" (55.9 mm)
Video outVGA
Logistics data
Master (outer) case width23.1" (586.7 mm)
Master (outer) case length13.7" (348 mm)
Master (outer) case height8.7" (221 mm)
Master (outer) case gross weight22 lbs (9.98 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332160123
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
