Tripp Lite B130-202A AV extender AV transmitter & receiver Black

Tripp Lite B130-202A AV extender AV transmitter & receiver Black

  • Brand: Tripp Lite
  • Category:
  • SKU: B130-202A
  • EAN: 0037332182647 0373321826476
VGA with Audio over Cat5/Cat6 Extender Kit, Transmitter & Receiver with EDID, 2 Local/2 Remote Displays, 1440x900, Up to 500-ft.

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter VGA WITH AUDIO CAT5/CAT6EXTENDER KIT FOR 2 LOCAL AND 2REMOTE DISPLAYS 641798 Register free see stock
Ingram Micro VGA VIDEO + AUDIO OVER CAT5 YU7917
TD Synnex VGA VIDEO + AUDIO OVER CAT5 CAT6 EXTENDER 2 LOCAL 2 REMOTE EDID 4119019

Related Products

Description

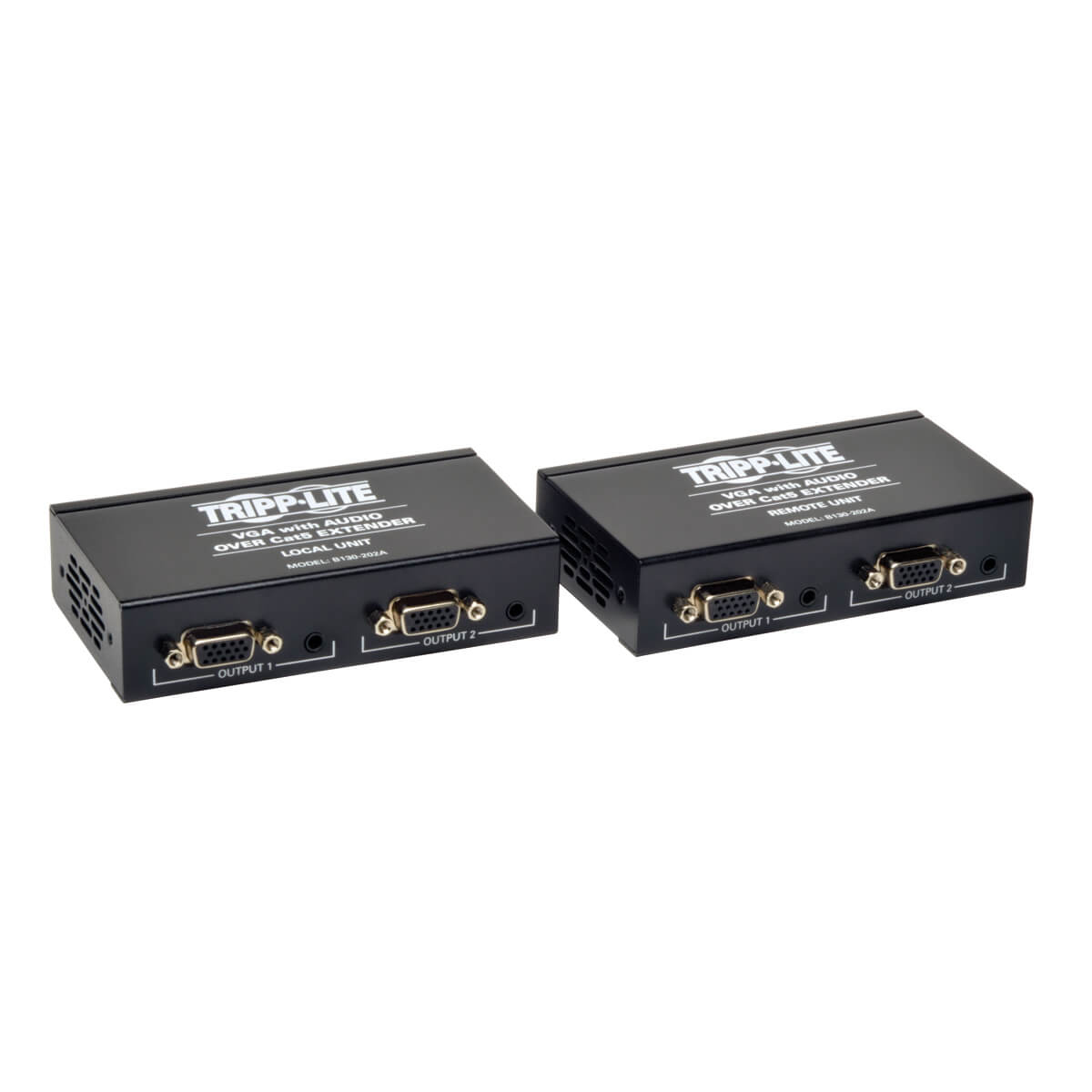

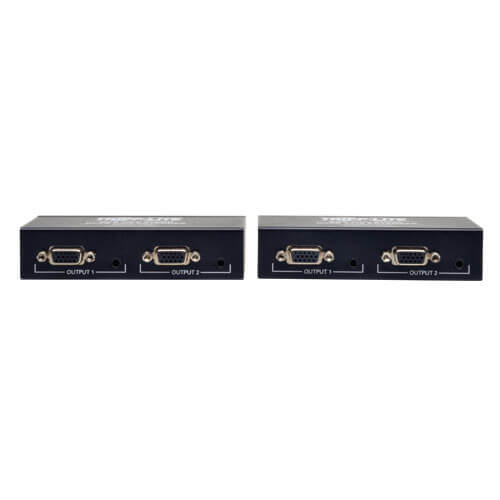

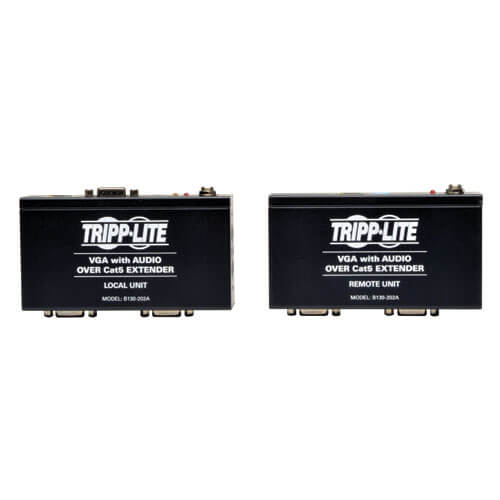

The B130-202A VGA with Audio over Cat5/Cat6 Extender Kit allows you to extend two 1024x768 VGA video signals + Stereo Audio up to 500 ft., over ordinary Cat5e cable, from a single VGA+Audio source. The Transmitter / Receiver kit also features two local VGA HD15 ports, allowing you to connect up to four VGA monitors, two local and two remote. Compatibility issues can occur when EDID information is not properly communicated between the source and the display. The B130-202A includes an EDID copy feature which stores a monitor’s EDID information in the transmitter and sends it to the source, ensuring optimal compatibility. Supports all operating systems, and is plug-and-play...no software or drivers are required.

Specifications

Features
HDCPYes
Plug and PlayYes
HDCP & EDID bypassYes
TypeAV transmitter & receiver
Maximum resolution1440 x 900 pixels
Maximum transfer distance6000" (152.4 m)
Supported video modes480i, 480p, 720p
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+)
Product colourBlack
Ports & interfaces
3.5 mm (1/8-inch) inYes

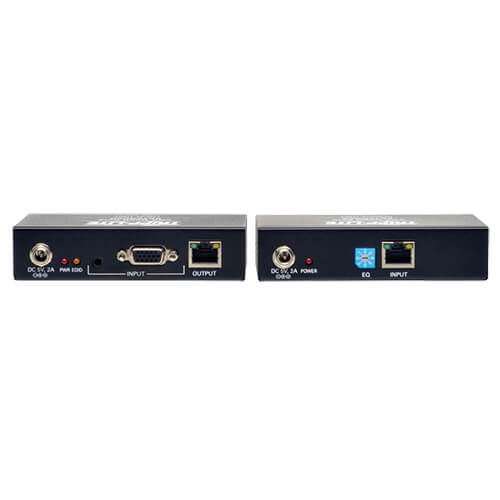

RJ-45 input ports1
RJ-45 output ports1
VGA (D-Sub) input ports1
VGA (D-Sub) output ports4
Audio input2
DC-in jackYes
Power
Input current0.5 A
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Operating voltage5 V
Operational conditions
Storage temperature (T-T)-20 - 70 °C
Operating temperature (T-T)0 - 50 °C
Weight & dimensions
Transmitter dimensions (WxDxH)4.5 x 2.44 x 1.06" (114.3 x 62 x 26.9 mm)
Receiver dimensions (WxDxH)4.5 x 2.44 x 1.06" (114.3 x 62 x 26.9 mm)
Packaging data
Package depth8.4" (213.4 mm)
Package width6.2" (157.5 mm)
Package height2.2" (55.9 mm)
Package weight27.2 oz (770 g)
Packaging content

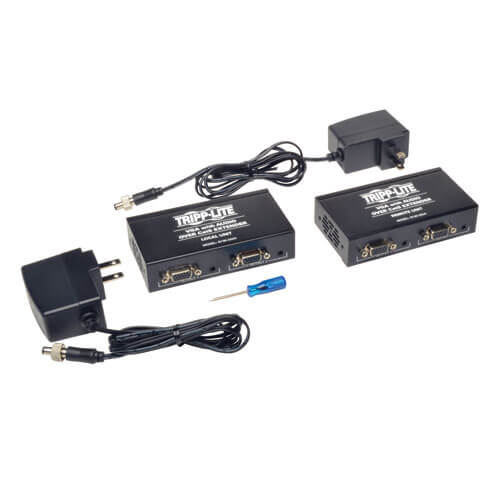

AC adapter includedYes
ManualYes
Technical details
Country of originTaiwan
Sustainability certificatesRoHS
Logistics data
Master (outer) case width13.3" (337.8 mm)
Master (outer) case length22.8" (579.1 mm)
Master (outer) case height9.4" (238.8 mm)
Master (outer) case gross weight37.5 lbs (17 kg)
Products per master (outer) case20 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332182644
