Tripp Lite B140-004 video splitter DVI

Tripp Lite B140-004 video splitter DVI

  • Brand: Tripp Lite
  • Category:
  • SKU: B140-004
  • EAN: 0037332156693 0373321566938

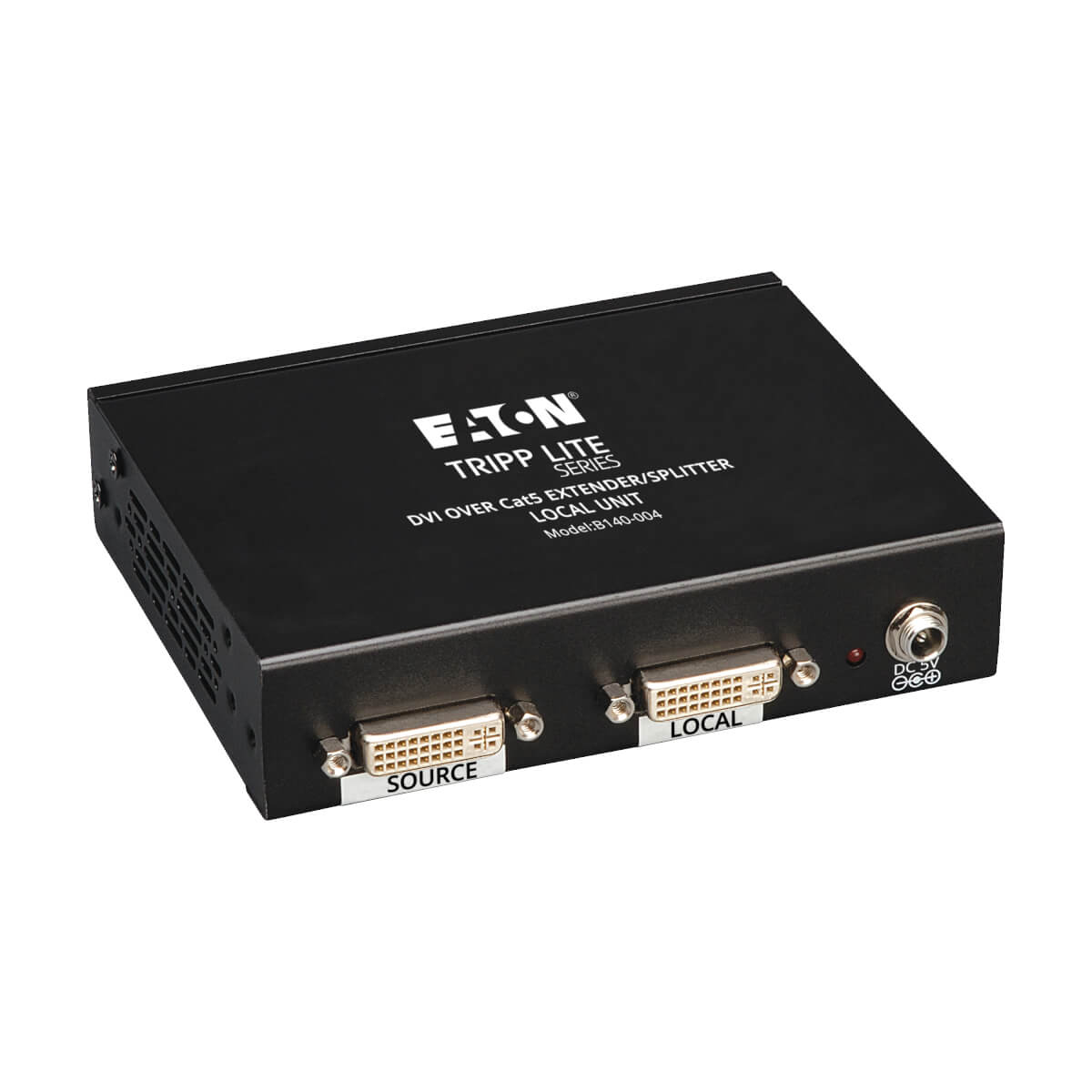

4-Port DVI over Cat5/Cat6 Extender Splitter, Video Transmitter, 1920x1080 at 60Hz, Up to 61 m (200-ft.)

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 4-PORT DVI OVER CAT5 EXTENDERSPLITTER ACTIVE & PASSIVE 565159 Register free see stock
Ingram Micro DVI OVER CAT5 EXTENDER/SPLITTER DP8651
TD Synnex 4PORT DVI CAT5/6 EXTENDER SPLITTER 60HZ 2788229

Related Products

Description

The B140-004 transmits a DVI-D Single-Link signal to four monitors up to 61 m (200-ft.) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local). Mounting hardware is included that allows the unit to be rackmounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB 19" rackmount bracket. The B140-004 is compatible with all operating systems, and is plug and play, with no software or drivers required.

Installation is simple. Connect the B140-004 transmitter to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect a Tripp Lite B140-series receiver (not included) to each display using a Tripp Lite P561-Series DVI cable (not included). Finally, each remote receiver is connected to an RJ45 port on the B140-004 using a single Cat5e/6 cable.

For longer extension distances, use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)

For shorter extension distances, use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 15 m (50-ft.), or a 1024 x 768 @ 60Hz signal up to 31 m (100-ft.)

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- For longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 15 m (50-ft.), or a 1024 x 768 @ 60Hz signal up to 31 m (100-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- Can further expand the range and number of monitors by adding B140-110 repeaters
- Compatible with all operating systems
- Plug and play, no software or drivers required
System Requirements
International AC Adapter B110-INT required for use with UK, European, and Australian power connections

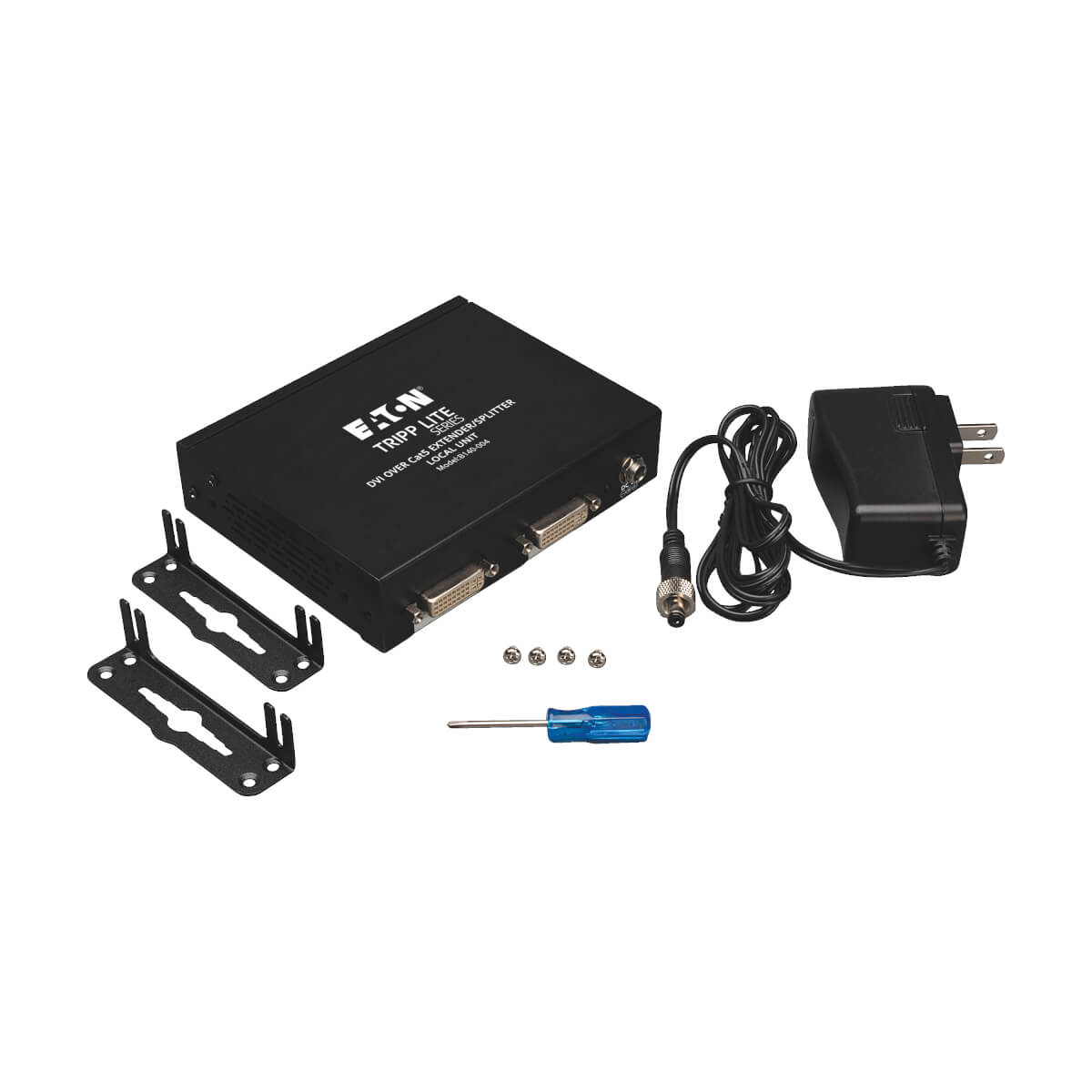

- B140-004 DVI Over Cat5 Extender/Splitter, 4-Port Local Transmitter Unit
- 0.31 m (1-ft.) DVI daisychain cable
- Mounting hardware
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A Output: 5V, 2A)
- Owner's Manual
- Transmit a DVI-D Single-Link signal to four monitors up to 61 m (200-ft.) away using a single Cat5e/6 patch cable
- Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
- For longer distances - Use a B140-1A0 or B140-1A0-WP active receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 46 m (150-ft.), or a 1024 x 768 @ 60Hz signal up to 61 m (200-ft.)
- For shorter distances - Use a B140-1P0 or B140-1P0-WP-1 passive receiver unit to extend a 1920 x 1080 @ 60Hz signal up to 15 m (50-ft.), or a 1024 x 768 @ 60Hz signal up to 31 m (100-ft.)
- Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
- An additional DVI port is provided for the connection of a local monitor. This local DVI port can also be used to daisychain up to 3 units together, allowing for the connection of up to 13 monitors (12 remote, 1 local).
- Further expand the range and number of monitors by using a B140-110 repeater unit
- Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel)
- A 1920 x 1080 @ 60Hz signal can be extended up to 38 m (125-ft.) from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 53 m (175-ft.)
- HDCP compatible
- Compatible with all operating systems
- Plug and play; no software or drivers required
- Mounting hardware is included that allows the unit to be rackmounted, wallmounted or pole mounted. In addition, up to three units can be mounted in 1U of rack space using a Tripp Lite B132-004-RB 19" rackmount bracket.

Specifications

Ports & interfaces
Video ports quantity2
Video port typeDVI

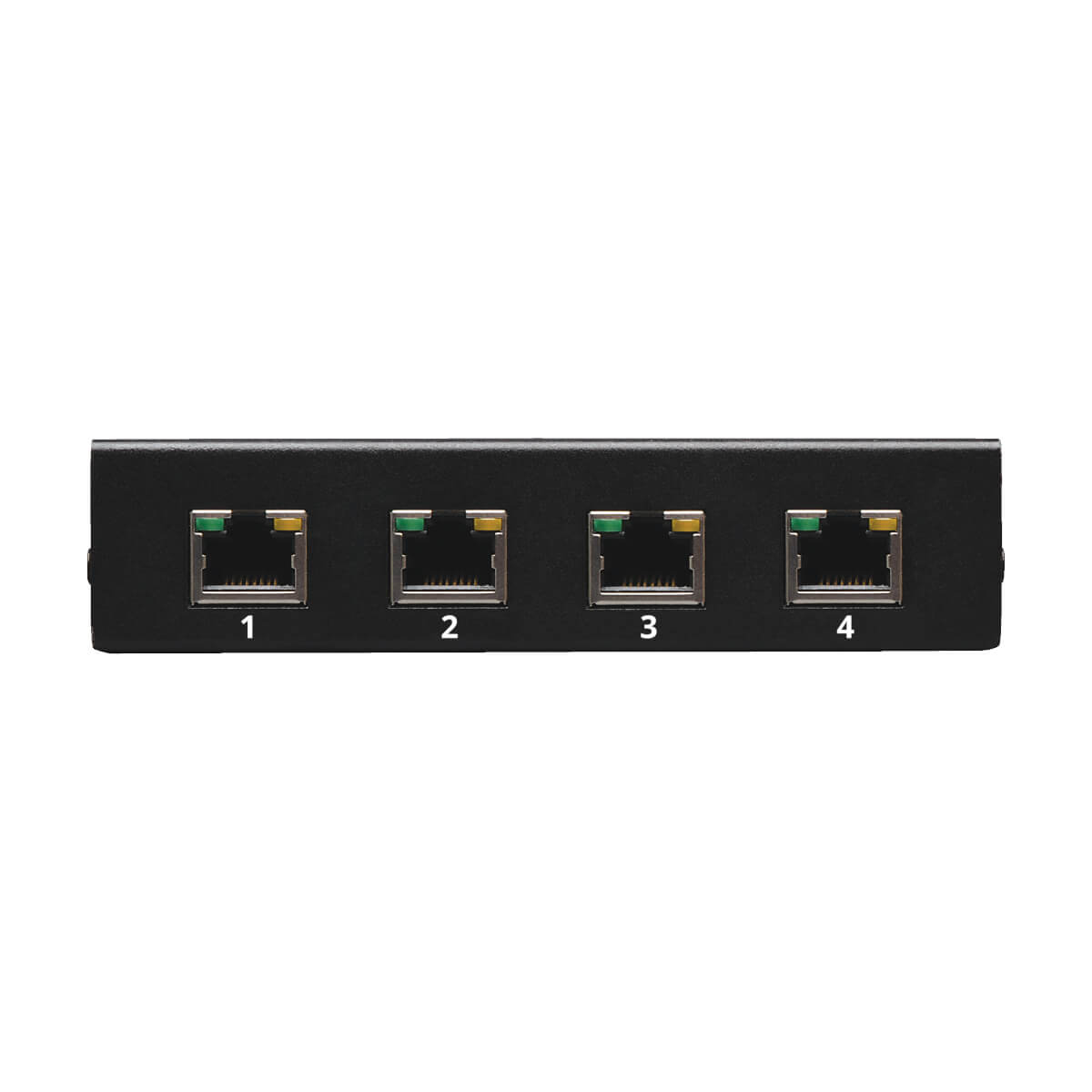

Ethernet LAN (RJ-45) ports4
Ethernet LANYes
Features
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
HDCPYes
Power LEDYes
Plug and PlayYes
Product colourBlack
Country of originTaiwan
Network
Ethernet LANYes
Power
Output voltage5 V
AC input frequency50 - 60 Hz
AC input voltage100-240 V
Packaging data
Package weight28.9 oz (820 g)
Package depth6.4" (162.6 mm)
Package width10.1" (256.5 mm)
Package height2.1" (53.3 mm)
Packaging content
ManualYes
Video
Supported graphics resolutions1024 x 768 (XGA)
Maximum resolution1920 x 1080 pixels
HDCPYes
Colour
Product colourBlack
Indication
Power LEDYes
Technical details
Package width10.1" (256.5 mm)
Package height2.1" (53.3 mm)
Plug and PlayYes
Weight & dimensions
Package weight28.9 oz (820 g)
Package depth6.4" (162.6 mm)
Package width10.1" (256.5 mm)
Package height2.1" (53.3 mm)
Logistics data
Master (outer) case width22.3" (566.4 mm)
Master (outer) case length10.8" (274.3 mm)
Master (outer) case height7" (177.8 mm)
Master (outer) case gross weight17.7 lbs (8.03 kg)
Products per master (outer) case10 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332156690
Harmonized System (HS) code8525.50.3035
Country of originTaiwan
