Tripp Lite DWFPSC4570M signage display mount 70" Black

Tripp Lite DWFPSC4570M signage display mount 70" Black

Heavy-Duty Fixed Security TV Wall Mount for 45-70" TVs & Monitors - Flat Screen, Portrait Mode

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "HEAVY-DUTY FIXED SECURITY TVWALL MOUNT FOR 45-70"" TVS &MONITORS - FLAT" 9810297 Register free see stock
D&H Fixed Wall Mount 45 to 70" TV DWFPSC4570M
Ingram Micro DISPLAY TV SECURITY WALL MOUNT 6FU530
TD Synnex HEAVY-DUTY FIXED SECURITY TV WALL MOUNT FOR 45-70 TELEVISIONS/MONITORS - FLAT SC 5505902

Related Products

Description

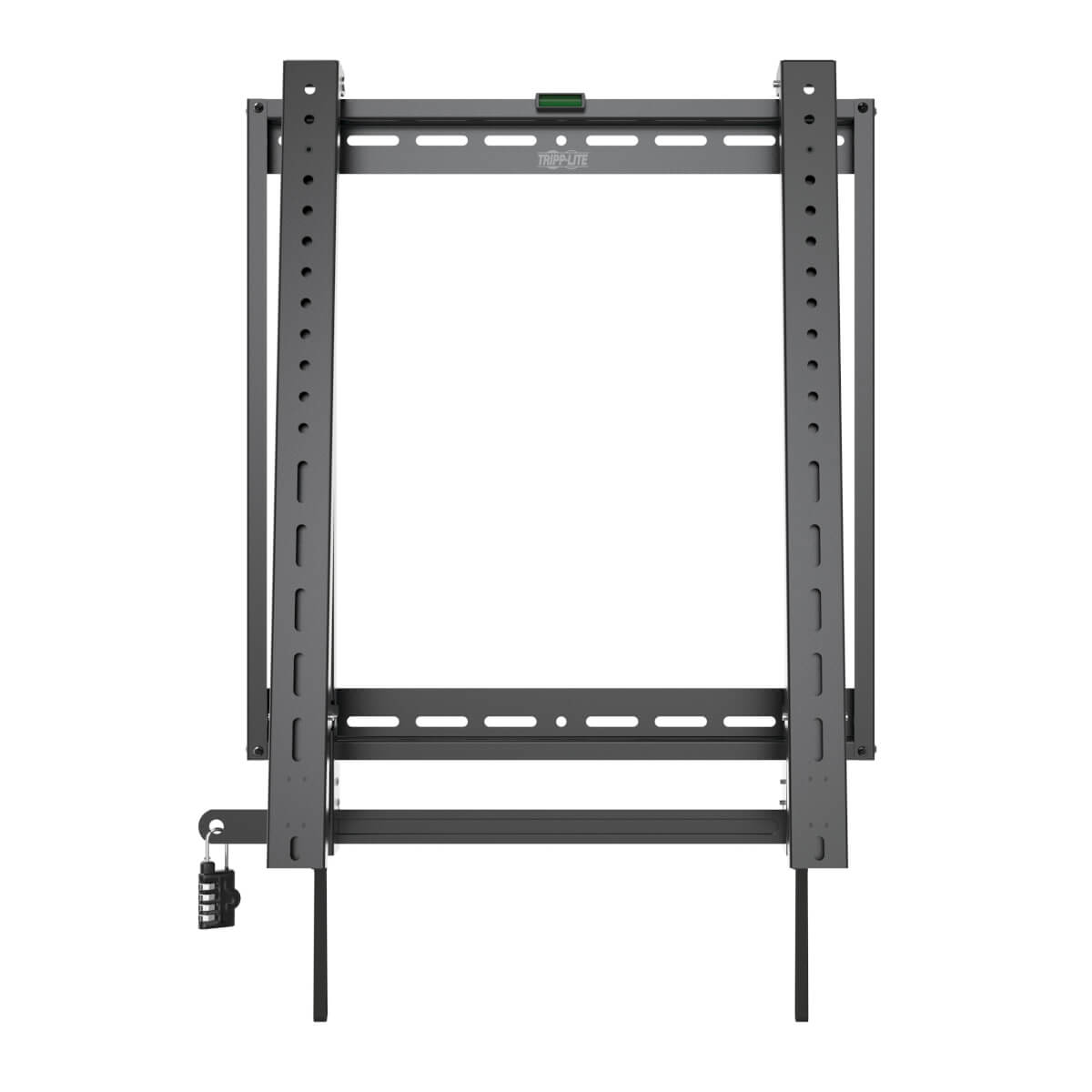

Portrait Wall Mount Hangs Your Flat-Panel TV or Monitor on the Wall
Recommended for classrooms, conference rooms, hotels, bars, restaurants or anywhere else you may want to show off a television or monitor in portrait mode, this heavy-duty anti-theft TV wall mount is hidden out of sight behind the display for a sleek, professional appearance. It fits most flat-panel displays from 45 to 70 inches and up to 110 lbs (49.9 kgs). Mounting hardware is included.

Durable All-Metal Construction Provides Convenient Cable Access

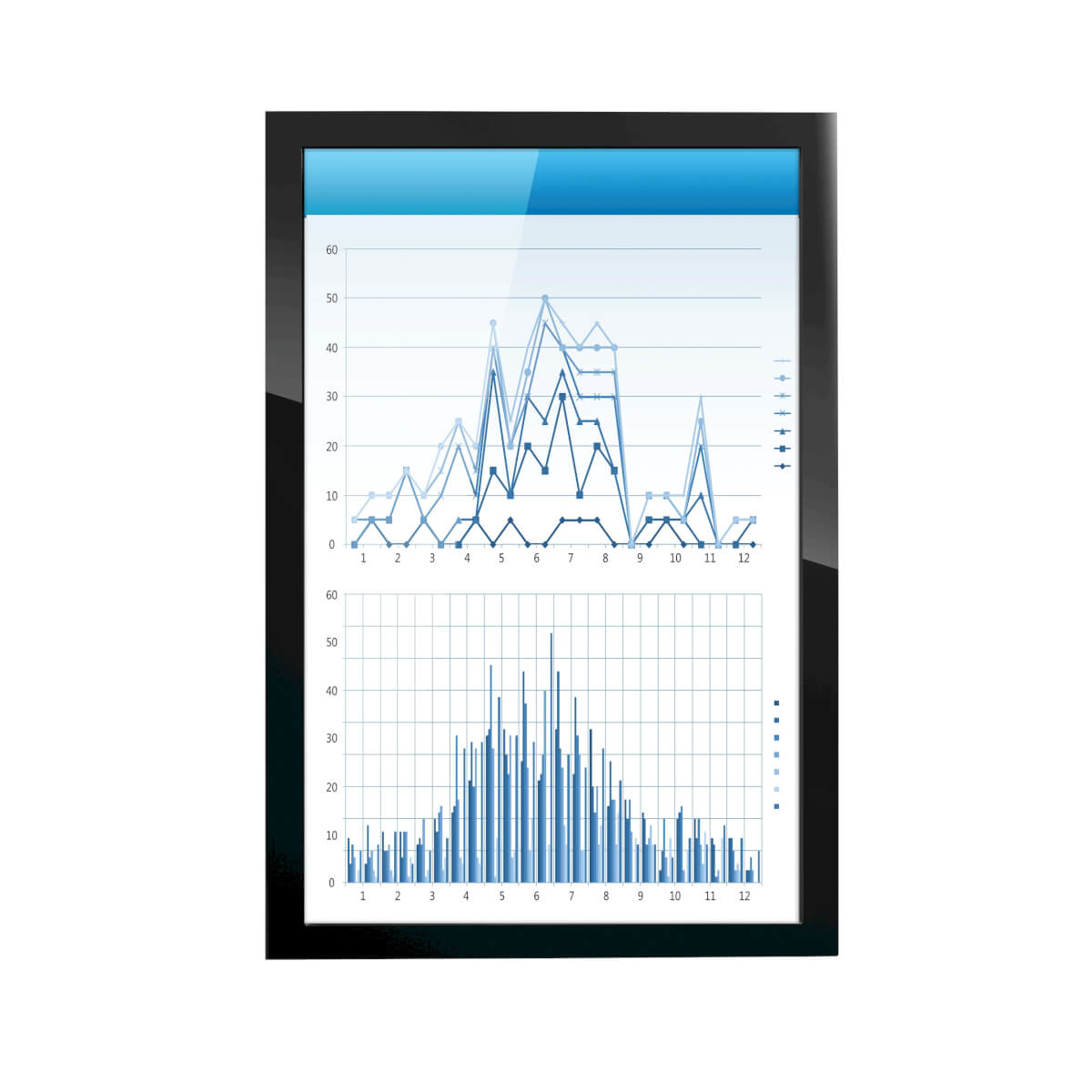

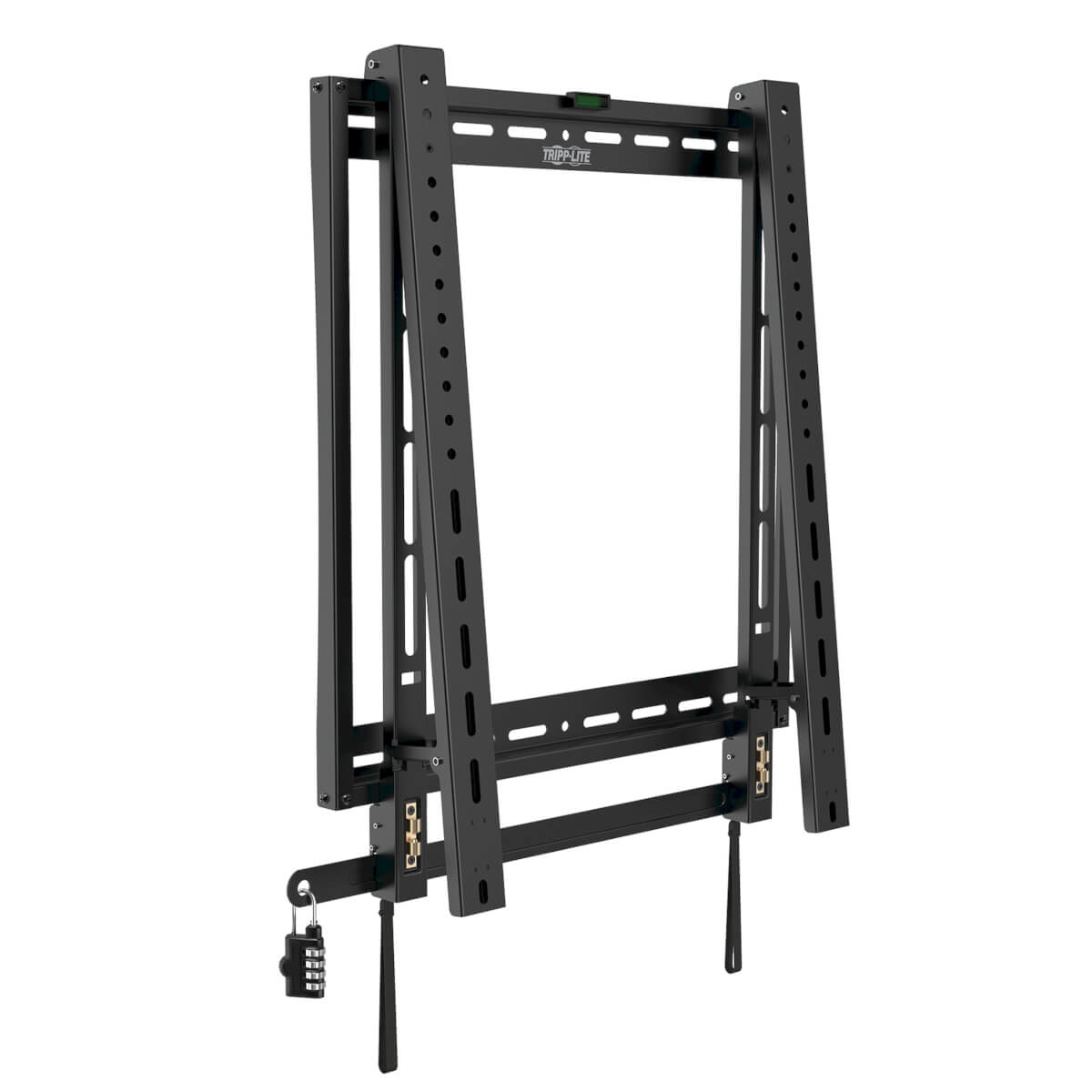

The fixed TV wall mount is constructed from heavy-duty steel with a powder-coated black finish that resists scratches. Rear openings with smooth edges enable easy access to cables. A built-in bubble level helps ensure your display is evenly mounted. The DWFPSC4570M is designed for portrait viewing, making it ideal for menus, schedules and announcements.

Designed to Keep Your Display Safe and Secure

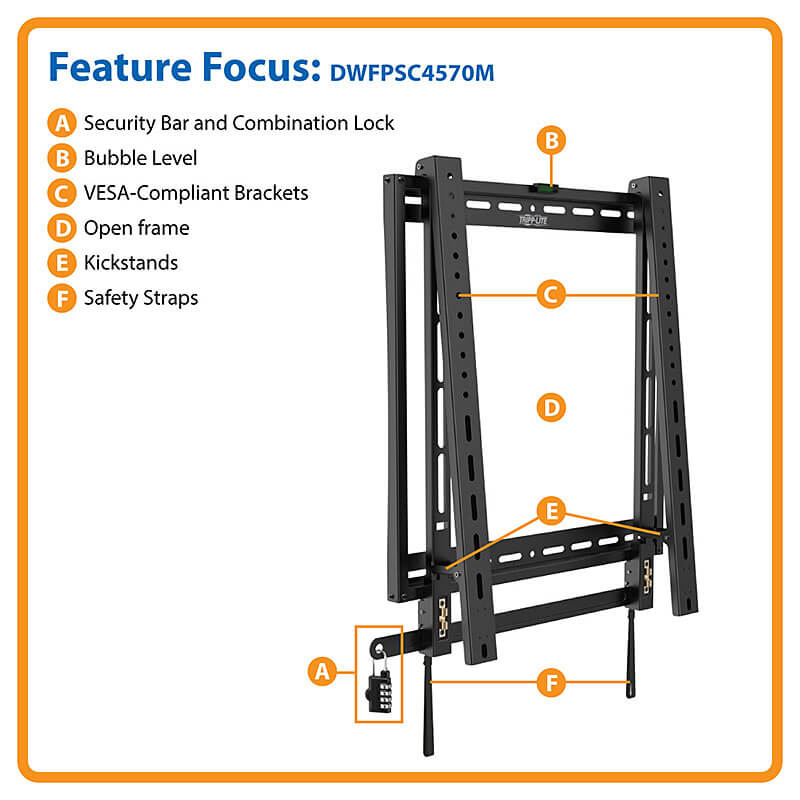

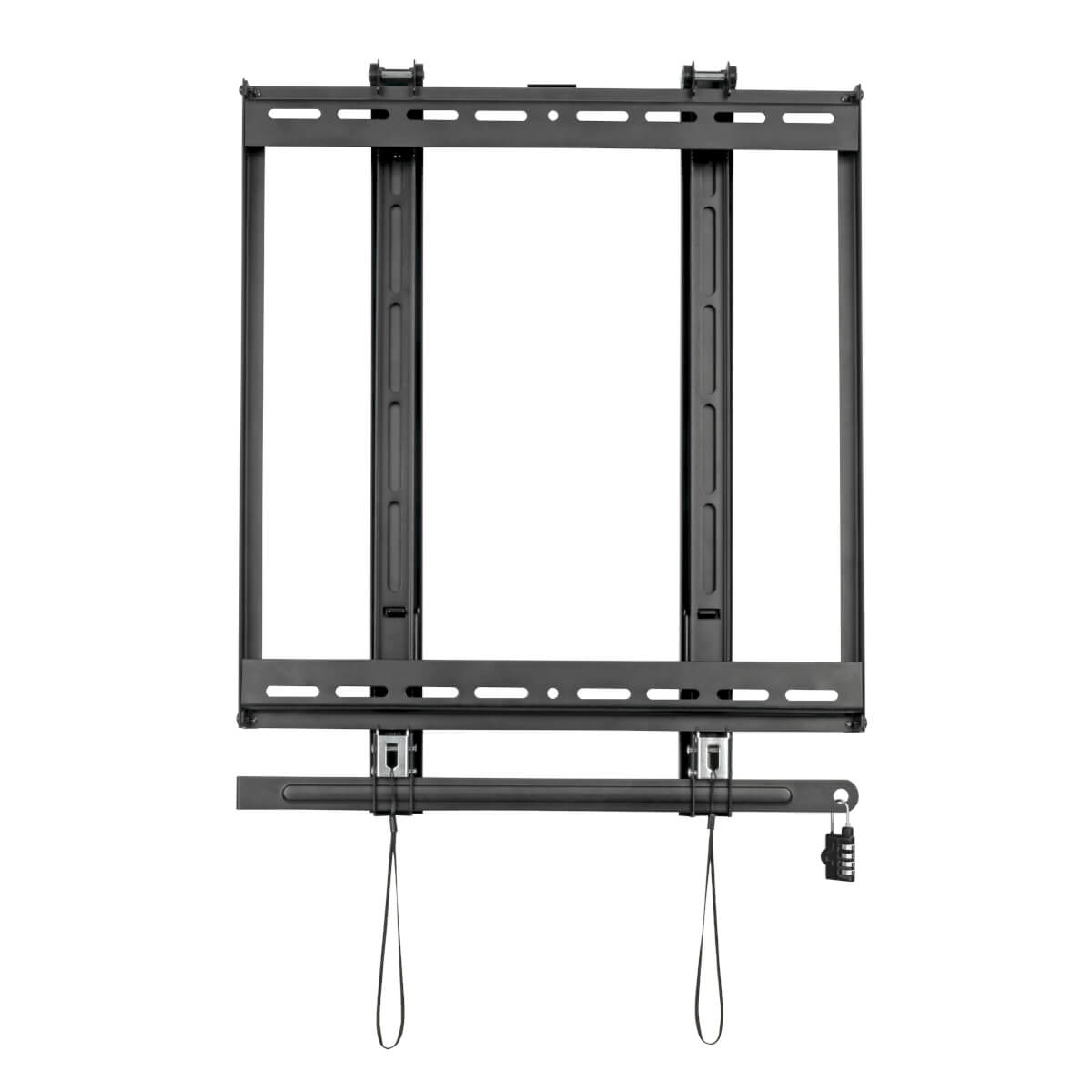

This security wall mount was conceived with your television or monitor's safety in mind, especially if the display is located in a public area with unguarded traffic, such as a library, classroom or hotel lobby. It comes with a solid steel security bar that slides through the mounting brackets and is secured into place with an included four-position combination lock.

Complies with VESA Standards
VESA (Video Electronics Standards Association) promotes uniformity in the video electronics industry by developing industry-wide standards for products like flat-panel TVs and monitors. To comply with these standards, most manufacturers use a series of universal mounting hole patterns, measured in millimeters, on the backs of the products. Measure the vertical and horizontal distances between the holes on the back of your display or refer to your display's owner's manual to find its VESA pattern. This monitor wall mount conforms to VESA-compliant displays with any of the following standard mounting hole patterns: 200 x 200, 300 x 300, 400 x 200, 400 x 400 and 600 x 400.

Specifications

Mounting
Minimum screen size45"
Maximum weight capacity110.2 lbs (50 kg)
Panel mounting interface200 x 200,200 x 400,300 x 300,400 x 400,400 x 600
Number of displays supported1
Mounting typeWall
Minimum VESA mount7.87 x 7.87" (200 x 200 mm)
Maximum VESA mount15.7 x 23.6" (400 x 600 mm)
Maximum screen size70"
Ergonomics
Distance to the wall (max)2.28" (5.8 cm)
Design
Housing materialSteel
Product colourBlack
Accepts padlockYes
Weight & dimensions
Width26.8" (680.7 mm)
Depth2.3" (58.4 mm)
Height20.5" (520.7 mm)
Weight9.9 lbs (4.49 kg)
Package width5.8" (147.3 mm)
Package depth27.6" (701 mm)
Package height3.8" (96.5 mm)
Package weight11.3 lbs (5.13 kg)
Packaging data
Package width5.8" (147.3 mm)
Package depth27.6" (701 mm)
Package height3.8" (96.5 mm)
Package weight11.3 lbs (5.13 kg)
Packaging content
Mounting kitYes
ManualYes
Technical details
Number of displays supported1
Mounting typeWall
Distance to the wall (max)2.28" (5.8 cm)
Sustainability certificatesRoHS
Compliance certificatesRoHS
Other features
Country of originChina
Master (outer) case GTIN (EAN/UPC)10037332238532
Logistics data
Master (outer) case width15.9" (403.9 mm)
Master (outer) case length28.4" (721.4 mm)
Master (outer) case height6.4" (162.6 mm)
Master (outer) case gross weight46.5 lbs (21.1 kg)
Products per master (outer) case4 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332238532
Harmonized System (HS) code8302.50.0000
