Tripp Lite OMNIVS1500XL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 940 W 8 AC outlet(s)

Tripp Lite OMNIVS1500XL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 940 W 8 AC outlet(s)

OmniVS 120V 1500VA 940W Line-Interactive UPS, Extended Run, Tower, USB port

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

UPS LINE INTERACTIVE 1500VA8 OUTLET (6UPS/2SURGE) MODEM/FAX/ETHERNET PROTECT

 329671 Register free see stock
Arlington Industries

OMNIVS1500XL TOWER UPS W/USB PORT

 TRPOMNIVS1500XL
BlueStar

EATON, 1500VA UPS OMNI VS TOWER EXTENDED RUN LINE-INTERACTIVE 8 OUTLETS

 OMNIVS1500XL

Related Products

Description

Tripp Lite's OMNIVS1500XL line interactive UPS system offers voltage regulation, surge suppression and long lasting, expandable battery support for personal computers, internetworking equipment and other sensitive electronics. Internal UPS batteries support entry level PC systems for up to 75 minutes during power failures so that connected equipment can be shut down without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 and overvoltages up to 147 volts back to usable 120V levels without using battery power. Offers complete desktop power protection in an attractive black tower configuration. Includes 6 battery supported outlets for computer, monitor and vital system peripherals, plus 2 additional surge suppression only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure (USB cable included). Built-in data line suppression offers protection for equipment with single line TEL/DSL or network Ethernet connection. Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and overload. 1500VA power handling ability supports entry-level PCs, network workstations, point-of-sale equipment, small business phone systems, audio/video equipment and home theater systems. Offers 4.5 minutes battery runtime with a full load of 1500VA and 13 minutes with a half load of 750VA. Supports hot-swappable battery replacement via built-in access panel. Extended runtime available with optional BP24V15RT2U, BP24V28-2U, or BP24V70-3U external battery packs.
- OMNIVS1500XL Uninterruptible Power Supply offers voltage regulation, surge suppression and long lasting battery support
- Supports entry level PCs up to 75 minutes during blackouts to enable shutdown without data loss
- Regulates brownouts as low as 75V and overvoltages to 147V back to usable 120V nominal levels without using battery power

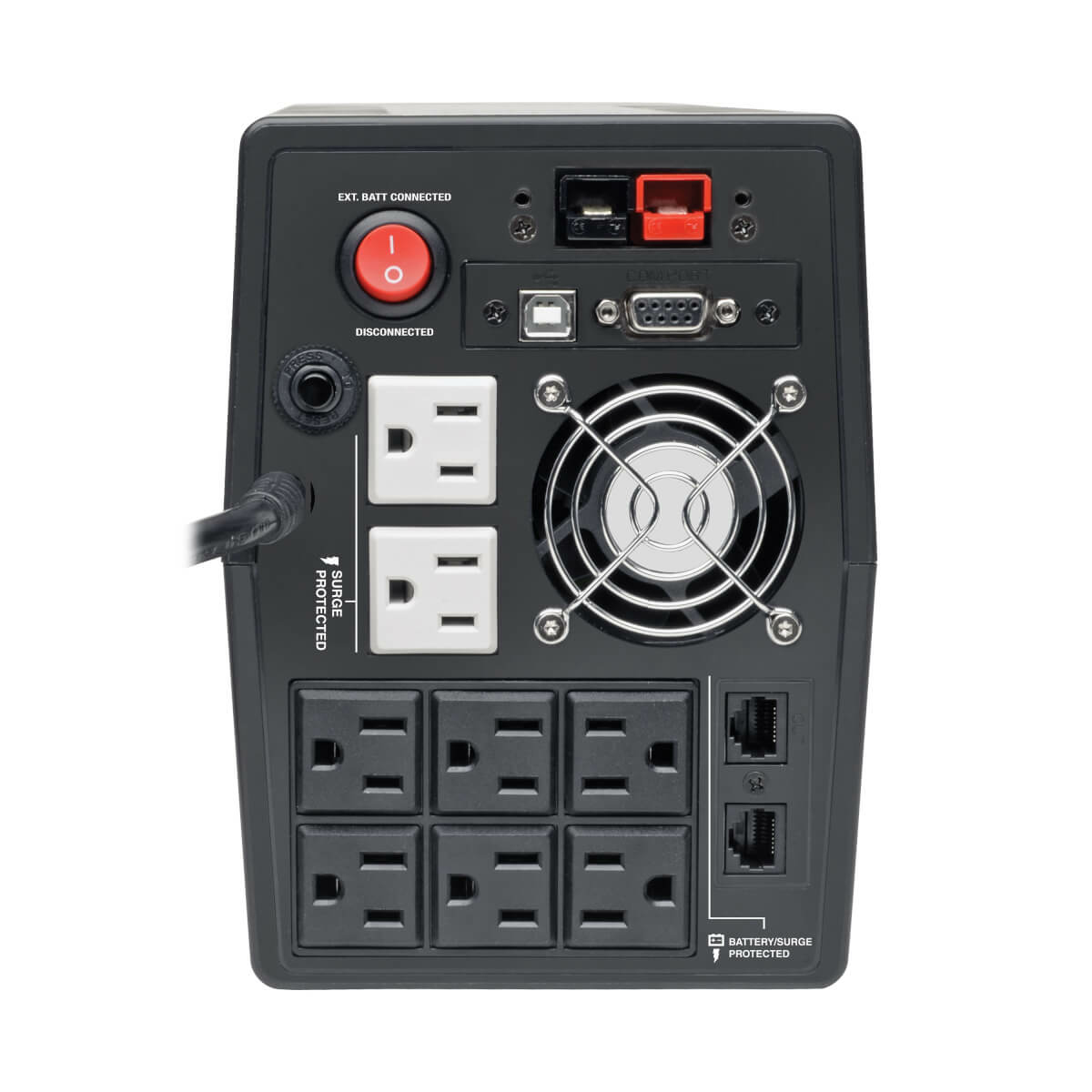

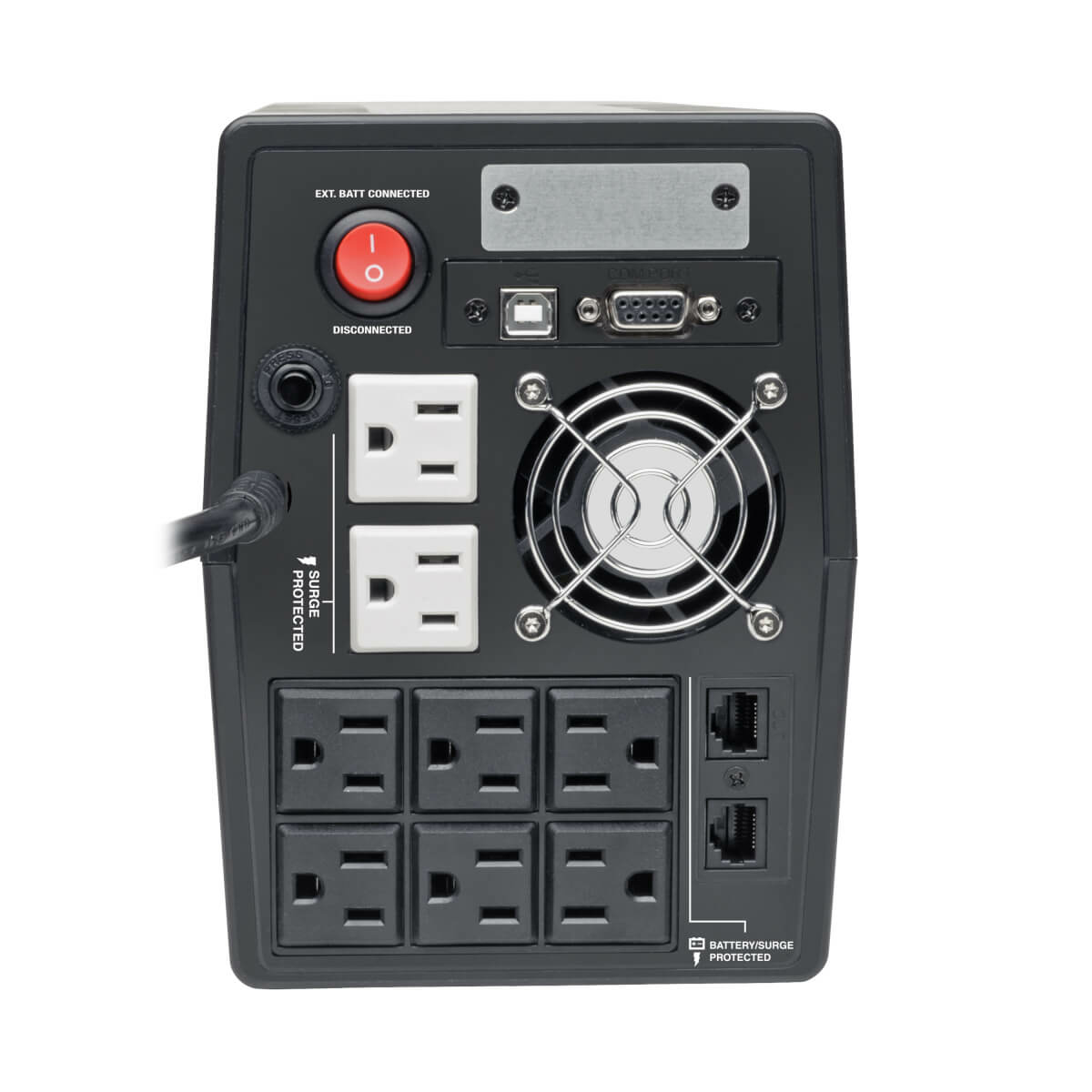

- 6 UPS battery supported outlets, plus 2 additional surge suppression-only outlets
- USB port and cable enables UPS monitoring and unattended shutdown in the case of extended power failure
- Data line surge suppression protects standard dialup/DSL or Ethernet line connection
- Built-in audible alarm and 5 front panel LEDs indicate status of line power, battery power, battery low/replace, voltage regulation and overload
- 1500VA power handling ability supports a variety of sensitive electronic equipment
- 4.5 minutes full load runtime (1500VA), 13 minutes half load runtime (750VA)
- Runtime is expandable with the addition of external battery packs

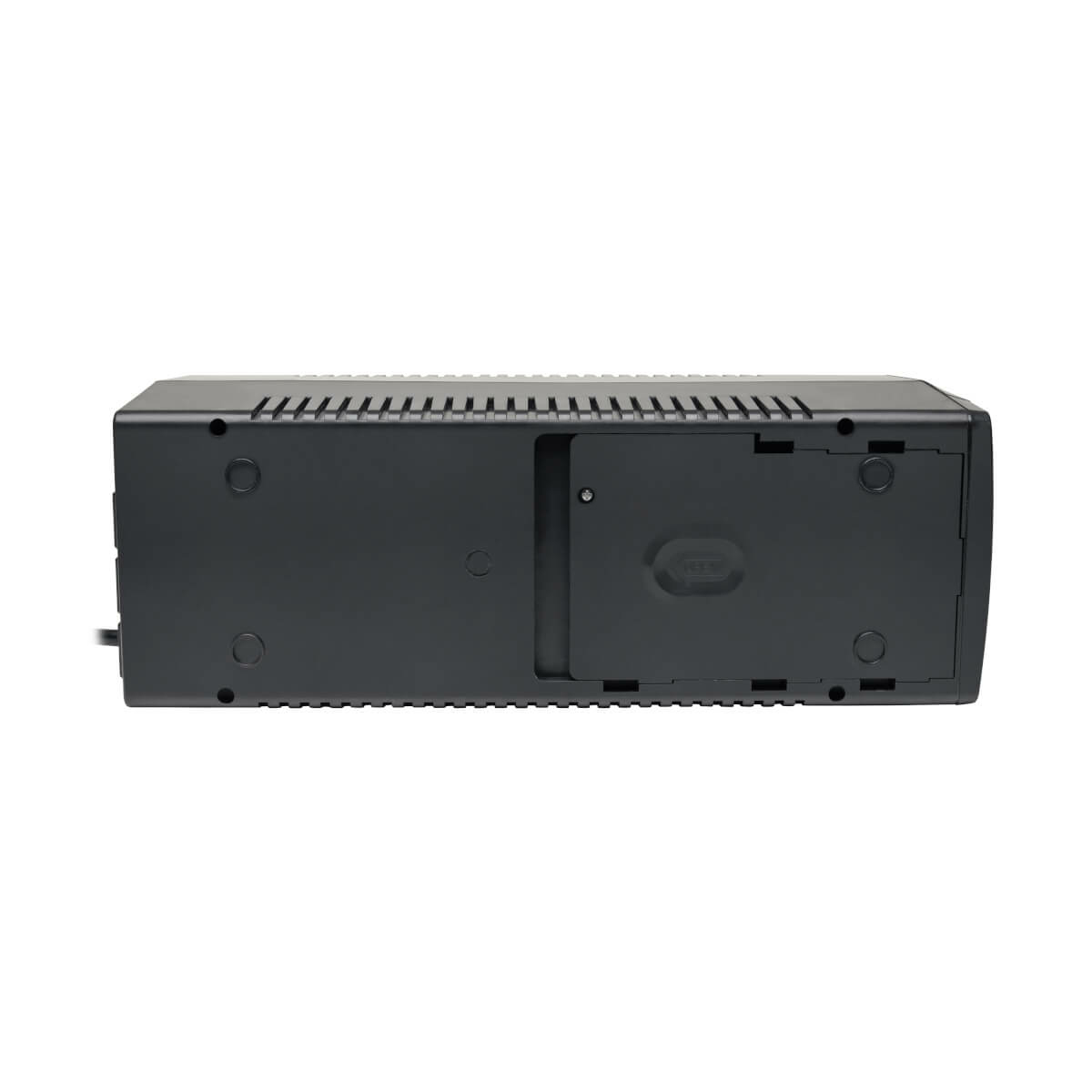

- Supports hot swappable battery replacement via built-in access panel
- Optional PDUB15 bypass PDU enables hot-swappable UPS replacement with no disruption to connected equipment
- $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

Specifications

Power
Output power940 W
Input operation voltage (min)75 V
Input operation voltage (max)147 V
Output operation voltage (max)120 V
Surge energy rating690 J
Maximum current12 A
Efficiency90%
Output power capacity1.5 kVA
Input frequency60 Hz
Ports & interfaces
Cable length70.9" (1.8 m)
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Audible alarm(s)Yes
Features
Country of originVietnam
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power940 W
Input operation voltage (min)75 V
Input operation voltage (max)147 V
Output operation voltage (max)120 V
Surge energy rating690 J
Maximum current12 A
Efficiency90%
EMI/RFI noise filteringYes
Audible alarm(s)Yes
Output power capacity1.5 kVA
Input frequency60 Hz
Battery
Battery recharge time4.5 h
Typical backup time at half load13 min
Typical backup time at full load4.5 min
Hot-swap batteryYes
Cold startYes
Design
Country of originVietnam
Form factorTower
LED indicatorsYes
Product colourBlack
Cooling typeActive
Cable length70.9" (1.8 m)
Housing materialPolycarbonate (PC)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Cooling
Cooling typeActive
Weight & dimensions
Package width10.7" (271.8 mm)
Package depth10.6" (269.2 mm)
Package height11.7" (297.2 mm)
Weight32.2 lbs (14.6 kg)
Width7.25" (184.2 mm)
Package weight33.3 lbs (15.1 kg)
Height7.5" (190.5 mm)
Depth7.5" (190.5 mm)
Packaging data
Package width10.7" (271.8 mm)
Package depth10.6" (269.2 mm)
Package height11.7" (297.2 mm)
Package weight33.3 lbs (15.1 kg)
Logistics data
Country of originVietnam
Products per master (outer) case1 pc(s)
Master (outer) case width10.7" (271.8 mm)
Master (outer) case length10.6" (269.2 mm)
Master (outer) case height15.5" (393.7 mm)
Master (outer) case gross weight30.6 lbs (13.9 kg)
Other features
Weight (imperial)28 lbs
Non-operating relative humidity (non-condensing)0 - 95%
