Tripp Lite PDUMH20AT power distribution unit (PDU) 16 AC outlet(s) 1U Black

Tripp Lite PDUMH20AT power distribution unit (PDU) 16 AC outlet(s) 1U Black

1.9kW Single-Phase ATS / Metered PDU, 120V (16 5-15/20R), 2 L5-20P / 5-20P adapters, 2 12ft Cords, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

1U HORIZONTAL PDU 20AMP16-OUTLETS DIGITAL LOAD METER

 355032 Register free see stock
Arlington Industries

1U 16-OUT TAA 1900W ATS METERED PDU

 TRPPDUMH20AT
BlueStar

EATON, 1.9KW SINGLE-PHASE LOCAL METERED AUTOMATIC TRANSFER SWITCH PDU, 2 120V L5-20P / 5-20P INPUTS, 16 5-15/20R OUTPUTS, 1U, TAA

 PDUMH20AT

Related Products

Description

Tripp Lite Metered ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
- 120V 20A Automatic Transfer Switch (ATS) / Metered PDU (Agency de-rated to 16A continuous)
- Provides a redundant A/B power option for non-redundant networking equipment with a single input power cord
- Digital display continuously reports total output power consumption in amps
- 1U horizontal rackmount form factor; 14.5 in. / 36.8 cm depth

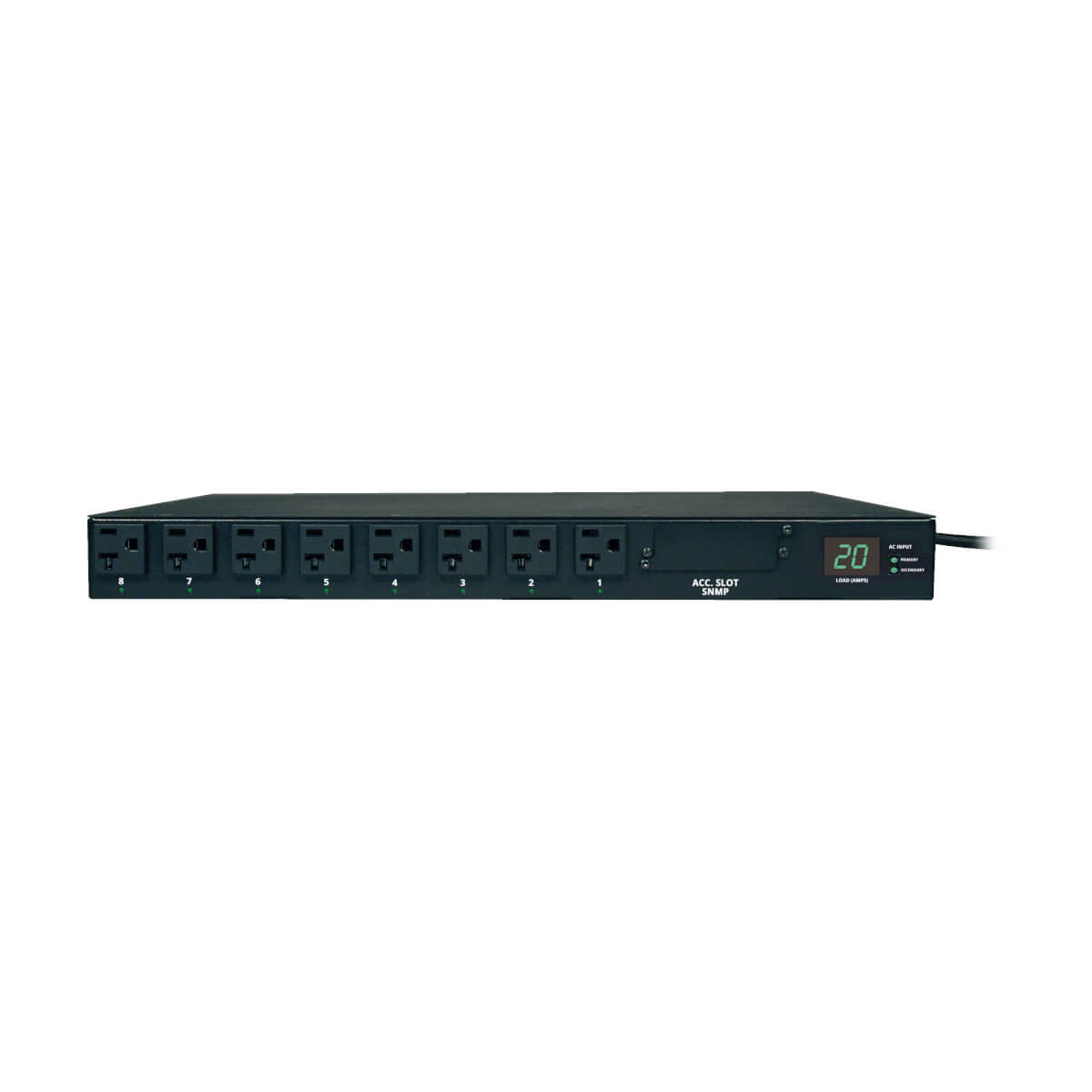

- 16 built-in NEMA 5-15/20R outlets (8 front / 8 rear)

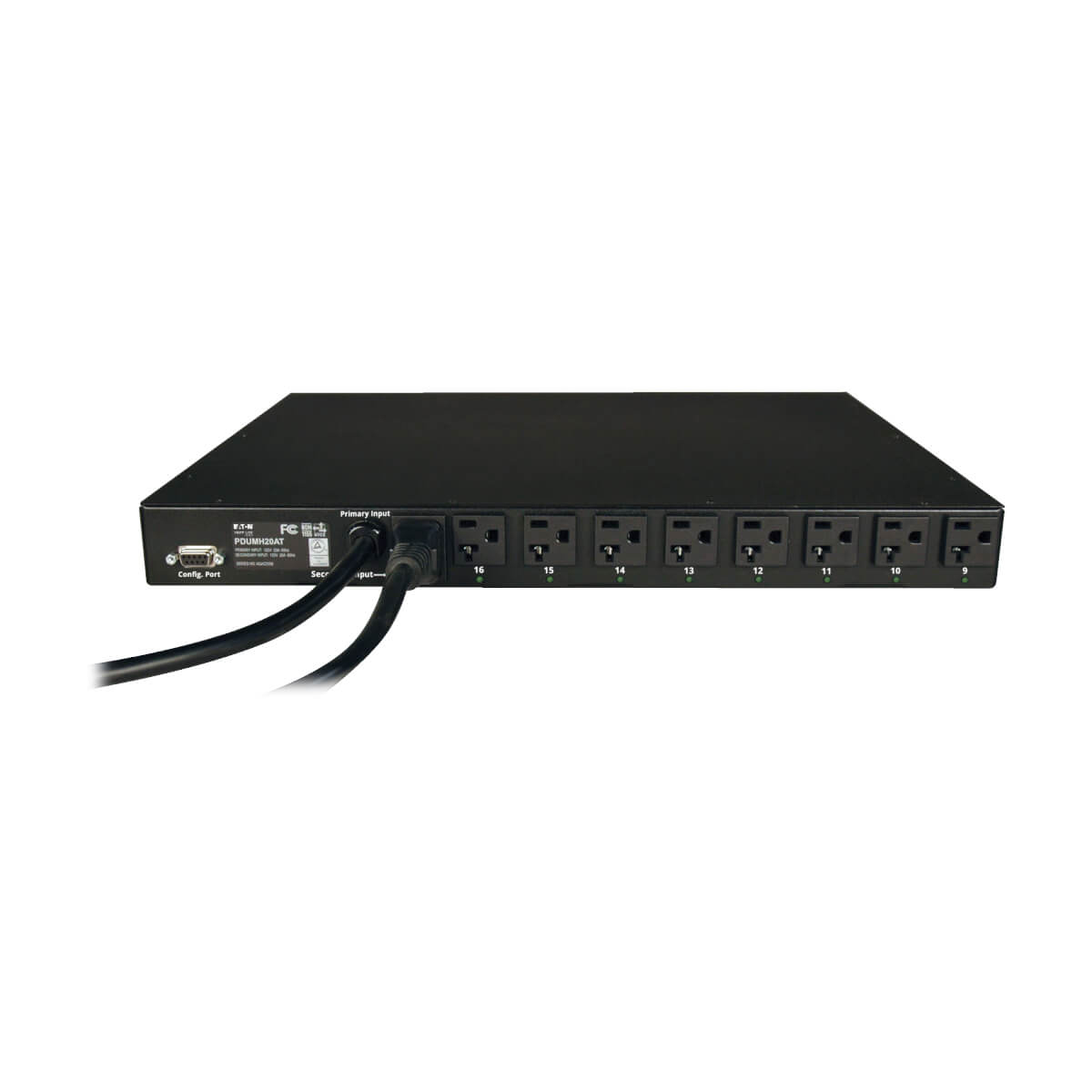

- Set of two 12 ft. / 3.6m NEMA L5-20P input cables with set of two 5-20P adapters support connection to separate PRIMARY and SECONDARY inputs
- ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
- ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
- Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
- On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
- Super-fast switchover between primary and secondary power sources occurs in 2-7 milliseconds
- Built-in card slot supports optional SNMPWEBCARD for permanent upgrade to a switched & monitored PDU system
- Outlets are factory programmed for sequential turn-on at 250 millisecond intervals when the PDU is first energized to prevent inrush-related equipment interaction on startup
- Front panel LEDs confirm power availability on both input lines
- TAA Compliant Version Available - Order Tripp Lite PDUMH20ATAA

Specifications

Design
PDU typesMetered
MountingHorizontal
Product colourBlack
CertificationUL 60950-1, CSA, Class A, NOM
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity16 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R
Input connection typeNEMA 5-20P, NEMA L5-20P
Features
Cable length141.7" (3.6 m)
LED indicatorsYes
CertificationUL 60950-1, CSA, Class A, NOM
Ergonomics
Cable length141.7" (3.6 m)
LED indicatorsYes
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current20 A
AC input frequency60 Hz
Certificates
CertificationUL 60950-1, CSA, Class A, NOM
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight12.2 lbs (5.53 kg)
Weight (imperial)12.2 lbs
Width17.5" (444 mm)
Depth14.5" (368 mm)
Height1.75" (44.4 mm)
Package width23.3" (591.8 mm)
Package depth20.1" (510.5 mm)
Package height5.4" (137.2 mm)
Package weight20.7 lbs (9.39 kg)
Packaging data
Package width23.3" (591.8 mm)
Package depth20.1" (510.5 mm)
Package height5.4" (137.2 mm)
Package weight20.7 lbs (9.39 kg)
Technical details
Master (outer) case GTIN (EAN/UPC)00037332126665
Compliance certificatesRoHS
Logistics data
Master (outer) case width23.3" (591.8 mm)
Master (outer) case length20.1" (510.5 mm)
Master (outer) case height5.4" (137.2 mm)
Master (outer) case gross weight20.7 lbs (9.39 kg)
Products per master (outer) case1 pc(s)
Country of originTaiwan
Master (outer) case GTIN (EAN/UPC)00037332126665
