Tripp Lite PDU1230 power distribution unit (PDU) 20 AC outlet(s) 1U Black

Tripp Lite PDU1230 power distribution unit (PDU) 20 AC outlet(s) 1U Black

4.8/5.8kW Single-Phase Basic PDU, 200-240V Outlets (16-C13 & 4-C19), L6-30P, 15ft Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries 1U 20-OUTLET 5800W/200-240V BASIC PDU TRPPDU1230 Register free see stock
D&H Rackmount PDU 208 240V PDU1230
Ingram Micro PDU BASIC 5.8KW 200-240V 30A 1U F63646
TD Synnex PDU BASIC 120V 5.8KW 30A C13/C19 L6-30P 1045009

Related Products

Description

Tripp Lite Basic Power Distribution Units / PDU systems offer reliable rackmount power distribution for critical IT equipment in wiring closets, server rooms and equipment racks. Supplies continuous power from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 5.8kW 30A 208/240V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space
- NEMA L6-30P 30A 208/240v input plug with 15 ft. / 4.5m line cord

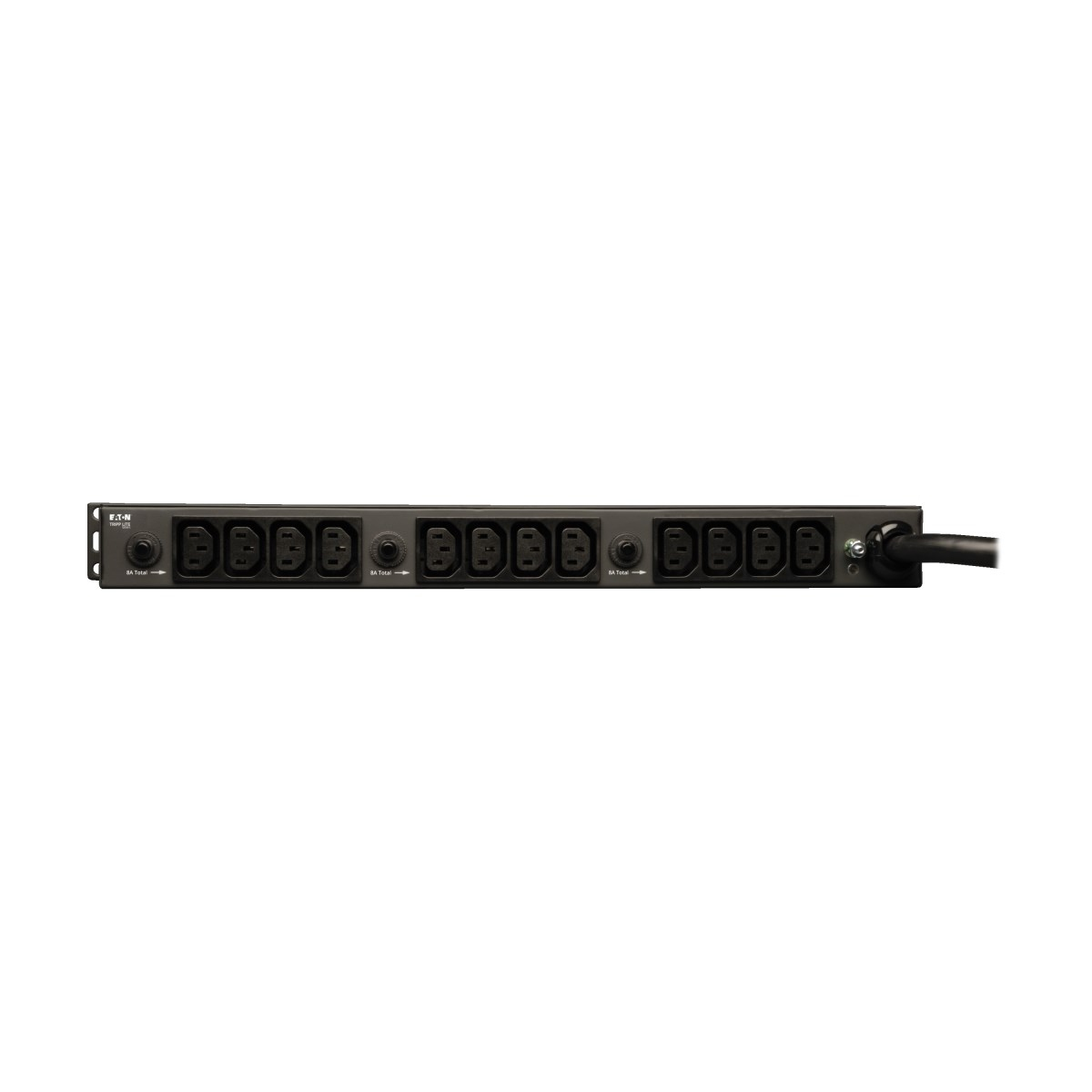

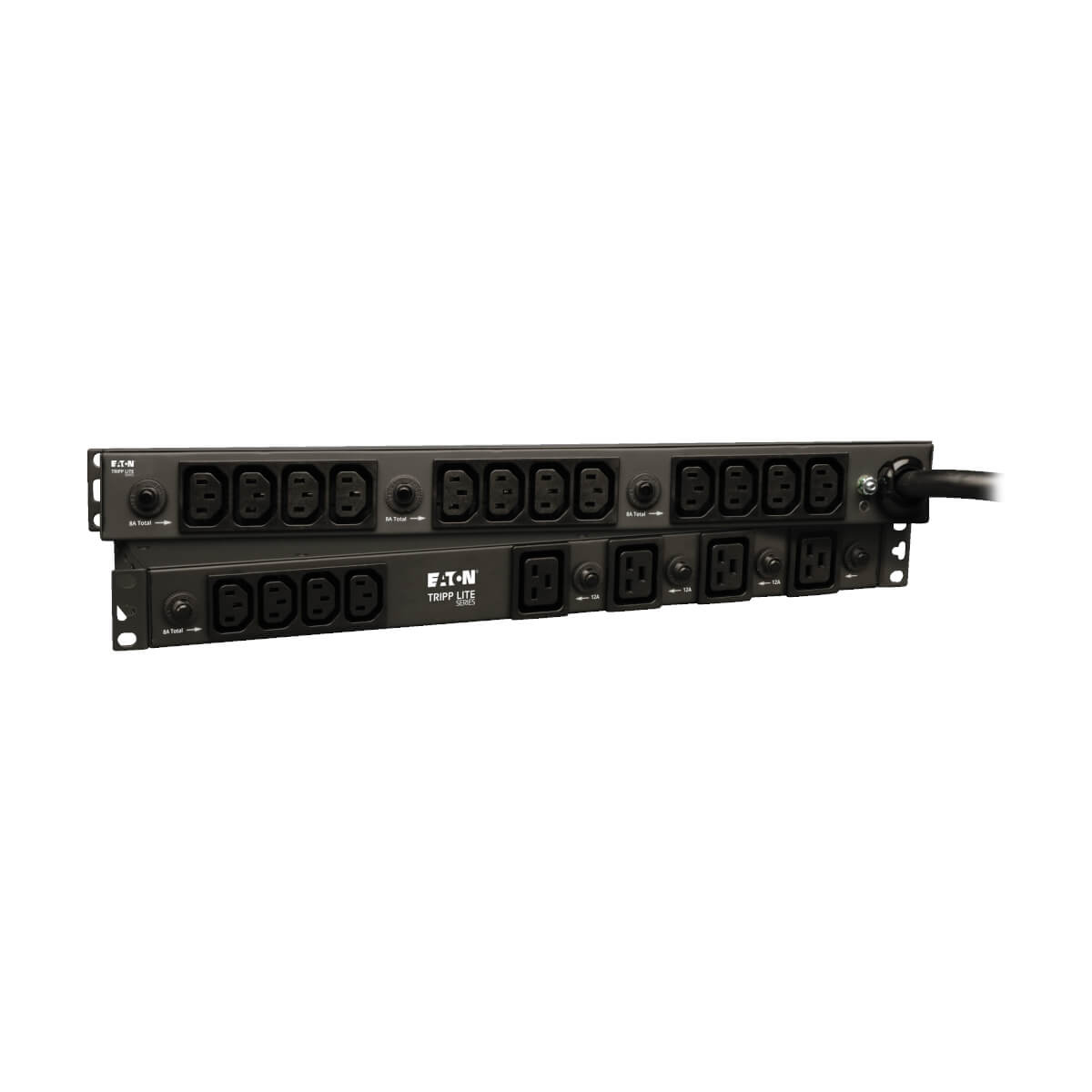

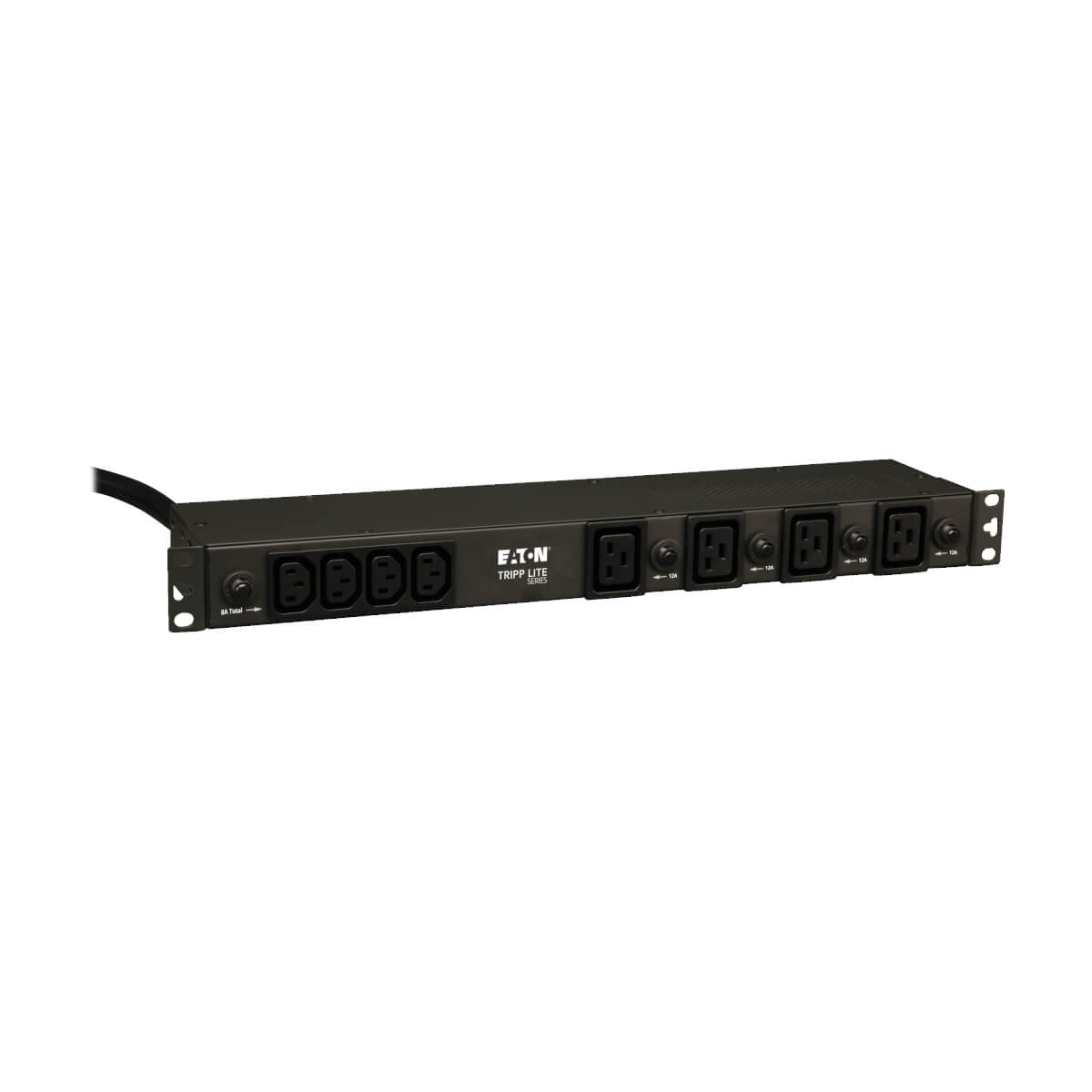

- 20 outlets (4 C19, 4 C13 front / 12 C13 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Back-panel grounding lug

Specifications

Design
PDU typesBasic
MountingHorizontal
Product colourBlack
CertificationUL60950-1/CSA-C22.2
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity20 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugNEMA L6-30P
Features
Cable length179.9" (4.57 m)
CertificationUL60950-1/CSA-C22.2
Ergonomics
Cable length179.9" (4.57 m)
Power
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Maximum current30 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 5.2 x 1.77" (445 x 132 x 45 mm)
Weight7.5 lbs (3.4 kg)
Weight (imperial)5.2 lbs
Width17.5" (444.5 mm)
Depth5.2" (132.1 mm)
Height1.75" (44.4 mm)
Package width2.9" (73.7 mm)
Package depth20.2" (513.1 mm)
Package height11" (279.4 mm)
Package weight8.2 lbs (3.72 kg)
Packaging data
Package width2.9" (73.7 mm)
Package depth20.2" (513.1 mm)
Package height11" (279.4 mm)
Package weight8.2 lbs (3.72 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332122268
Compliance certificatesRoHS
Logistics data
Master (outer) case width20" (508 mm)
Master (outer) case length20.7" (525.8 mm)
Master (outer) case height11.9" (302.3 mm)
Master (outer) case gross weight51.4 lbs (23.3 kg)
Products per master (outer) case6 pc(s)
Country of originChina
