Tripp Lite PDU1215 power distribution unit (PDU) 13 AC outlet(s) 1U Black

Tripp Lite PDU1215 power distribution unit (PDU) 13 AC outlet(s) 1U Black

1.8kW Single-Phase Basic PDU, 120V Outlets (13 5-15R), 5-15P, 15ft Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 12-OUTLET PWR DIST UNIT 15AMP120V 15'CORD NIKE-246721 Register free see stock
Arlington Industries 1U 13-OUTLET 1800W/120V BASIC PDU TRPPDU1215
BlueStar TRIPP LITE, 1.8KW SINGLE-PHASE 120V BASIC PDU, 13 NEMA 5-15R OUTLETS, NEMA 5-15P INPUT, 15 FT. CORD, 1U RACK-MOUNT PDU1215
D&H Rackmount PDU 15 Amp 120V PDU1215
Ingram Micro PDU BASIC 1.8KW 120V 15A 1U RM 372304
TD Synnex PDU BASIC 120V 1.8KW 15A 13 5-15R 1URM 961386
Trifecta Networks LLC Single-Phase Basic PDU - Horizontal rackmount - power distribution unit ( rack-mountable ) - 15 A - AC 120 V - 1.8 kW - 13 output connector(s) - 1U - 19" PDU1215

Related Products

Description

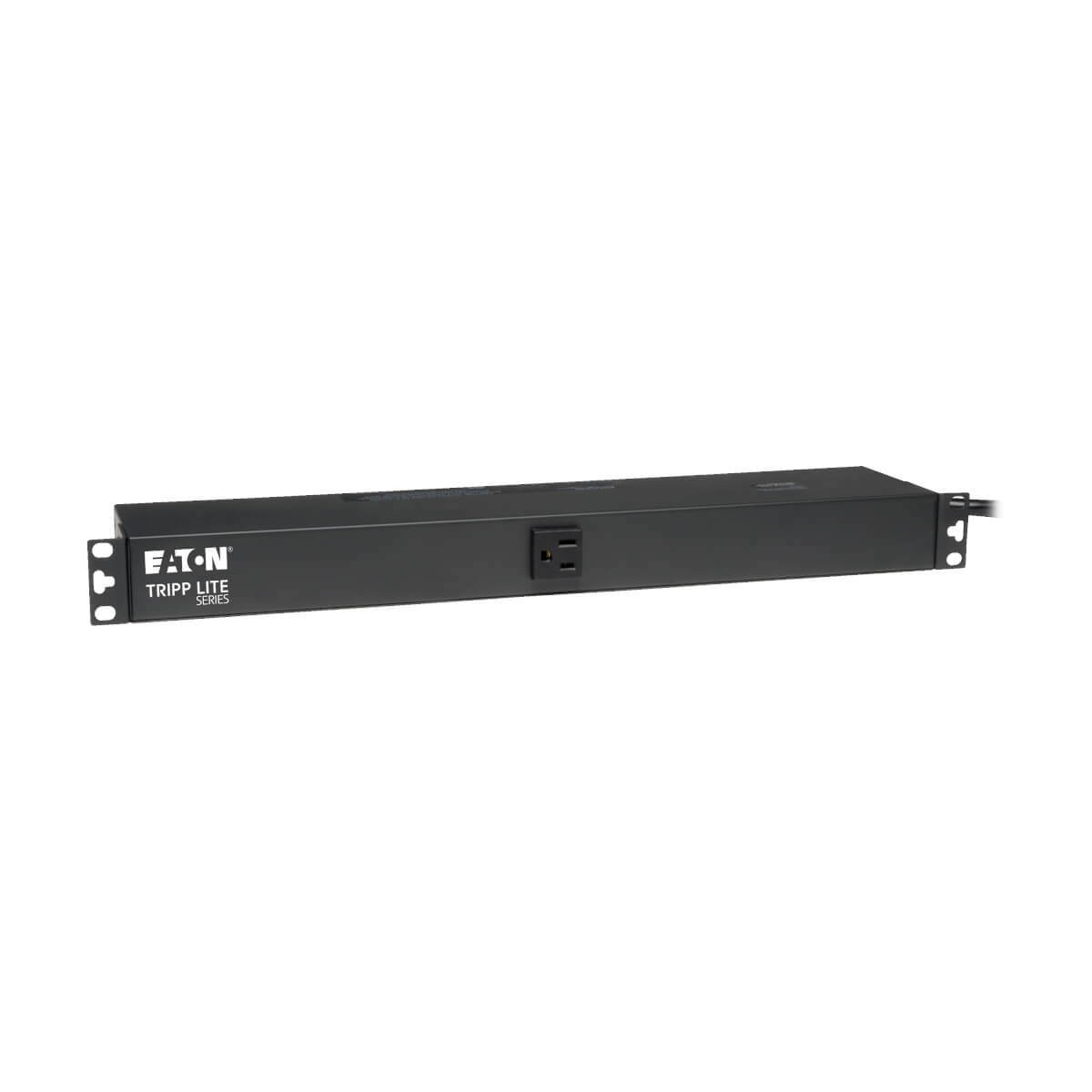

Tripp Lite's PDU1215 1.8kW 15A Single-Phase Basic Power Distribution Unit (PDU) is a dependable, space-saving, cost-effective way to deliver 120V power to wiring closets, server rooms and equipment racks from a UPS system, generator or utility wall outlet in high-density IT environments. With 13 NEMA 5-15R outlets (1 front, 12 rear), a rugged all-metal housing and a switchless design to prevent accidental shutoff, the PDU1215 is a basic power distribution unit for networking, PC systems, telecommunications, audio/video, security, sound reinforcement, and other similar applications. The PDU1215 includes hardware for 1U rackmount installation. Other mounting configurations include vertical 0U rackmount (with compatible racks and PDUSIDEBRKT accessory, sold separately), wall-mount, workbench and under-counter installations.
- 1.8kW 15A 120V single phase Basic Power Distribution Unit / PDU
- 1U horizontal 19 inch rackmount form factor installs in one rack space

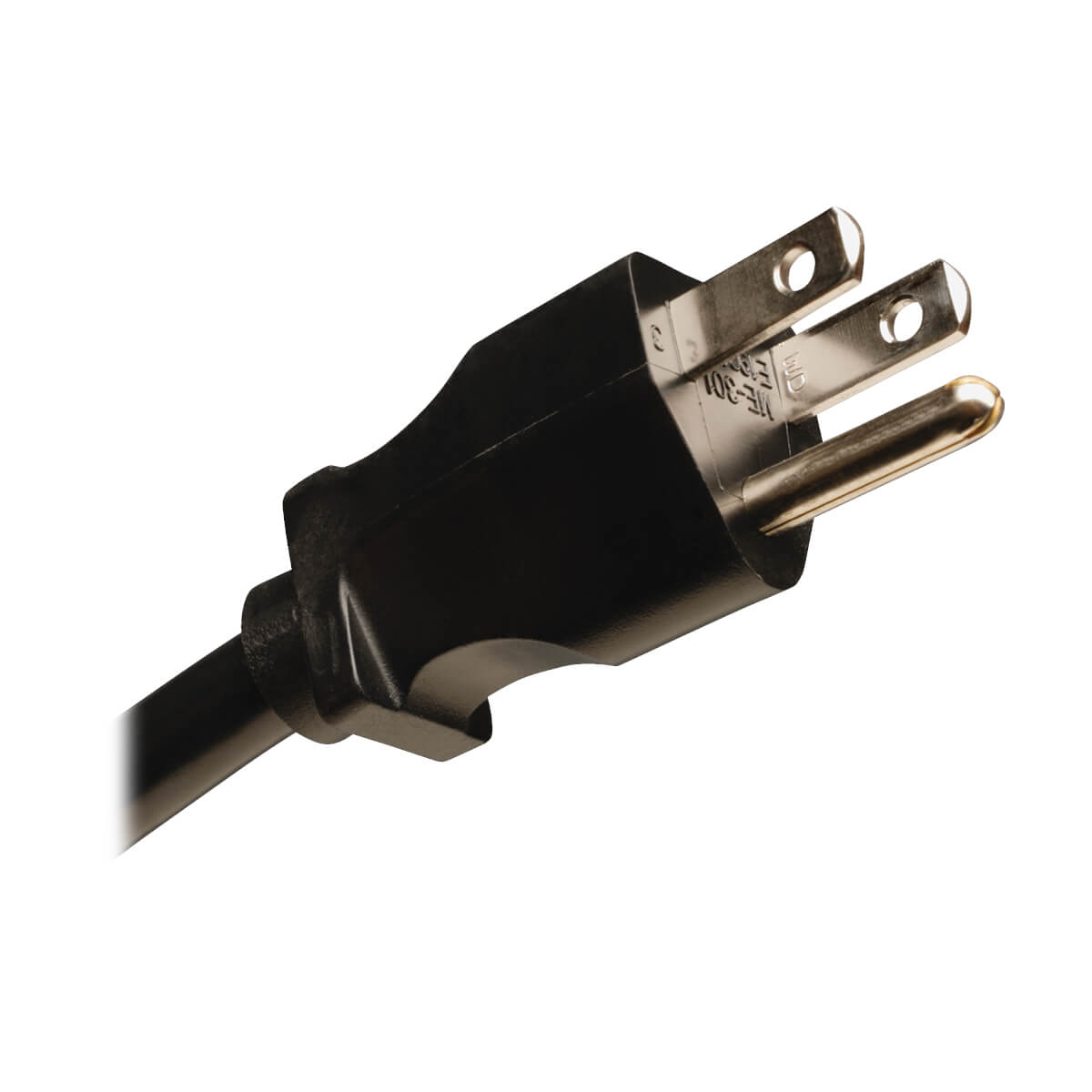

- NEMA 5-15P 15A 120v input plug with 15 ft. / 4.5m line cord

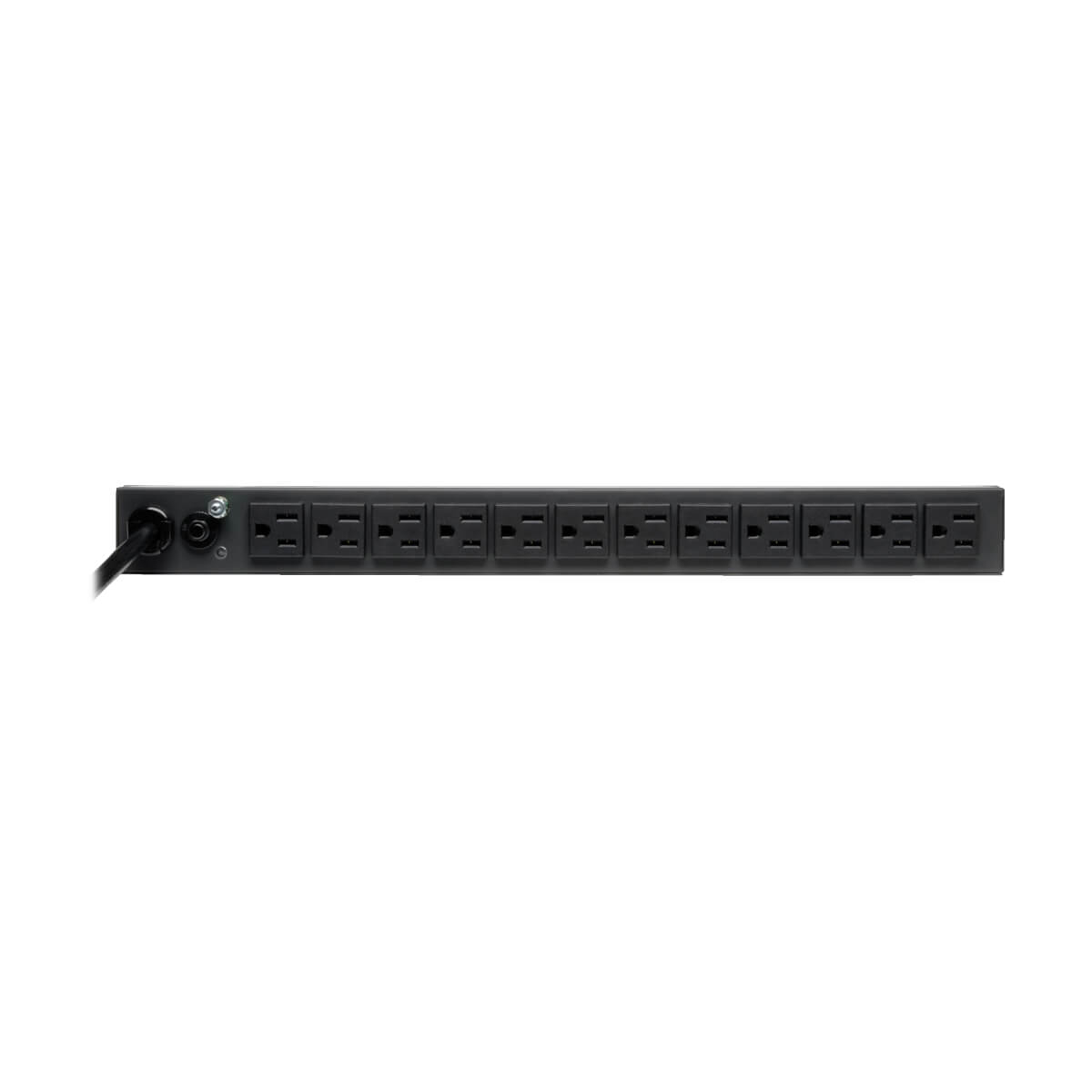

- 13 NEMA 5-15R outlets (1 front / 12 rear)
- Adjustable mounting brackets enable installation in 2 or 4 post racks, plus additional support for wallmount and under-counter mounting
- Mounting ears are reversible for front or rear facing rackmount installation
- Optional PDUSIDEBRKT enable 0U vertical installation in compatible racks
- Back-panel grounding lug
- RoHS-compliant

Specifications

Design
PDU typesBasic
MountingHorizontal
Product colourBlack
CertificationUL60950-1/CSA-C22.2
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity13 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5–15P
I/O ports13 x NEMA 5-15R
Features
Cable length179.9" (4.57 m)
CertificationUL60950-1/CSA-C22.2
Ergonomics
Cable length179.9" (4.57 m)
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current15 A
Weight & dimensions
Dimensions (WxDxH)17.5 x 4.49 x 1.75" (445 x 114 x 44.4 mm)
Weight5.2 lbs (2.36 kg)
Width20" (508 mm)
Depth4.5" (114.3 mm)
Height2" (50.8 mm)
Package width20.4" (518.2 mm)
Package depth9.3" (236.2 mm)
Package height2.2" (55.9 mm)
Package weight5.27 lbs (2.39 kg)
Packaging data
Package width20.4" (518.2 mm)
Package depth9.3" (236.2 mm)
Package height2.2" (55.9 mm)
Package weight5.27 lbs (2.39 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332116724
Compliance certificatesRoHS
Logistics data
Master (outer) case width20.9" (530.9 mm)
Master (outer) case length13.6" (345.4 mm)
Master (outer) case height10.1" (256.5 mm)
Master (outer) case gross weight30.9 lbs (14 kg)
Products per master (outer) case6 pc(s)
Country of originChina
