Tripp Lite PDUMH15-6 power distribution unit (PDU) 13 AC outlet(s) 1U Black

Tripp Lite PDUMH15-6 power distribution unit (PDU) 13 AC outlet(s) 1U Black

Single-Phase Metered PDU, 1.4kW, 120V Outlets (13 5-15R), 5-15P, 100-127V input, 6ft Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

1.4KW SINGLE-PHASE METERED PDU120V OUTLETS (13 5-15R), 5-15P100-127V INPUT

 641205 Register free see stock

Related Products

Description

Tripp Lite Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital meter. Enables visual current monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Specifications

Design
PDU typesMetered
MountingHorizontal
DisplayLCD
Product colourBlack
CertificationUL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity13 AC outlet(s)
AC outlet typesNEMA 5–15R

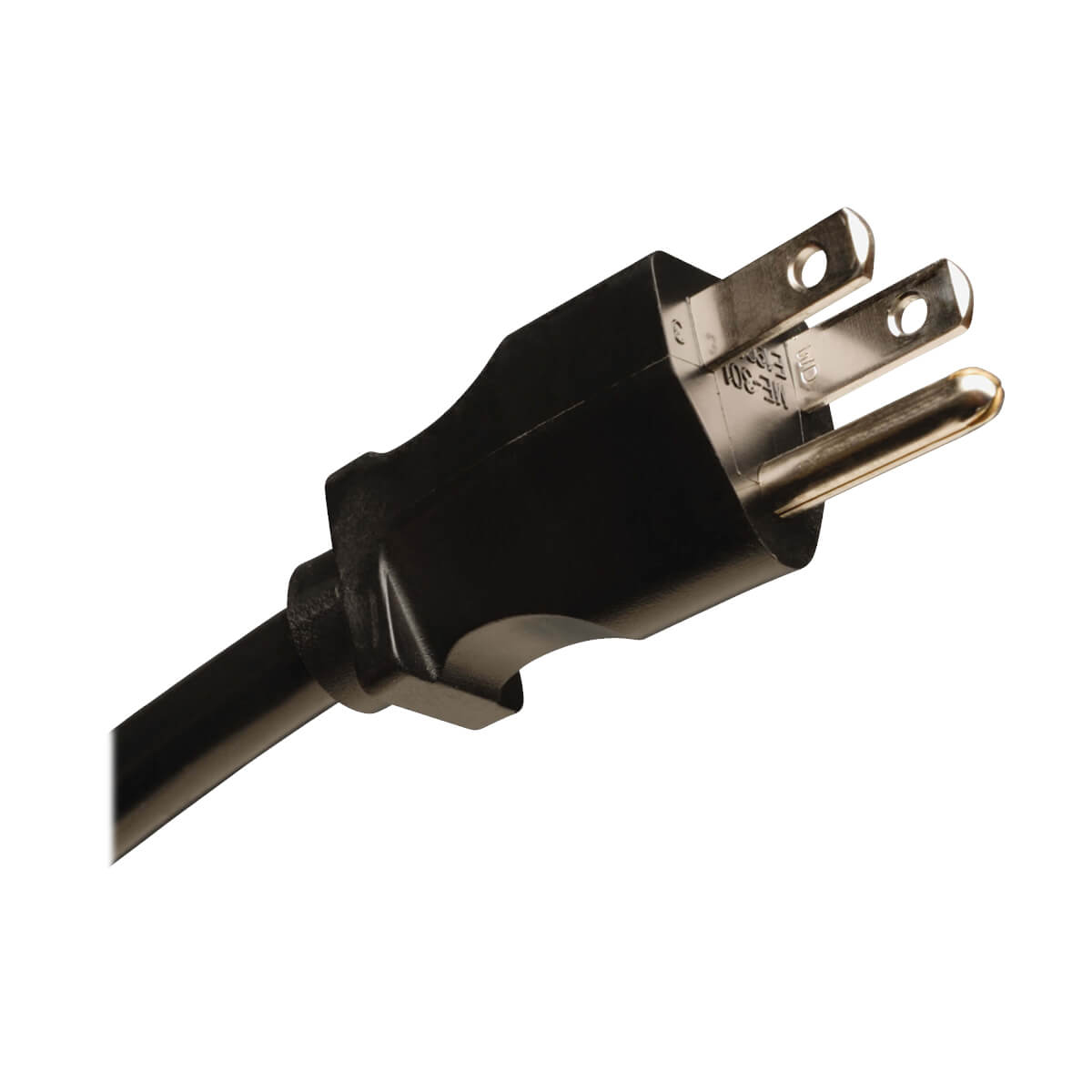

Power plugNEMA 5–15P
Features
Cable length70.9" (1.8 m)
LED indicatorsYes
CertificationUL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03
Ergonomics
Cable length70.9" (1.8 m)
LED indicatorsYes
DisplayLCD
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current15 A
AC input frequency50 - 60 Hz
Certificates
CertificationUL60950-1 (USA), CAN/CSA C22.2 No. 60950-1-03
Compliance certificatesRoHS
Weight & dimensions
Weight4.3 lbs (1.95 kg)
Width17.5" (444.5 mm)
Depth4.5" (114.3 mm)
Height1.75" (44.5 mm)
Package width20.5" (520.7 mm)
Package depth10" (254 mm)
Package height2.25" (57.2 mm)
Package weight4.3 lbs (1.95 kg)
Packaging data
Package width20.5" (520.7 mm)
Package depth10" (254 mm)
Package height2.25" (57.2 mm)
Package weight4.3 lbs (1.95 kg)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332182880
Compliance certificatesRoHS
Logistics data
Master (outer) case width14" (355.6 mm)
Master (outer) case length20.7" (525.8 mm)
Master (outer) case height10" (254 mm)
Master (outer) case gross weight27.1 lbs (12.3 kg)
Products per master (outer) case6 pc(s)
Country of originChina
Master (outer) case GTIN (EAN/UPC)10037332182880
