Tripp Lite PDUH30HV19 power distribution unit (PDU) 4 AC outlet(s) 1U Black

Tripp Lite PDUH30HV19 power distribution unit (PDU) 4 AC outlet(s) 1U Black

5/5.8kW Single-Phase 208/240V Basic PDU, 4 C19 Outlets, NEMA L6-30P Input, 12 ft. Cord, 1U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter PDU BASIC 208V/240V 30A4 OUTLET L6-30P HORIZONTAL 1UPDUH30HV19 812667 Register free see stock
ASI Corp PDU PDUH30HV19 1U RM Single-Phase Basic 208 240V 4xC19 L6-30P 179879
BlueStar TRIPP LITE, 5/5.8KW SINGLE-PHASE 208/240V BASIC PDU, 4 C19 OUTLETS, NEMA L6-30P INPUT, 12 FT. CORD, 1U RACK-MOUNT PDUH30HV19
D&H PDU Basic 208 240V 4 Outlet PDUH30HV19
Ingram Micro PDU BASIC 5.8KW 208-240V 30A ZZ0889
TD Synnex PDU BASIC 30A 208/240V C19 L6-30P 1URM 4222543

Related Products

Description

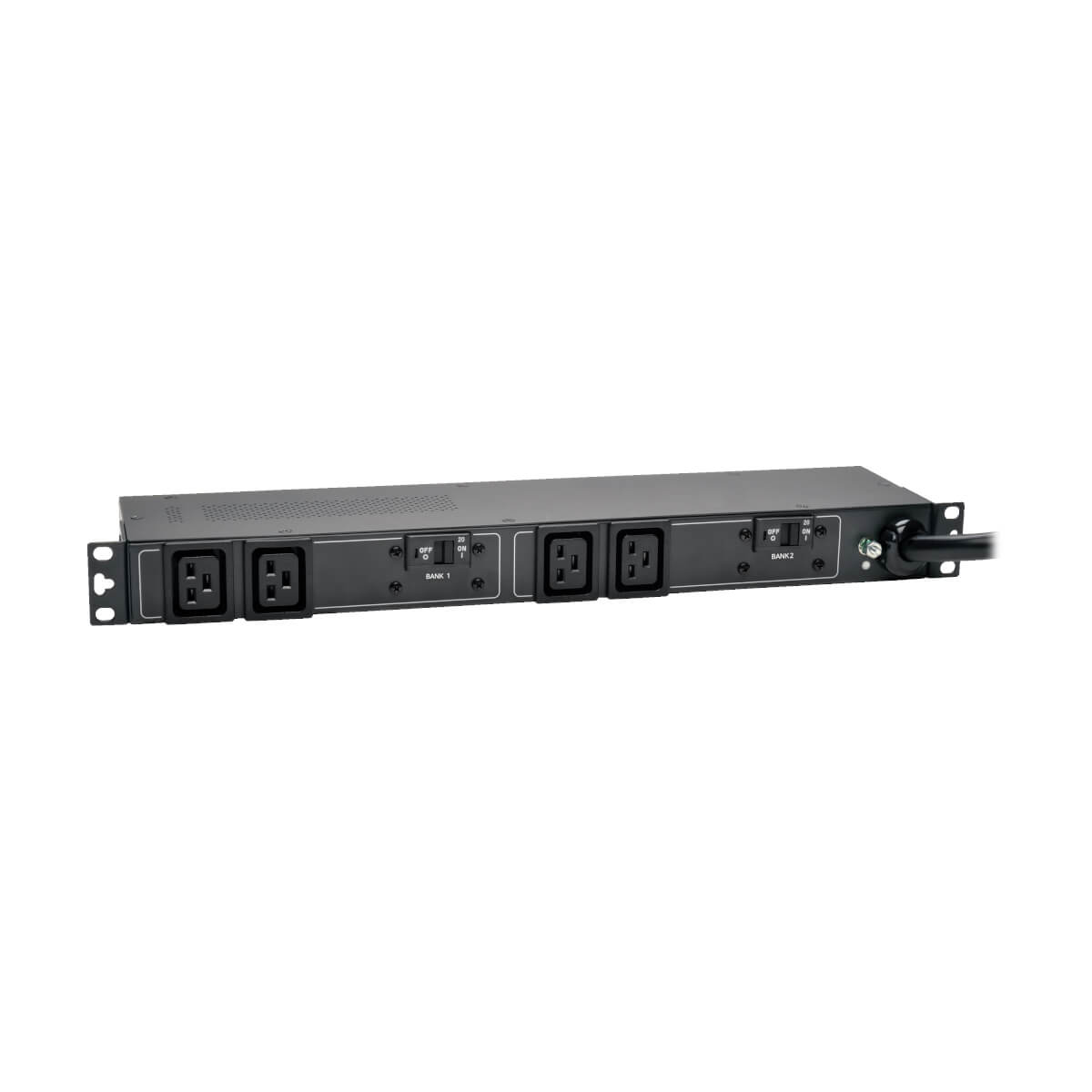

The PDUH30HV19 5/5.8kW Single-Phase 208/240V Basic PDU is a versatile no-frills unit for data centers, server rooms and network wiring closets. Perfectly suited for high-density IT environments, the PDUH30HV19 features four rear outlets. The NEMA L6-30P input plug with 12-foot (3.6 m) cord connects to your facility’s compatible AC power source, generator or protected UPS to distribute power to connected equipment.

The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The reversible all-metal housing supports a variety of mounting options, including 1U horizontal or 0U vertical mounting in EIA-standard 19-inch racks, under a counter or on a wall or workbench.

Reliable Single-Phase 30A 208/240V Power Distribution
- Ideal no-frills PDU for data centers, server rooms and network wiring closets

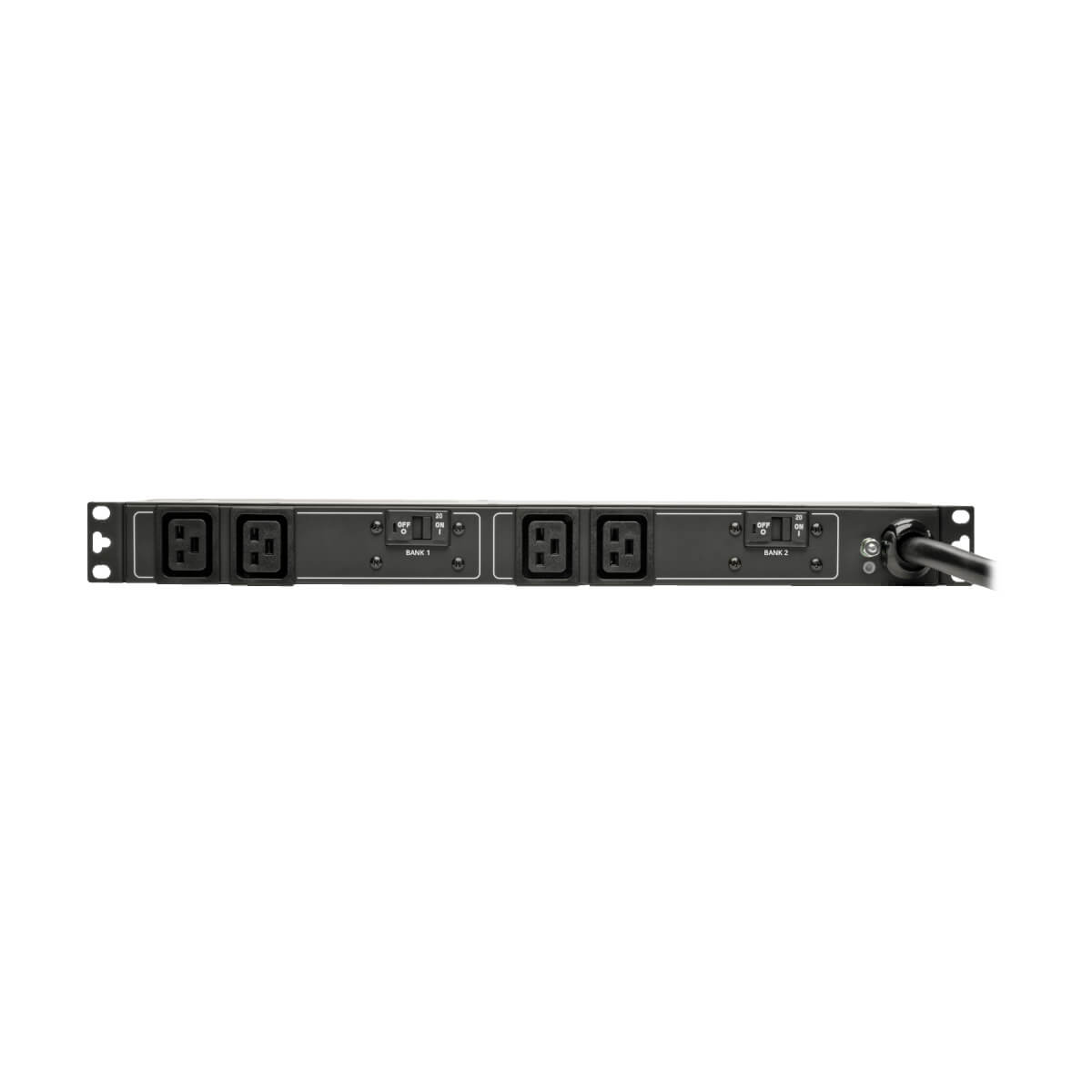

- 4 rear C19 outlets

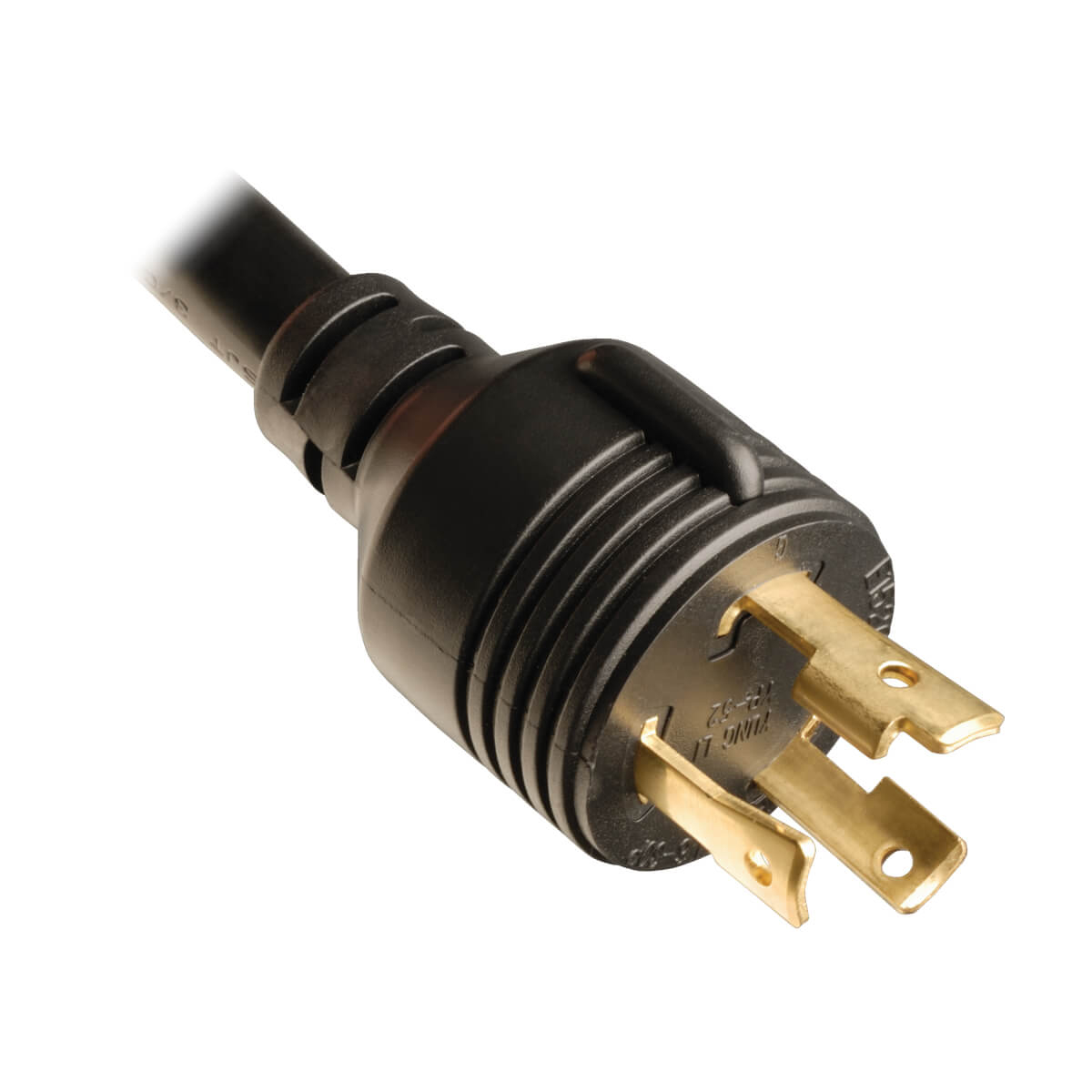

- NEMA L6-30P input plug with 12 ft. (3.6 m) power cord
- Rear-panel grounding lug
- Dual 20A circuit breakers protect against overloads

Switchless Design
- Prevents accidental shutdowns and costly downtime

Versatile Installation Options

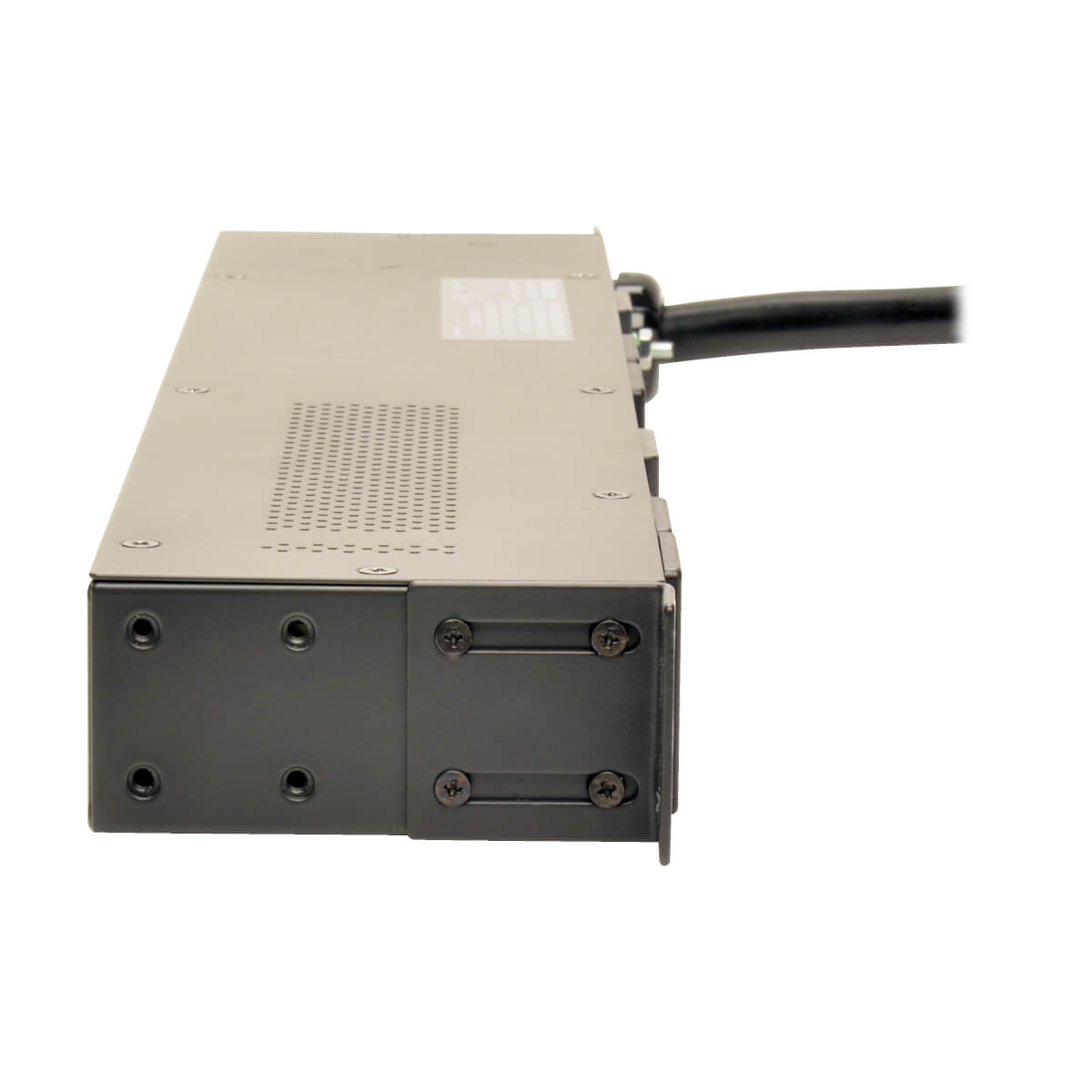

- Reversible all-metal housing faces front or rear in rack
- Supports 1U horizontal or 0U vertical mounting in EIA-standard 19 in. racks
- Also mounts on wall, workbench or under a counter

Specifications

Design
PDU typesBasic
MountingHorizontal
Product colourBlack
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity4 AC outlet(s)
AC outlet typesC19 coupler
Power plugNEMA L6-30P
Features
Cable length144.1" (3.66 m)
Ergonomics
Cable length144.1" (3.66 m)
Power
Maximum power5800 W
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Maximum current30 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 3.75 x 1.77" (445 x 95.3 x 45 mm)
Weight7.74 lbs (3.51 kg)
Width17.3" (439.4 mm)
Depth3.75" (95.2 mm)
Height1.7" (43.2 mm)
Package width20.3" (514.4 mm)
Package depth11.3" (285.8 mm)
Package height3" (76.2 mm)
Package weight8.49 lbs (3.85 kg)
Package dimensions (WxDxH)20.2 x 11.3 x 2.99" (514 x 286 x 76 mm)
Packaging data
Package width20.3" (514.4 mm)
Package depth11.3" (285.8 mm)
Package height3" (76.2 mm)
Package weight8.49 lbs (3.85 kg)
Package dimensions (WxDxH)20.2 x 11.3 x 2.99" (514 x 286 x 76 mm)
Operational conditions
Operating temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)5 - 122 °F
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332183191
Compliance certificatesRoHS
Logistics data
Master (outer) case width20" (508 mm)
Master (outer) case length21" (533.4 mm)
Master (outer) case height12" (304.8 mm)
Master (outer) case gross weight39.2 lbs (17.8 kg)
Products per master (outer) case5 pc(s)
Country of originChina
