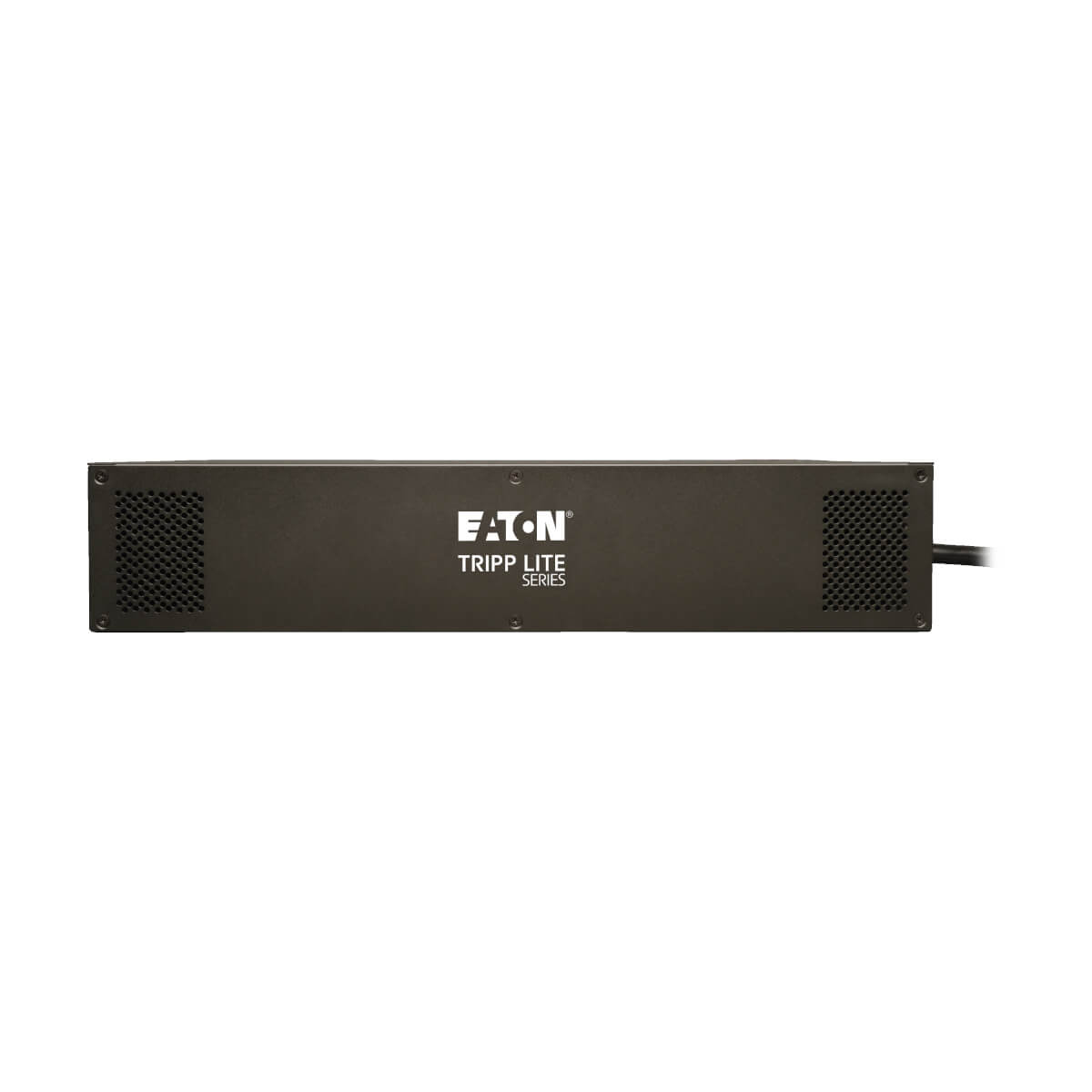

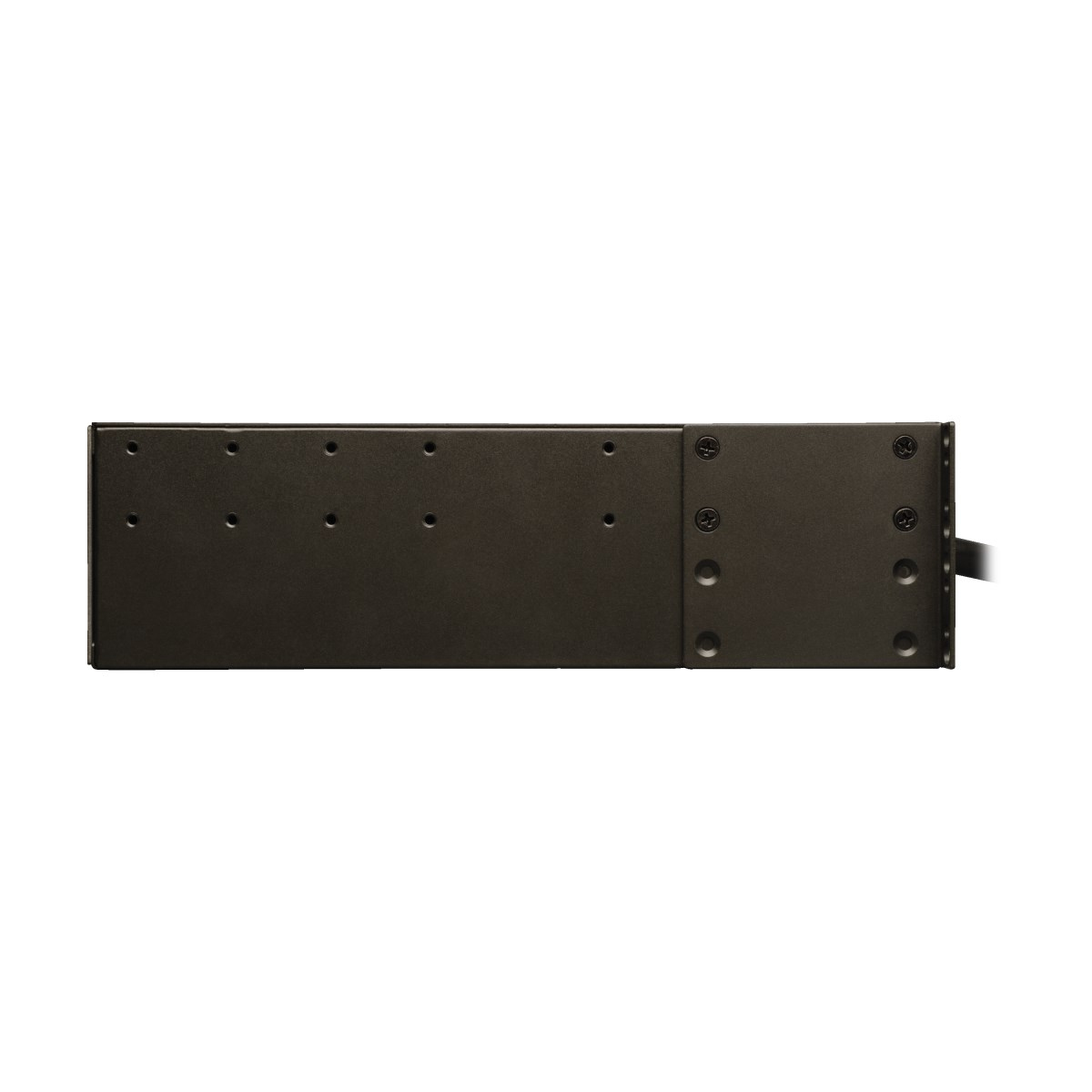

Tripp Lite PDUMH30HV power distribution unit (PDU) 18 AC outlet(s) 2U Black

Tripp Lite PDUMH30HV power distribution unit (PDU) 18 AC outlet(s) 2U Black

5.8kW Single-Phase Metered PDU, 208/240V Outlets (16 C13 & 2 C19), L6-30P, 12ft Cord, 2U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries 2U 18-OUT/230V 5500W METERED PDU TAA TRPPDUMH30HV Register free see stock
BlueStar TRIPP LITE, 5.8KW SINGLE-PHASE METERED PDU, 208/240V OUTLETS (16 C13 & 2 C19), L6-30P, 12FT CORD, 2U RACK-MOUNT, TAA PDUMH30HV
D&H PDU Metered 208 240V 24A L6 30 PDUMH30HV
Ingram Micro PDU METERED 5.8KW 208-240V 30A KD6784
TD Synnex PDU METERED 30A 208/240V C13/C19 L6-30P 2978754

Related Products

Description

Tripp Lite single phase Metered PDU / Power Distribution Units offer real-time local reporting of load level in amps via built-in digital current metering. Enables visual monitoring of PDU output current to preserve proper output balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- 30A single phase 208/240V Metered Power Distribution Unit / PDU (Agency derated to 24A continuous)

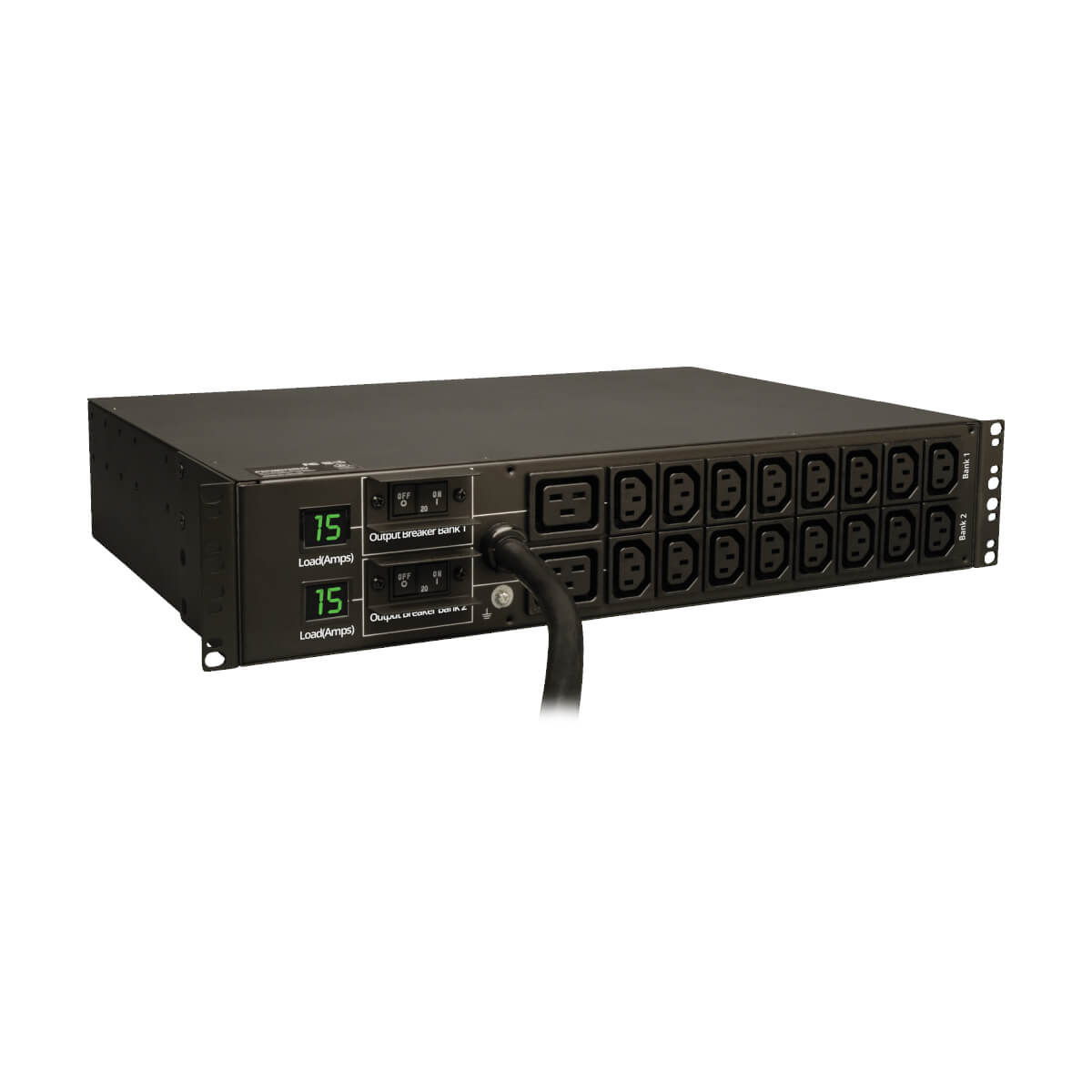

- Set of two lighted meters report PDU output current in amps for each 9 outlet load bank

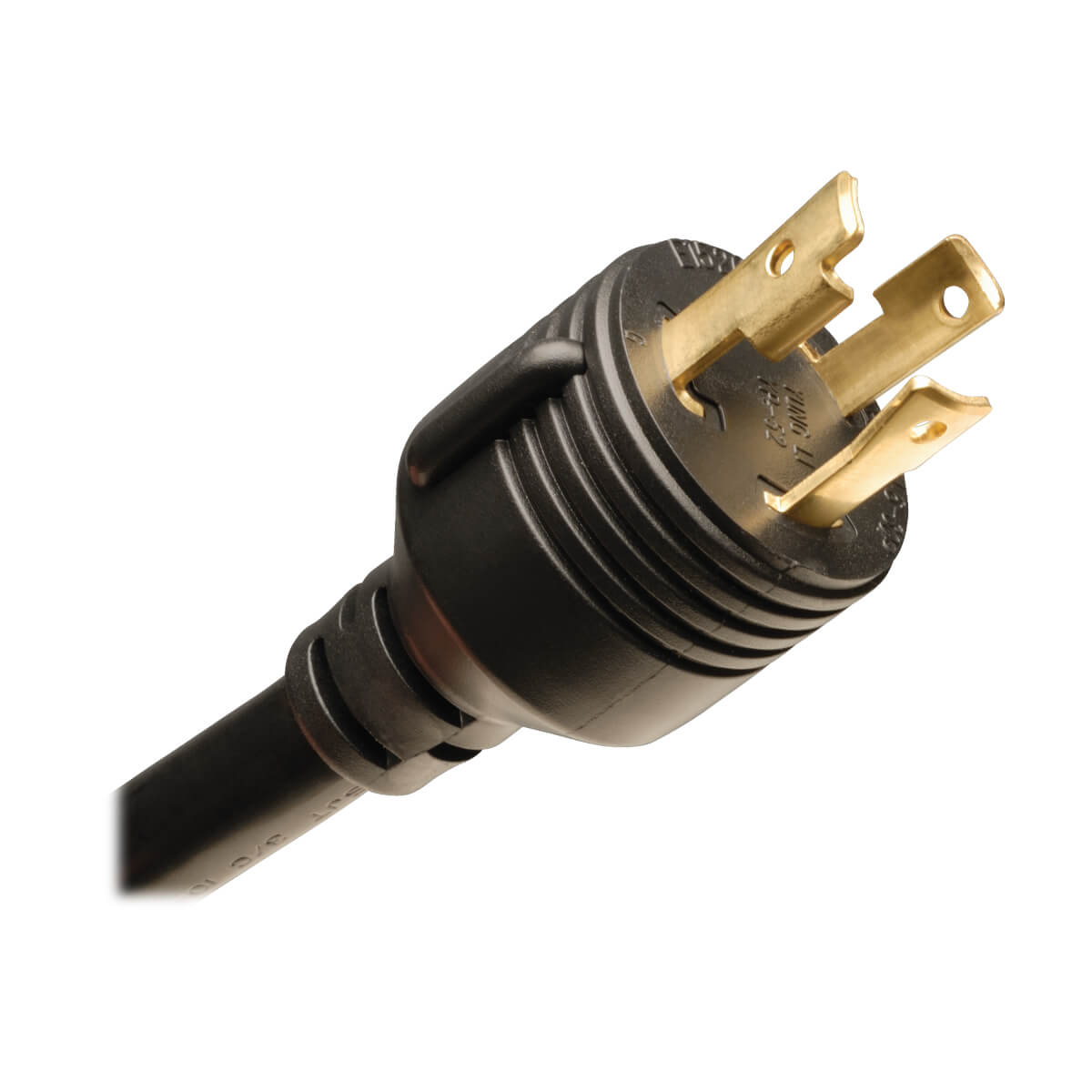

- Attached NEMA L6-30P 30A 208/240V input plug and 12ft / 3.6m cord
- 2U horizontal rackmount format installs in two rack spaces

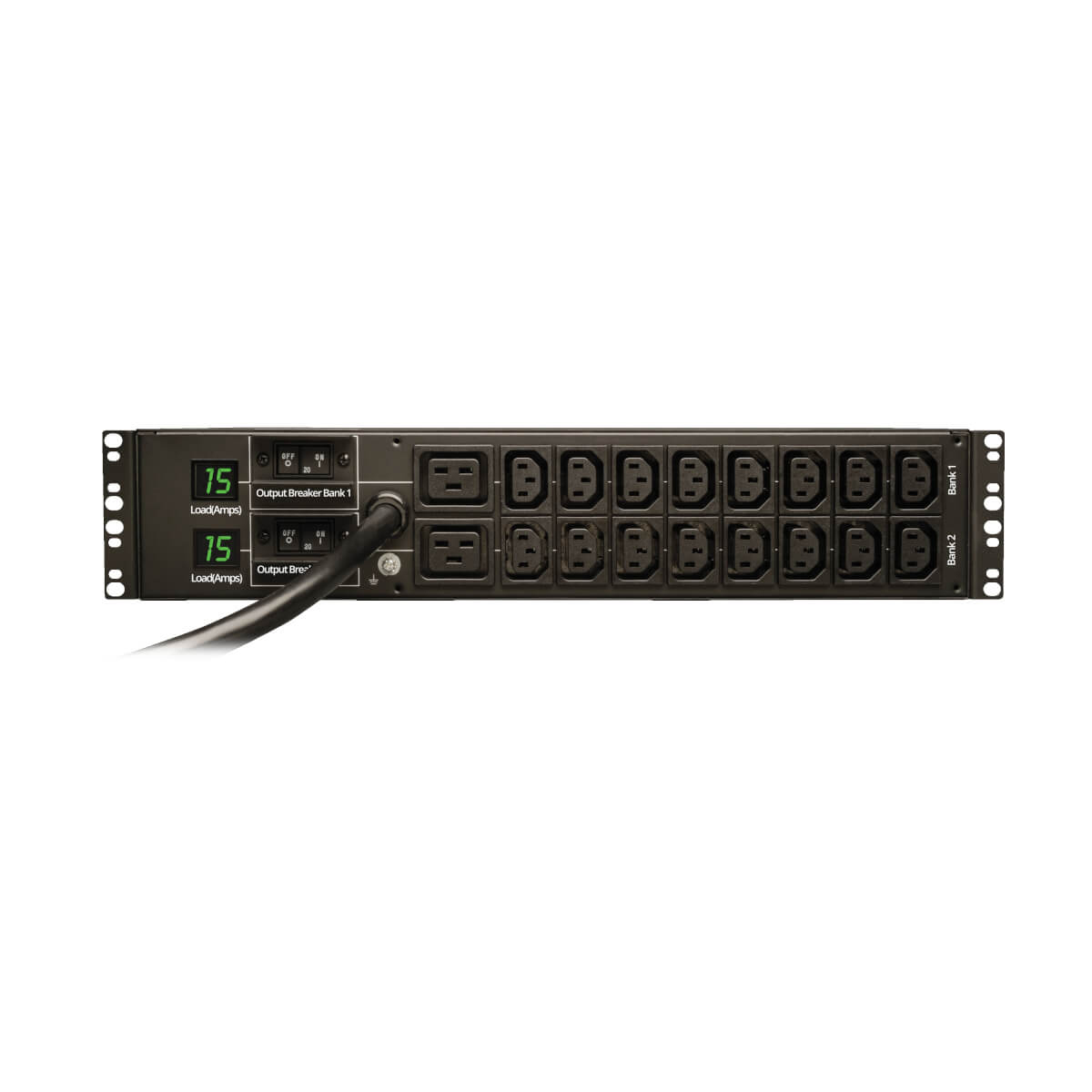

- 18 output receptacles (16 C13, 2 C19)
- Outlets are arranged in two 9 outlet load banks, each with separate 20A breaker and current metering

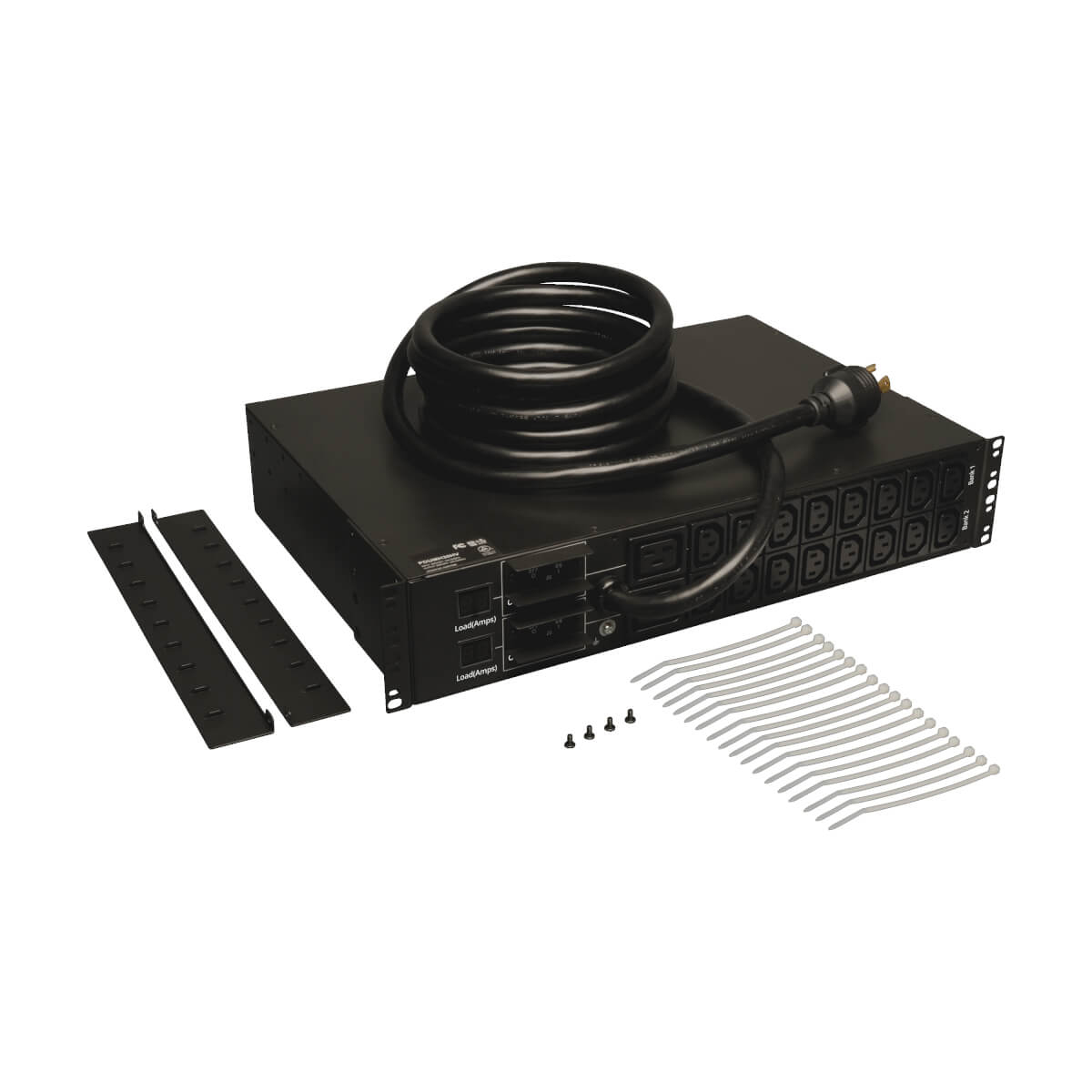

- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation
- Cord retention brackets keep vital equipment plugs connected
- Grounding lug
- TAA Compliant Version Available - Order Tripp Lite PDUMH30HVTAA

Specifications

Design
PDU typesMetered
MountingHorizontal
Product colourBlack
CertificationUL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico)
Rack capacity2U
Housing materialMetal
Ports & interfaces
AC outlets quantity18 AC outlet(s)
AC outlet typesC13 coupler, C19 coupler
Power plugNEMA L6-30P
Features
Cable length143.7" (3.65 m)
LED indicatorsYes
CertificationUL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico)
Ergonomics
Cable length143.7" (3.65 m)
LED indicatorsYes
Power
Nominal input voltage208-240 V
Nominal output voltage208-240 V
Maximum current30 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 12.5 x 3.46" (444 x 318 x 88 mm)
Weight13.7 lbs (6.21 kg)
Width17.5" (444.5 mm)
Depth12.5" (317.5 mm)
Height3.5" (88.9 mm)
Package width16.7" (424.2 mm)
Package depth19.8" (502.9 mm)
Package height7.8" (198.1 mm)
Package weight15.8 lbs (7.17 kg)
Packaging data
Package width16.7" (424.2 mm)
Package depth19.8" (502.9 mm)
Package height7.8" (198.1 mm)
Package weight15.8 lbs (7.17 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Logistics data
Master (outer) case width16.7" (424.2 mm)
Master (outer) case length19.8" (502.9 mm)
Master (outer) case height7.8" (198.1 mm)
Master (outer) case gross weight15.8 lbs (7.17 kg)
Products per master (outer) case1 pc(s)
Country of originTaiwan
