Tripp Lite SMART1500XL uninterruptible power supply (UPS) Line-Interactive 1.5 kVA 980 W 6 AC outlet(s)

Brand: Tripp Lite
Category:
- Uninterruptible Power Supplies (UPSs)
SKU: SMART1500XL
EAN: 0373321006892 0037332100689
Sell Price:
Contract No:
Account price:

SmartPro, 980W, 1500VA, 120V AC, 60Hz, 15A, 480J

Trade Prices

Distributor	Product	SKU	Stock	Updated	Price
	1500VA/980W UPS6 OUTLETS EXTENDED RUNTIMELINE INTERACTIVE	254394	Register free see stock

Description

Tripp Lite's SMART 1500XL intelligent, line interactive UPS system protects servers, networking accessories and telecommunications equipment from blackouts, voltage fluctuations and transient surges. Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures. Runtime is expandable with the addition of BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible) and BP36V27-2US (multi-pack compatible) external battery packs. 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types. Includes a total of 6 outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or to shed less significant loads to extend battery runtime for more critical equipment. Supports remote monitoring of UPS and site power conditions via built-in USB and DB9 monitoring ports. Includes PowerAlert UPS monitoring and unattended shutdown software with complete cabling. Notification of system status via 5 LEDs and multi-function audible alarms. Wall mountable with UPSWM wallmount bracket. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges. Attractive, small-footprint tower housing uses less than 66 square inches of floor or desktop space.

- 1500VA/980 watt power handling capability supports a variety of networking, telecom and various other application types
- Large internal batteries offer 20 minutes half load runtime and 7 minutes at full load during power failures
- Runtime is expandable with the addition of BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible) and BP36V27-2US (multi-pack compatible) external battery packs
- Automatic Voltage Regulation (AVR) circuits with two boost and one voltage reduction level maintains usable 120V nominal output over an input voltage range of 75-147V
- Includes a total of 6 NEMA5-15R outlets, 1 of which can be individually powered on and off via software interface to selectively reboot remote equipment or shed less significant loads to extend battery runtime for more critical equipment
- Includes 1 USB and 1 DB9 monitoring port for remote monitoring of UPS status and site power conditions
- PowerAlert UPS monitoring and unattended shutdown software with complete cabling included
- Notification of system status via 5 LEDs and multi-function audible alarms
- Wall mountable with UPSWM wallmount bracket
- Attractive small footprint black tower housing uses less than 66 square inches

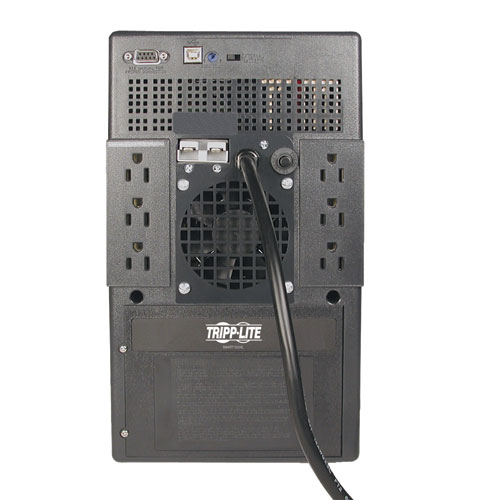

- Built-in rear-exit cooling fan runs as needed to maintain optimal internal temperatures during extended run battery operation
- Hot-swappable/user replaceable batteries allow on-site battery replacement
- UPS battery set ships fully assembled and ready for installation, no time consuming connection of internal batteries by user is necessary
- Cold start capability enables UPS turn-on in battery mode during blackout conditions

Specifications

Power
Output voltage regulation	18 - 8%
Output power	980 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	480 J
Maximum current	15 A
Output power capacity	1.5 kVA
Ports & interfaces
Cable length	70.9" (1.8 m)
AC outlets quantity	6 AC outlet(s)
AC outlet types	NEMA 5–15R
Power plug	NEMA 5-15P
USB 2.0 ports quantity	1
Serial ports quantity	1
Performance
UPS topology	Line-Interactive
Surge protection	Yes
Audible alarm(s)	Yes
Features
UPS topology	Line-Interactive
Output voltage regulation	18 - 8%
Output power	980 W
Input operation voltage (max)	120 V
Output operation voltage (max)	120 V
Surge energy rating	480 J
Maximum current	15 A
Surge protection	Yes
Audible alarm(s)	Yes
Output power capacity	1.5 kVA
Battery
Battery voltage	36 V
Battery recharge time	4 h
Typical backup time at half load	20 min
Typical backup time at full load	7 min
Hot-swap battery	Yes
Replacement battery cartridge	RBC53
Design
Form factor	Tower
Product colour	Black
Certification	UL1778, CSA, NOM, FCC
Cable length	70.9" (1.8 m)
Housing material	Polyvinyl chloride (PVC)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 50 °C
Certificates
Certification	UL1778, CSA, NOM, FCC
Weight & dimensions
Package width	11.7" (298 mm)
Package depth	13.5" (343 mm)
Package height	18" (457 mm)
Weight	41.7 lbs (18.9 kg)
Width	7.48" (190 mm)
Package weight	46.3 lbs (21 kg)
Height	12.8" (324 mm)
Depth	9.49" (241 mm)
Packaging data
Package width	11.7" (298 mm)
Package depth	13.5" (343 mm)
Package height	18" (457 mm)
Package weight	46.3 lbs (21 kg)
Other features
Non-operating relative humidity (non-condensing)	0 - 95%
