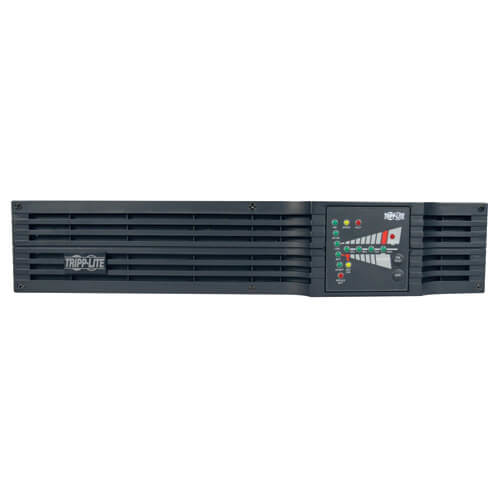

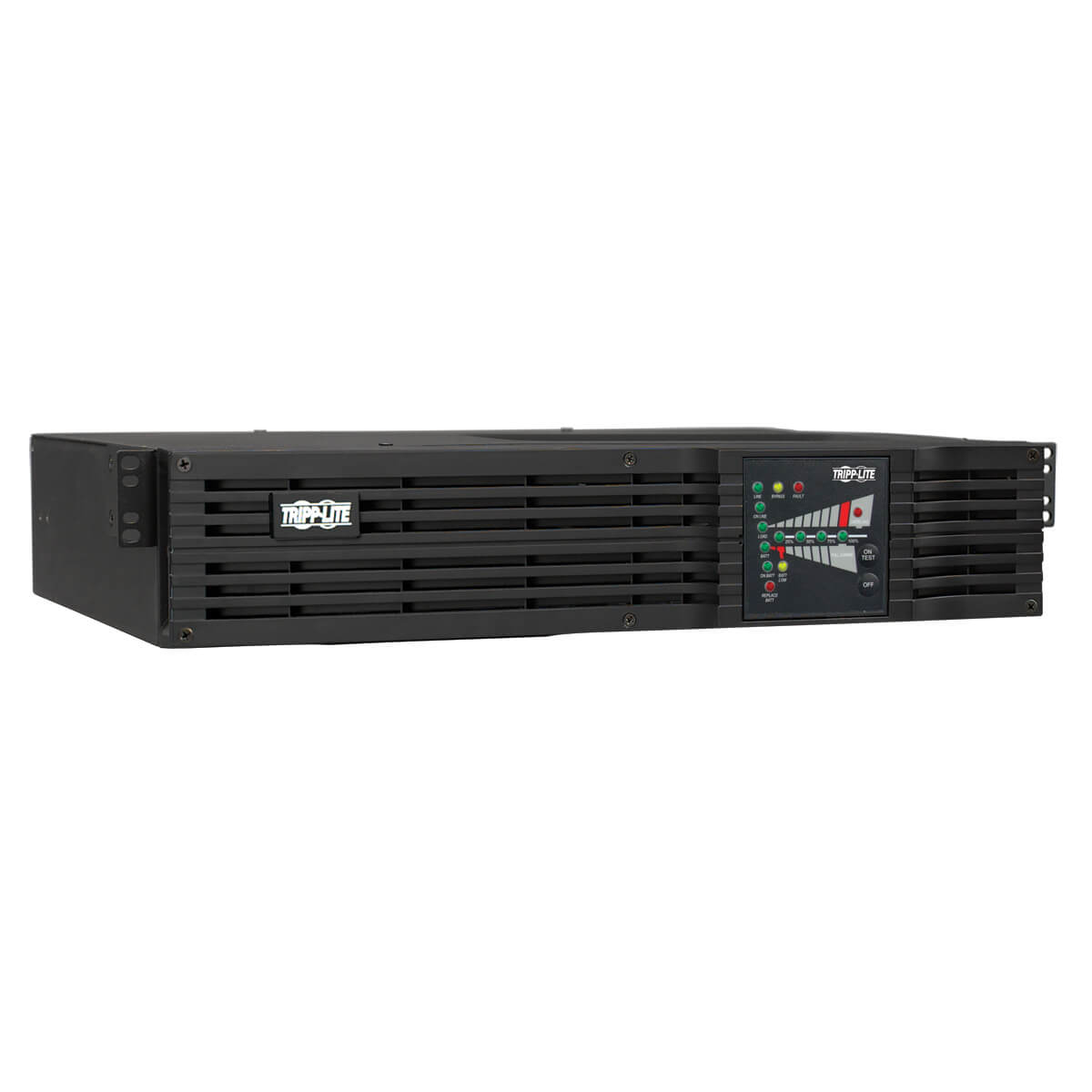

Tripp Lite SU2200RTXL2UN uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1600 W 7 AC outlet(s)

Tripp Lite SU2200RTXL2UN uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1600 W 7 AC outlet(s)

SmartOnline 120V 2.2kVA 1.6kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard pre-installed, 2U Rack/Tower, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries

1600W ON-LINE 2U 7-OUT WEBCARDLX UPS

 TRPSU2200RTXL2UN Register free see stock
ASI Corp

UPS SU2200RTXL2UN SmartOnline USB DB9 EPO cabling Retail

 226366

Related Products

Description

Tripp Lite Smart Online UPS systems offer high performance power protection ideal for critical server and network equipment in datacenters, computer rooms and network closets. Online, double-conversion Uninterruptible Power Supply (UPS) maintains perfectly regulated output power by continuously converting raw AC input to DC, then re-converting output back to AC. Fully regulated sine wave AC output with +/-2% voltage regulation powers network equipment continuously, even during severe brownouts and overvoltages, all without depleting UPS battery reserves. Maintains battery-derived AC output during power failures with zero transfer time. Extended runtime options available. High 97% efficient operation in optional economy mode saves BTU heat output and energy costs. Network management interfaces support communications via USB, RS-232, contact-closure and PRE-INSTALLED SNMPWEBCARD network interface. Built-in DB9 port offers both enhanced RS-232 data and basic contact closure monitoring ability. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. LED display reports UPS operating mode, line power availability, battery mode operation, inverter operation and output power availability. Audible alarm with push-button momentary alarm-cancel. Programmable self-test. Battery independent restart. Fault-tolerant auto-bypass mode. Field-replaceable, hot-swappable internal batteries and external battery packs.
- Tripp Lite SU2200RTXL2UN 2200VA / 2.2kVA / 1600W on-line, double-conversion 3U rackmount UPS
- Selectable 110/120V output (120V factory preset)

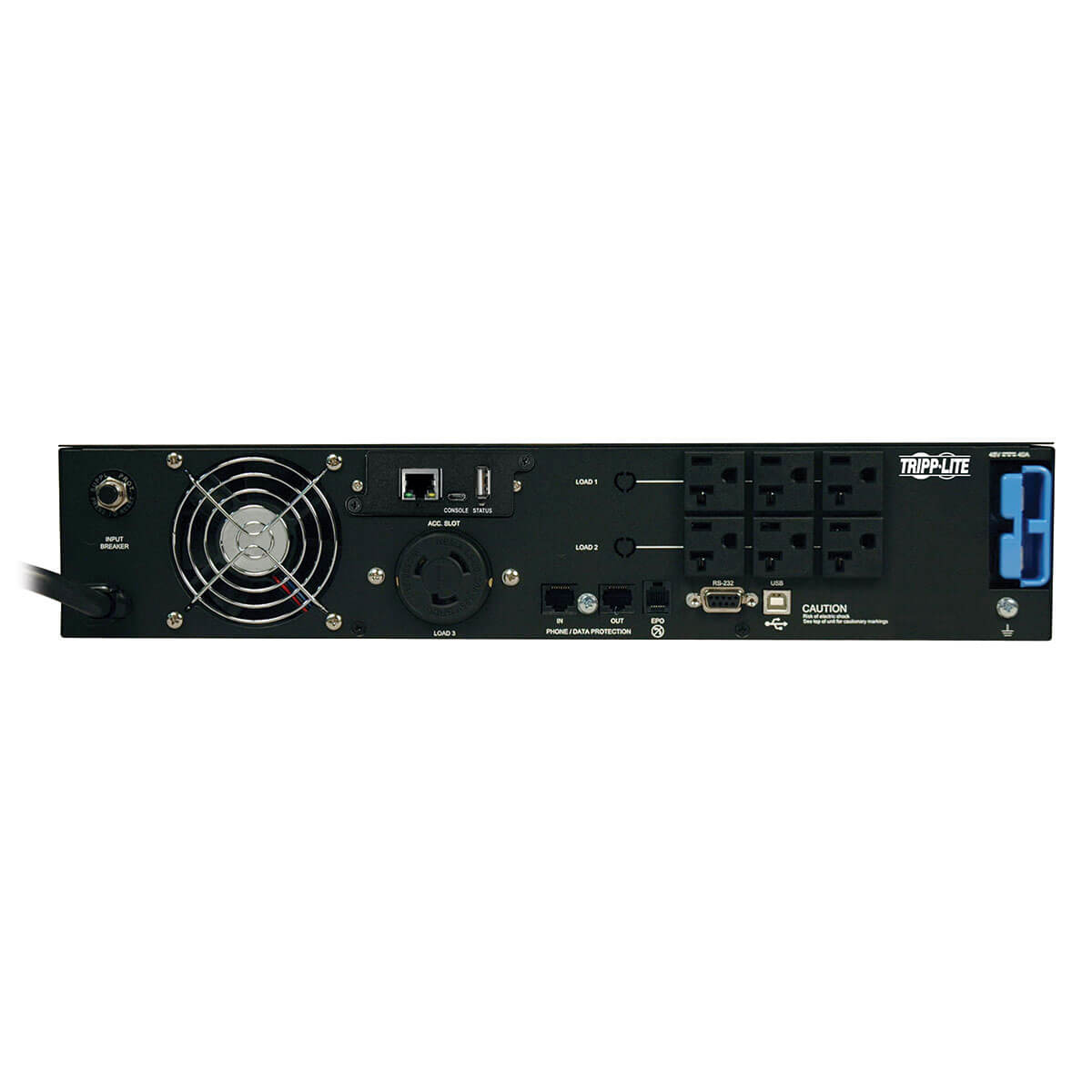

- NEMA 5-20P input, 6 NEMA 5-15/20R & 1 L5-20R
- Two switched 3-outlet load banks support remote reboot or programmable load shedding options
- Supports 2% output voltage regulation and zero transfer time in double conversion mode
- Economy mode option offers enhanced 97% efficiency operation, reduced power consumption and lower BTU emissions
- 14 minutes runtime at 50% load (800W) and 4.5 minutes at 100% load (1600W) with internal batteries
- BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs available (some configurations require Tripp Lite's External Battery Configuration Software)
- LED Display reports UPS operating mode, line power availability, battery mode operation, inverter status and output power availability
- Audible alarm with push-button momentary alarm-cancel
- 4 post installation hardware included, Optional 2POSTRMKITWM enables 2 post rack installation
- Single line TEL / Network surge suppression
- Electronic bypass maintains utility output during a variety of UPS fault conditions
- Battery independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement
- Built-in USB, RS-232, contact-closure and SNMPWEBCARD network interface
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software

Specifications

Power
Output power1600 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Surge energy rating570 J
Maximum current30 A
Output power capacity2.2 kVA
Input frequency50/60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity7 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA 5–20R, NEMA L5-20R
Power plugNEMA 5-20P
USB 2.0 ports quantity1
Serial ports quantity1
Modem (RJ-11) ports1
Ethernet LAN (RJ-45) ports2
Performance
UPS topologyDouble-conversion (Online)
WaveformSine
LED indicatorsYes
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyDouble-conversion (Online)
WaveformSine
Output power1600 W
Input operation voltage (min)110 V
Input operation voltage (max)120 V
Surge energy rating570 J
Maximum current30 A
Audible alarm(s)Yes
Output power capacity2.2 kVA
Input frequency50/60 Hz
Battery
Number of batteries supported1
Typical backup time at half load14 min
Typical backup time at full load4.5 min
Hot-swap batteryYes
Cold startYes
Design
Country of originChina
Rack capacity2U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Cable length118.1" (3 m)
Built-in fanYes
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Certificates
CertificationTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Compliance certificatesRoHS
Cooling
Cooling typeActive
Built-in fanYes
Weight & dimensions
Package width20.2" (513.1 mm)
Package depth23.5" (596.9 mm)
Package height9.1" (231.1 mm)
Weight48.5 lbs (22 kg)
Width17.5" (444.5 mm)
Package weight60 lbs (27.2 kg)
Height3.5" (88.9 mm)
Depth19" (482.6 mm)
Packaging data
Package width20.2" (513.1 mm)
Package depth23.5" (596.9 mm)
Package height9.1" (231.1 mm)
Package weight60 lbs (27.2 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
