Tripp Lite SU1000XLA uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 6 AC outlet(s)

Tripp Lite SU1000XLA uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 800 W 6 AC outlet(s)

SmartOnline 100-120V 1kVA 800W On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

1000VA/800WA TOWER UPSONLINE - EXPANDABLESU1000XL

 273251 Register free see stock
Arlington Industries

1000VA/800W 6-OUT ON-LINE TOWER UPS

 TRPSU1000XLA

Related Products

Description

Tripp Lite's Smart Online SU1000XLa on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges in an attractive all-black upright tower form factor. Large capacity 1kVA/800 watt UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time offers guaranteed compatibility with all equipment types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Includes 6 UPS supported outlets. 2 single-outlet load banks can be independently controlled via a software interface to selectively reboot remote equipment, or automatically shed less critical loads to extend battery runtime for the most critical equipment. Extended runtime available with optional BP24V15RT2U, BP24V28-2U or BP24V70-3U external battery packs. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. Network management interfaces support simultaneous communications via USB port, DB9 serial port and SNMPWEBCARD slot. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's Watchdog Service Monitoring/Rebooting Software.
- True on-line, double conversion UPS provides a constant, pure sine wave AC output
- Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time
- Zero transfer time, on-line, double-conversion and economy-mode operation supported
- Removes harmonic distortion, electrical impulses, frequency variations and other hard to solve power problems
- Accepts input voltages between 80 and 150 (65 to 150 at loads under 70%), regulating output to 120V AC +/-2%
- 1000VA/800 watt output capacity with 6 total outlets (6 NEMA5-15R)
- Two built-in individually switchable load banks can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment (2 banks of 1 outlet)
- Standard internal battery set provides 14 minutes runtime at half load and 4 minutes at full load
- Extended runtime available with optional BP24V15RT2U, BP24V28-2U or BP24V70-3U external battery packs
- Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)

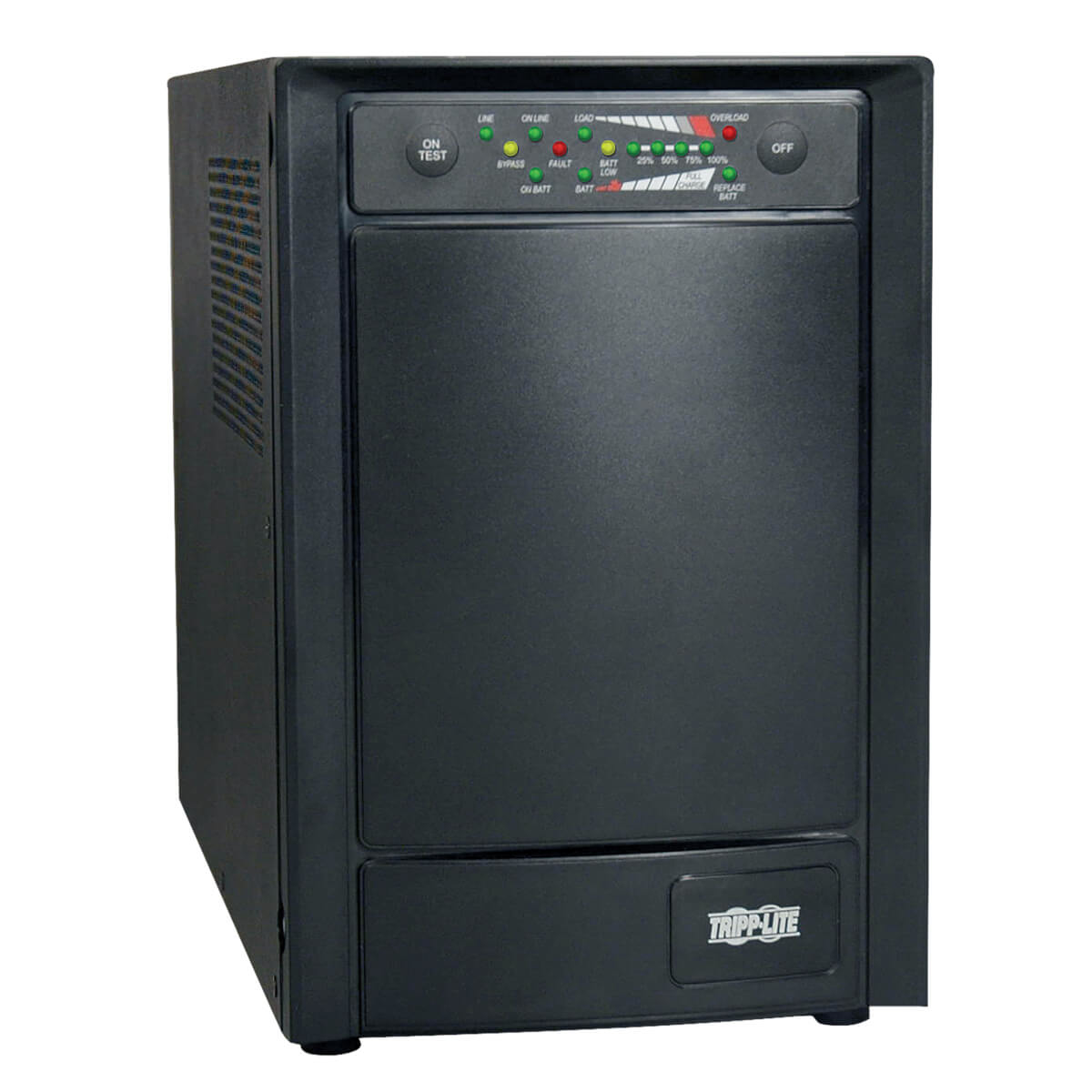

- Attractive all-black upright tower format
- Simultaneous communications use via HID-compliant USB port, serial port, and SNMP/web card slot
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.
- DB9 serial network interface supports RS-232 and contact closure messaging
- Slot for optional SNMP/web card (part# SNMPWEBCARD)
- Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control
- Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software (part# WATCHDOGSW)
- Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions
- Diagnostic LEDs
- $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only)

Specifications

Power
Output power800 W
Input operation voltage (min)100 V
Input operation voltage (max)120 V
Output operation voltage (min)100 V
Output operation voltage (max)120 V
Output power capacity1 kVA
Performance
UPS topologyDouble-conversion (Online)
Audible alarm(s)Yes
Features
Country of originChina
UPS topologyDouble-conversion (Online)
Output power800 W
Input operation voltage (min)100 V
Input operation voltage (max)120 V
Output operation voltage (min)100 V
Output operation voltage (max)120 V
Audible alarm(s)Yes
Output power capacity1 kVA
Ports & interfaces
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
Battery
Typical backup time at half load14 min
Typical backup time at full load4.5 min
Hot-swap batteryYes
Design
Country of originChina
Form factorTower
Product colourBlack
Technical details
Compliance certificatesRoHS
Certificates
Compliance certificatesRoHS
Weight & dimensions
Package width9.7" (246.4 mm)
Package depth17.9" (454.7 mm)
Package height13.9" (353.1 mm)
Weight29.8 lbs (13.5 kg)
Width6.75" (171.4 mm)
Package weight33.3 lbs (15.1 kg)
Height10" (254 mm)
Depth13.3" (336.6 mm)
Packaging data
Package width9.7" (246.4 mm)
Package depth17.9" (454.7 mm)
Package height13.9" (353.1 mm)
Package weight33.3 lbs (15.1 kg)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width9.7" (246.4 mm)
Master (outer) case length17.9" (454.7 mm)
Master (outer) case height13.9" (353.1 mm)
Master (outer) case gross weight33.3 lbs (15.1 kg)
Other features
Output connections6x 5-15R
