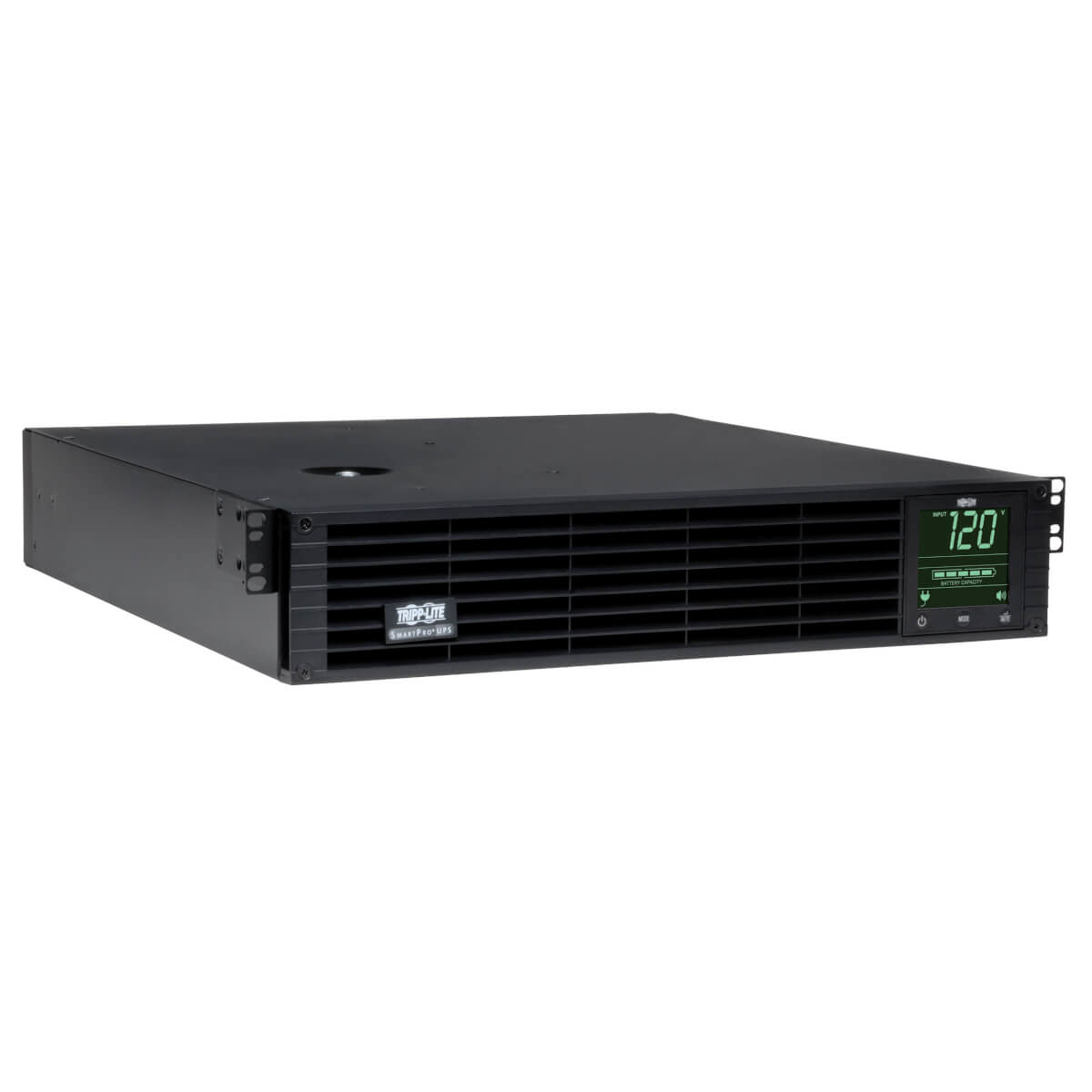

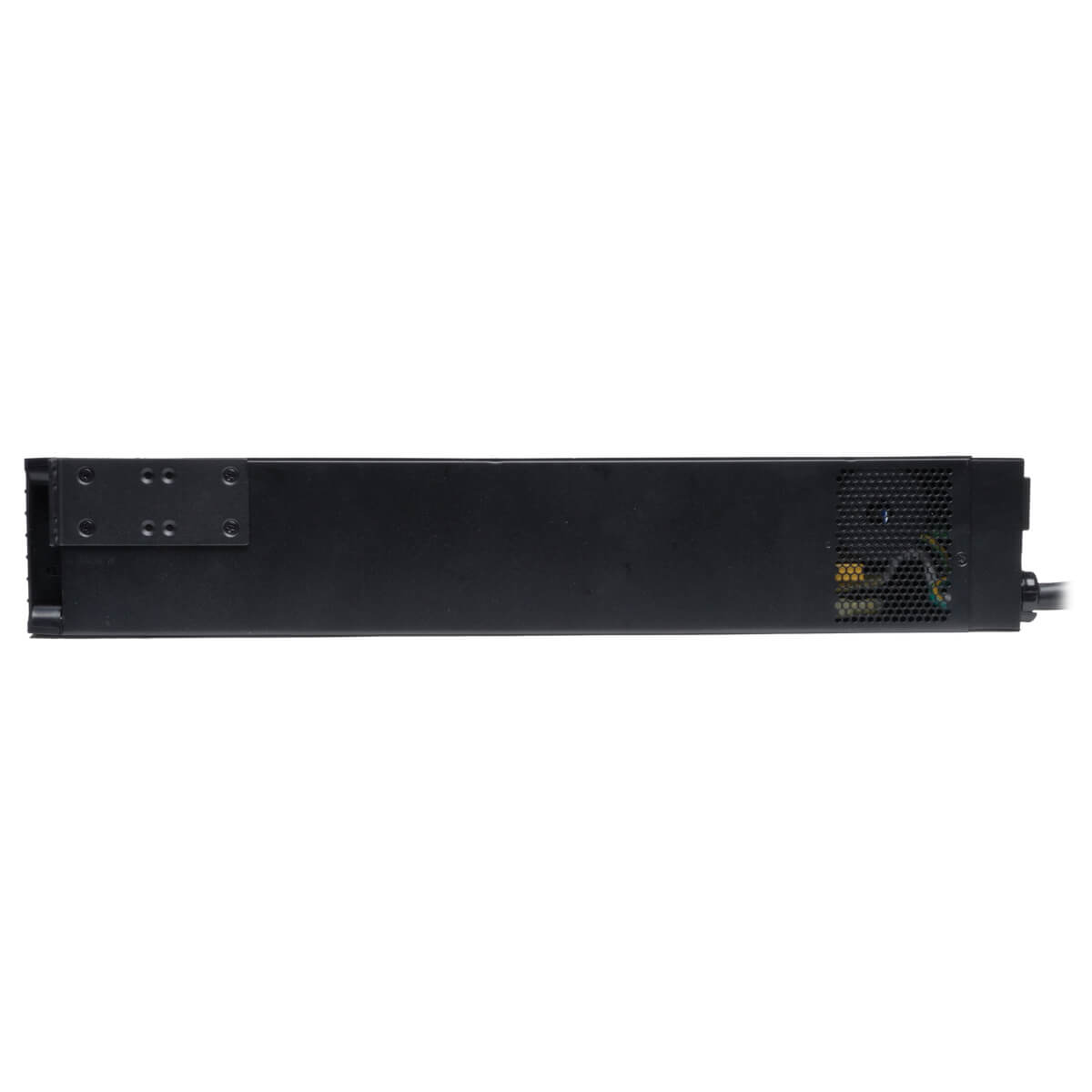

Tripp Lite SMART2600RM2U uninterruptible power supply (UPS) Line-Interactive 2.6 kVA 1920 W 9 AC outlet(s)

Tripp Lite SMART2600RM2U uninterruptible power supply (UPS) Line-Interactive 2.6 kVA 1920 W 9 AC outlet(s)

SmartPro, 1920W, 2600VA, 120V AC, 20A, LCD, 570J

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 2600VA/2100W LINE INTERACTIVE8 OUTLETS SOFTWARE INCLUDEDRACKMOUNT 2U 261522 Register free see stock
Arlington Industries 9-OUT 2U RACK LINE-INTERACTIVE UPS TRPSMART2600RM2U
BlueStar TRIPP LITE, SMARTPRO 120V 2.6KVA 1.92KW LINE-INTERACTIVE SINE WAVE UPS, 2U, EXTENDED RUN, NETWORK CARD OPTIONS, LCD, USB, DB9 SMART2600RM2U

Related Products

Description

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

- Tripp Lite SMART2600RM2U line interactive 2U rack/tower UPS with 2600VA / 2.6kVA / 1920W capacity and extended runtime options
- Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

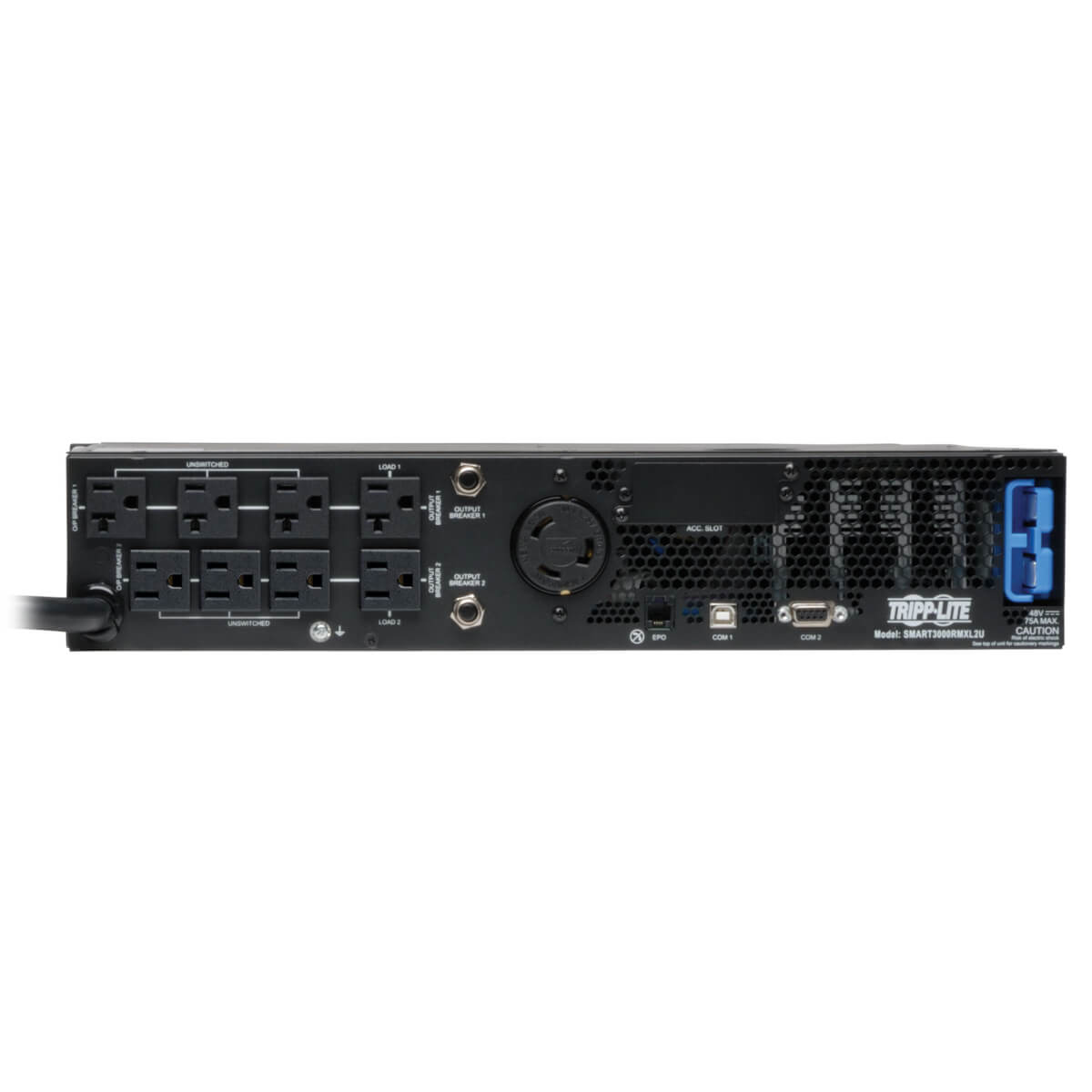

- NEMA 5-20P input plug; 4 NEMA 5-15/20R, 4 5-15R and 1 L5-20R output receptacles, Two independently switched output load banks
- Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
- High 96% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
- Internal batteries offer 12.9 minutes at 50% load (960W) and 4.6 minutes at 100% load (1920W)
- Extended runtime is available with optional BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible)
- External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
- Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment

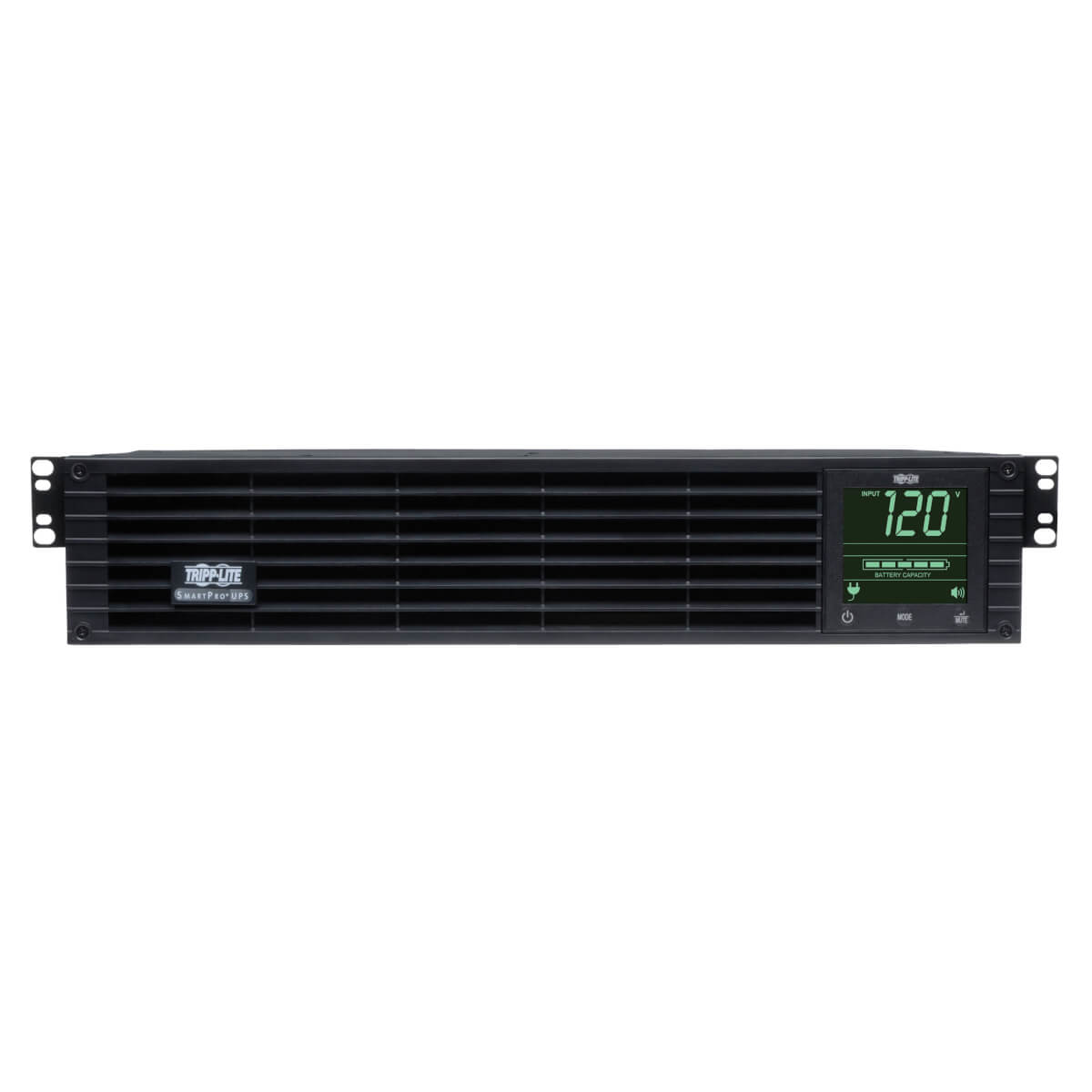

- Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
- LCD interface also supports a number of advanced user setup and operating preferences

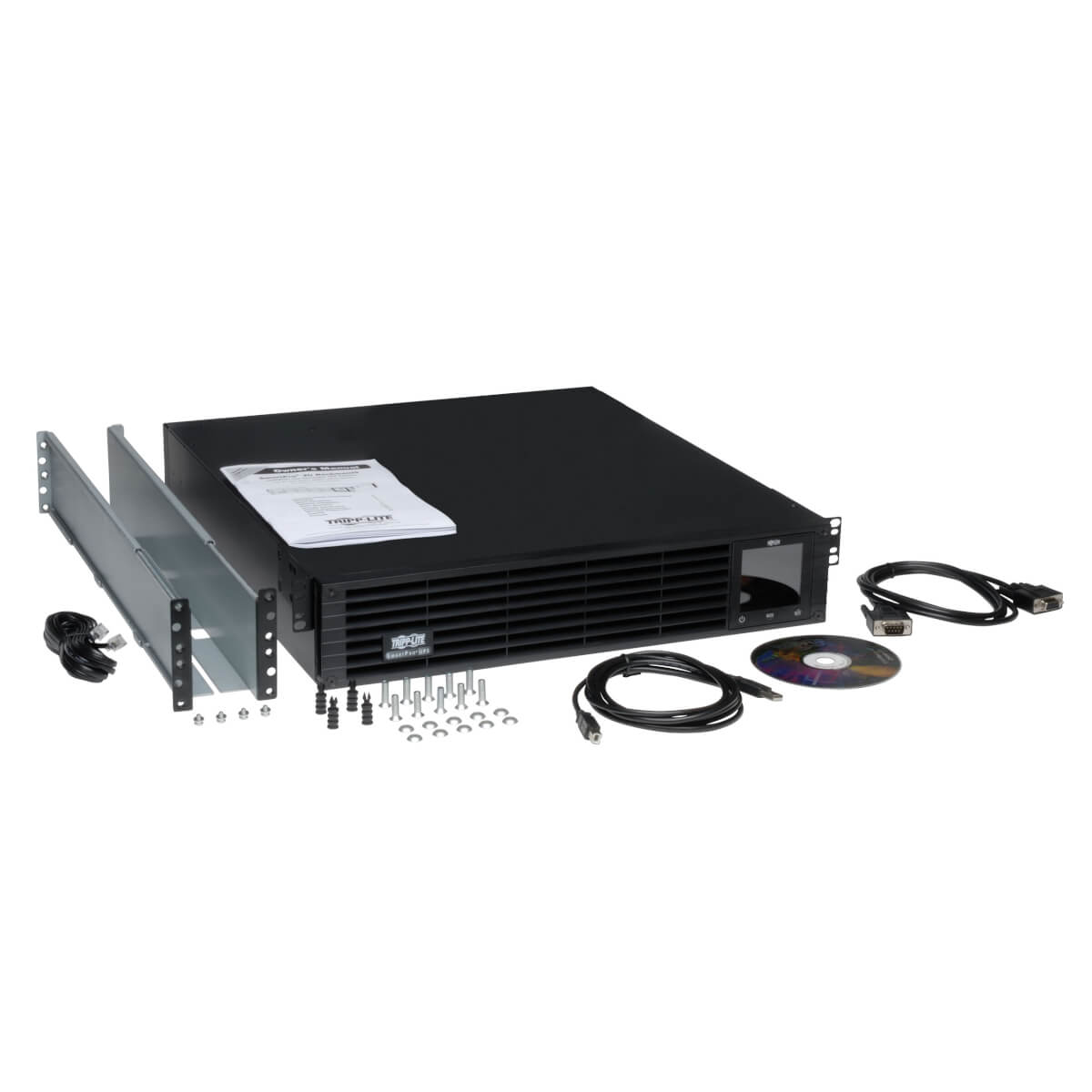

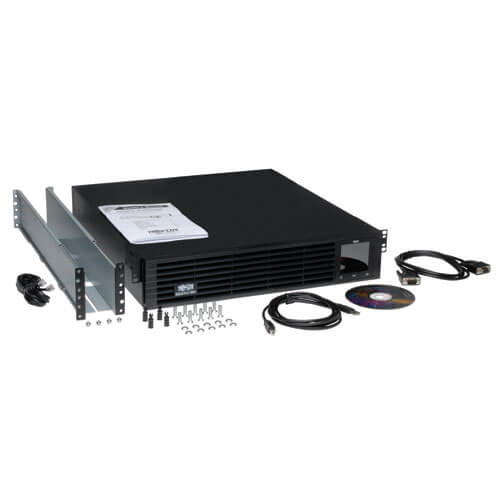

- Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
- Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
- HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
- Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

Specifications

Power
Output voltage regulation6%
Output power1920 W
Input operation voltage (max)120 V
Output operation voltage (max)120 V
Surge energy rating570 J
Maximum current20 A
Output power capacity2.6 kVA
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity9 AC outlet(s)
AC outlet typesNEMA 5–15R, NEMA L5-20R
Power plugNEMA 5-20P
USB 2.0 ports quantity1
Performance
UPS topologyLine-Interactive
Surge protectionYes
Features
Country of originTaiwan
UPS topologyLine-Interactive
Output voltage regulation6%
Output power1920 W
Input operation voltage (max)120 V
Output operation voltage (max)120 V
Surge energy rating570 J
Maximum current20 A
Surge protectionYes
Output power capacity2.6 kVA
Battery
Battery voltage48 V
Typical backup time at half load12.9 min
Typical backup time at full load4.6 min
Hot-swap batteryYes
Design
Country of originTaiwan
Rack capacity2U
Form factorRackmount/Tower
Product colourBlack
CertificationUL1778, CSA, NOM, FCC
Cable length118.1" (3 m)
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Compliance certificatesRoHS
Weight & dimensions
Package width24.1" (612.1 mm)
Package depth22" (558.8 mm)
Package height9" (228.6 mm)
Weight63.9 lbs (29 kg)
Width17.3" (439.9 mm)
Package weight81.1 lbs (36.8 kg)
Height3.43" (87.1 mm)
Depth19.5" (494.3 mm)
Packaging data
Package width24.1" (612.1 mm)
Package depth22" (558.8 mm)
Package height9" (228.6 mm)
Package weight81.1 lbs (36.8 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width24.1" (612.1 mm)
Master (outer) case length22" (558.8 mm)
Master (outer) case height9" (228.6 mm)
Master (outer) case gross weight75.2 lbs (34.1 kg)
Certificates
CertificationUL1778, CSA, NOM, FCC
