Tripp Lite SMART1000RM1U uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 5 AC outlet(s)

Tripp Lite SMART1000RM1U uninterruptible power supply (UPS) Line-Interactive 1 kVA 800 W 5 AC outlet(s)

SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, SNMP, Webcard, 1U Rack, USB, DB9 Serial

Trade Prices

Distributor Product SKU Stock Updated Price
Accutech Data Supplies UPS TRPSMART1000RM1U Register free see stock
Anixter 1000VA UPS 1U RACKMOUNT6 OUTLETS SOFTWARE INCLUDED120V 245430
Arlington Industries 6-OUT 1U RACK LINE-INTERACTIVE UPS TRPSMART1000RM1U
BlueStar TRIPP LITE, 1000VA 800W UPS SMART RACKMOUNT AVR 120V USB DB9 SNMP 1URM SMART1000RM1U
D&H 1000VA 800W UPS RM 1U SMART1000RM1U
Ingram Micro UPS SMART 1000VA 800WAVR 120V C96359
TD Synnex UPS 1000VA 800W SMART AVR USB DB9 1URM 243948

Related Products

Description

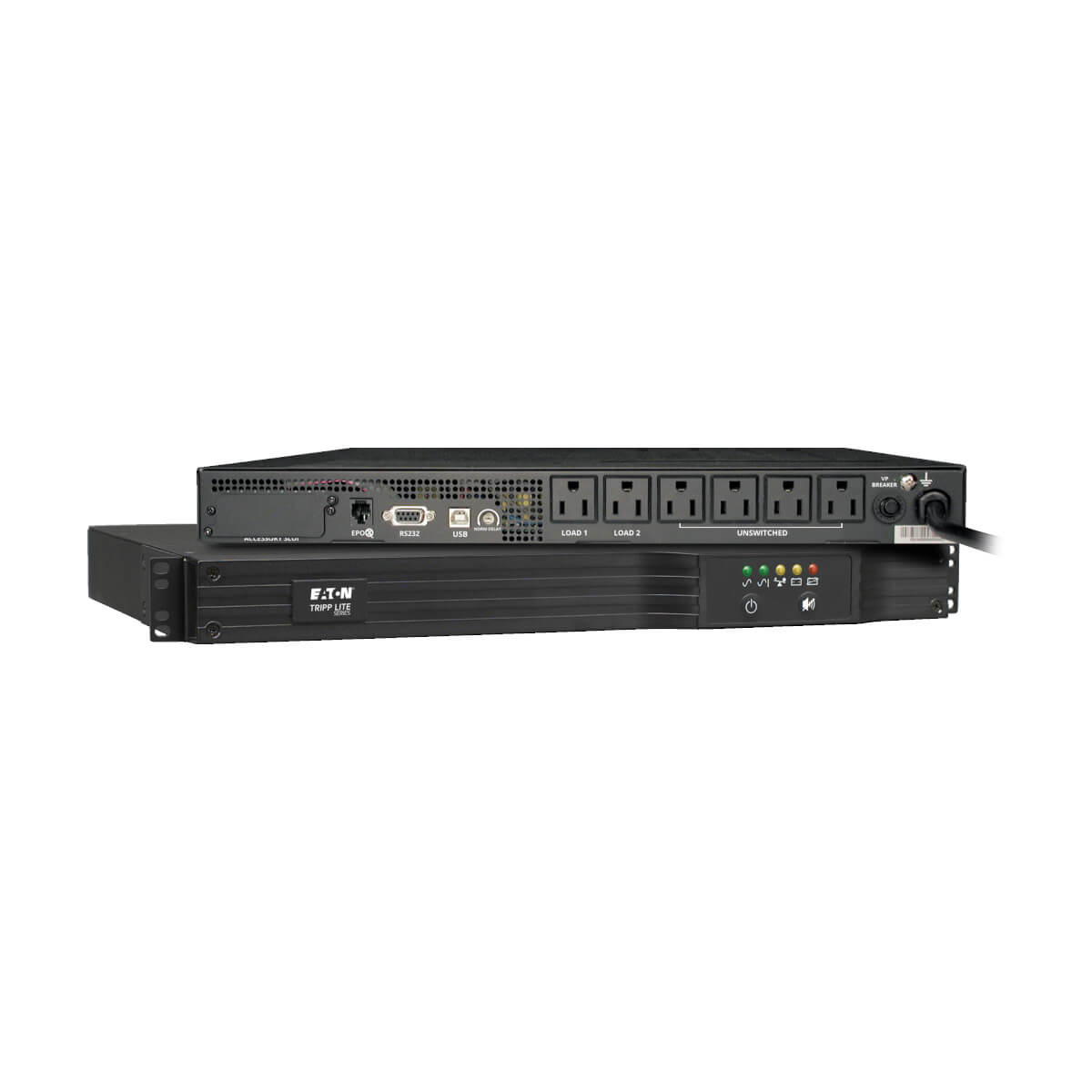

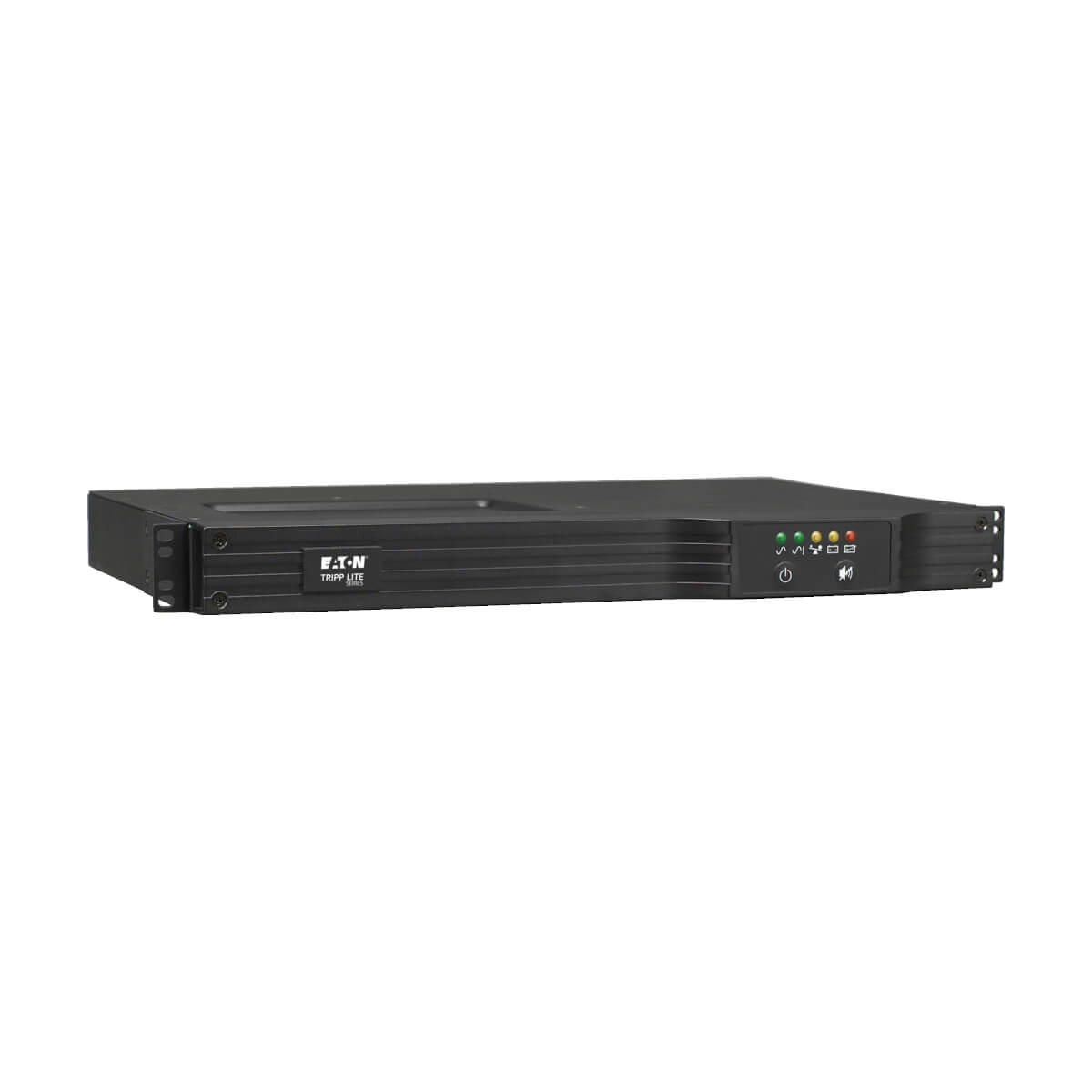

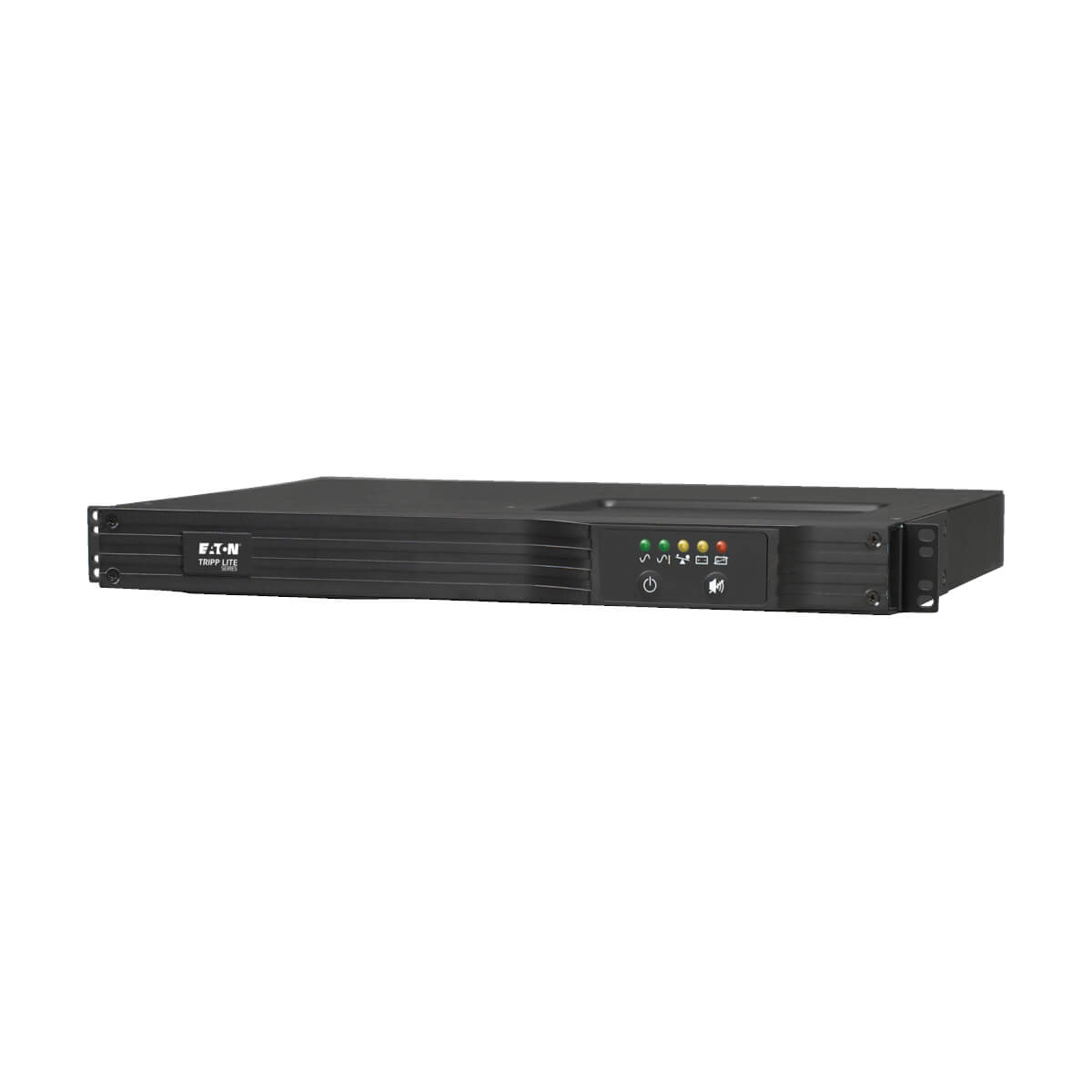

Tripp Lite SMART1000RM1U 1000VA / 1kVA / 800 watt line interactive, sine wave UPS system offers complete power protection for critical network applications in a highly efficient 1U total rack/tower configuration. Simultaneous-use network management interfaces include USB, RS-232 and optional SNMP/Web accessory card. Line interactive voltage regulation, network-grade surge suppression and long-lasting sine wave AC output during blackouts make this UPS ideal for advanced networking applications in datacenters, computer rooms and network closets.
- Tripp Lite SMART1000RM1U 1kVA / 1000VA / 800 watt line interactive UPS
- 1U rack/tower compatible form factor

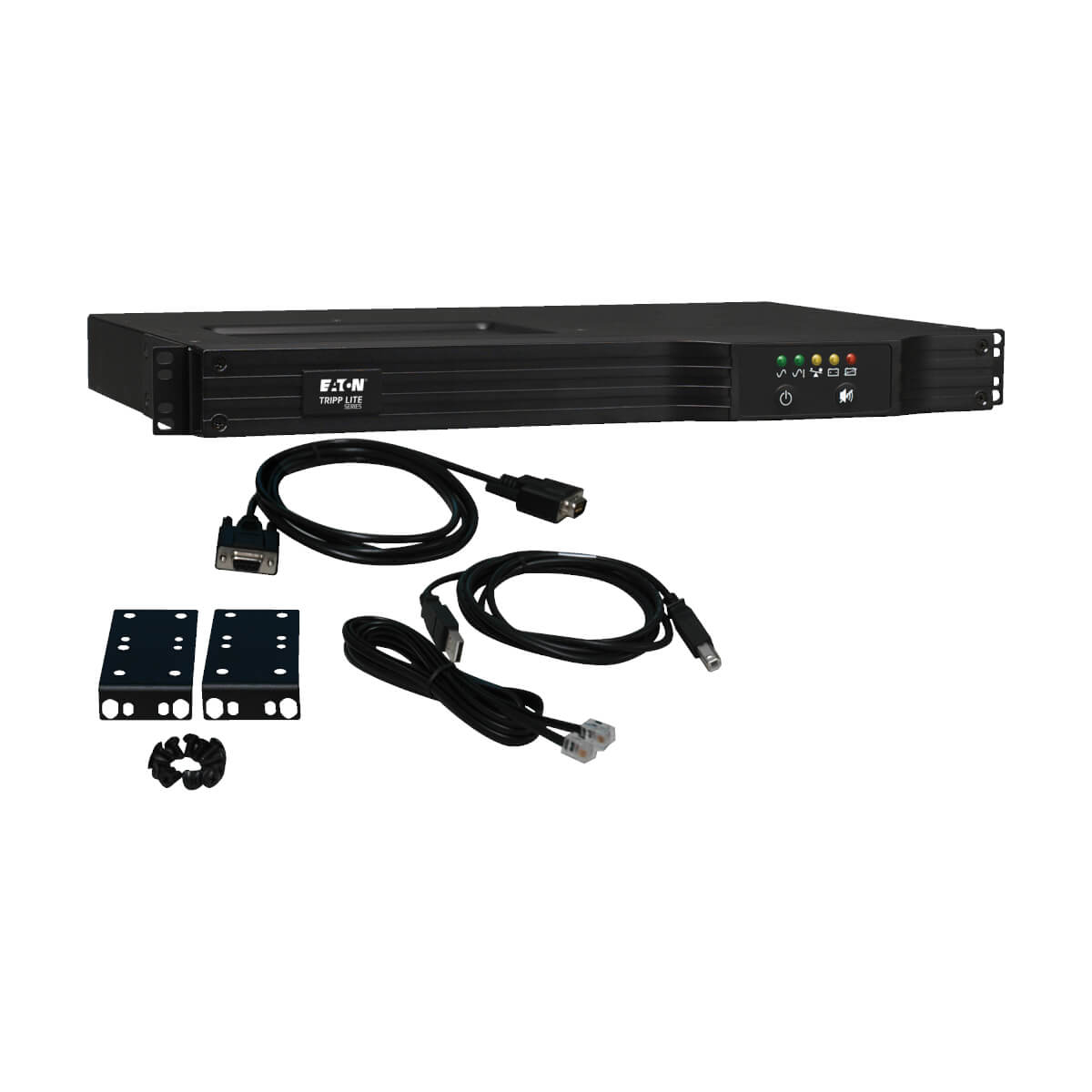

- Included mounting brackets support 2 and 4 post rackmount installation; Optional 4POSTRAILKIT1U is available for additional support

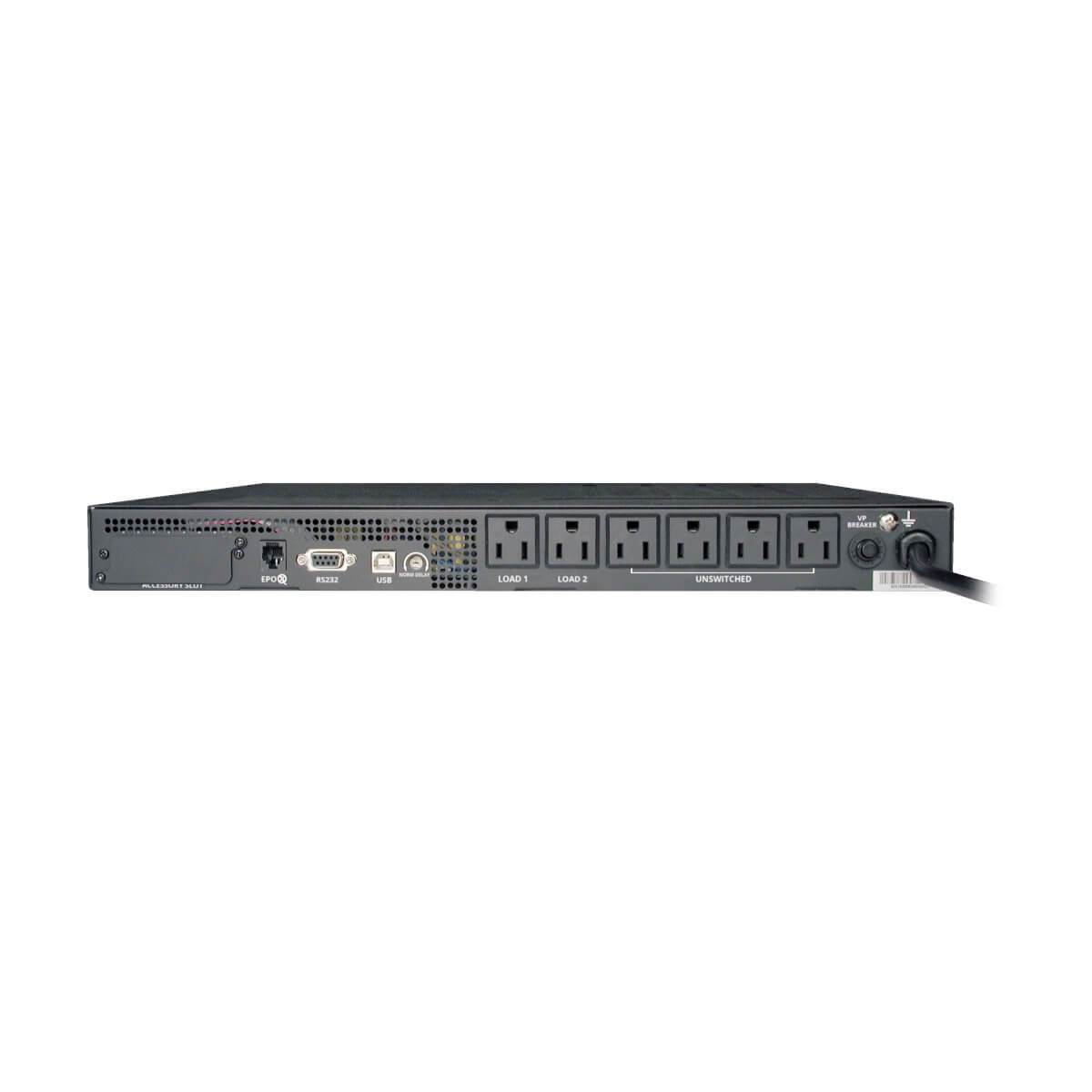

- NEMA 5-15P input; 6 5-15R output receptacles
- Installed depth of only 16.75 in. / 42.5cm
- Sine wave output in both AC and battery backup modes
- Line Interactive UPS provides Automatic Voltage Regulation / AVR to maintain 120V nominal output during brownouts to 83V and overvoltages to 147V without using battery power
- Full load efficiency rating of 99% saves energy and ensures cool operating temperatures
- Integrated 2 bank switched PDU enables remote outlet management for load shedding or remote reboot of individual devices
- PowerAlert monitoring software offers detailed site power and UPS updates with support for safe auto-shutdown of connected systems as UPS batteries become depleted
- Includes Free PowerAlert monitoring software packages; PowerAlert LOCAL for desktops and small business networks, PowerAlert NSA (Network Shutdown Agent) for larger networks and PowerAlert NMS (Network Management System) for monitoring up to 250 SNMP-enabled UPS, PDU and other networking devices
- Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via built-in RS-232 and USB interfaces
- Optional SNMPWEBCARD offers communications and control via secure remote web and network interfaces

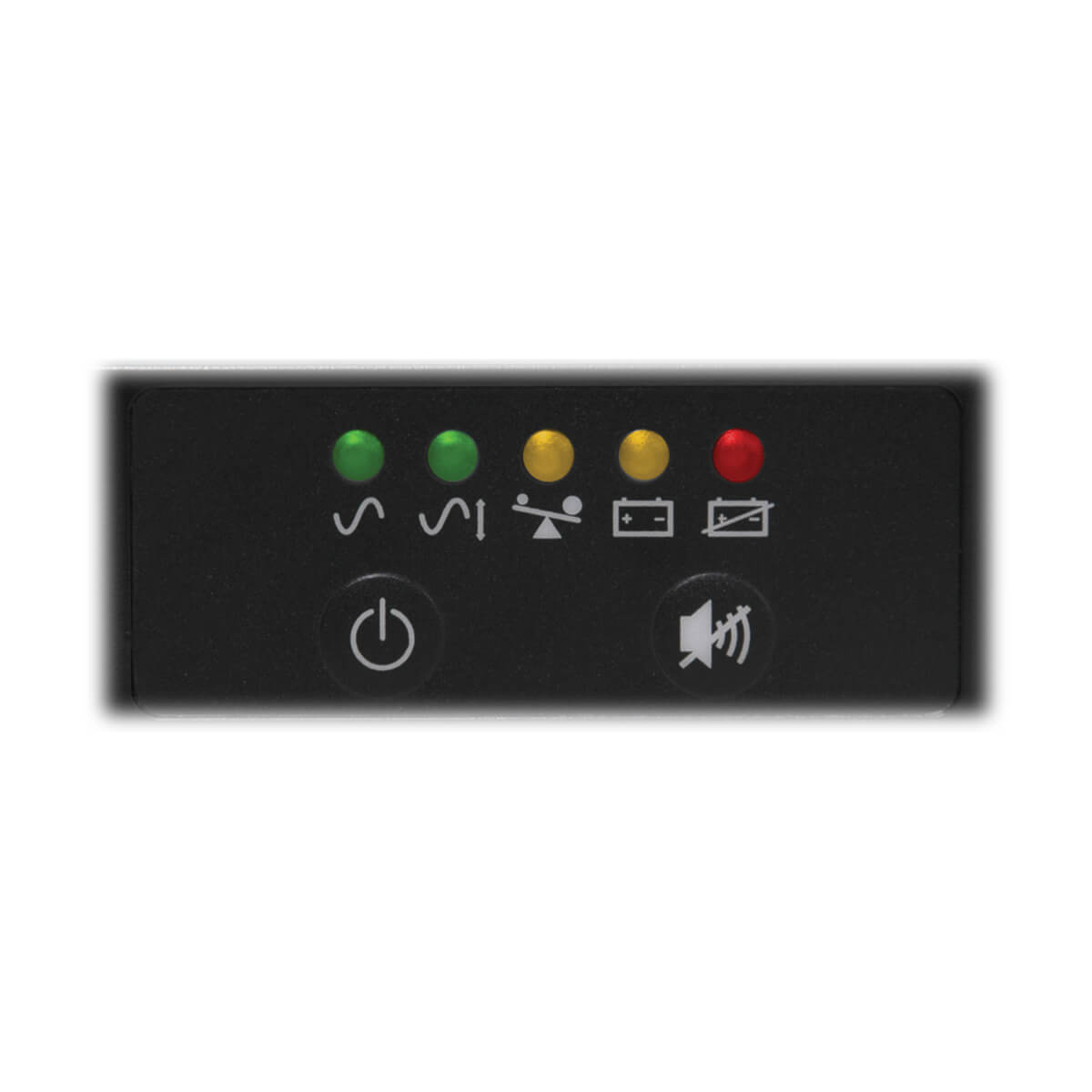

- 3 stage metered LEDs offer current monitoring and battery charge level
- Mains power and voltage regulation LEDs offer at-a-glance power status information
- Front panel switches support self-test and alarm cancel functions
- Field replaceable, hot-swappable internal UPS batteries

Specifications

Power
Output power800 W
Input operation voltage (min)83 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Surge energy rating450 J
Maximum current9.2 A
Efficiency94%
Emergency Power Off (EPO)Yes
Power factor0.8
Output power capacity1 kVA
Input frequency60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity5 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5-15P
USB 2.0 ports quantity1
Serial ports quantity1
Performance
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Audible alarm(s)Yes
Features
Country of originTaiwan
UPS topologyLine-Interactive
WaveformSine
Automatic Voltage Regulation (AVR)Yes
Number of input phases1
Output power800 W
Input operation voltage (min)83 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Surge energy rating450 J
Maximum current9.2 A
Efficiency94%
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Power factor0.8
Audible alarm(s)Yes
Output power capacity1 kVA
Input frequency60 Hz
Battery
Battery recharge time4 h
Typical backup time at half load14 min
Typical backup time at full load4 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Rack capacity1U
Form factorRackmount
LED indicatorsYes
Product colourBlack
Cooling typeActive
Cable length118.1" (3 m)
Housing materialSteel
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Technical details
Sustainability certificatesENERGY STAR
Cooling
Cooling typeActive
Weight & dimensions
Package width21.3" (541 mm)
Package depth22.9" (581.7 mm)
Package height5.3" (134.6 mm)
Weight32 lbs (14.5 kg)
Width17.5" (444.5 mm)
Package weight35.9 lbs (16.3 kg)
Height1.75" (44.4 mm)
Depth16.7" (425.4 mm)
Packaging data
Package width21.3" (541 mm)
Package depth22.9" (581.7 mm)
Package height5.3" (134.6 mm)
Package weight35.9 lbs (16.3 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width21.3" (541 mm)
Master (outer) case length22.9" (581.7 mm)
Master (outer) case height5.3" (134.6 mm)
Master (outer) case gross weight35.1 lbs (15.9 kg)
Other features
I/O ports6 x NEMA 5-15R
Weight (imperial)32 lbs
Non-operating relative humidity (non-condensing)0 - 95%
