Tripp Lite SM1000RM1UTAA uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 6 AC outlet(s)

Tripp Lite SM1000RM1UTAA uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 6 AC outlet(s)

TAA SmartPro 120V 1kVA 800W Line-Interactive Sine Wave UPS, 1U, Network Card Options, USB, 6 Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries 6-OUT 800W 1U LINE-ACTIVE TAA UPS TRPSM1000RM1UTAA Register free see stock
BlueStar TRIPP LITE, 1000VA 800W UPS SMART RACKMOUNT AVR 120V USB DB9 1URM TAA GSA SM1000RM1UTAA
D&H 1000VA UPS Rack TAA SM1000RM1UTAA
Ingram Micro UPS SMART 1000VA 800WAVR 120V XU0159
TD Synnex UPS 1000VA SMART 120V 800W USB 1URM TAA 4011149

Related Products

Description

Tripp Lite's SM1000RM1UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. This intelligent, line-interactive sine wave rack/tower uninterruptible power supply prevents data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. Requires only two rack spaces (1U) in a standard rack enclosure. Large internal batteries offer 17 minutes half load runtime and 7 minutes at full load. Maintains regulated 120V nominal output without using battery power during brownouts and overvoltages from 83 to 147V. 1000VA/700 watt power handling capability and full time sine wave output supports networking, telecom and other sensitive electronic applications. Includes a total of 6 outlets arranged in 2 load banks that are individually controllable via software interface to reboot select equipment on demand or shed less significant loads to extend battery runtime for more critical equipment. Supports simultaneous remote monitoring of UPS and site power conditions via built-in network accessory card slot, USB and DB9 serial monitoring ports. Optional SNMPWEBCARD accessory enables remote monitoring of UPS as a managed device via network management console applications. Communications ports support messaging of detailed UPS operating parameters and line power status. Includes PowerAlert UPS monitoring and unattended shutdown software with management support for an unlimited number of network UPS systems. Built-in accessory slot supports SNMP with optional SNMPWEBCARD adapter. Emergency Power Off (EPO) interface offers option for instantaneous power-off of UPS and connected equipment in the case of fire or emergency. Multi-function audible alarms and set of 5 front panel LEDs offer at-a-glance notification of UPS and line power status. Network-grade AC surge suppression protects equipment from damage and performance problems resulting from transient surges and line noise. Attractive all-black color scheme. Two year warranty with $250,000 connected equipment insurance (USA & Canada only).

Specifications

Power
Output frequency60 Hz
Output power700 W
Input operation voltage (min)83 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating480 J
Maximum current15 A
Power factor0.7
Output power capacity1 kVA
Input frequency60 Hz
Ports & interfaces
Cable length118.1" (3 m)
AC outlets quantity6 AC outlet(s)
AC outlet typesNEMA 5–15R
Performance
UPS topologyLine-Interactive
LED indicatorsYes
Power protection featuresOver voltage, Under voltage
Audible alarm(s)Yes
Features
Output frequency60 Hz
Country of originTaiwan
UPS topologyLine-Interactive
Output power700 W
Input operation voltage (min)83 V
Input operation voltage (max)147 V
Output operation voltage (min)120 V
Output operation voltage (max)120 V
Surge energy rating480 J
Maximum current15 A
Power protection featuresOver voltage, Under voltage
Power factor0.7
Audible alarm(s)Yes
Output power capacity1 kVA
Input frequency60 Hz
Battery
Battery recharge time4 h
Typical backup time at half load17 min
Typical backup time at full load7 min
Hot-swap batteryYes
Cold startYes
Design
Country of originTaiwan
Rack capacity1U
Form factorRackmount
LED indicatorsYes
Product colourBlack
CertificationUL 1778: 2014 R8.15 (5TH EDITION); CAN/CSA-C22.2 NO. 107.3-14
Cable length118.1" (3 m)
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)5 - 95%
Technical details
Output frequency60 Hz
Weight & dimensions
Package width23.5" (596.9 mm)
Package depth22.5" (571.5 mm)
Package height6.25" (158.8 mm)
Weight32 lbs (14.5 kg)
Width17.5" (444.5 mm)
Package weight35.9 lbs (16.3 kg)
Height1.75" (44.4 mm)
Depth16.7" (425.4 mm)
Packaging data
Rack mount kitYes
ManualYes
Package width23.5" (596.9 mm)
Package depth22.5" (571.5 mm)
Package height6.25" (158.8 mm)
Package weight35.9 lbs (16.3 kg)
Logistics data
Products per master (outer) case1 pc(s)
Master (outer) case width23.5" (596.9 mm)
Master (outer) case length22.5" (571.5 mm)
Master (outer) case height6.25" (158.8 mm)
Master (outer) case gross weight35.9 lbs (16.3 kg)
Certificates
CertificationUL 1778: 2014 R8.15 (5TH EDITION); CAN/CSA-C22.2 NO. 107.3-14
Packaging content

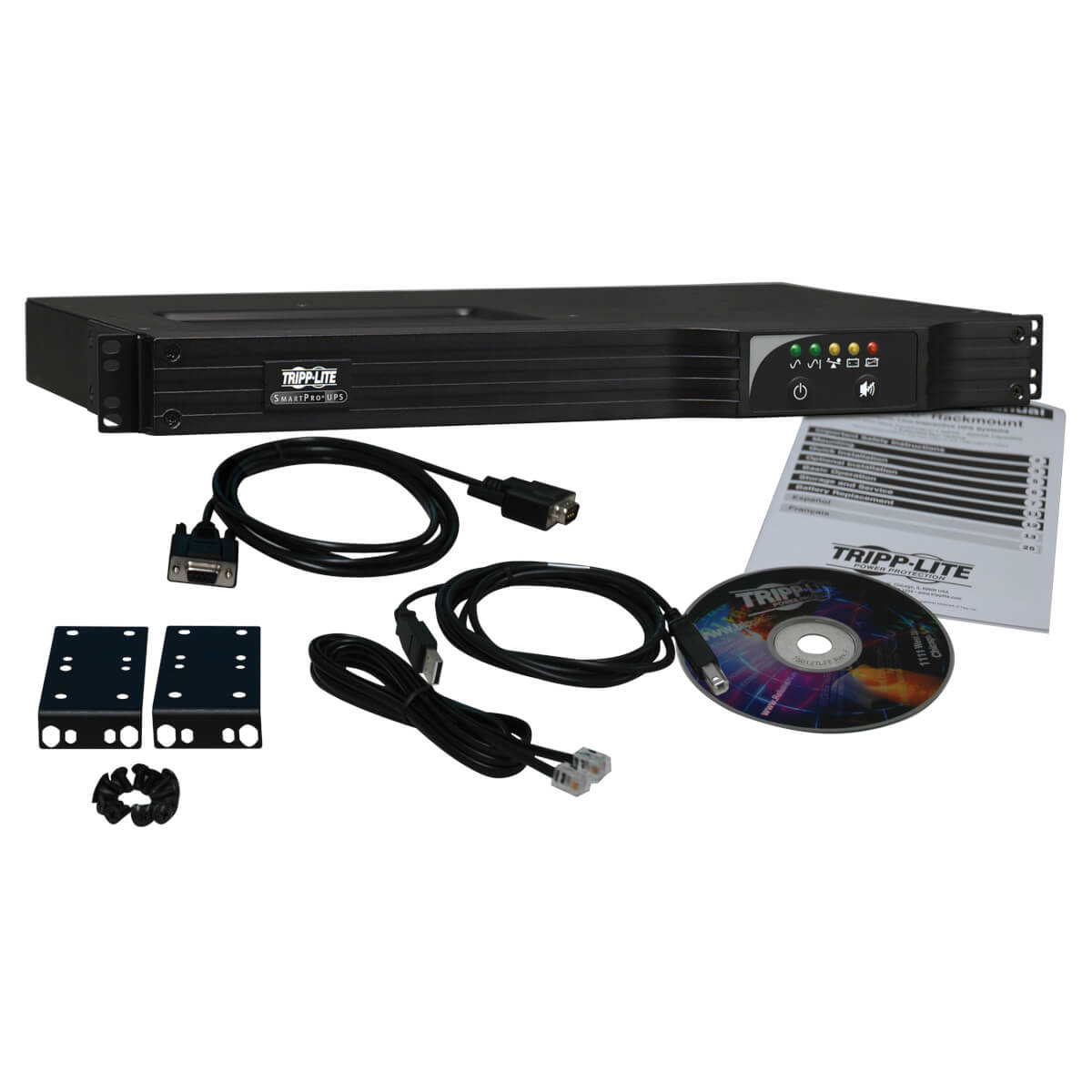

Rack mount kitYes
ManualYes
