Tripp Lite SR48UBWDSP1 rack cabinet 48U Freestanding rack Black

Tripp Lite SR48UBWDSP1 rack cabinet 48U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR48UBWDSP1
  • EAN: 0373321789610

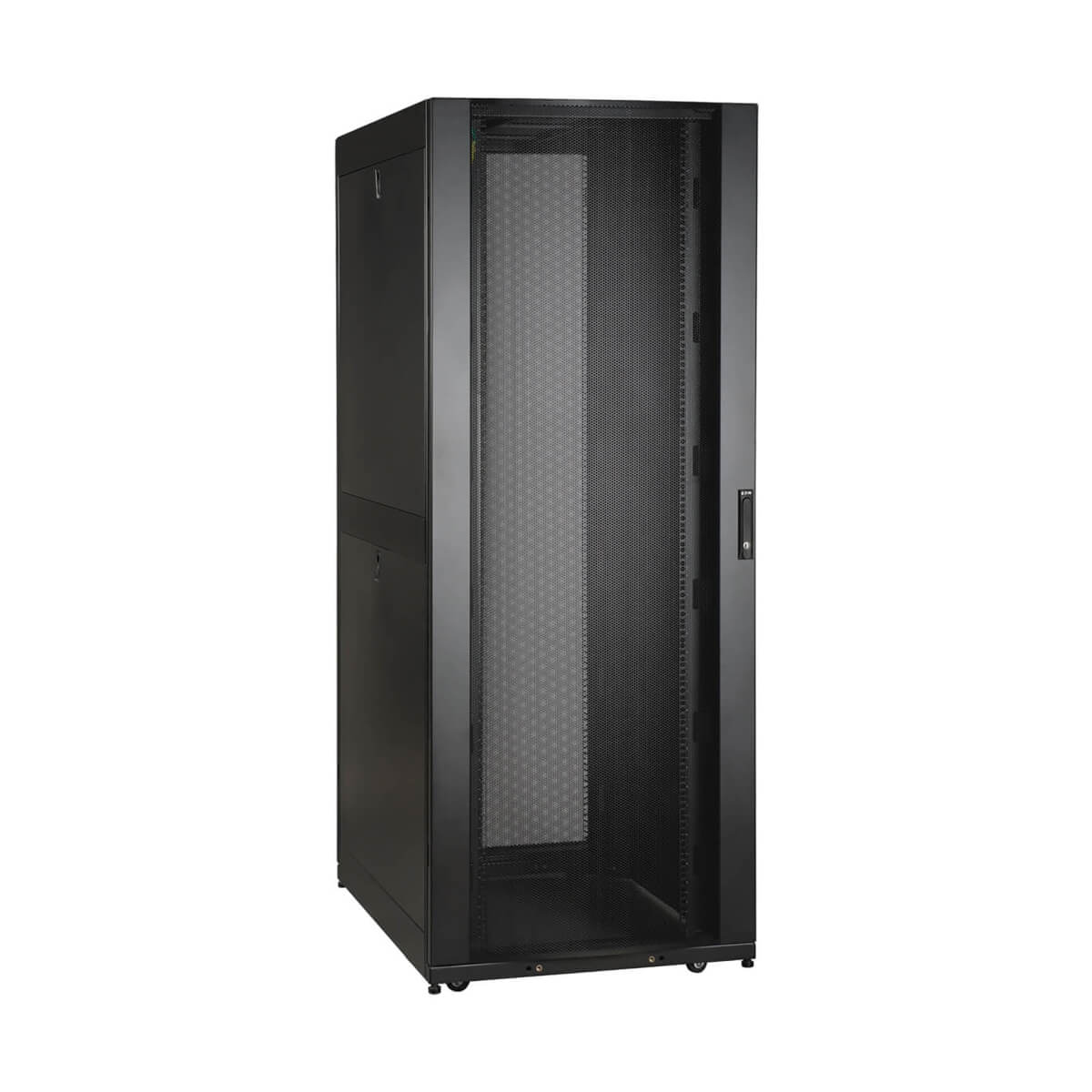

48U SmartRack Wide Standard-Depth Rack Enclosure Cabinet with doors, side panels & shock pallet packaging

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

48U RACK ENCLOSURE SERVERCABINET 30" WIDE W/ SHOCK

 565503 Register free see stock

Related Products

Description

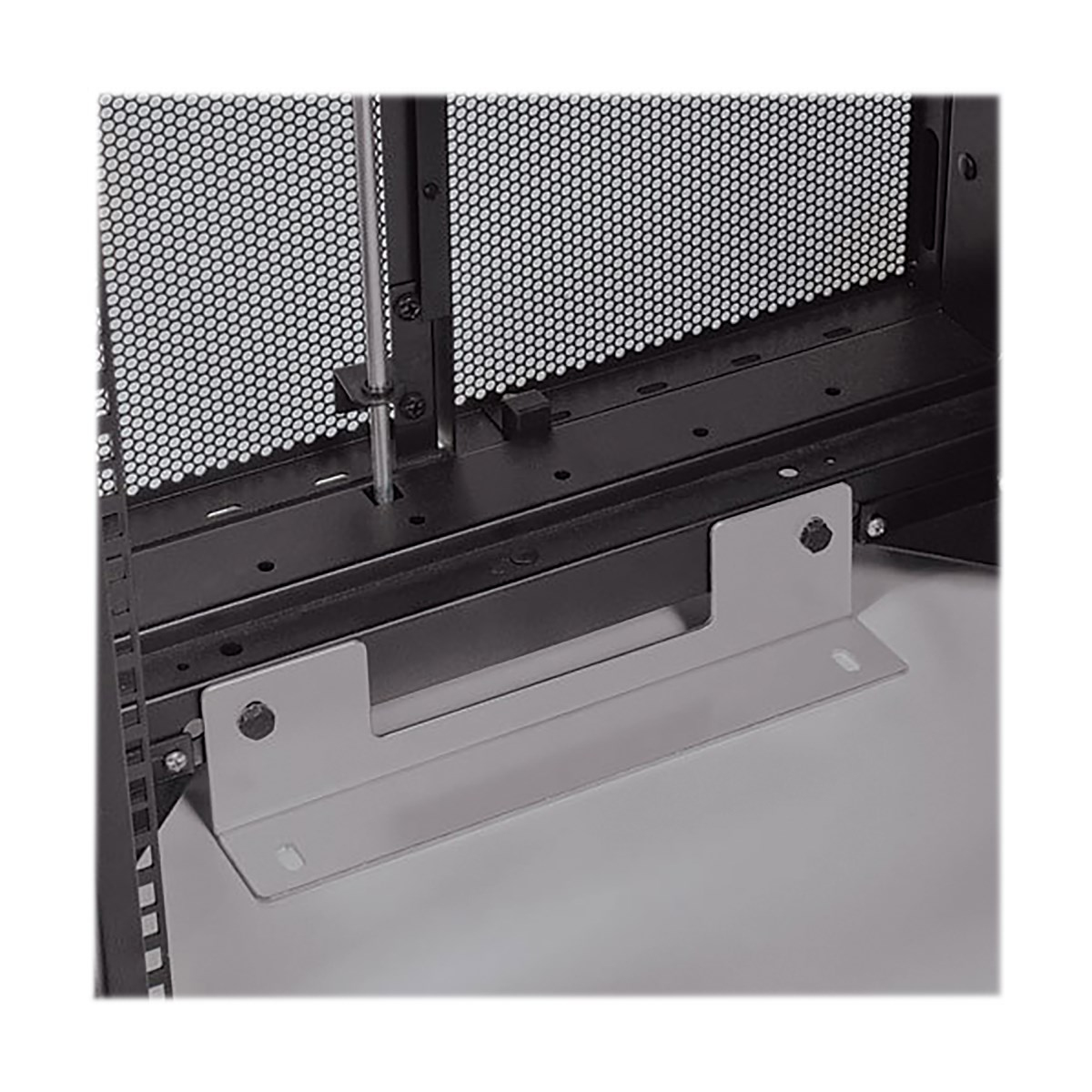

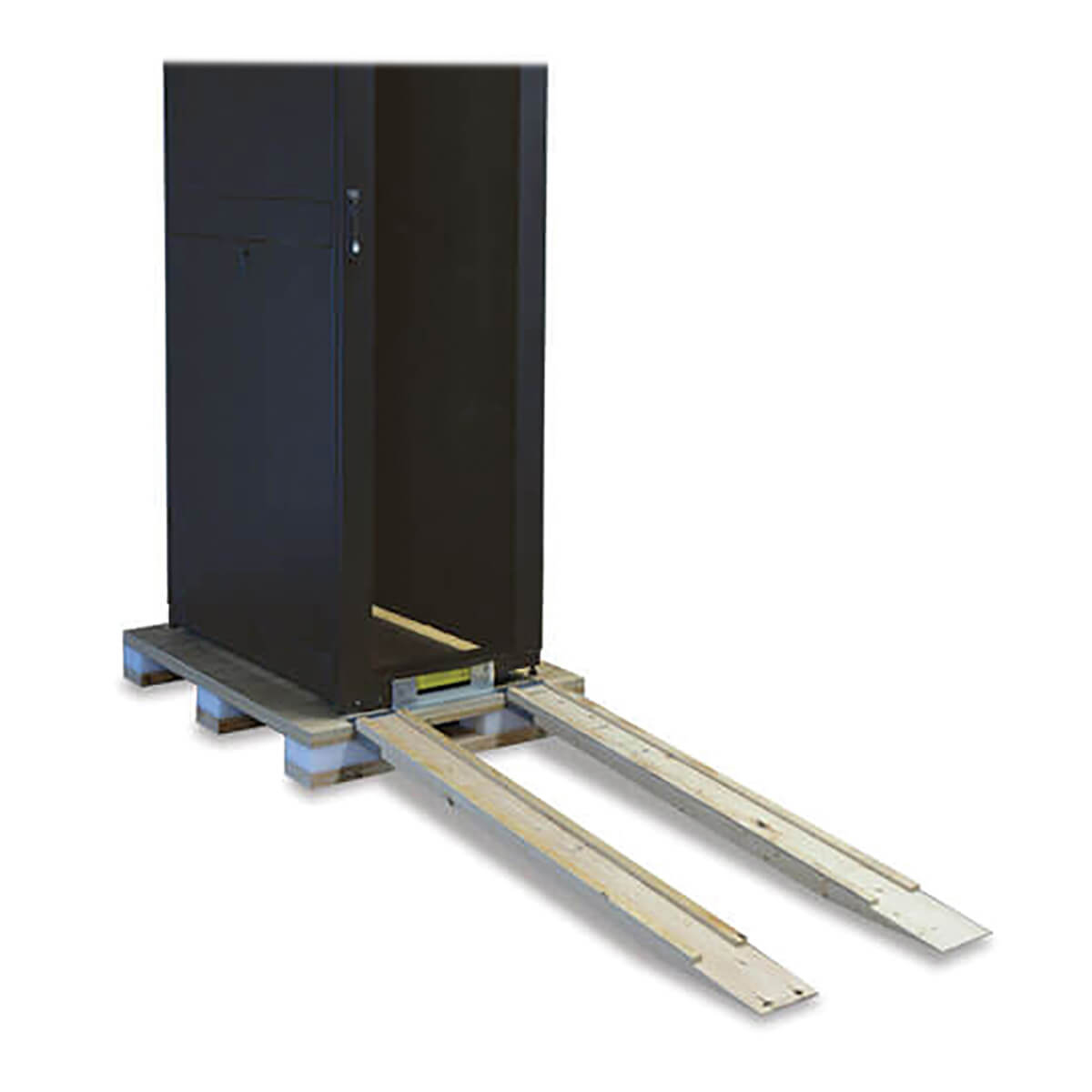

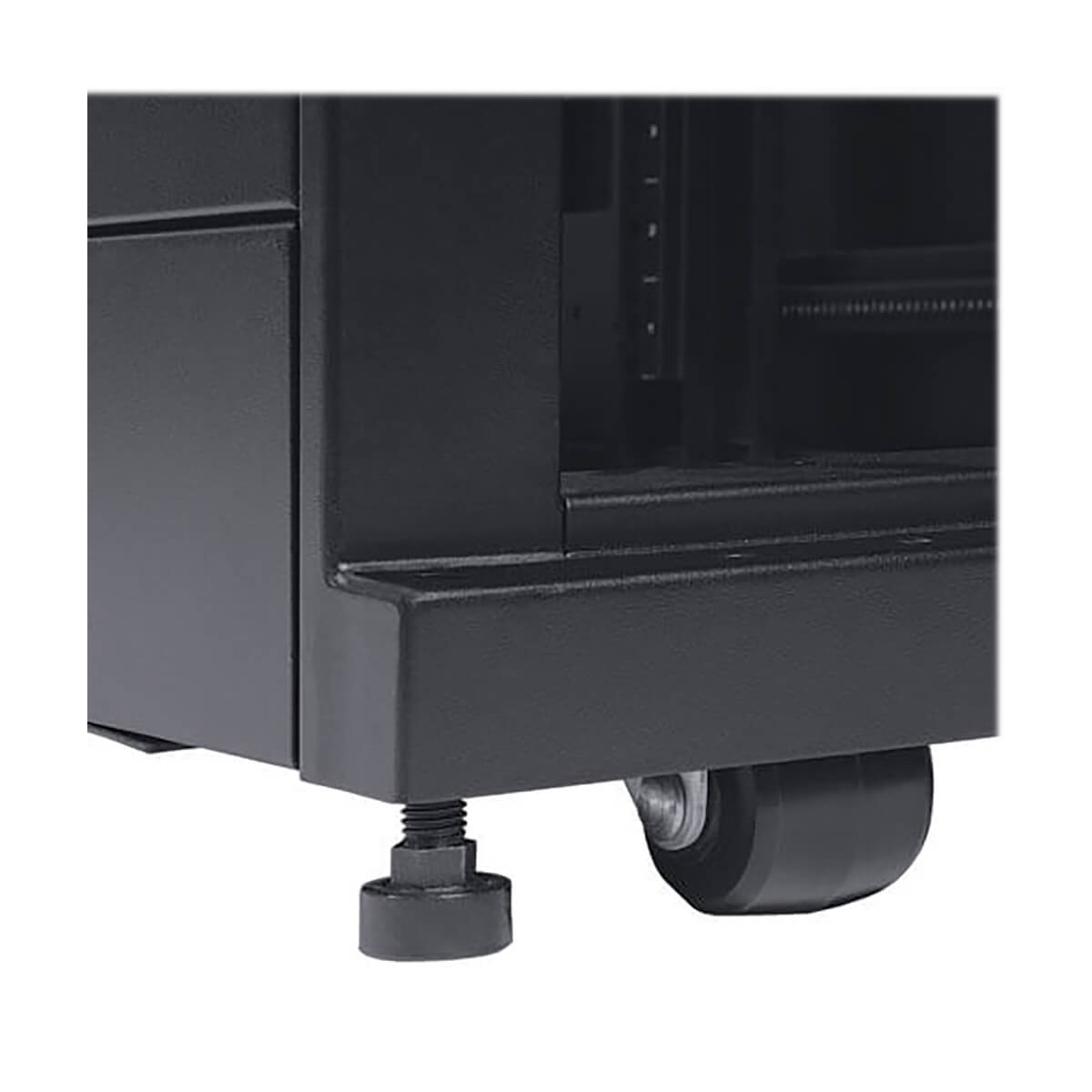

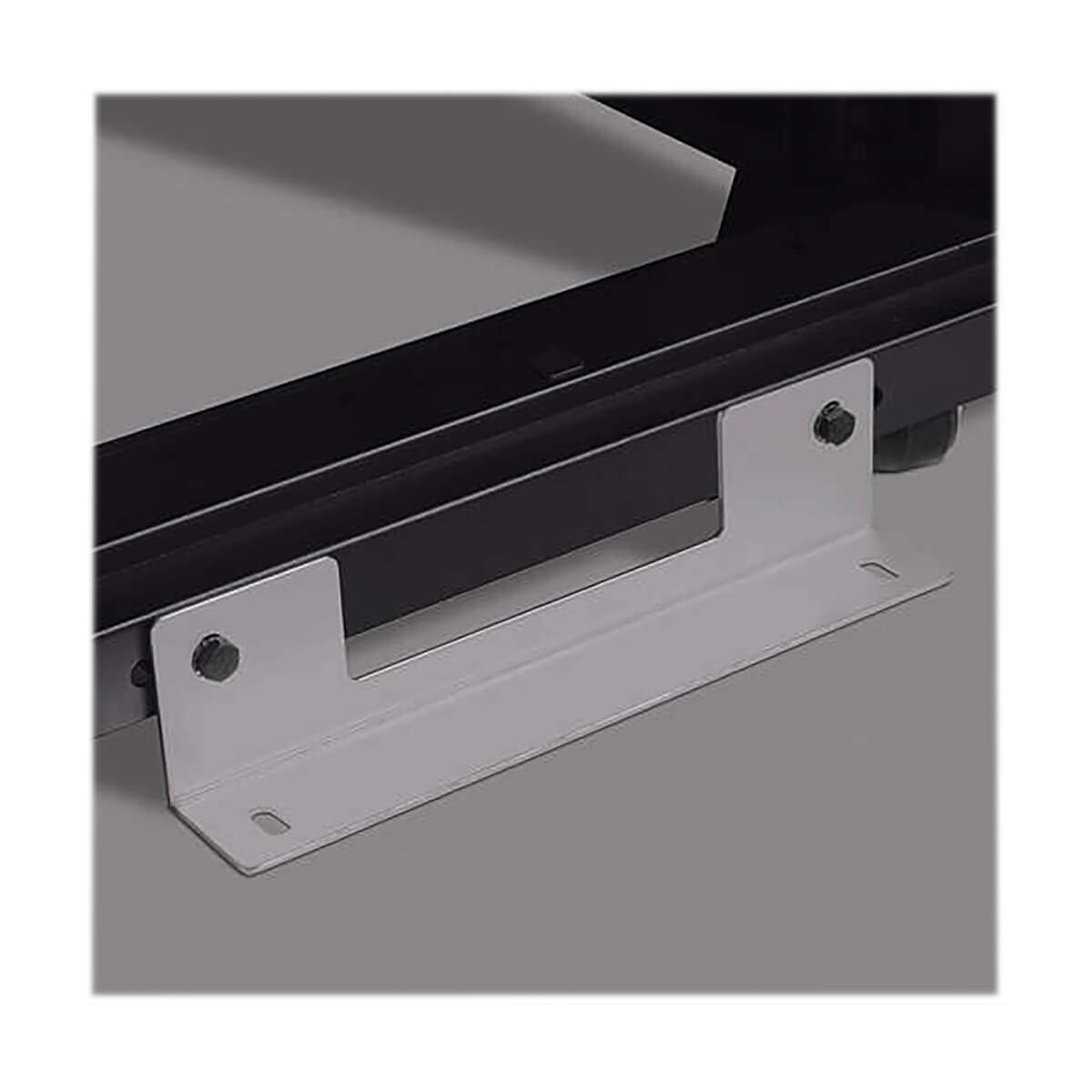

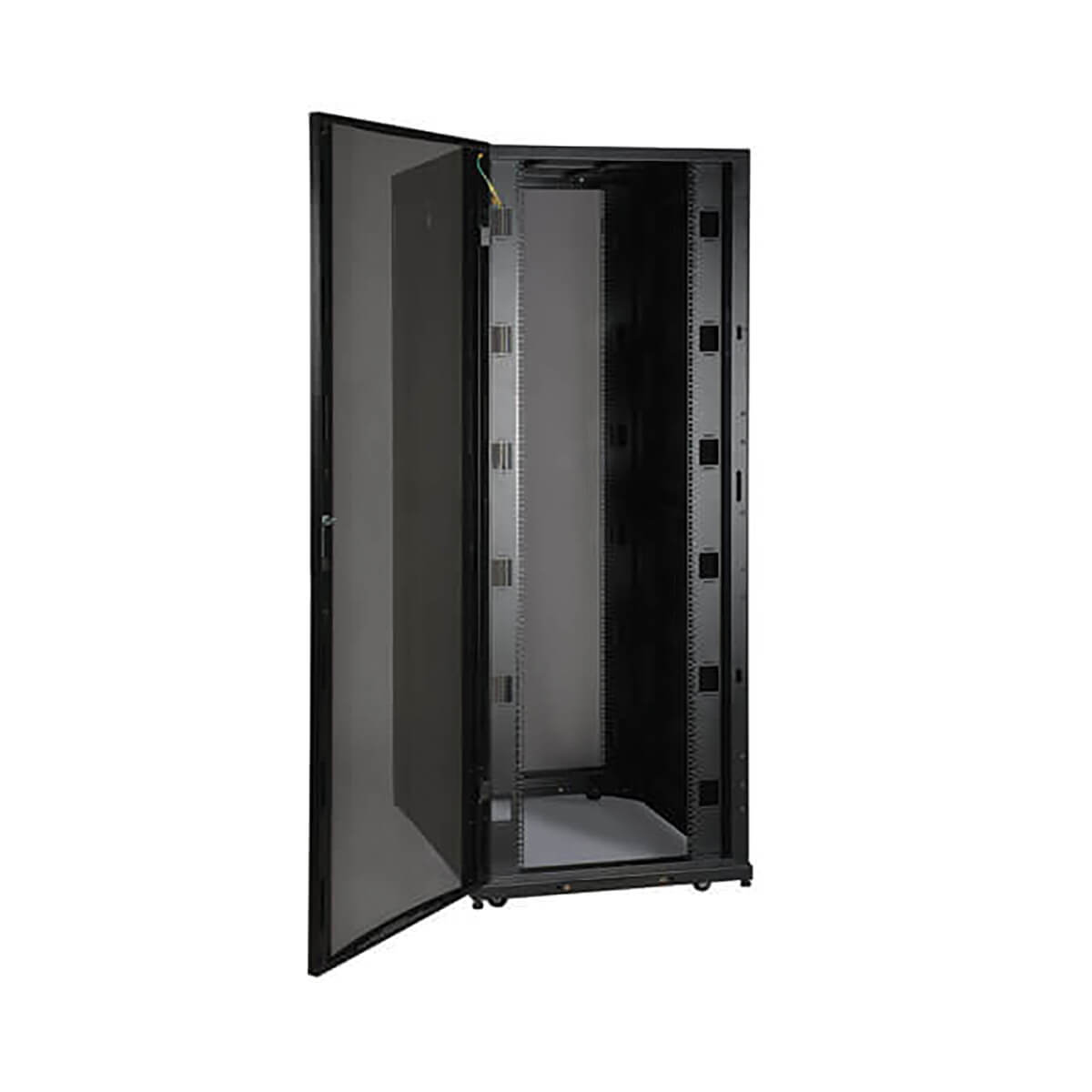

This wider version of the standard 48U SmartRack® enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. At the desired location, the SR48UBWDSP1 can be easily maneuvered with its preinstalled casters and can be secured by adjusting the preinstalled levelers.

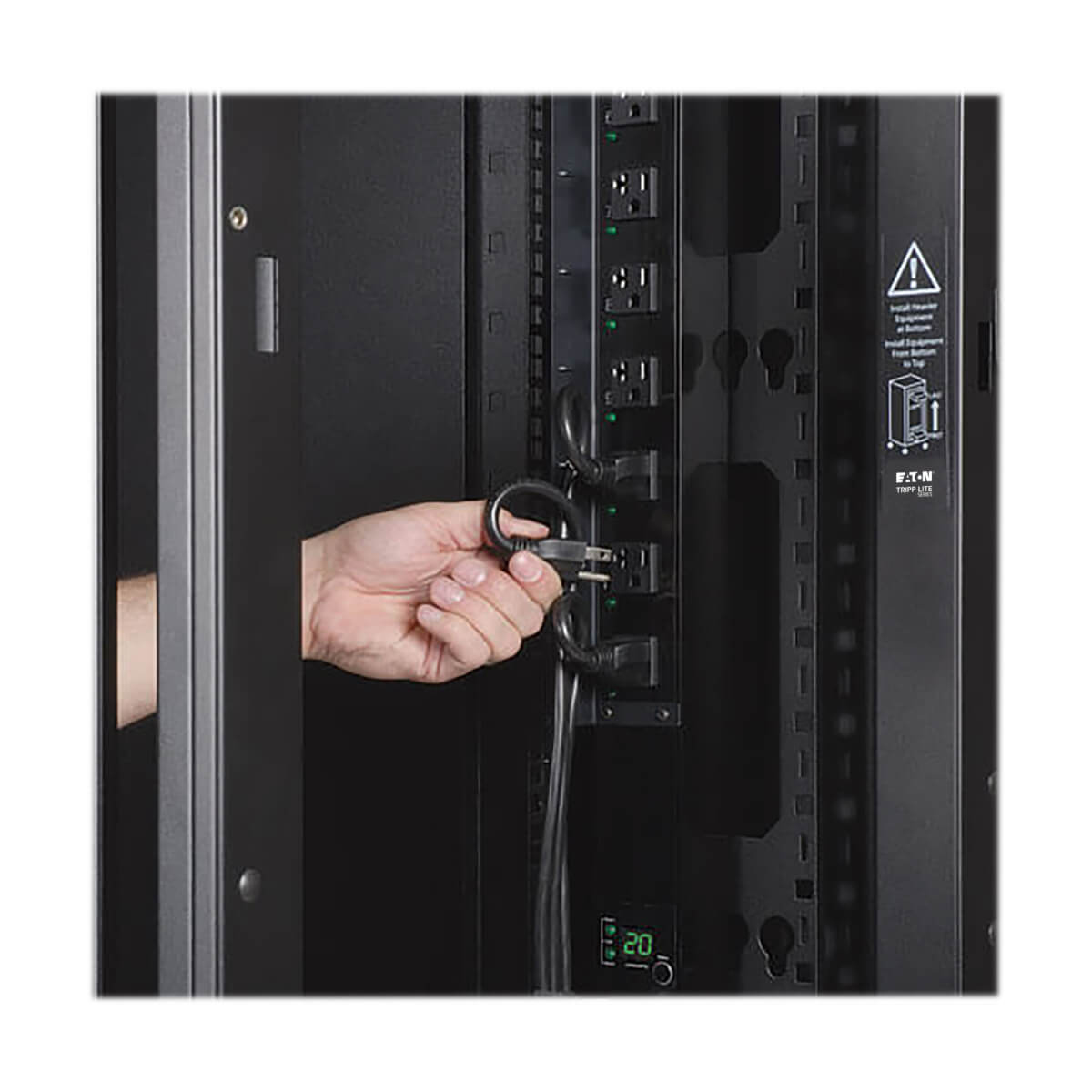

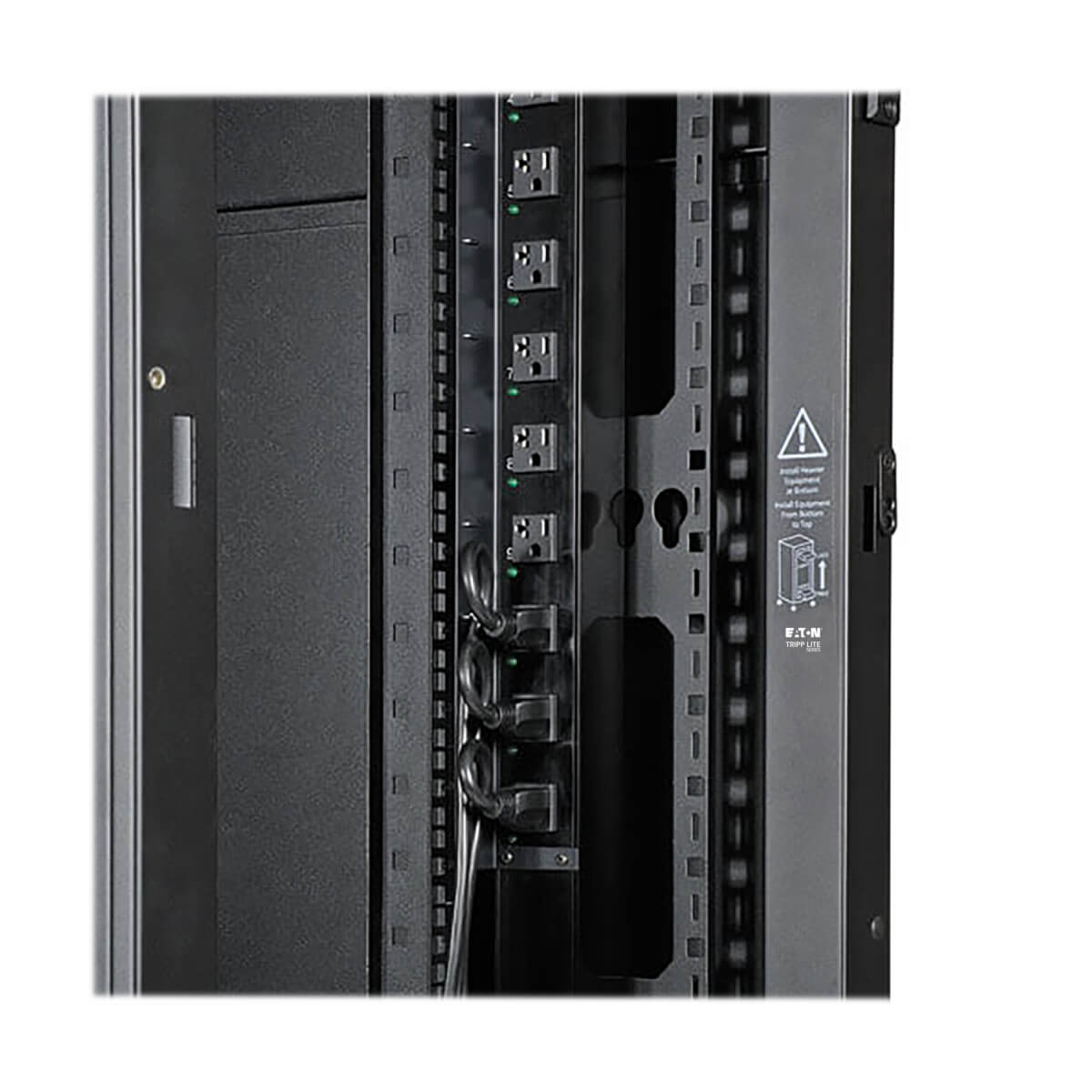

The SR48UBWDSP1 is 750 millimeters wide (30 inches) compared to the standard 600 millimeters wide (24 inches). This extra width allows for high-density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling.

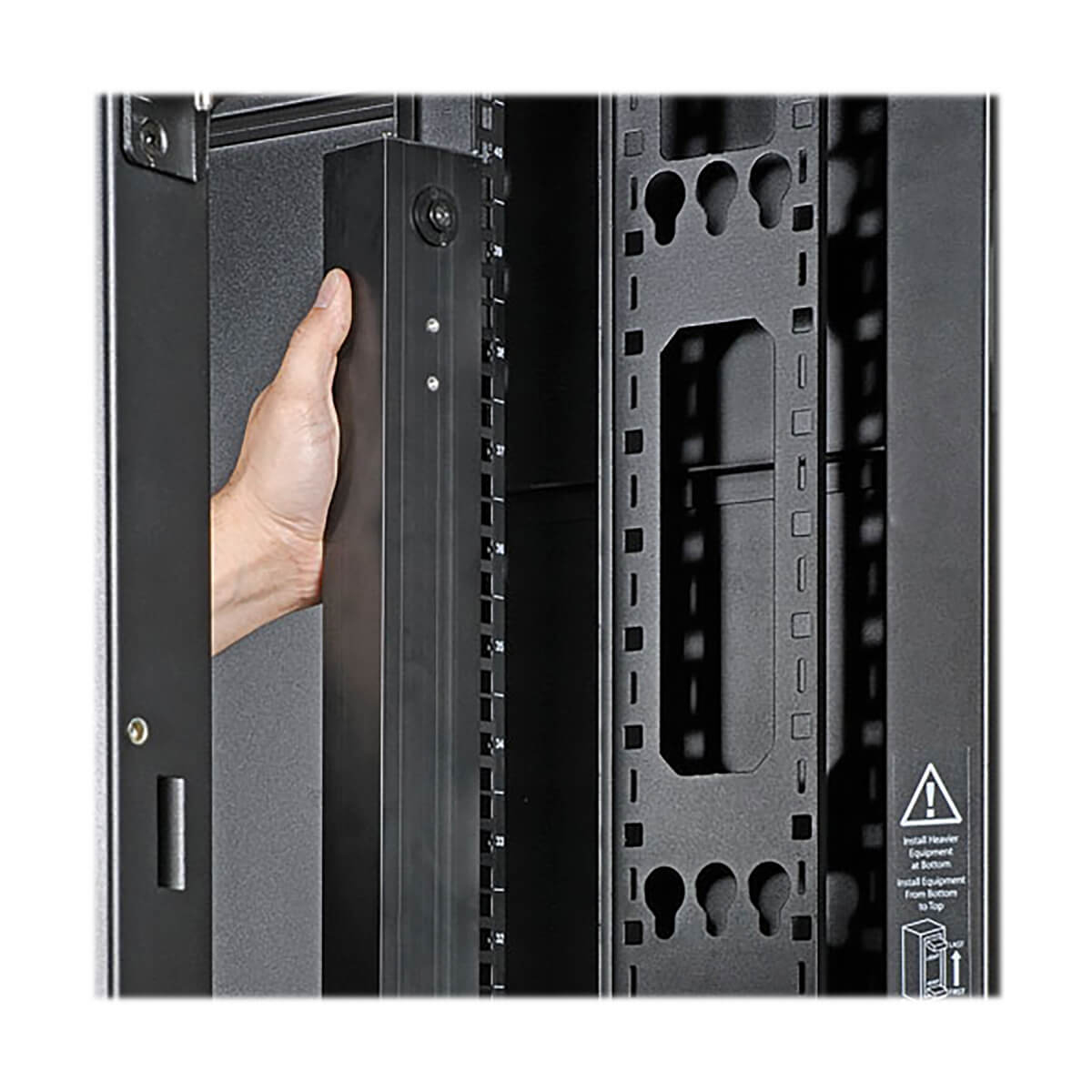

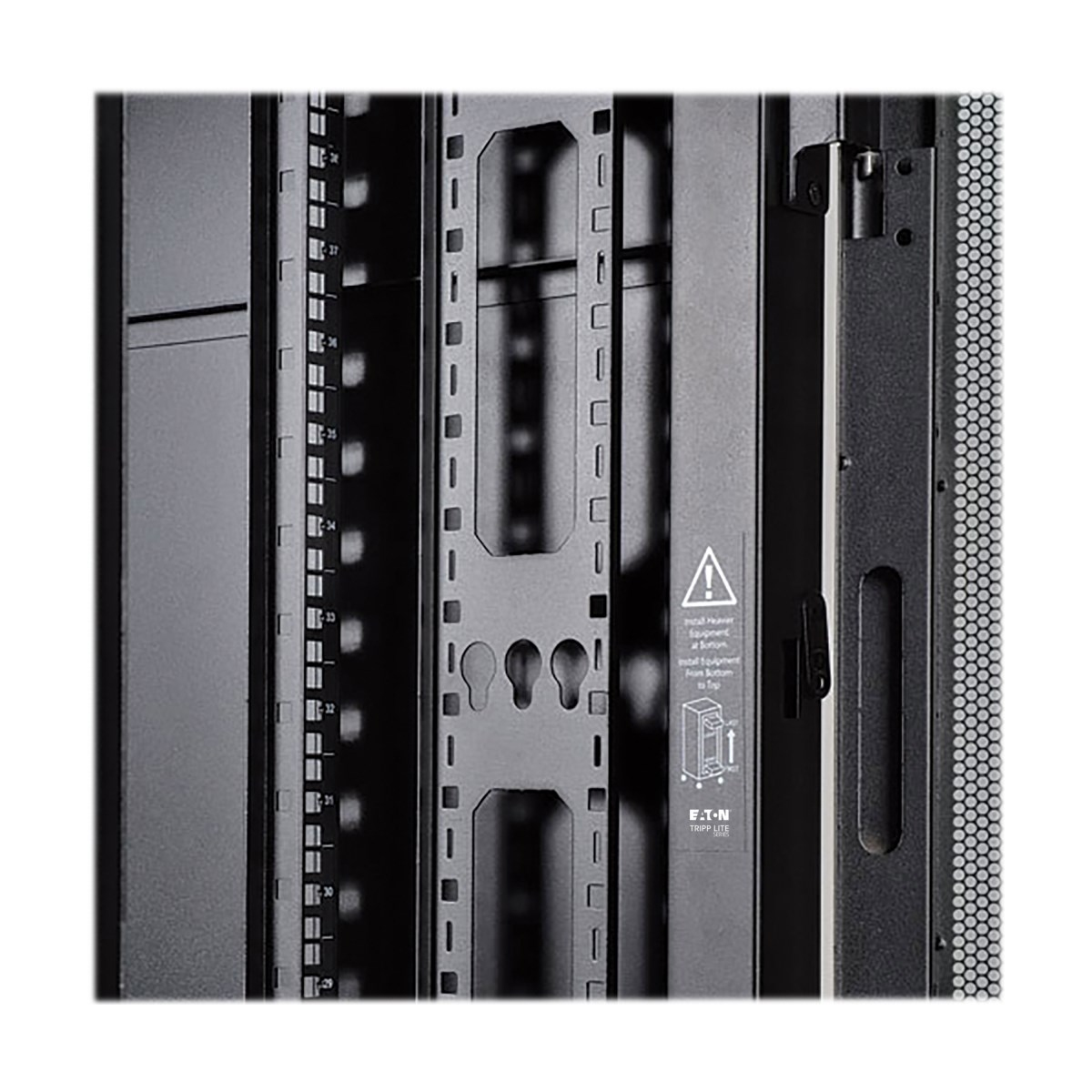

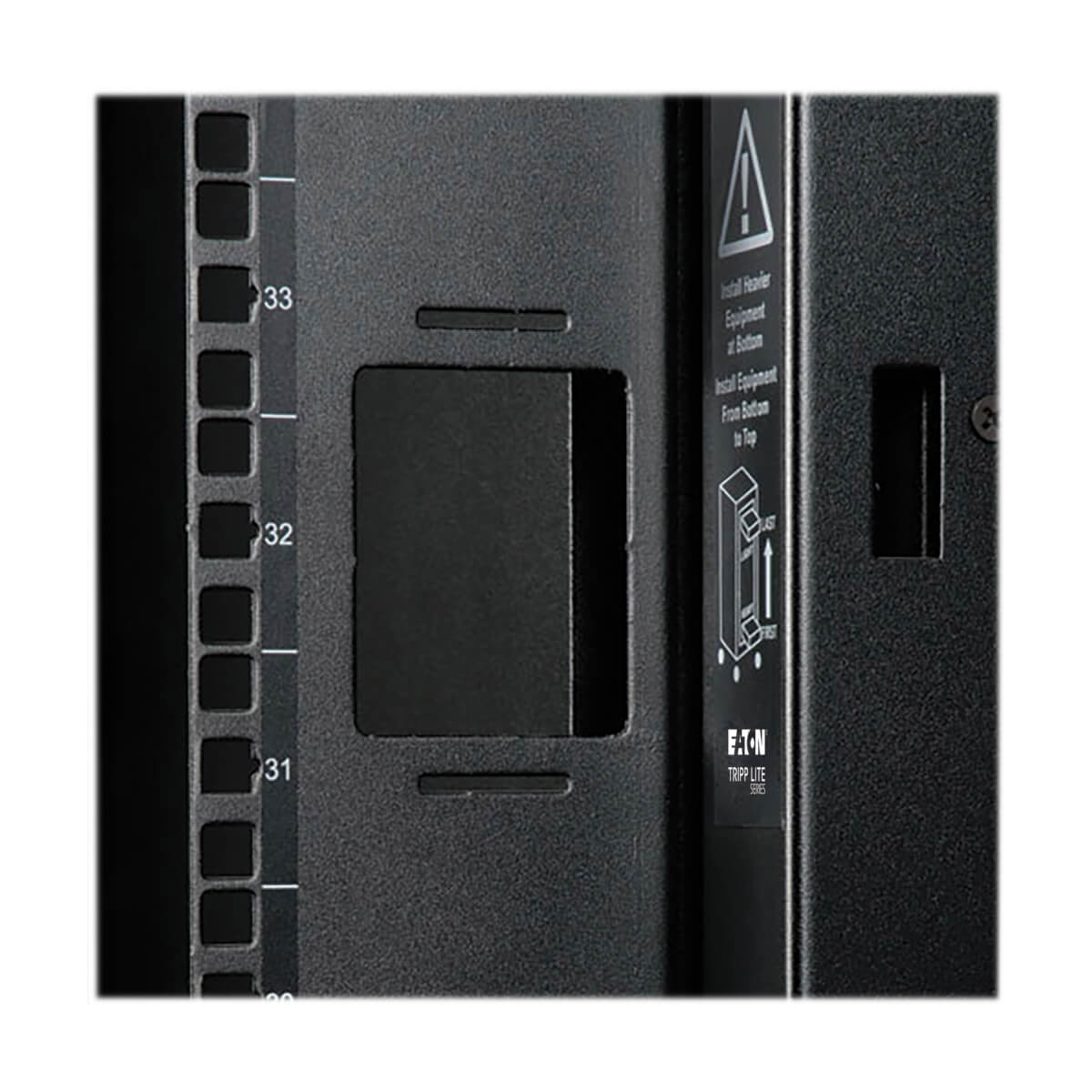

The SR48UBWDSP1 houses 3,500 pounds (1588 kilograms) of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

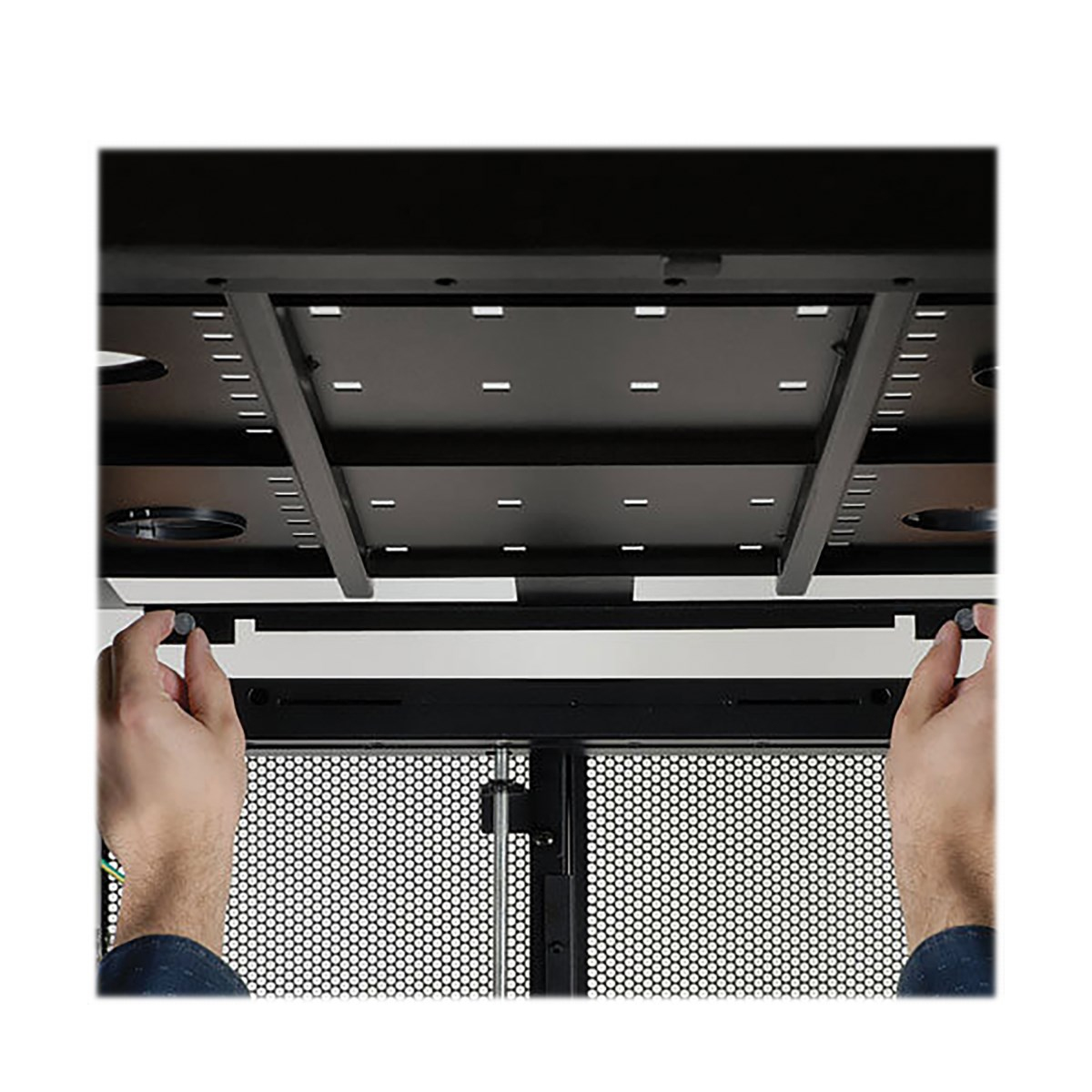

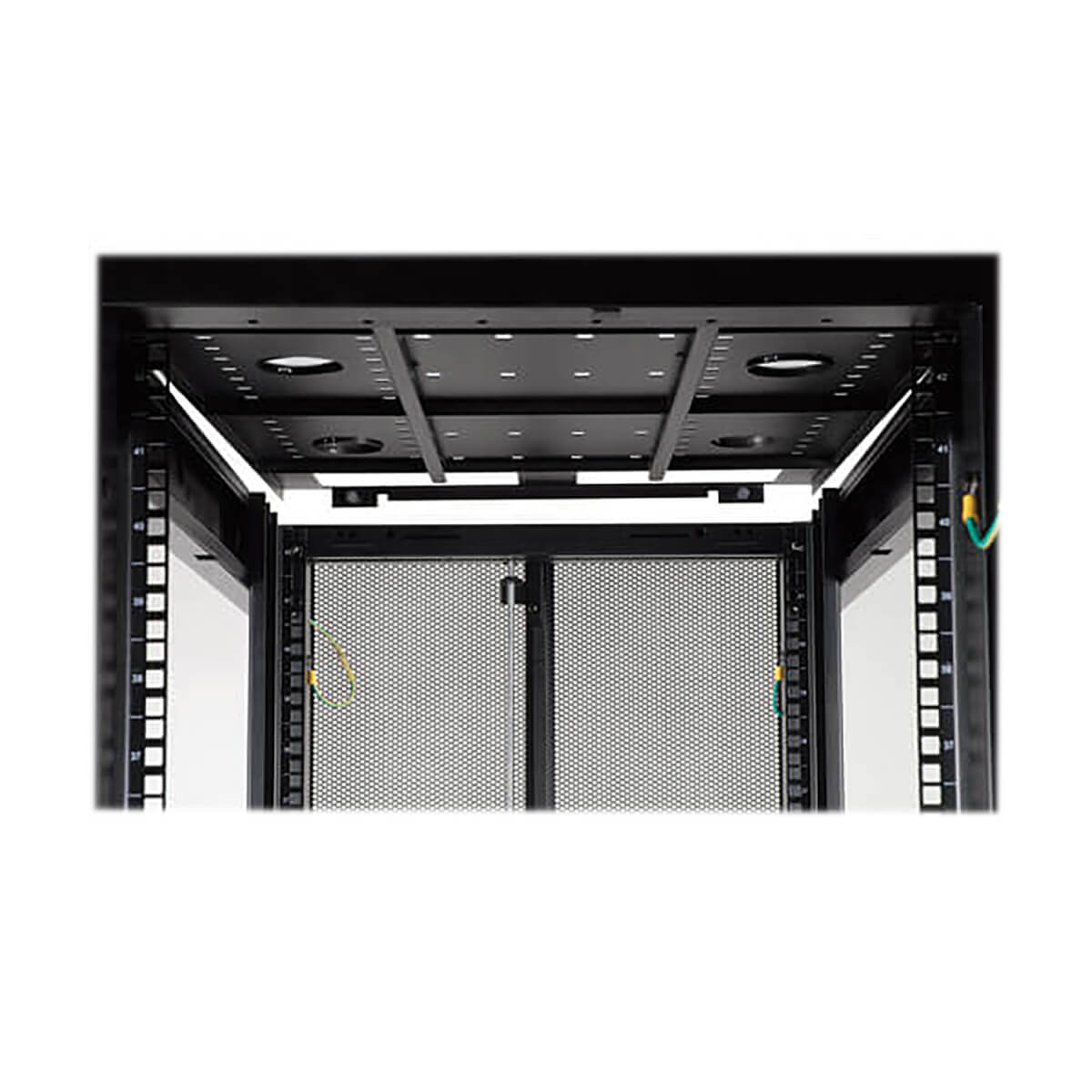

The top panel of the SR48UBWDSP1 is vented to help remove warm air from the enclosure and draw in cool air by convection. The top panel includes ports for cable routing and can be quickly removed without tools. To facilitate cable access, the SR48UBWDSP1 is open-bottom.

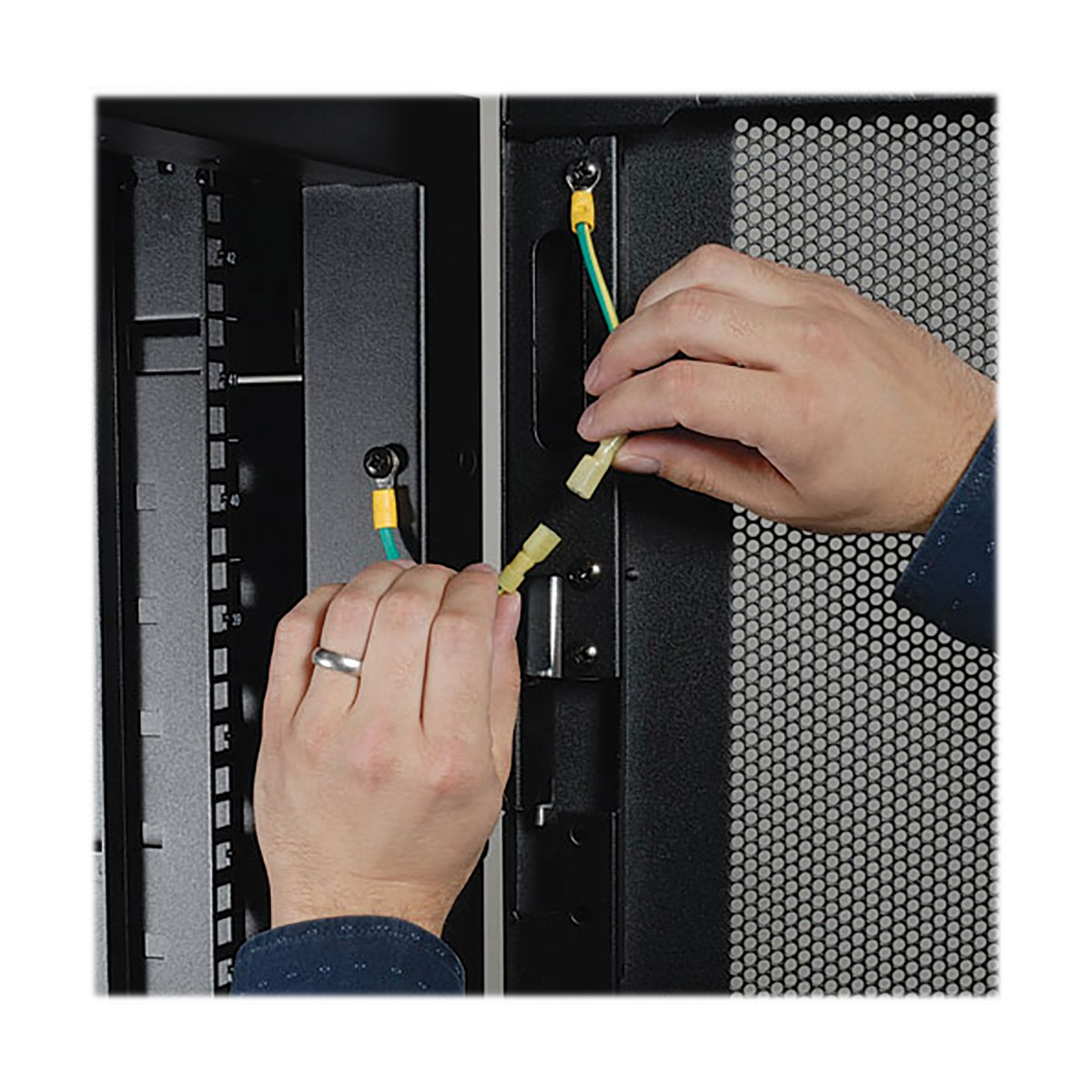

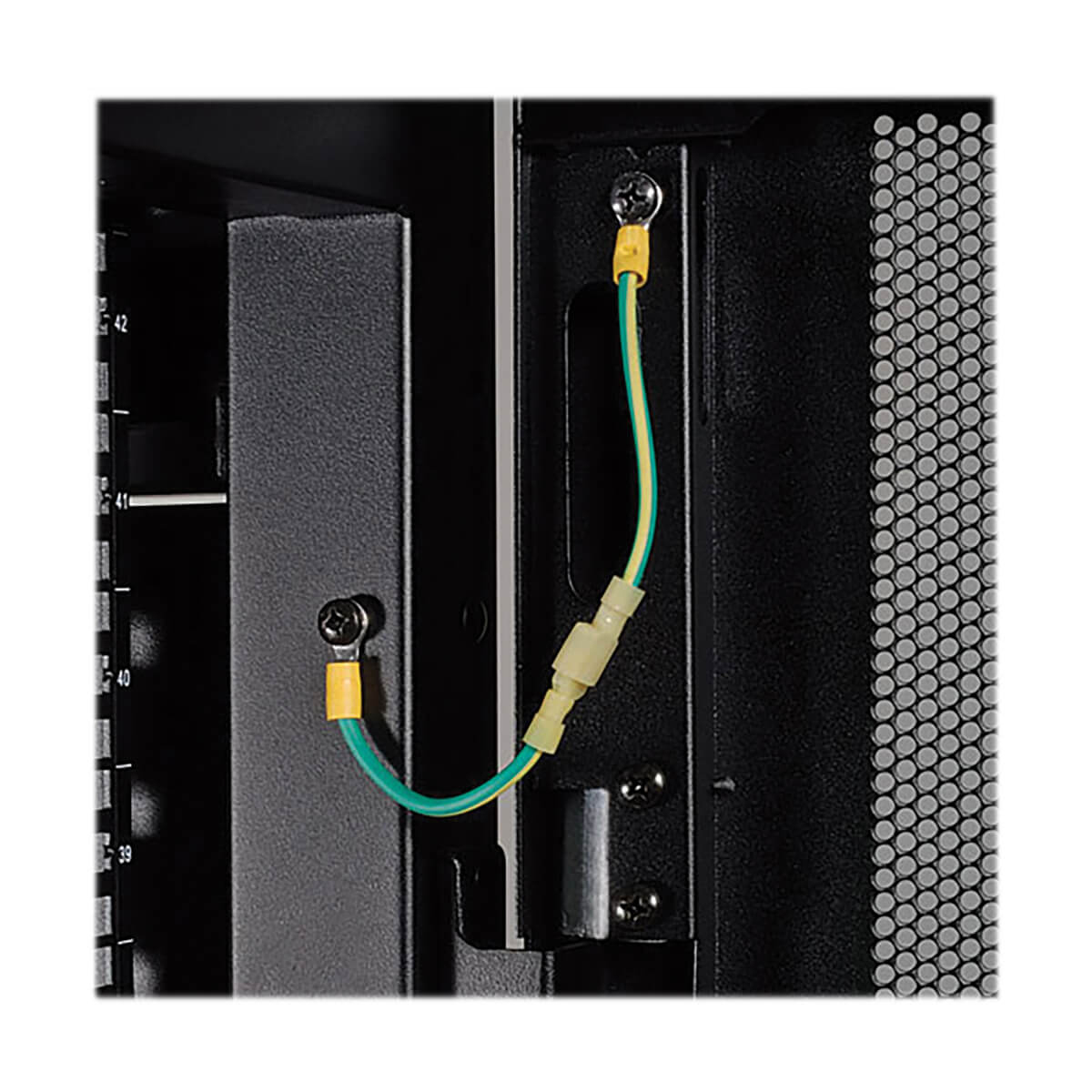

All components of the SR48UBWDSP1 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.

Specifications

Weight & dimensions
Package depth45" (1143 mm)
Package width26" (660.4 mm)
Package height95" (2413 mm)
Package weight397.1 lbs (180.1 kg)
Width29.5" (750.1 mm)
Depth43" (1092.2 mm)
Height89" (2260.6 mm)
Weight343 lbs (155.6 kg)
Features
Rack capacity48U
TypeFreestanding rack
Product colourBlack
CertificationUL60950; RoHS; CE
Packaging data
Package depth45" (1143 mm)
Package width26" (660.4 mm)
Package height95" (2413 mm)
Package weight397.1 lbs (180.1 kg)
Technical details
Package width26" (660.4 mm)
Package length45" (114.3 cm)
Package height95" (2413 mm)
TypeFreestanding rack
Harmonized System (HS) code8517.79.0000
Rack capacity48U
Colour
Product colourBlack
Certificates
CertificationUL60950; RoHS; CE
Logistics data
Master (outer) case width26" (660.4 mm)
Master (outer) case length45" (1143 mm)
Master (outer) case height95" (2413 mm)
Master (outer) case gross weight397.1 lbs (180.1 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
Other features
Package length45" (114.3 cm)
