Tripp Lite SRWF5U36 rack cabinet 5U Wall mounted rack Black

Tripp Lite SRWF5U36 rack cabinet 5U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRWF5U36
  • EAN: 0037332183729 0831112000073 03 ...2000073 0373321837298more
SmartRack 5U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTRACK 5U LOW-PROFILEWALL-MNT RK ENCLOSURE CAB 36INMAX HORIZONTAL MNTNG 641295 Register free see stock
ASI Corp Accessory SRWF5U36 5U Low-Profile Wall-Mount Rack Enclosure Cabinet 177543
D&H 5U SmartRack Wallmnt Rack VRT SRWF5U36
Ingram Micro 5U WALL MOUNT RACK ENCLOSURE XT0127
TD Synnex 5U WALLMOUNT RACK VERTICAL 36IN DEEP 3991393

Related Products

Description

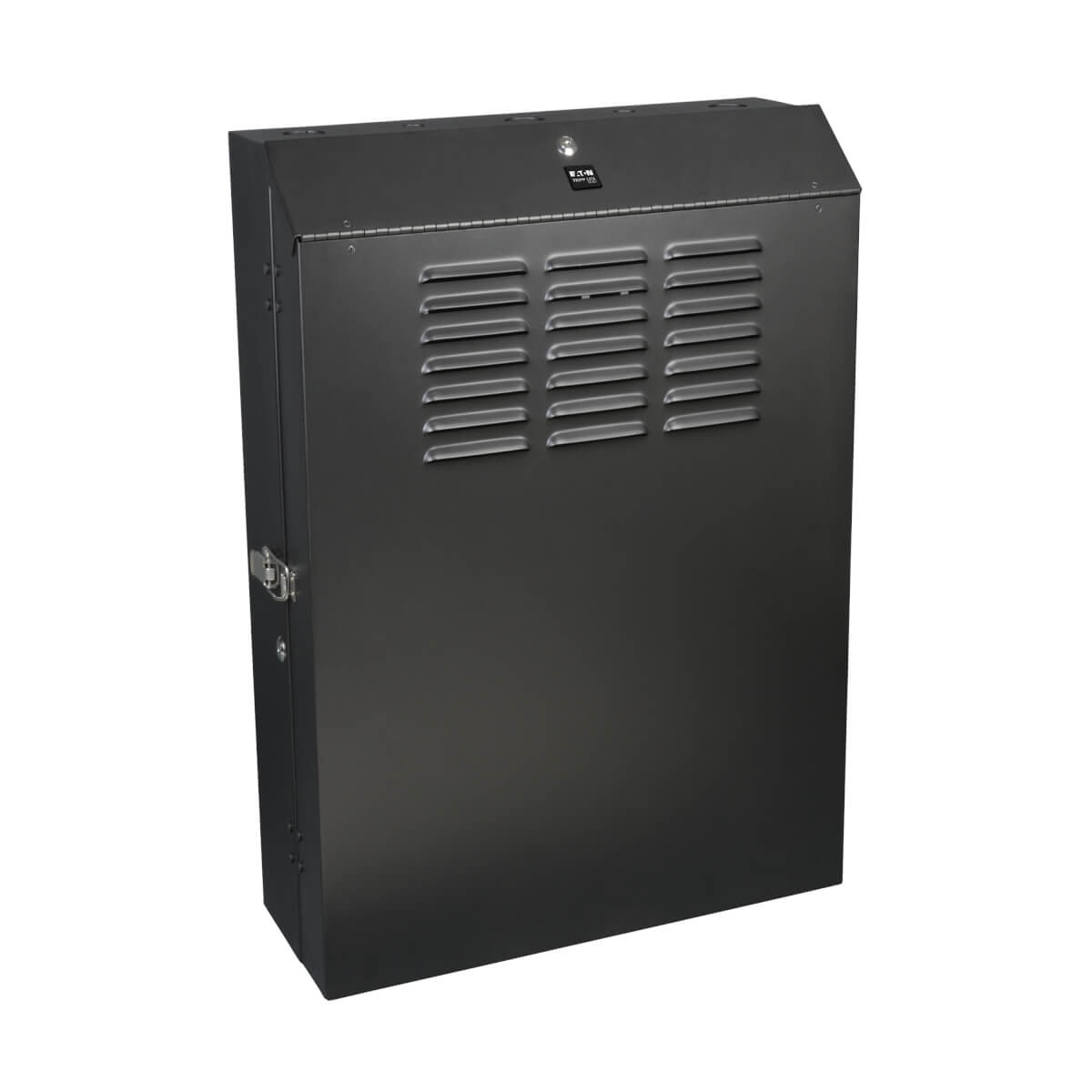

The SRWF5U36 SmartRack 5U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 lbs (68 kgs).

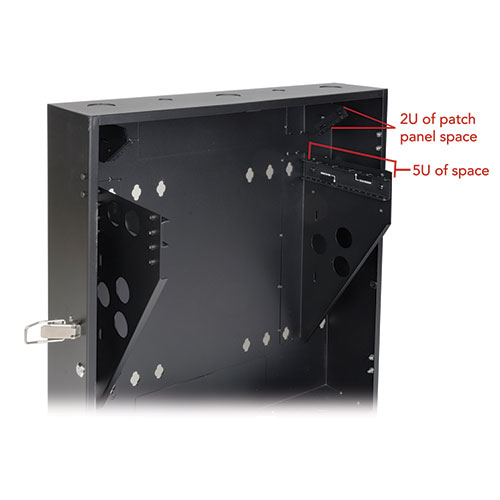

Because the low-profile cabinet mounts vertically, it extends less than 10 inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. In addition to 5U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.

The SRWF5U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy, with threaded mounting holes and hardware that support M6 or 12-24 mounting.

Specifications

Weight & dimensions
Package depth29" (736.6 mm)
Package width13" (330.2 mm)
Package height47" (1193.8 mm)
Package weight78 lbs (35.4 kg)
Width25.6" (650.2 mm)
Depth9.8" (248.9 mm)
Height42.8" (1087.1 mm)
Weight55.1 lbs (25 kg)
Width (imperial)25.6"
Depth (imperial)9.7"
Height (imperial)43.2"
Maximum weight capacity149.9 lbs (68 kg)
Features
Rack capacity5U
TypeWall mounted rack
Maximum weight capacity149.9 lbs (68 kg)
Product colourBlack
CertificationEIA-310-E, NOM, RoHS
Packaging data
Package depth29" (736.6 mm)
Package width13" (330.2 mm)
Package height47" (1193.8 mm)
Package weight78 lbs (35.4 kg)
Technical details
Package width13" (330.2 mm)
Package height47" (1193.8 mm)
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity5U
Colour
Product colourBlack
Certificates
CertificationEIA-310-E, NOM, RoHS
Logistics data
Master (outer) case width13" (330.2 mm)
Master (outer) case length29" (736.6 mm)
Master (outer) case height47" (1193.8 mm)
Master (outer) case gross weight77.8 lbs (35.3 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
