Tripp Lite SR12UB rack cabinet 12U Freestanding rack Black

Tripp Lite SR12UB rack cabinet 12U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR12UB
  • EAN: 0037332157911 0373321579112 00 ...1579112 0079531955370 0818702015907more
SmartRack 12U Mid-Depth Small Rack Enclosure

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter "SMARTRACK 12U EXTRA DEPTH RACKDEPTHS FROM 3"" TO 32.5"" INCHESSUPPORTS UP TO 300LB" 452669 Register free see stock
Arlington Industries 12U MID-DEPTH 1000LB RACK ENCLOSURE TRPSR12UB
BlueStar TRIPP LITE, SMARTRACK 12U EXTRA DEPTH RACK ENCLOSURE CABINET SR12UB
Ingram Micro 12U RACK ENCLOSURE CABINET DP8036
ScanSource Tripp Lite 12 U Rack Enclosure Cabinet POW-SR12UB
TD Synnex 12U RACK ENCLOSURE CABINET 33IN DEEP 2775447

Related Products

Description

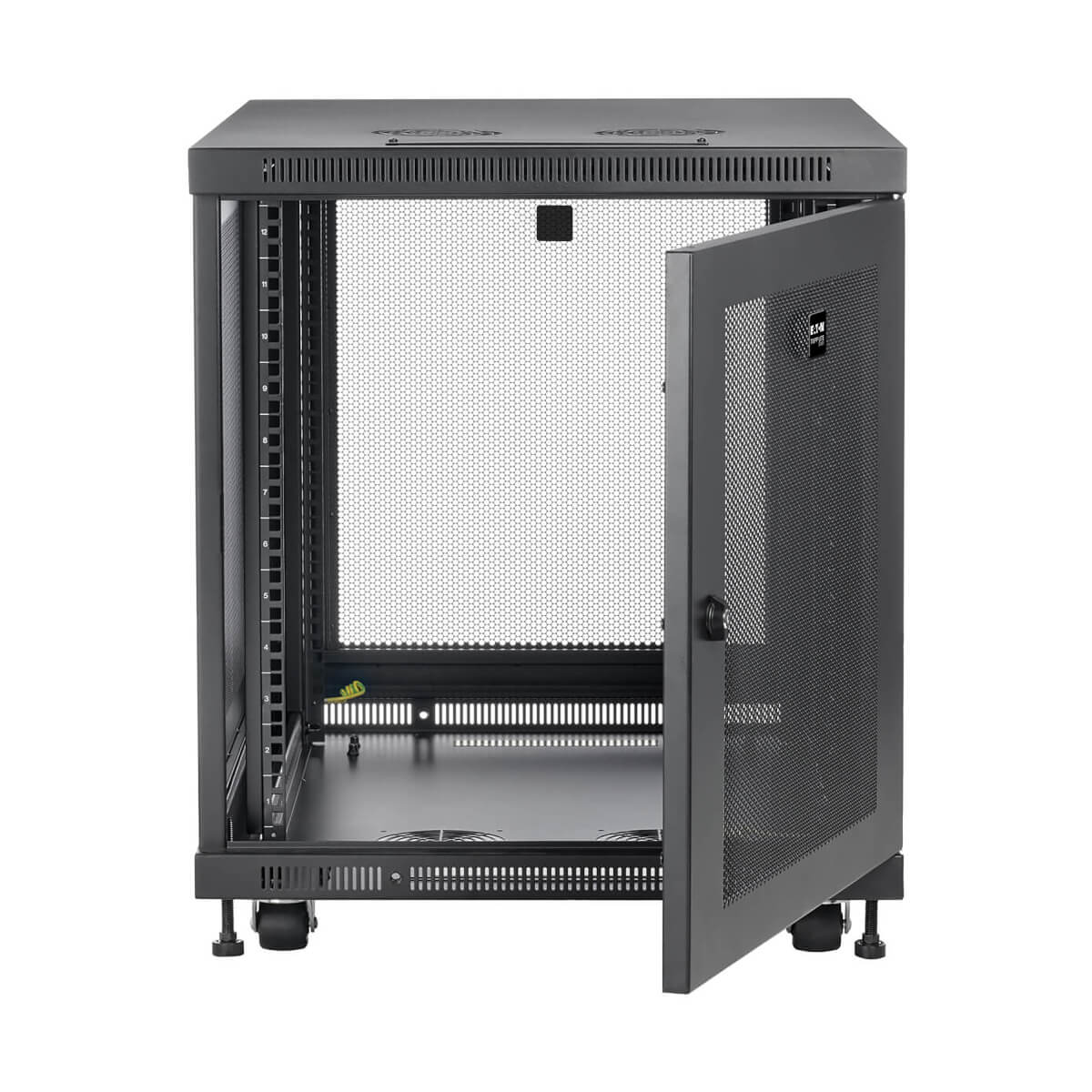

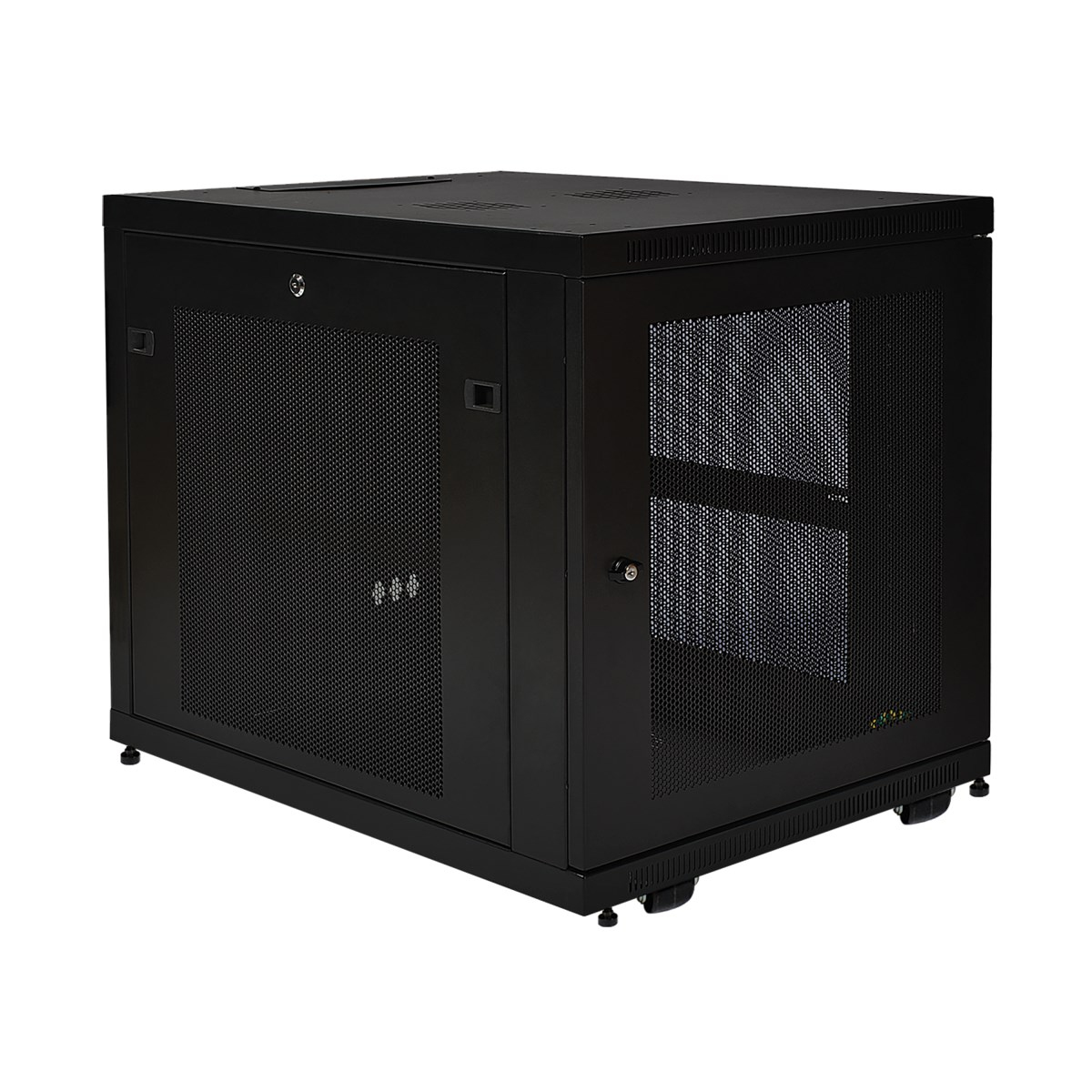

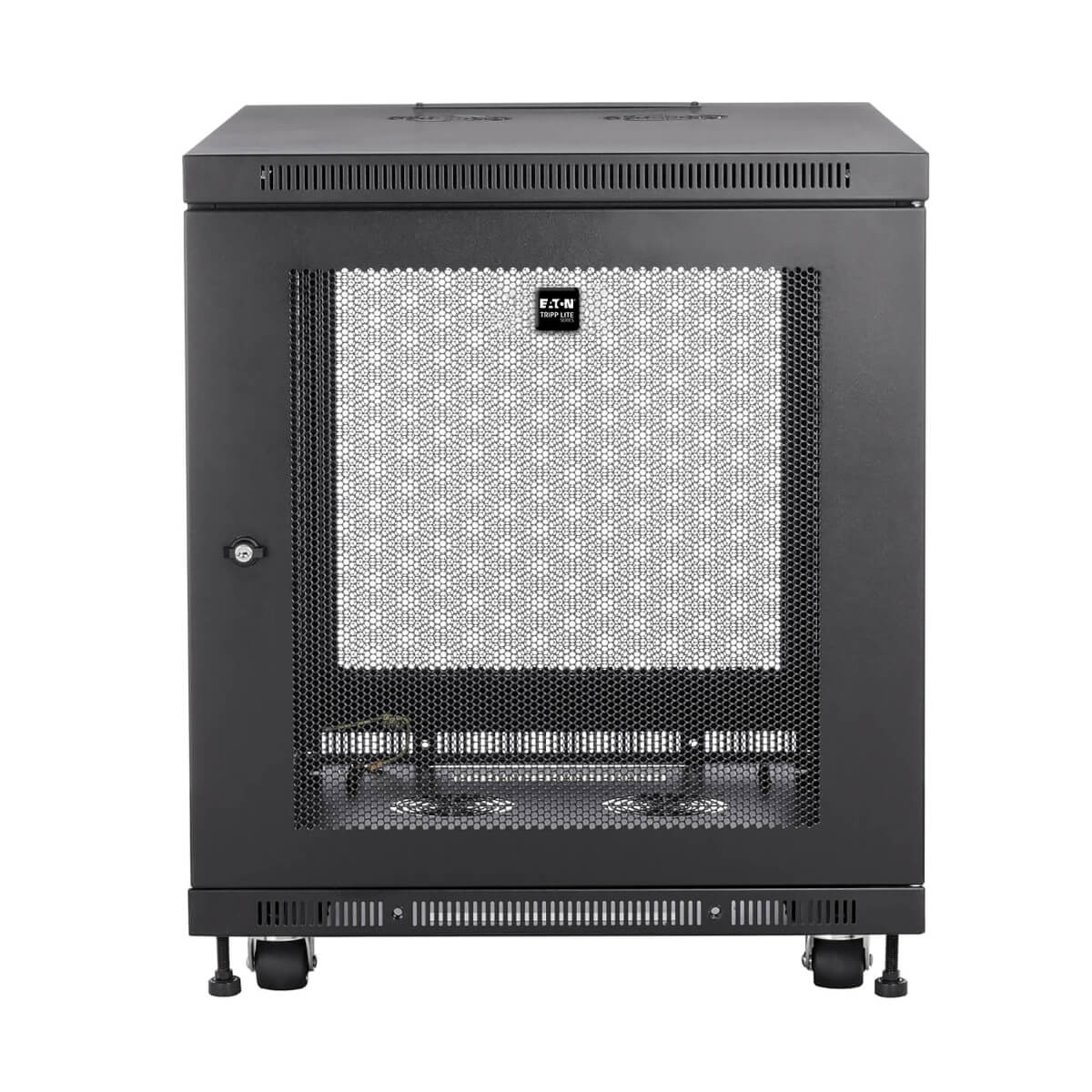

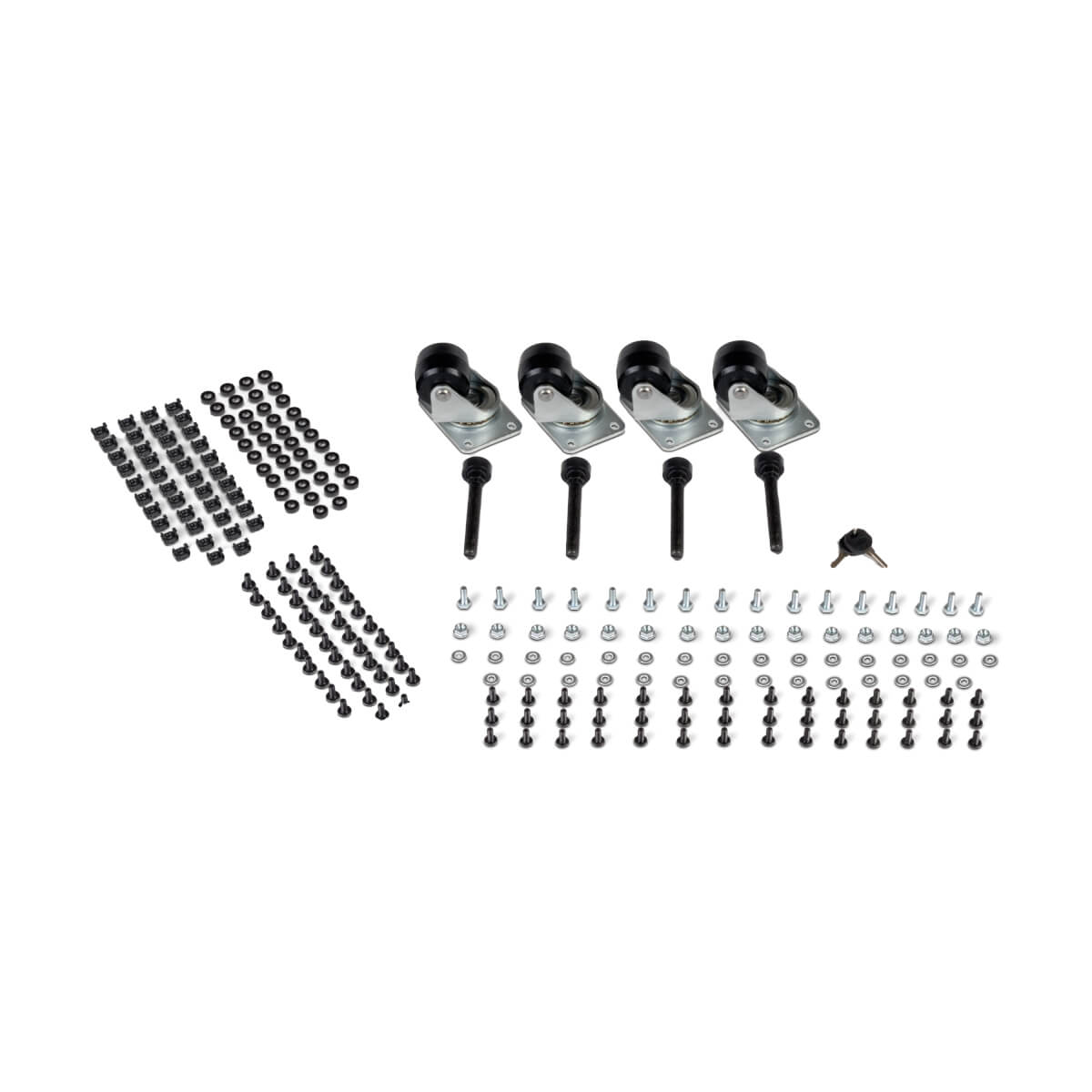

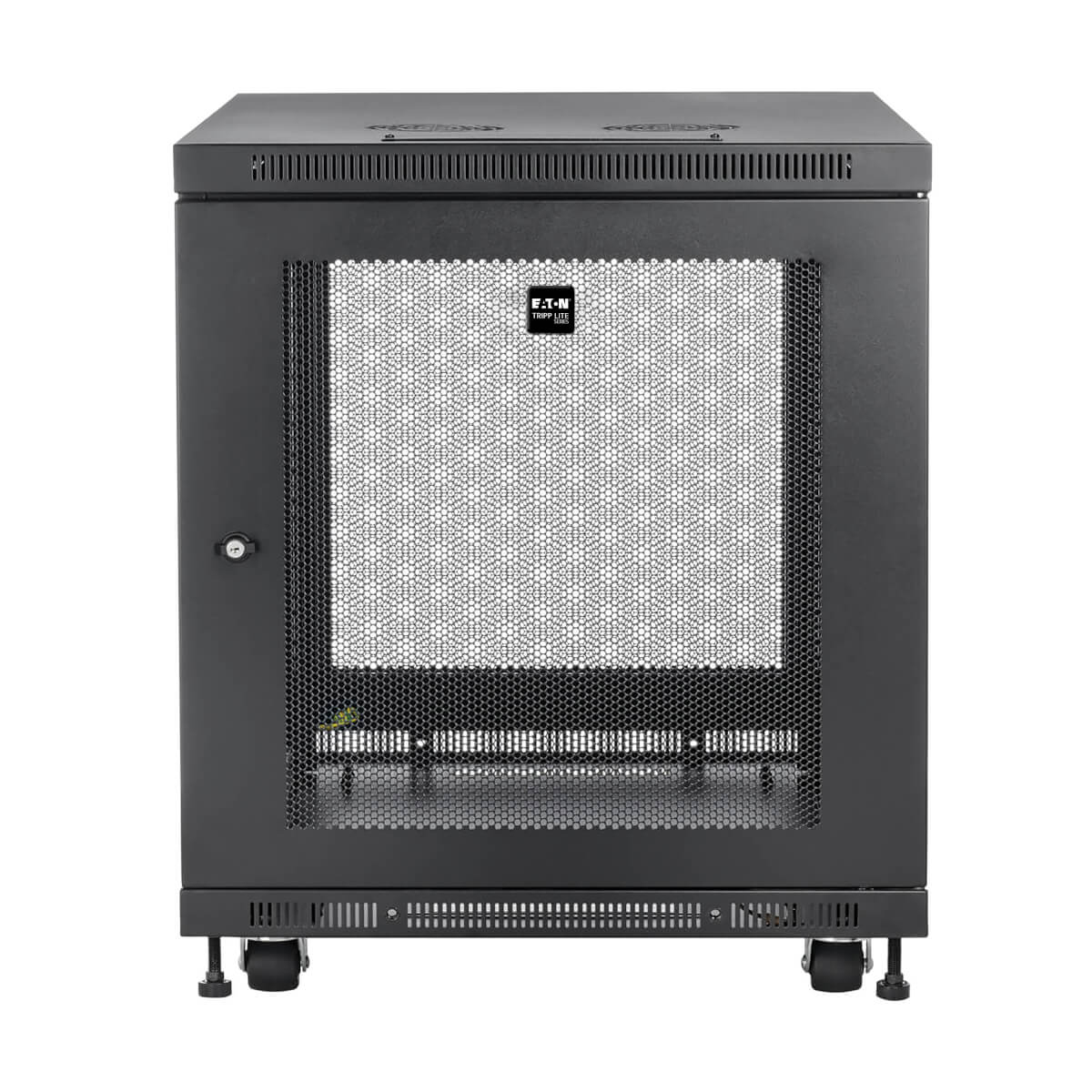

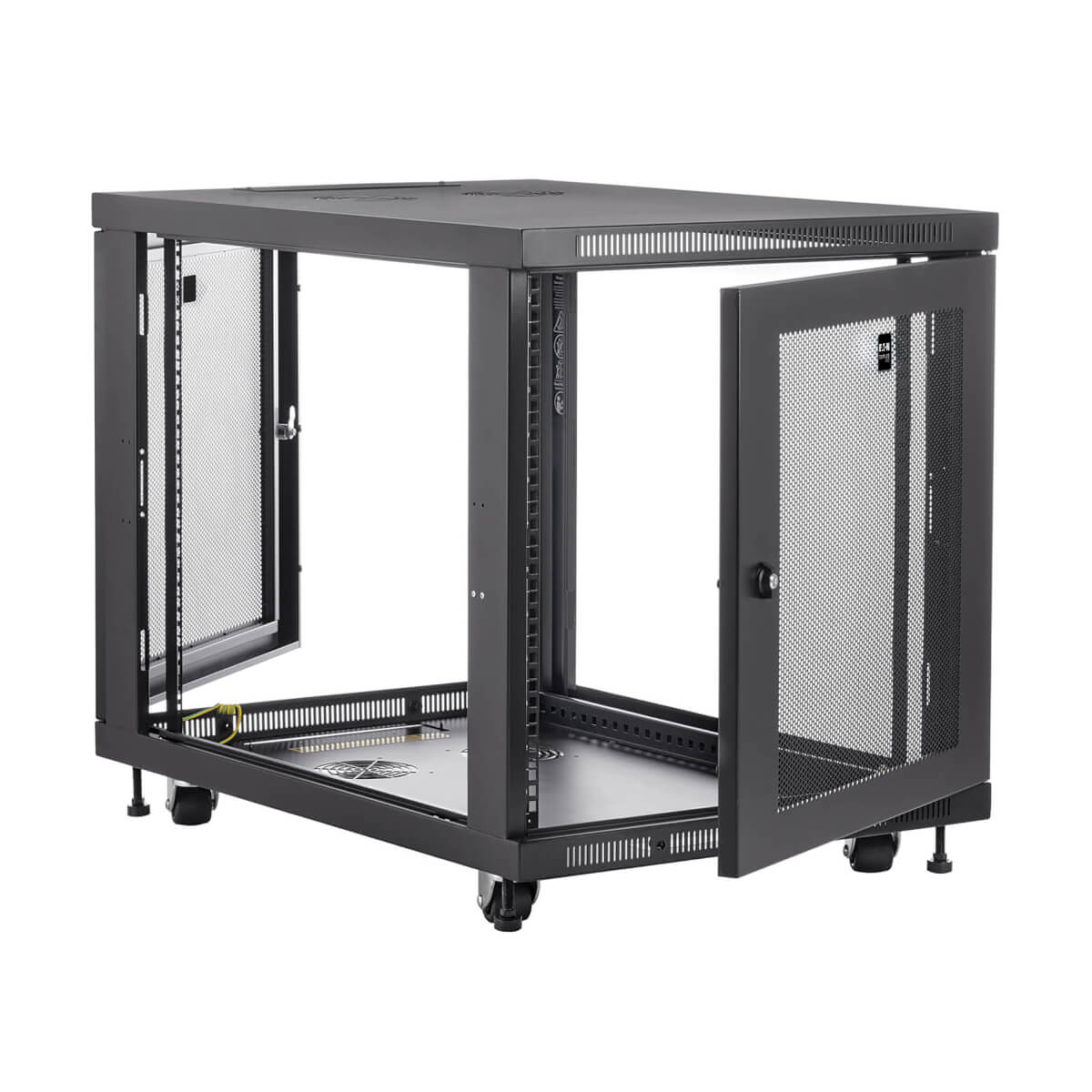

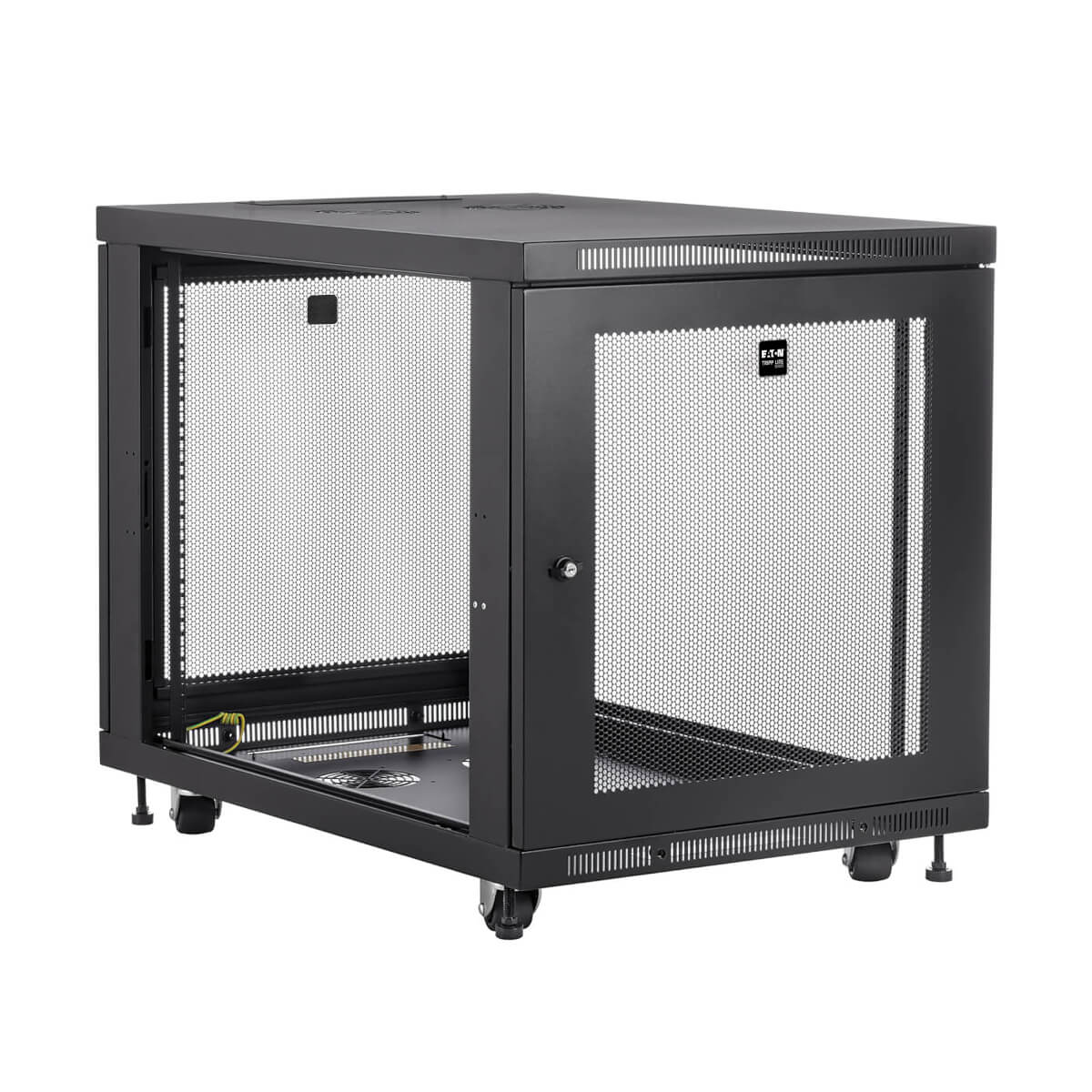

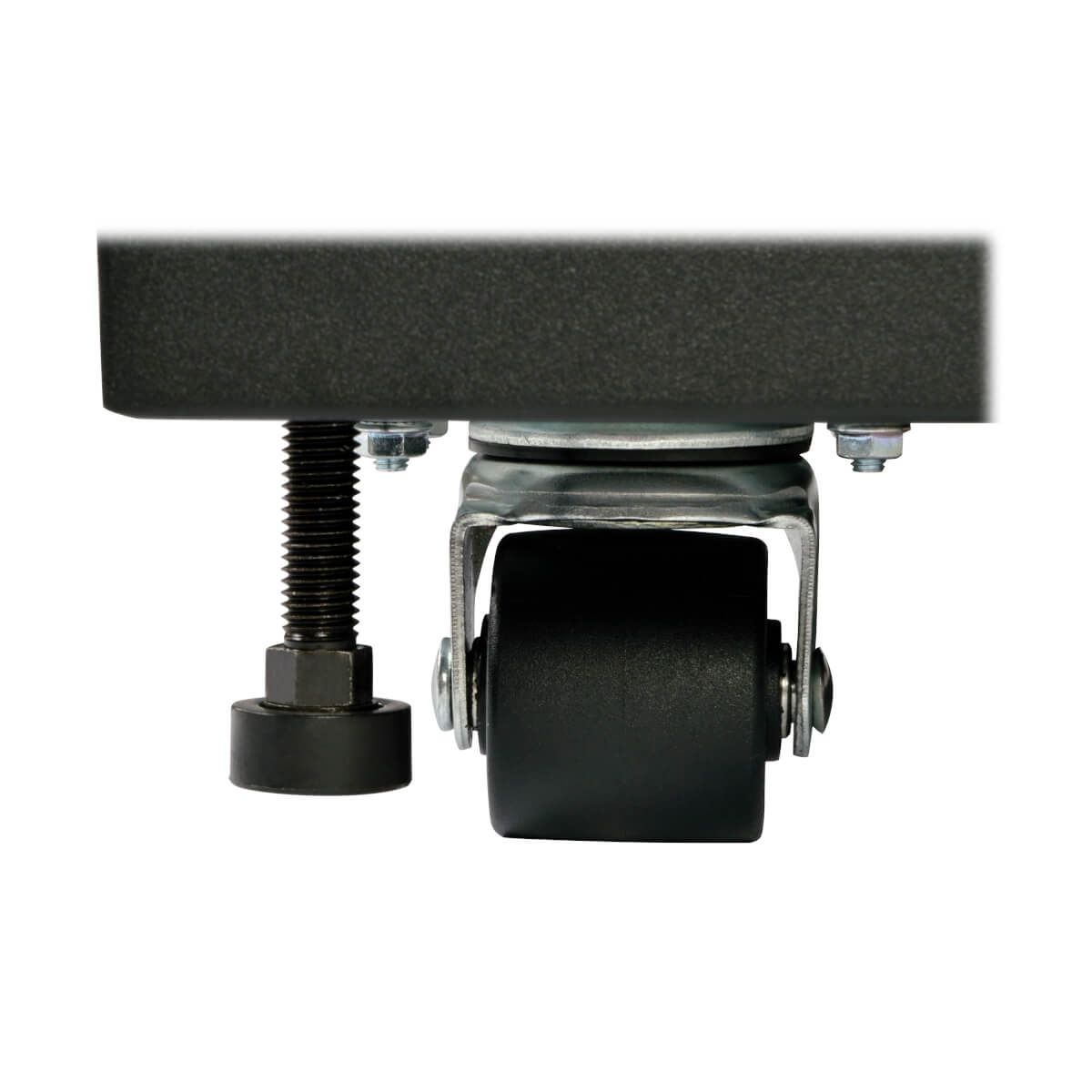

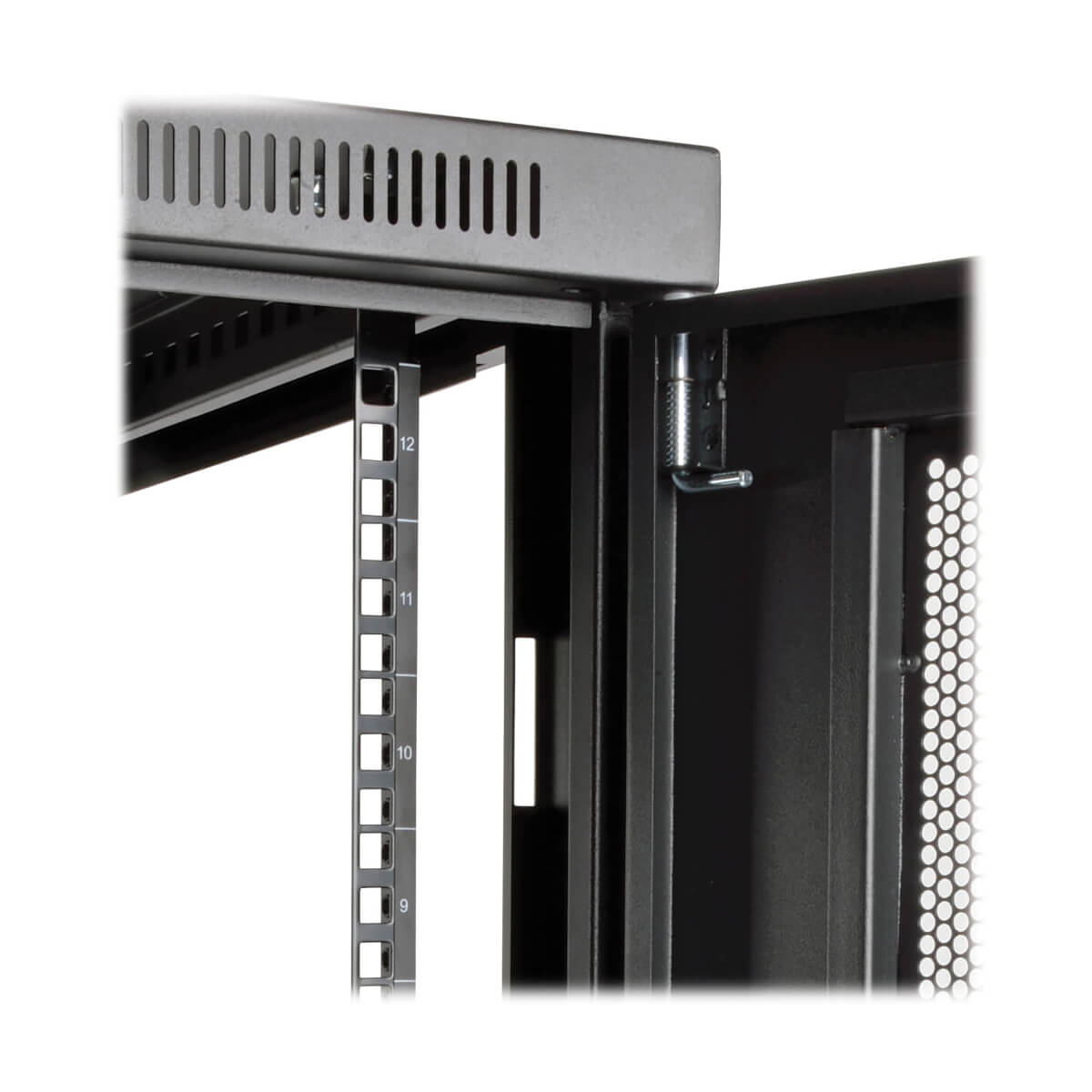

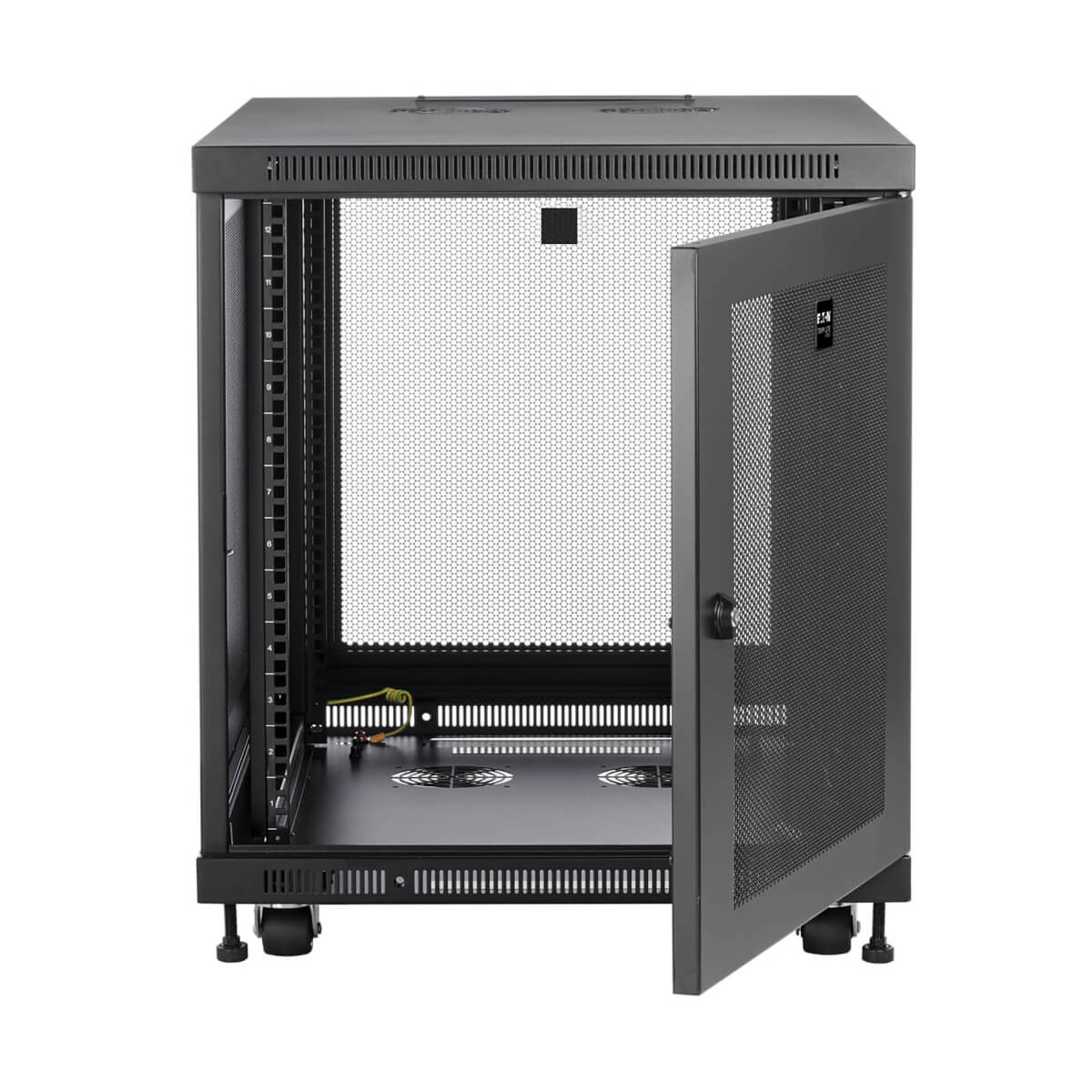

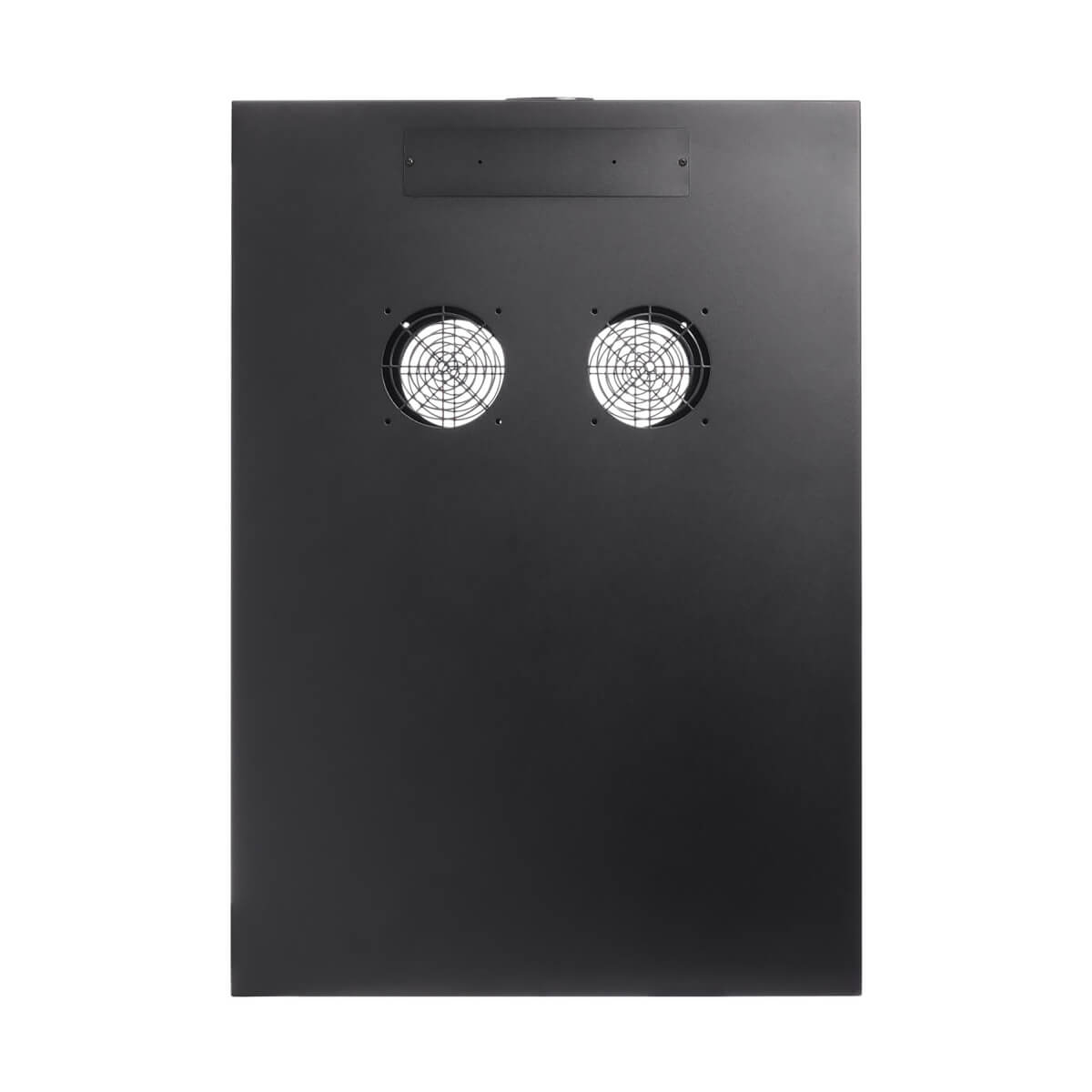

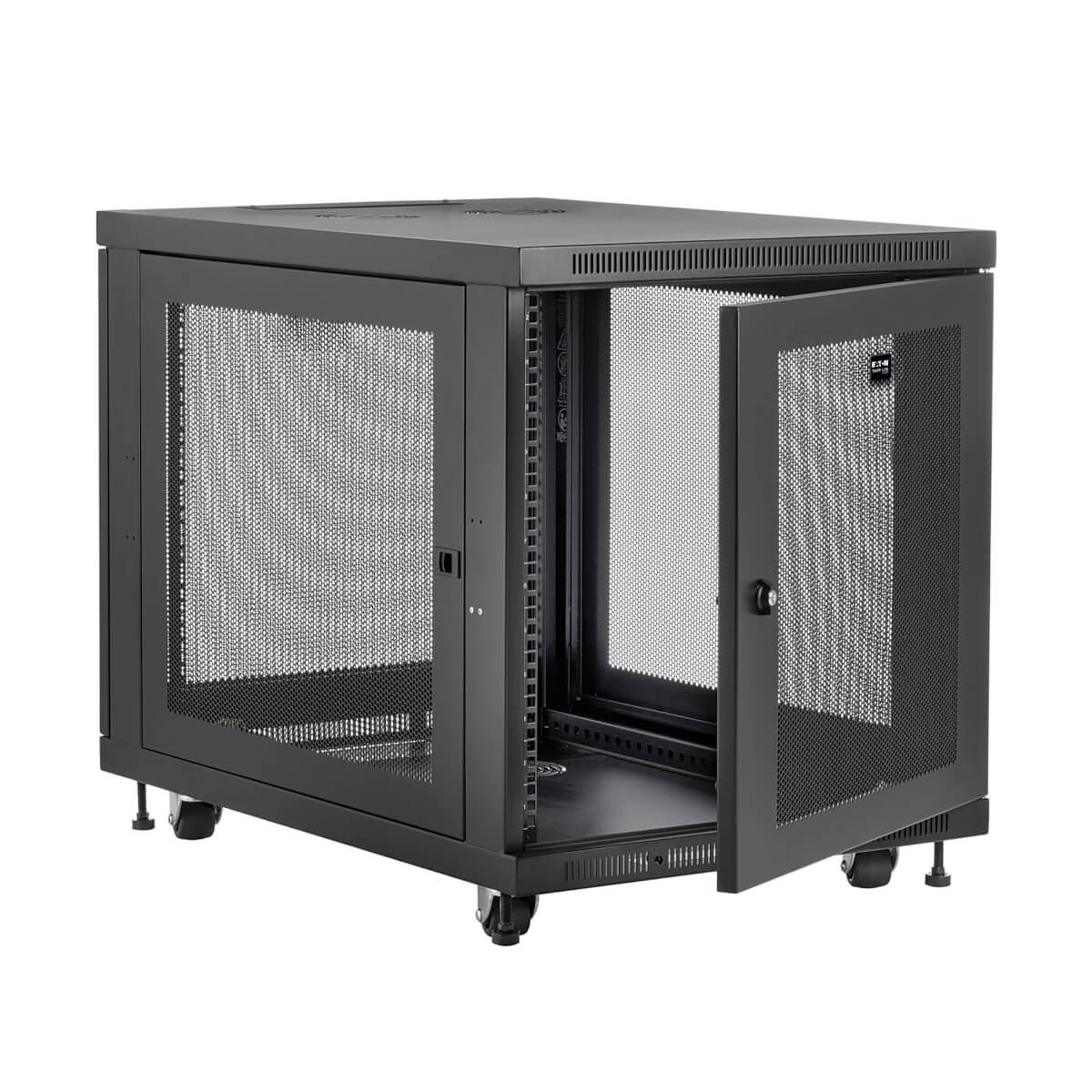

This SmartRack® 12U Mid-Depth Rack Enclosure Cabinet is designed to simplify rack equipment installations and rack equipment maintenance. Compatible with all standard 19-inch rack equipment, it features front and rear pairs of vertical rails with square mounting holes. The rails are adjustable in quarter-inch increments to accommodate equipment depths from three to 32.5 inches, ideal for standard server installation. The rails are capable of supporting up to 1,000 pounds (453.6 kilograms) of equipment. The top and bottom panels are provided with ports for cable routing, and are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. The panels also support installation of standard user-supplied case fans (SRFANWM, sold separately). With a locking reversible front/rear doors and locking removable side panels, the SR12UB provides for the safe, secure installation of all equipment. To simplify deployment, the SR12UB comes with an accessory caster kit so it can easily be maneuvered into the desired location, and then secured in place by adjusting the unit's levelers. It ships fully assembled for quick installation.

Specifications

Weight & dimensions
Package depth27" (685.8 mm)
Package width37" (939.8 mm)
Package height31" (787.4 mm)
Package weight112 lbs (50.8 kg)
Width23.6" (599.4 mm)
Depth33.5" (850.9 mm)
Height25.1" (637.5 mm)
Weight104.9 lbs (47.6 kg)
Maximum weight capacity1000 lbs (453.6 kg)
Features
Rack capacity12U
TypeFreestanding rack
Maximum weight capacity1000 lbs (453.6 kg)
Product colourBlack
CertificationEIA-310-E, UL60950, RoHS
Packaging data
Package depth27" (685.8 mm)
Package width37" (939.8 mm)
Package height31" (787.4 mm)
Package weight112 lbs (50.8 kg)
Technical details
Package width37" (939.8 mm)
Package height31" (787.4 mm)
TypeFreestanding rack
Harmonized System (HS) code8517.79.0000
Rack capacity12U
Colour
Product colourBlack
Certificates
CertificationEIA-310-E, UL60950, RoHS
Logistics data
Master (outer) case width37" (939.8 mm)
Master (outer) case length27" (685.8 mm)
Master (outer) case height31" (787.4 mm)
Master (outer) case gross weight112 lbs (50.8 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
