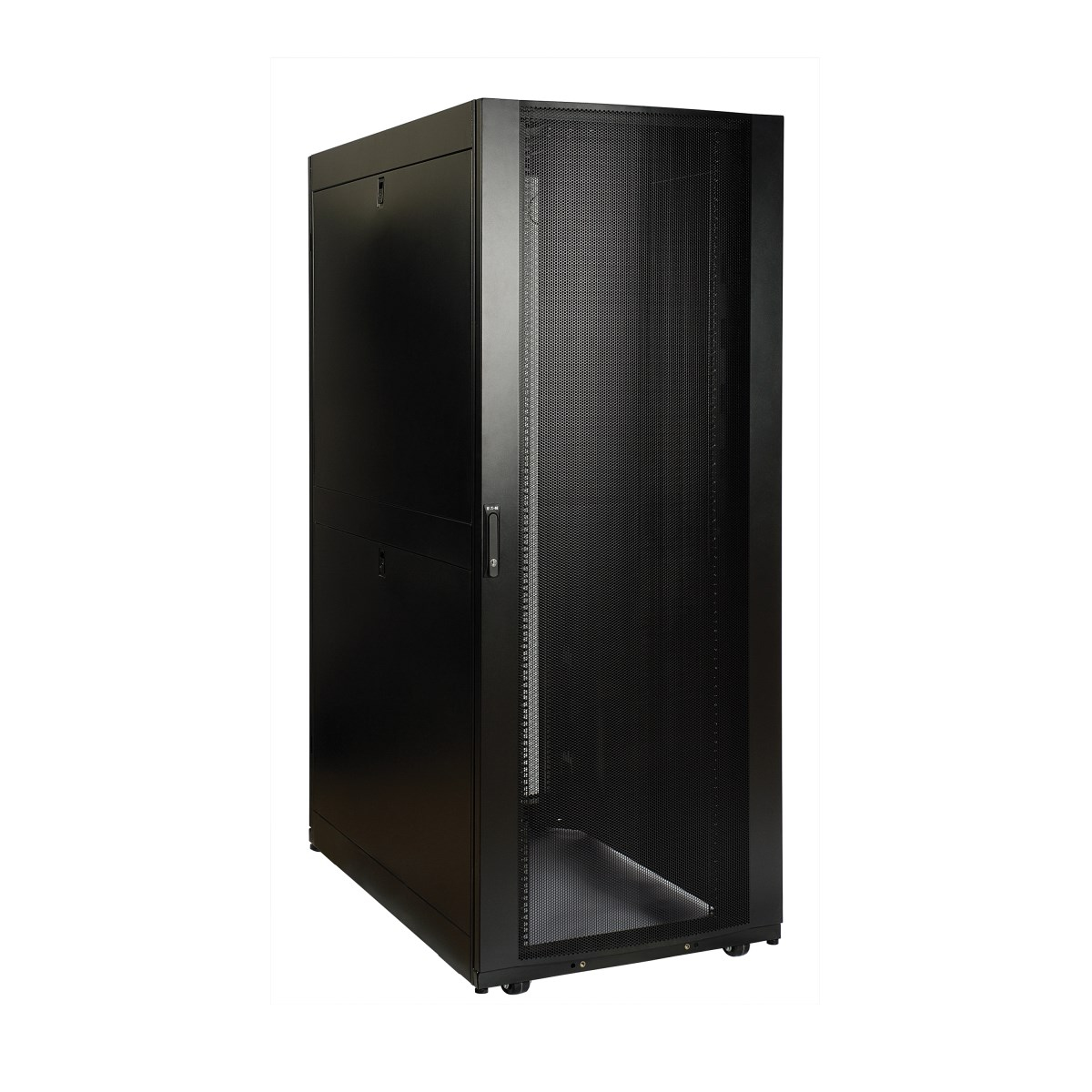

Tripp Lite SR42UBDPWD rack cabinet 42U Freestanding rack Black

Tripp Lite SR42UBDPWD rack cabinet 42U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR42UBDPWD
  • EAN: 0037332154484 0042111527823 50 ...1527823 5057103215447 0373321544844more
42U SmartRack Deep and Wide Rack Enclosure Cabinet with doors & side panels

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 42U SMARTRACK DEEP ANDWIDE PREMIUM ENCLOSURE INCLDSDOORS & SIDE PANELS 565675 Register free see stock
Arlington Industries 42U DEEP/WIDE RACK ENCLOSURE CABINET TRPSR42UBDPWD
BlueStar TRIPP LITE, 42U SMARTRACK DEEP AND WIDE RACK ENCLOSURE CABINET WITH DOORS & SIDE PANELS SR42UBDPWD
D&H 42U Rack Deep and Wide 3Klb SR42UBDPWD
Ingram Micro 42U RACK ENCLOSURE CABINET DEEP DC7660
ScanSource 42U SmartRack Deep and Wide Rack Enclosu POW-SR42UBDPWD
TD Synnex 42U RACK ENCLOSURE CABINET DEEP & WIDE 2712999

Related Products

Description

Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters.
Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws
Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.
Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.
Maximum usable internal depth of 42 inches/1070mm (front to rear rail).
Weight ratings of 3000 lbs (1360.8 kgs) stationary and 2250 lbs (1020.6 kgs) rolling.
Front door is locking, reversible and removable.

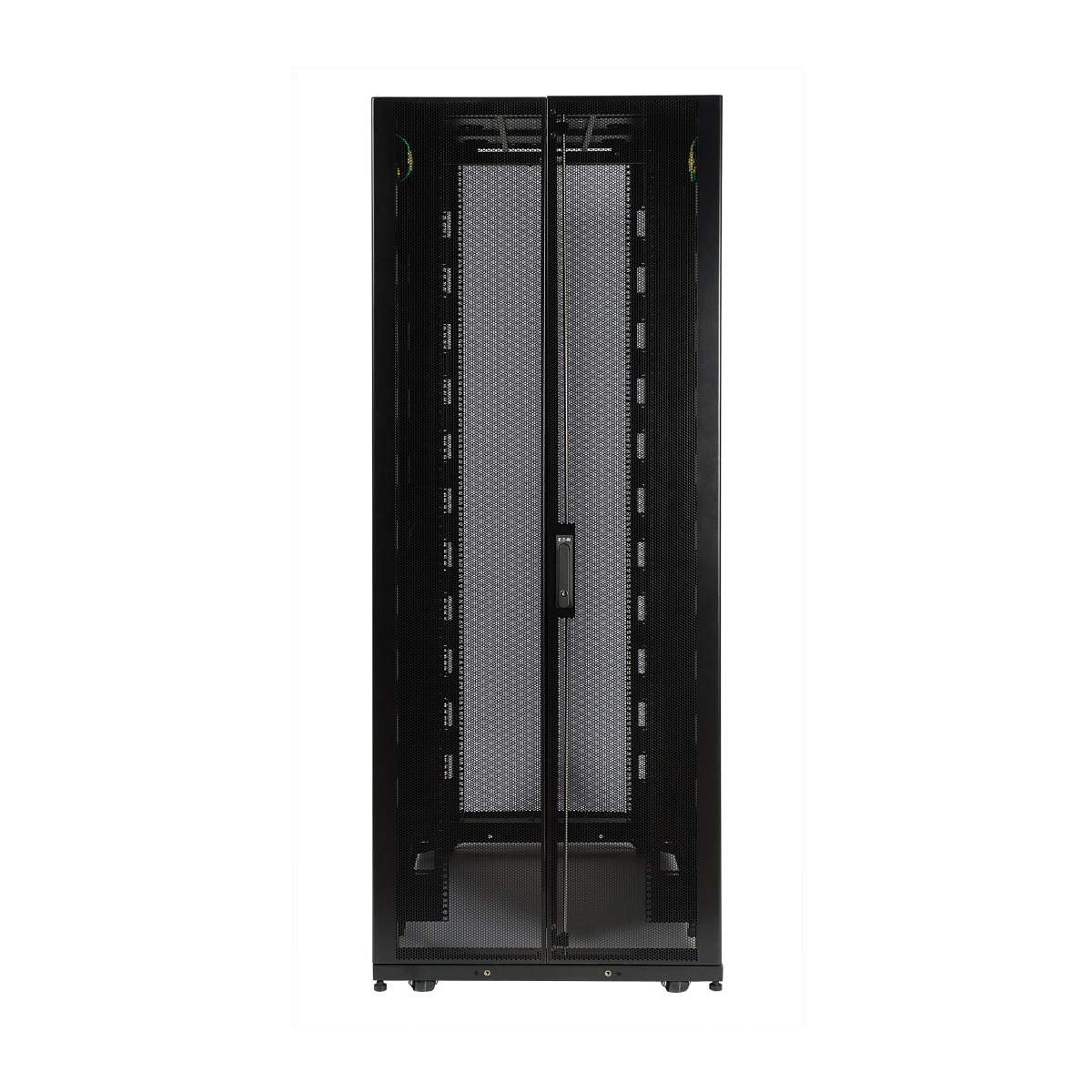

Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall.
Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors.
Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 750mm or 30".
Casters are pre-installed and support a rolling load capacity of 2250 lbs (1020.6 kgs), allowing the enclosures to be pre-configured and rolled to the final installation location. Casters are removable.
Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.
Compact design allows the enclosure to roll through standard height commercial doorways.
Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.
Open bottom for cable access.
Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.
Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.
Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
Compatibility with airflow optimization accessories as well as cable management accessories.

Specifications

Weight & dimensions
Package depth49.7" (1263.6 mm)
Package width33.3" (844.6 mm)
Package height85" (2159 mm)
Package weight403.9 lbs (183.2 kg)
Width29.6" (752.6 mm)
Depth47.3" (1201.4 mm)
Height78.5" (1993.9 mm)
Weight341.9 lbs (155.1 kg)
Maximum weight capacity3000.5 lbs (1361 kg)
Features
Rack capacity42U
TypeFreestanding rack
Maximum weight capacity3000.5 lbs (1361 kg)
Product colourBlack
CertificationEIA-310-E, UL60950; RoHS
Packaging data
Package depth49.7" (1263.6 mm)
Package width33.3" (844.6 mm)
Package height85" (2159 mm)
Package weight403.9 lbs (183.2 kg)
Technical details
Package width33.3" (844.6 mm)
Package height85" (2159 mm)
TypeFreestanding rack
Weight (imperial)345 lbs
Harmonized System (HS) code8517.79.0000
Rack capacity42U
Colour
Product colourBlack
Certificates
CertificationEIA-310-E, UL60950; RoHS
Logistics data
Master (outer) case width33.3" (844.6 mm)
Master (outer) case length49.7" (1263.6 mm)
Master (outer) case height85" (2159 mm)
Master (outer) case gross weight403.9 lbs (183.2 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
Other features
Weight (imperial)345 lbs
