Tripp Lite SR4POST48HD rack accessory

Tripp Lite SR4POST48HD rack accessory

48U Heavy-Duty 4-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

48U HEAVY-DUTY 4-POST SMARTRKOPEN FRM RK ORGANIZE & SECURENETWORK RK EQUIPMENT

 641274 Register free see stock
ASI Corp

Tripp Lite Accessory SR4POST48HD SmartRack 48U 4-Post Open Frame Rack RTL

 210641
D&H

48U 4 Post Open Frame Rack Cab

 SR4POST48HD
Ingram Micro

48U 4 POST OPEN FRAME RACK

 ZL9519
ScanSource

Tripp Lite 48U 4-Post open Frame cabinet

 POW-SR4POST48HD
TD Synnex

Tripp Lite Series 48U Heavy-Duty 4-Post SmartRack Open Frame Rack - Organize and Secure Network Rack Equipment

 4185015

Related Products

Description

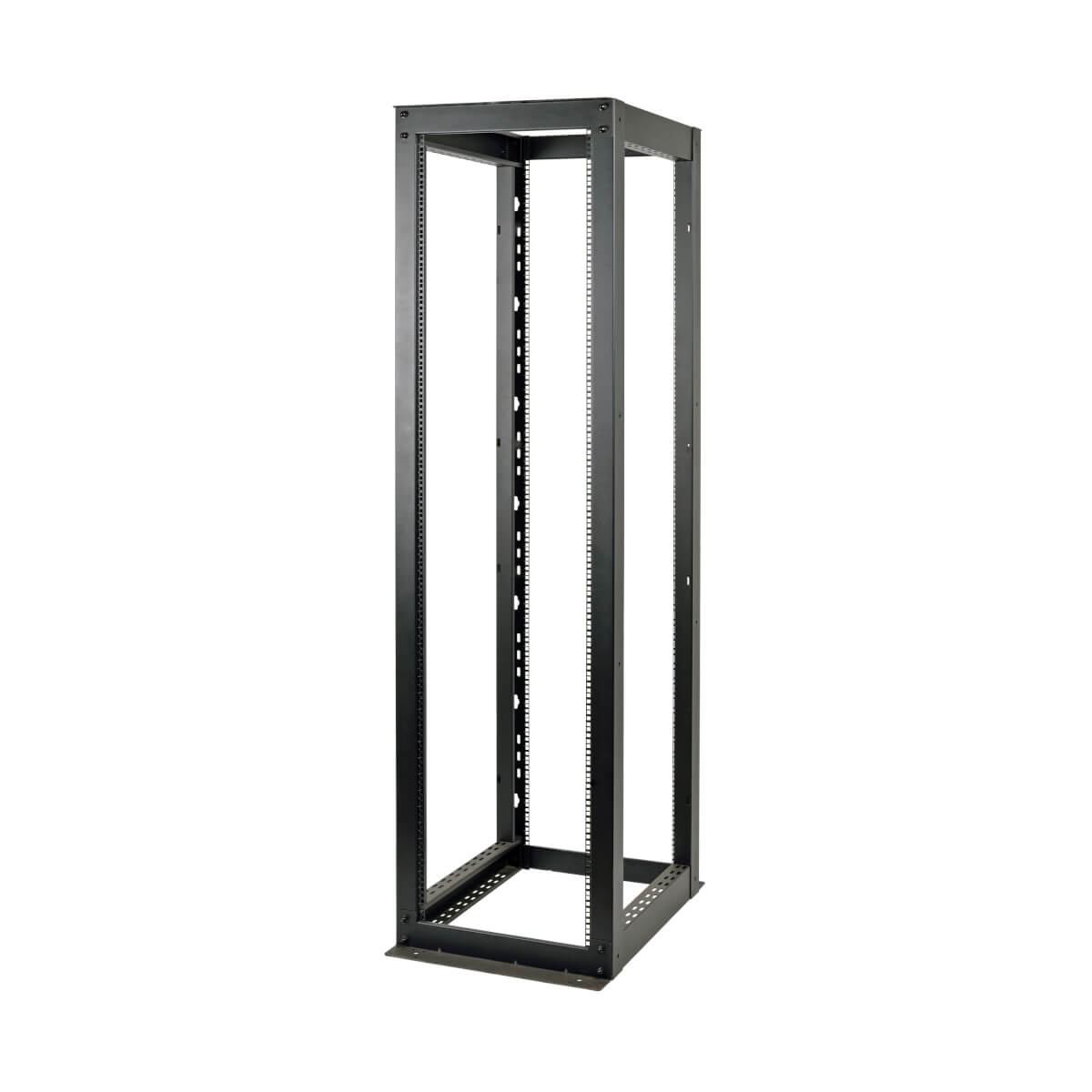

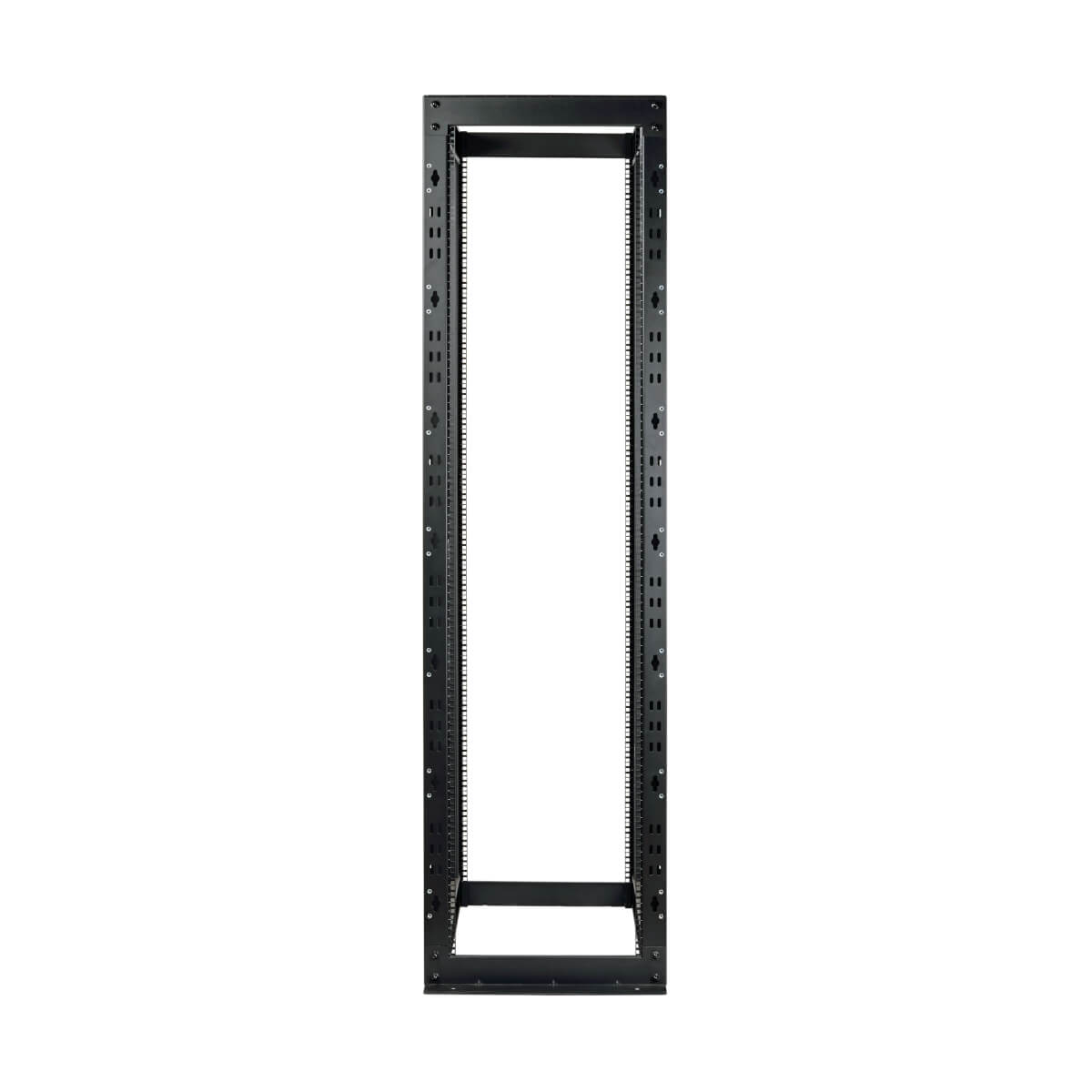

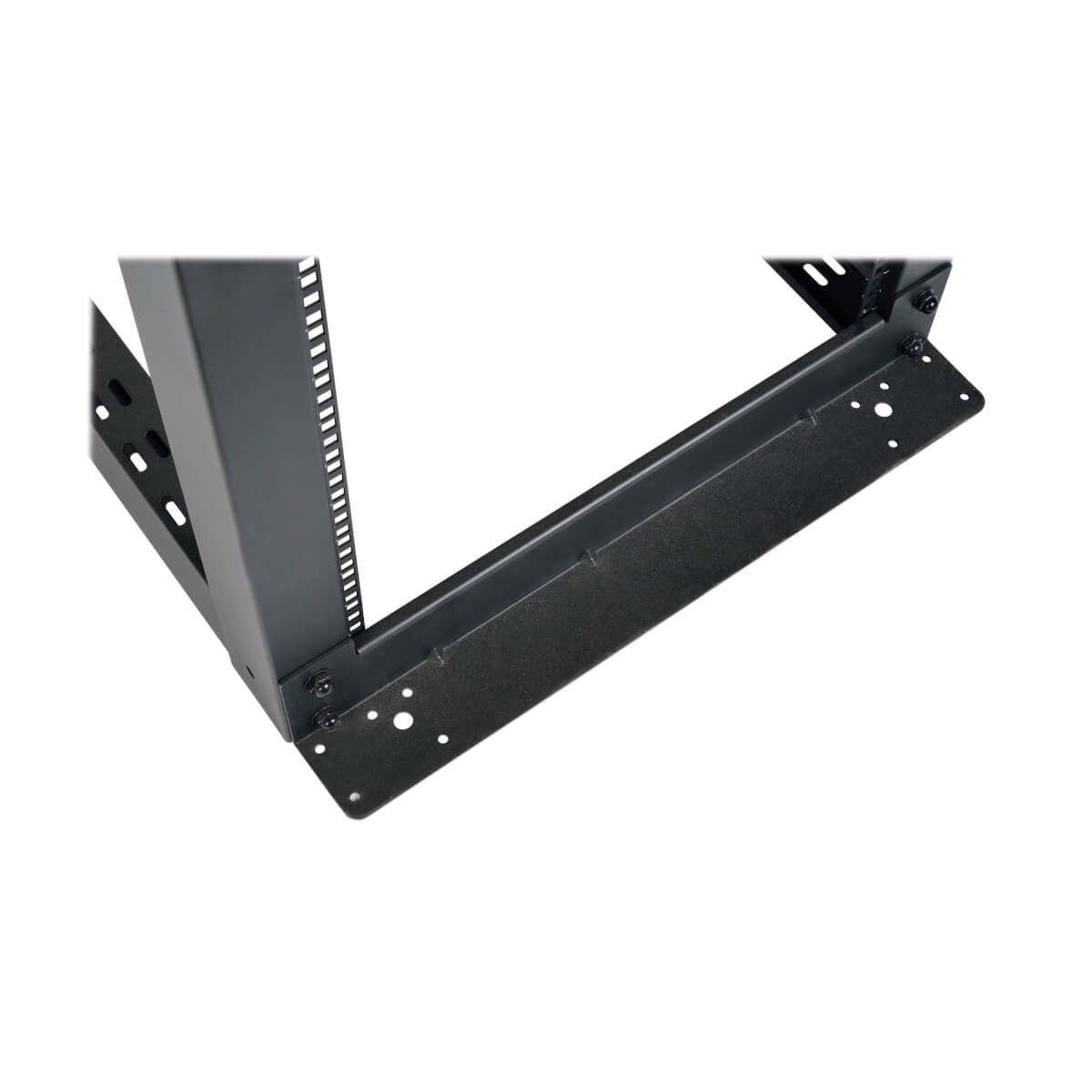

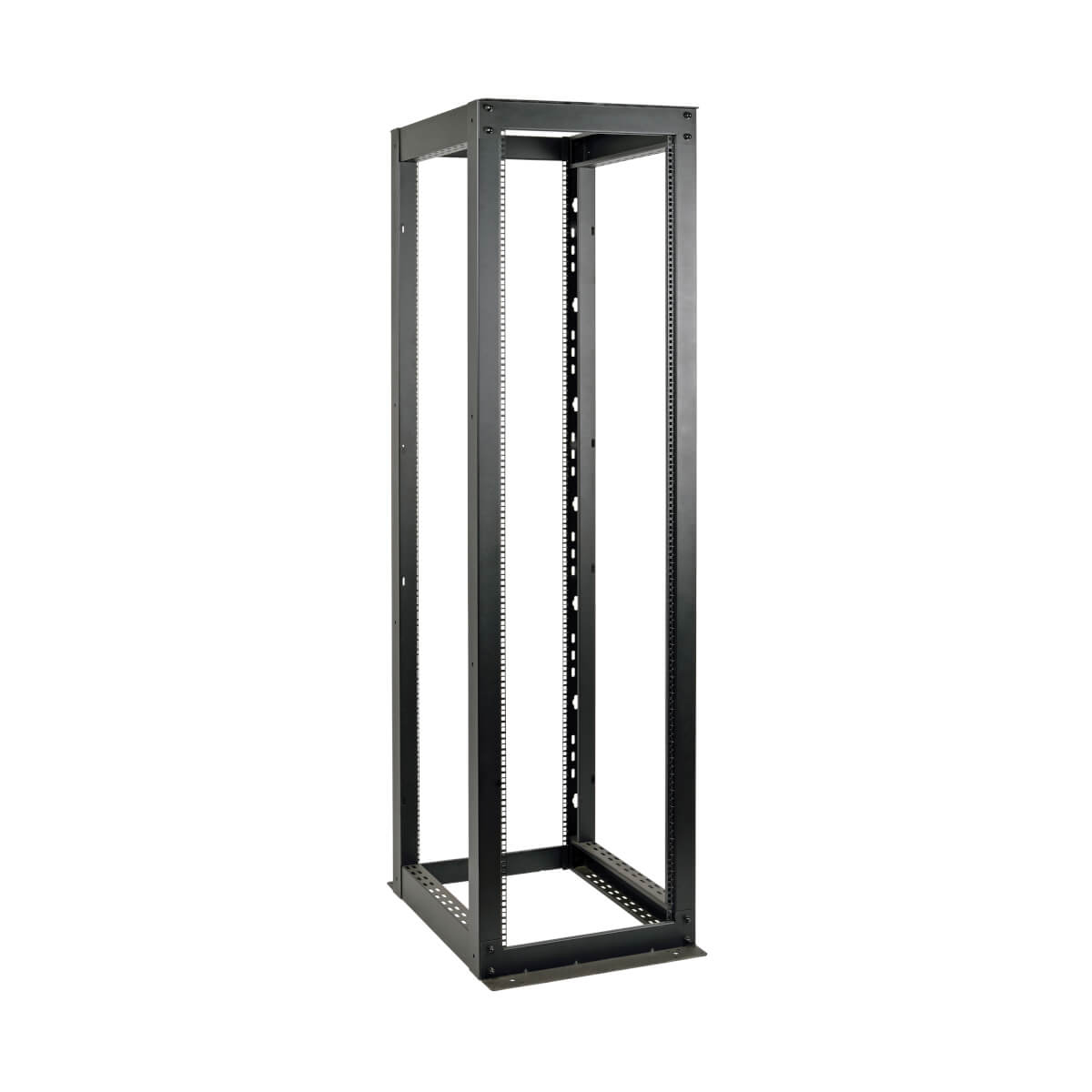

This 48U Heavy-Duty 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST48HD is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 48U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 3,000 pounds (1360.8 kilograms). The SR4POST48HD comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

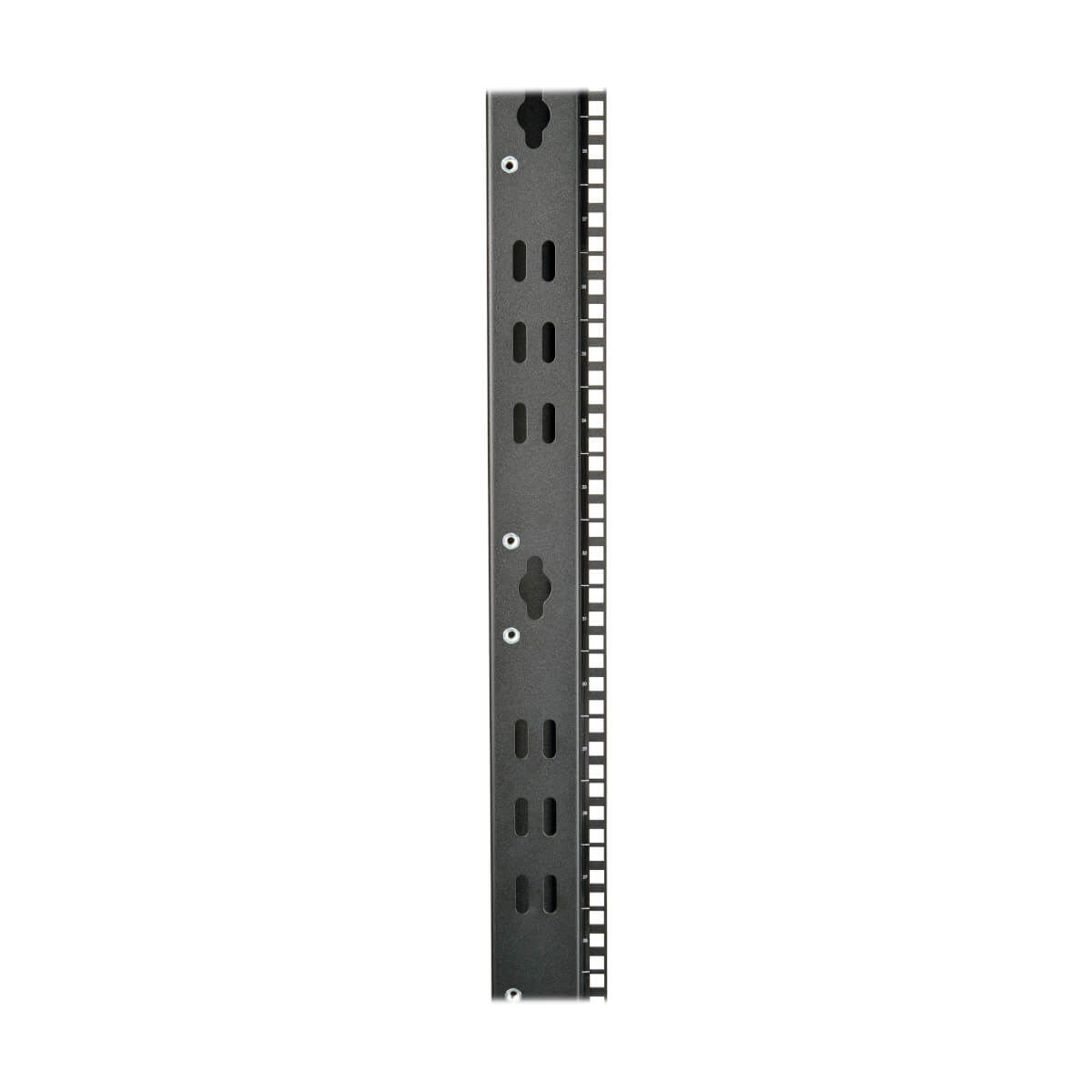

The open design of the SR4POST48HD provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST48HD supports equipment depths up to 35 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

The optional SRCASTERHDKIT Heavy-Duty Rolling Caster Kit (sold separately) adds mobility to the SR4POST48HD. The SR4POST48HD also supports optional side panels with the SR48SIDE4PHD, a set of two half-size side panels that add a finished look to end-of-row racks in your data center.

Specifications

Features
CertificationEIA-310-D, IEC 60297-3-100
Rack capacity48U
Maximum weight capacity3000.5 lbs (1361 kg)
Product colourBlack
Harmonized System (HS) code8517.79.0000
Housing materialSteel
Country of originChina
Weight & dimensions
Package width11" (279.4 mm)
Package height7" (177.8 mm)
Package depth94" (2387.6 mm)
Package weight123.9 lbs (56.2 kg)
Width24" (609.6 mm)
Weight110 lbs (49.9 kg)
Height90" (2286 mm)
Depth35.3" (895.4 mm)
Maximum weight capacity3000.5 lbs (1361 kg)
Packaging data
Package width11" (279.4 mm)
Package height7" (177.8 mm)
Package depth94" (2387.6 mm)
Package weight123.9 lbs (56.2 kg)
Quantity per pack1 pc(s)
Technical details
Rack capacity48U
Products per pallet1 pc(s)
Master (outer) case GTIN (EAN/UPC)10037332185775
Compliance certificatesRoHS
Colour
Product colourBlack
Logistics data
Master (outer) case width41.5" (1054.1 mm)
Master (outer) case length95" (2413 mm)
Master (outer) case height27" (685.8 mm)
Master (outer) case gross weight1488.1 lbs (675 kg)
Products per master (outer) case12 pc(s)
Products per pallet1 pc(s)
Harmonized System (HS) code8517.79.0000
Other features
Products per pallet1 pc(s)
