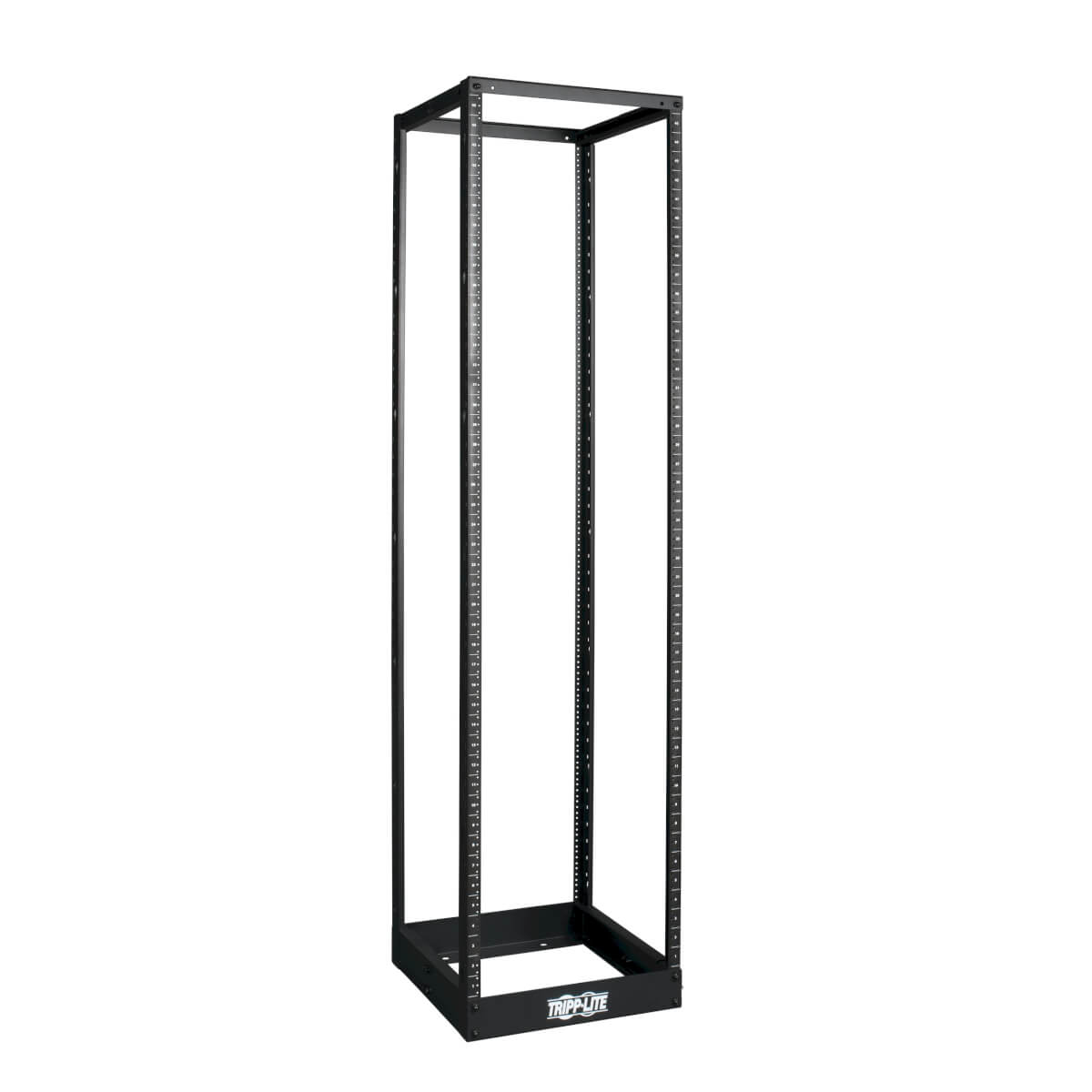

Tripp Lite SR4POST rack cabinet 45U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR4POST
  • EAN: 0037332127570 3540260094106 06 ...0094106 0652977122256 0373321275700more
45U SmartRack 4-Post Open Frame Rack, 1000 lbs (453.6 kgs) Capacity - Organize and Secure Network Rack Equipment

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 45U 4-POST OPEN FRAME RACKTOOLLESS BUTTON HOLESSUPPORTS 1000LBS 452673 Register free see stock
Arlington Industries SMARTRACK 45U 4-POST OPEN FRAME RACK TRPSR4POST
D&H 45U 4 Post Smart Rack SR4POST
Ingram Micro 45U 4 POST OPEN FRAME RACK J92560
TD Synnex 45U 4-POST OPEN FRAME RACK 22-36IN DEPTH 1133974

Related Products

Description

This 45U 4-Post Open Frame Rack helps IT managers organize their equipment array and provides fast, easy access to installed IT equipment. The SR4POST is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 45U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 1,000 pounds (453.6 kilograms) The SR4POST comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

The open design of the SR4POST provides unobstructed airflow and easy access to equipment and cabling. It has numbered, square-hole mounting positions for easy installation of standard 19-inch rack equipment. The SR4POST supports equipment depths from 22 to 36 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

Specifications

Weight & dimensions
Package depth88" (2234.9 mm)
Package width6.5" (165.1 mm)
Package height4.53" (115.1 mm)
Package weight60 lbs (27.2 kg)
Width20.2" (513.1 mm)
Depth39.3" (998.2 mm)
Height84.3" (2141.2 mm)
Weight54 lbs (24.5 kg)
Maximum weight capacity1000 lbs (453.6 kg)
Features
Rack capacity45U
TypeFreestanding rack
Maximum weight capacity1000 lbs (453.6 kg)
Product colourBlack
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Packaging data
Package depth88" (2234.9 mm)
Package width6.5" (165.1 mm)
Package height4.53" (115.1 mm)
Package weight60 lbs (27.2 kg)
Technical details
Package width6.5" (165.1 mm)
Package height4.53" (115.1 mm)
TypeFreestanding rack
Weight (imperial)73 lbs
Master (outer) case GTIN (EAN/UPC)10037332127577
Harmonized System (HS) code8517.79.0000
Rack capacity45U
Colour
Product colourBlack
Certificates
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Logistics data
Master (outer) case width20.5" (519.9 mm)
Master (outer) case length89" (2260.1 mm)
Master (outer) case height20.3" (515.1 mm)
Master (outer) case gross weight604.1 lbs (274 kg)
Products per master (outer) case9 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
Other features
Weight (imperial)73 lbs
