Tripp Lite SR4POST1224 rack cabinet 45U Freestanding rack Black

Tripp Lite SR4POST1224 rack cabinet 45U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR4POST1224
  • EAN: 0037332159830 0097363314479 03 ...3314479 0373321598304more

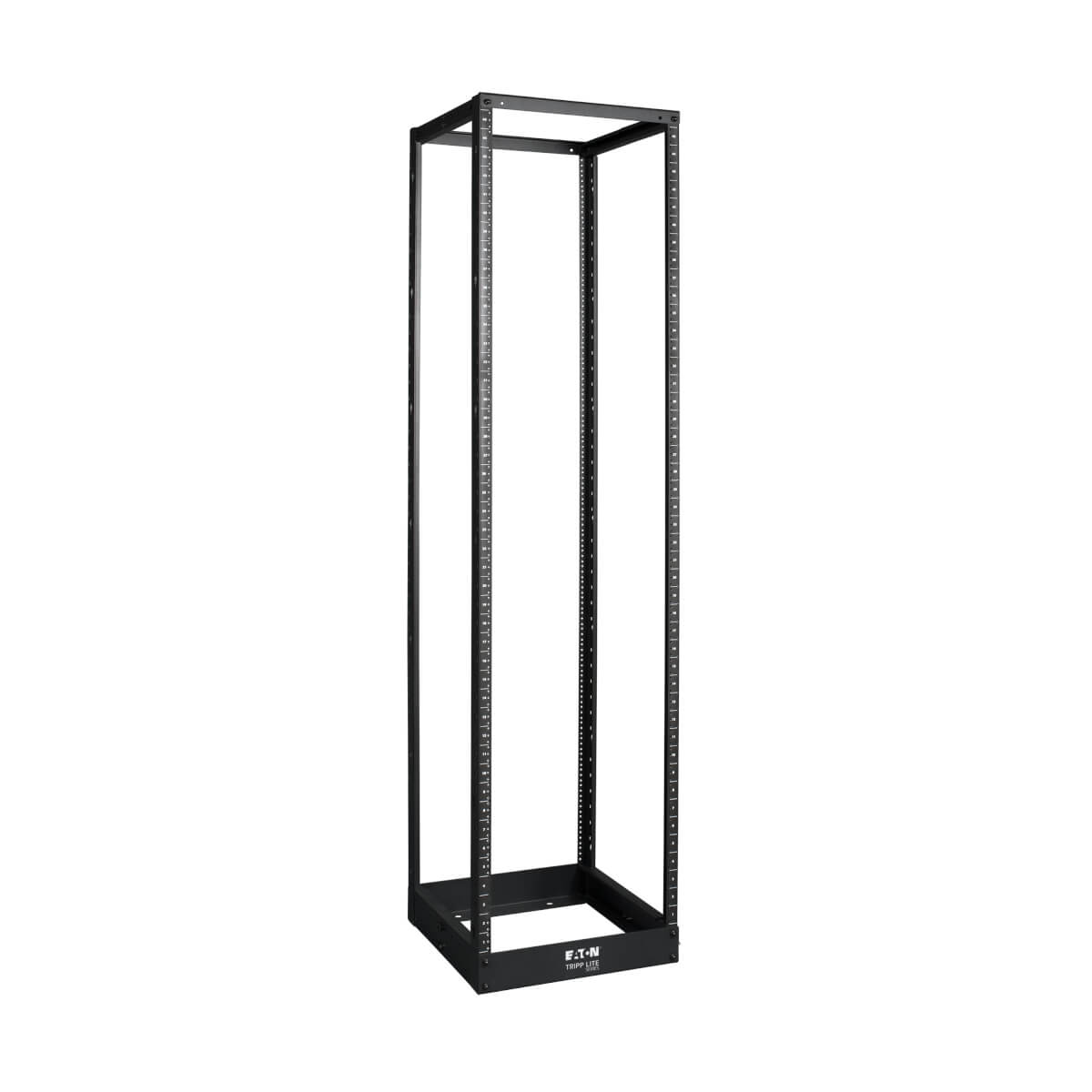

45U SmartRack 4-Post Open Frame Rack - Threaded 12-24 Mounting Holes

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 45U 4-POST OPEN FRAME RACKCABINET THREADED 12-24 565504 Register free see stock
D&H 45U 4 Post Open Frame Rack Cab SR4POST1224
Ingram Micro 45U 4 POST OPEN FRAME RACK KD7923
TD Synnex 45U OPEN FRAME RACK 12-24 MOUNTING HOLES 2991189

Related Products

Description

This 45U 4-Post Open Frame Rack with Threaded Mounting Holes helps IT managers organize their equipment and provides fast, easy access to installed IT equipment. The SR4POST1224 is a simple solution for housing IT equipment in secure environments and other areas that don't require a lockable rack solution. This 45U rack features heavy-duty cold-rolled steel construction with a black powder-coated finish for durability. It supports stationary loads up to 1,000 pounds (453.6 kilograms). The SR4POST1224 comes with all the hardware required for assembly and has a self-squaring design with bolt-down provisions. For high-density applications, multiple units can be bolted together side by side.

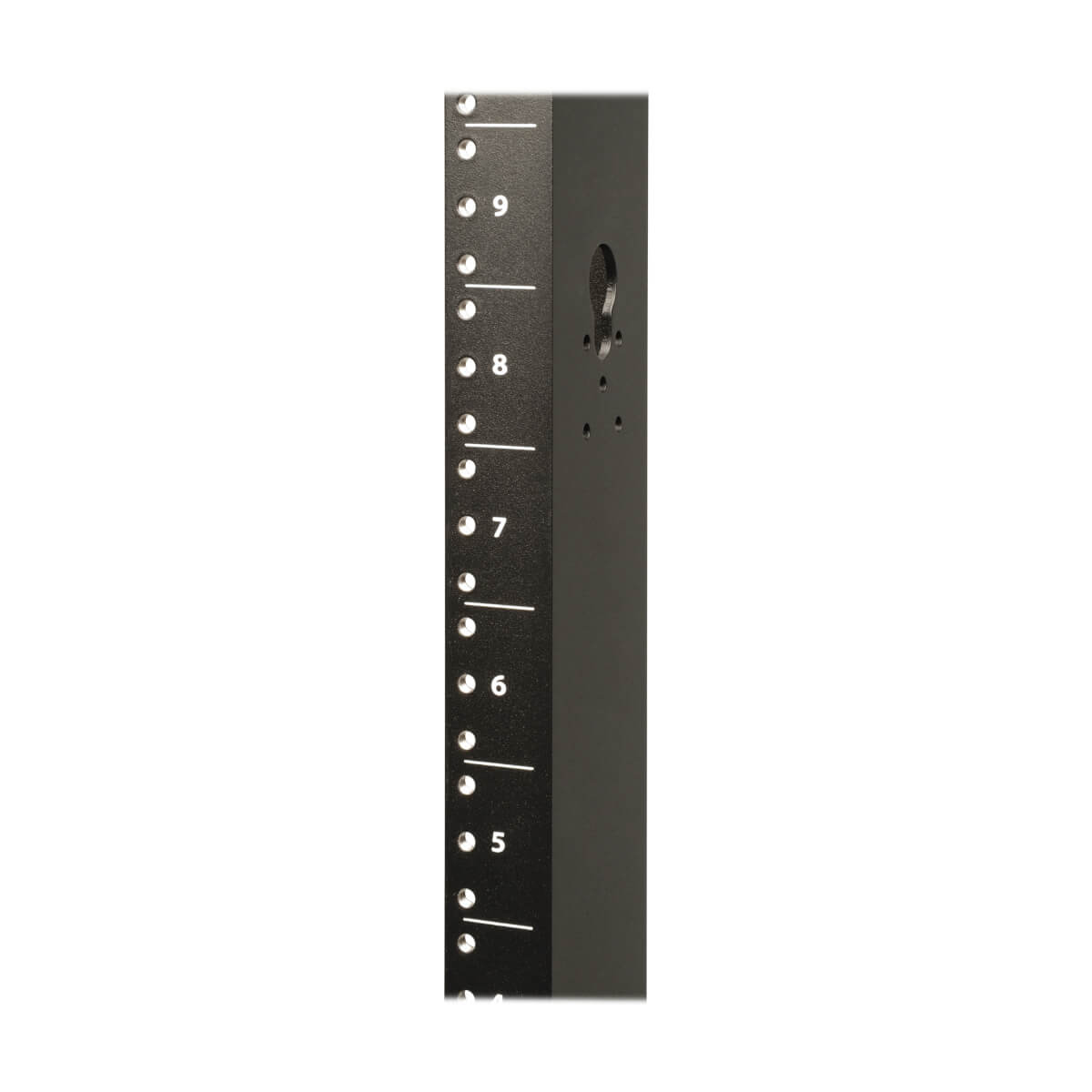

The open design of the SR4POST1224 provides unobstructed airflow and easy access to equipment and cabling. It has threaded (12-24) mounting holes for easy installation of standard 19-inch rack equipment. The SR4POST1224 supports equipment depths from 22 to 36 inches. This rack also accommodates toolless button-hole mounting for vertical PDUs and cable managers.

Specifications

Weight & dimensions
Package depth88.4" (2245.4 mm)
Package width6.6" (167.6 mm)
Package height4.4" (111.8 mm)
Package weight75 lbs (34 kg)
Width20.3" (515.6 mm)
Depth39.4" (1000.8 mm)
Height84.3" (2141.2 mm)
Weight69 lbs (31.3 kg)
Maximum weight capacity1000 lbs (453.6 kg)
Features
Rack capacity45U
TypeFreestanding rack
Maximum weight capacity1000 lbs (453.6 kg)
Product colourBlack
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Packaging data
Package depth88.4" (2245.4 mm)
Package width6.6" (167.6 mm)
Package height4.4" (111.8 mm)
Package weight75 lbs (34 kg)
Technical details
Package width6.6" (167.6 mm)
Package height4.4" (111.8 mm)
TypeFreestanding rack
Master (outer) case GTIN (EAN/UPC)10037332159837
Harmonized System (HS) code8517.79.0000
Rack capacity45U
Colour
Product colourBlack
Certificates
CertificationEIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Logistics data
Master (outer) case width20.5" (520.7 mm)
Master (outer) case length89.5" (2273.3 mm)
Master (outer) case height19.5" (495.3 mm)
Master (outer) case gross weight718 lbs (325.7 kg)
Products per master (outer) case9 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
