Tripp Lite SR2POST25 rack cabinet 25U Freestanding rack Black

Tripp Lite SR2POST25 rack cabinet 25U Freestanding rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SR2POST25
  • EAN: 0037332143143 0600889185296 03 ...9185296 0373321431434 0739197798574 0764306601797more
25U SmartRack 2-Post Open Frame Rack - Organize and Secure Network Rack Equipment

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 25U 2-POST SMARTRACK 508706 Register free see stock
BlueStar TRIPP LITE, 25U SMARTRACK 2-POST OPEN FRAME RACK - ORGANIZE AND SECURE NETWORK RACK EQUIPMENT SR2POST25
D&H 25U 2 Post Open Frame SmartRac SR2POST25
Ingram Micro 25U 2 POST OPEN FRAME RACK U33569
ScanSource Tripp Lite 25 U 2-post Open Frame Rack POW-SR2POST25
TD Synnex 25U 2-POST DESKTOP OPEN FRAME RACK 2224218

Related Products

Description

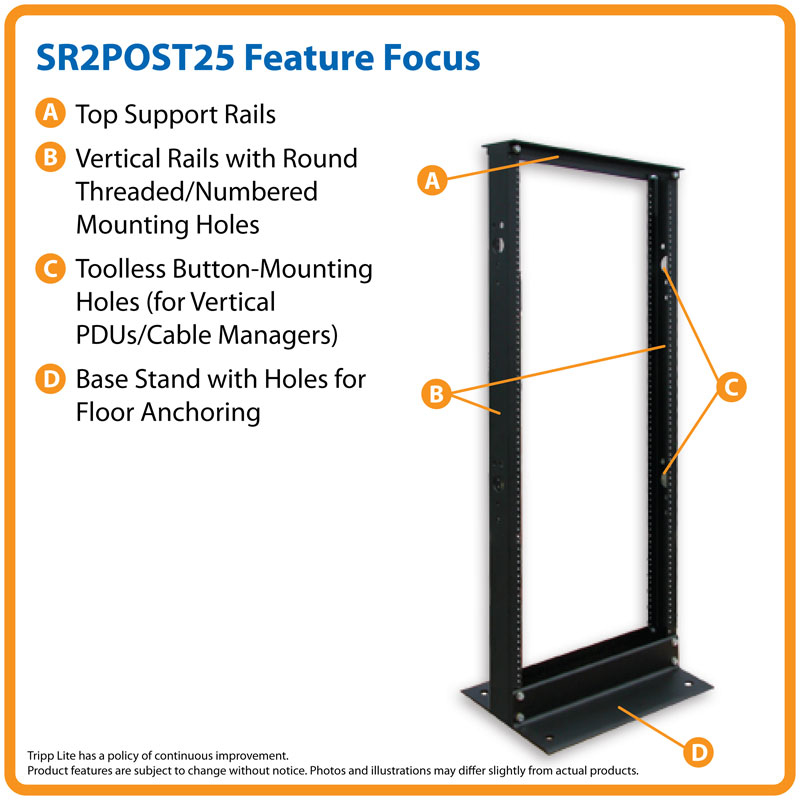

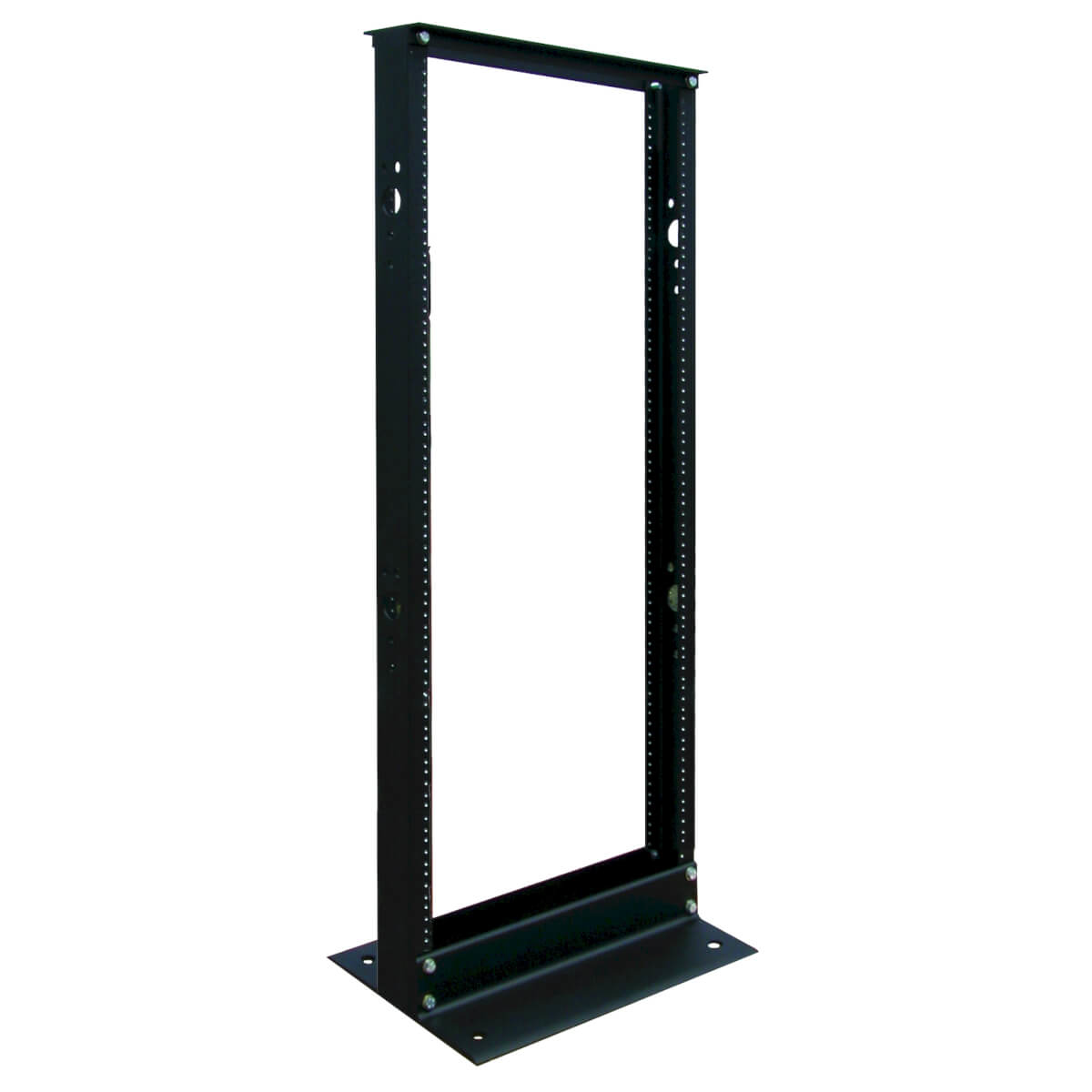

SR2POST25 2-Post SmartRack® Open Frame Rack is an economical way to accommodate 25U of rack space for 19-inch rack-mount applications in limited spaces that do not require a lockable enclosure. Its heavy-duty, aluminum construction can safely support 800 pounds (362.9 kilograms) of rack-mount equipment, and its open design provides easy access to equipment and cabling. The black, textured powder coat finish makes it resistant to scratching while giving it a "classic" attractive appearance. The SR2POST25 is easy to install due to a self-squaring design combined with 12-24 threaded and numbered mounting positions and bolt-down provisions. It uses toolless button-hole mounting for vertical PDUs and cable managers. In high-density environments, multiple units can be bolted together side by side for easy expansion or customization. The SR2POST25 2-Post SmartRack Open Frame Rack has been approved by EIA-310-D, IEC 60297-3-100 and RoHS.

Specifications

Weight & dimensions
Package depth52.6" (1336 mm)
Package width6" (152.4 mm)
Package height4.5" (114.3 mm)
Package weight26 lbs (11.8 kg)
Width20.3" (515.6 mm)
Depth13.5" (342.9 mm)
Height49" (1244.9 mm)
Weight22.9 lbs (10.4 kg)
Maximum weight capacity800.1 lbs (362.9 kg)
Features
Rack capacity25U
TypeFreestanding rack
Maximum weight capacity800.1 lbs (362.9 kg)
Product colourBlack
CertificationEIA-310-D, IEC 60297-3-100, RoHS
Packaging data
Package depth52.6" (1336 mm)
Package width6" (152.4 mm)
Package height4.5" (114.3 mm)
Package weight26 lbs (11.8 kg)
Technical details
Package width6" (152.4 mm)
Package height4.5" (114.3 mm)
TypeFreestanding rack
Master (outer) case GTIN (EAN/UPC)10037332143140
Harmonized System (HS) code8517.79.0000
Rack capacity25U
Colour
Product colourBlack
Certificates
CertificationEIA-310-D, IEC 60297-3-100, RoHS
Logistics data
Master (outer) case width20.5" (519.9 mm)
Master (outer) case length54.1" (1374.9 mm)
Master (outer) case height28.3" (718.3 mm)
Master (outer) case gross weight286.6 lbs (130 kg)
Products per master (outer) case9 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
