Tripp Lite SRWO12UHD rack cabinet 12U Wall mounted rack Black

Tripp Lite SRWO12UHD rack cabinet 12U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRWO12UHD
  • EAN: 0037332182654 0373321826544 00 ...1826544 0039414570298more
SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter SMARTRACK 12U WALL-MOUNTOPEN FRAME RACK 641296 Register free see stock
BlueStar TRIPP LITE, SMARTRACK 12U HEAVY-DUTY FLAT-PACK LOW-PROFILE SWITCH-DEPTH WALL-MOUNT 2-POST OPEN FRAME RACK SRWO12UHD
D&H 12U Wall Mount Open Frame Rack SRWO12UHD
Ingram Micro 12U WALL MOUNT OPEN FRAME RACK XT0130
ScanSource Tripp Lite 12U Wall-Mount Open Frame Rck POW-SRWO12UHD
TD Synnex 12U WALLMOUNT RACK 2-POST OPEN FRAME 3991396

Related Products

Description

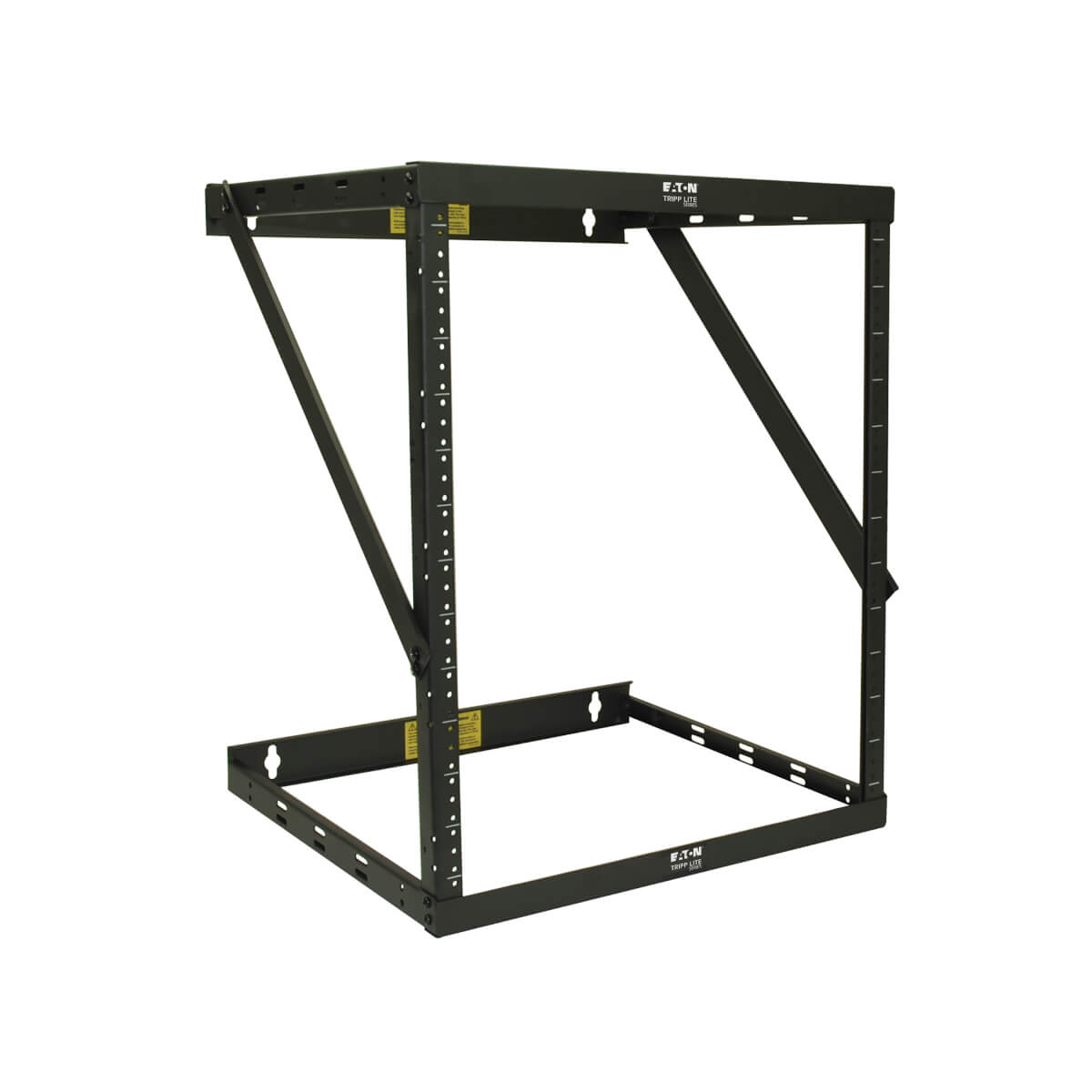

The SRWO12UHD SmartRack 12U Heavy-Duty Flat-Pack Low-Profile Switch-Depth Wall-Mount 2-Post Open Frame Rack stores and organizes EIA-standard 19-inch rack equipment compatible with 2-post mounting in network wiring closets, back offices and other secure areas with limited floor space where a locked enclosure is not required. Constructed from heavy-duty steel with a durable black powder-coated finish, the rack has a maximum load capacity of 200 lbs (90.7 kgs).

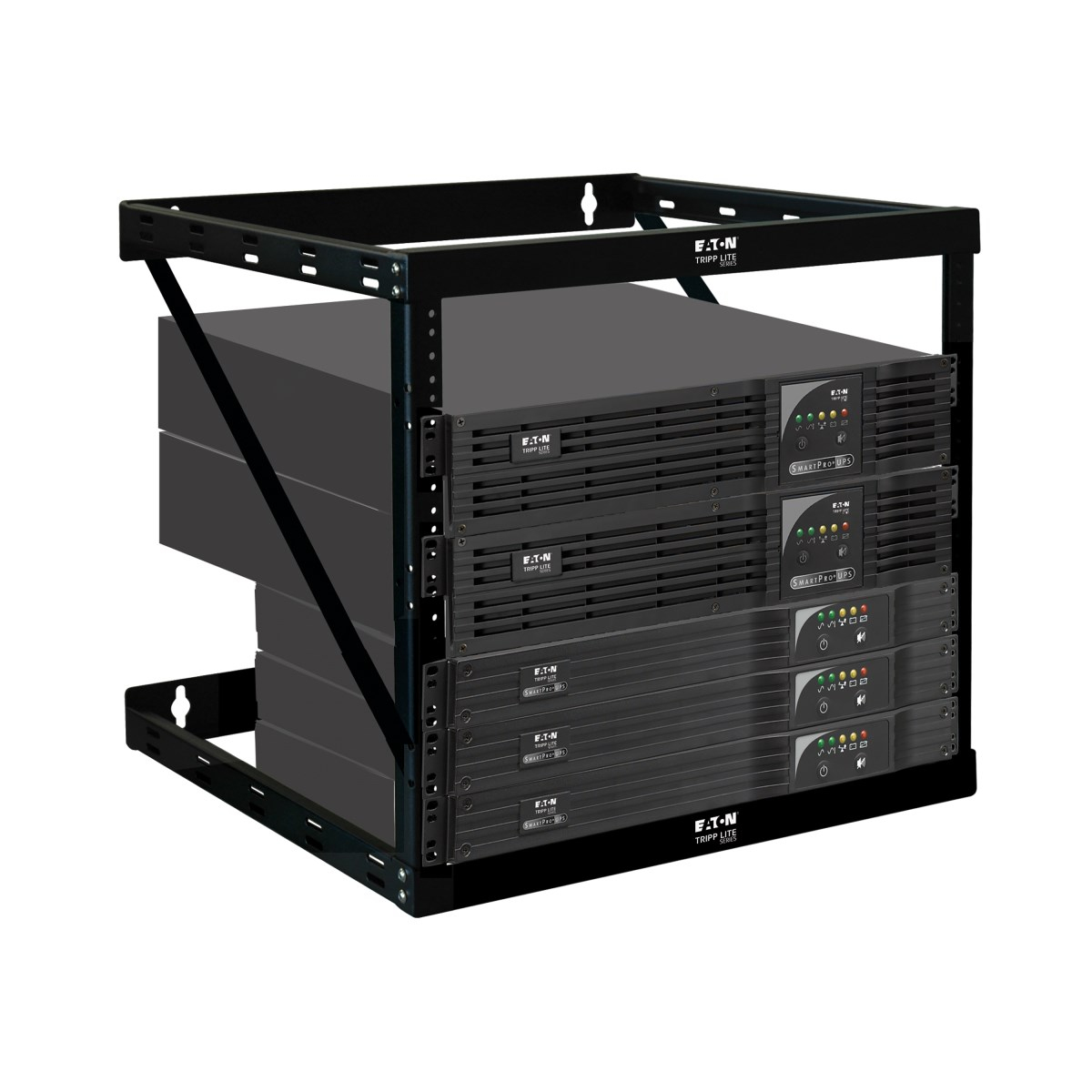

The open frame design allows unrestricted access for installing, configuring and servicing equipment and cabling. The rack is simple to assemble and mount to the wall. Threaded 12-24 mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails accommodate equipment up to 18 inches deep, such as network switches and patch panels. Assembly and equipment-mounting hardware is included.

Specifications

Weight & dimensions
Package depth21.3" (541 mm)
Package width22.8" (579.1 mm)
Package height4.1" (104.1 mm)
Package weight15.1 lbs (6.85 kg)
Width20.1" (510.8 mm)
Depth18.2" (463.3 mm)
Height24.8" (629.9 mm)
Weight14.3 lbs (6.5 kg)
Maximum weight capacity200 lbs (90.7 kg)
Features
Rack capacity12U
TypeWall mounted rack
Maximum weight capacity200 lbs (90.7 kg)
Product colourBlack
CertificationNOM, EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Packaging data
Package depth21.3" (541 mm)
Package width22.8" (579.1 mm)
Package height4.1" (104.1 mm)
Package weight15.1 lbs (6.85 kg)
Technical details
Package width22.8" (579.1 mm)
Package height4.1" (104.1 mm)
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity12U
Colour
Product colourBlack
Certificates
CertificationNOM, EIA-310-D, IEC 60297-3-100, DIN 41494, RoHS
Logistics data
Master (outer) case width22.8" (579.1 mm)
Master (outer) case length21.3" (541 mm)
Master (outer) case height4.1" (104.1 mm)
Master (outer) case gross weight15.1 lbs (6.85 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
