Tripp Lite SRW12U rack cabinet 12U Wall mounted rack Black

Tripp Lite SRW12U rack cabinet 12U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRW12U
  • EAN: 0037332174451 0373321744510
SmartRack 12U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 12U WALL MOUNT RACK ENCLOSURECABINET W/ DOOR & SIDE 565544 Register free see stock
Arlington Industries 12U SHALLOW 16.5" WALL MOUNT RACK TRPSRW12U
ASI Corp Case SRW12U 12U Switch-Depth Wall-Mount Rack Enclosure Cabinet RTL 184834
BlueStar TRIPP LITE, SMARTRACK 12U LOW-PROFILE SWITCH-DEPTH WALL-MOUNT RACK ENCLOSURE CABINET SRW12U
D&H 12U Wallmount Rack SRW12U
Ingram Micro 12U WALL MOUNT RACK ENCLOSURE PX7136
ScanSource Tripp Lite SRW12US 12U Wall Mount Rack POW-SRW12U
TD Synnex 12U WALLMOUNT RACK ENCLOSURE CABINET 3378925
TD Synnex Liquidation Use Only 14316480

Related Products

Description

The SRW12U SmartRack® 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

The side panels and front door lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing.

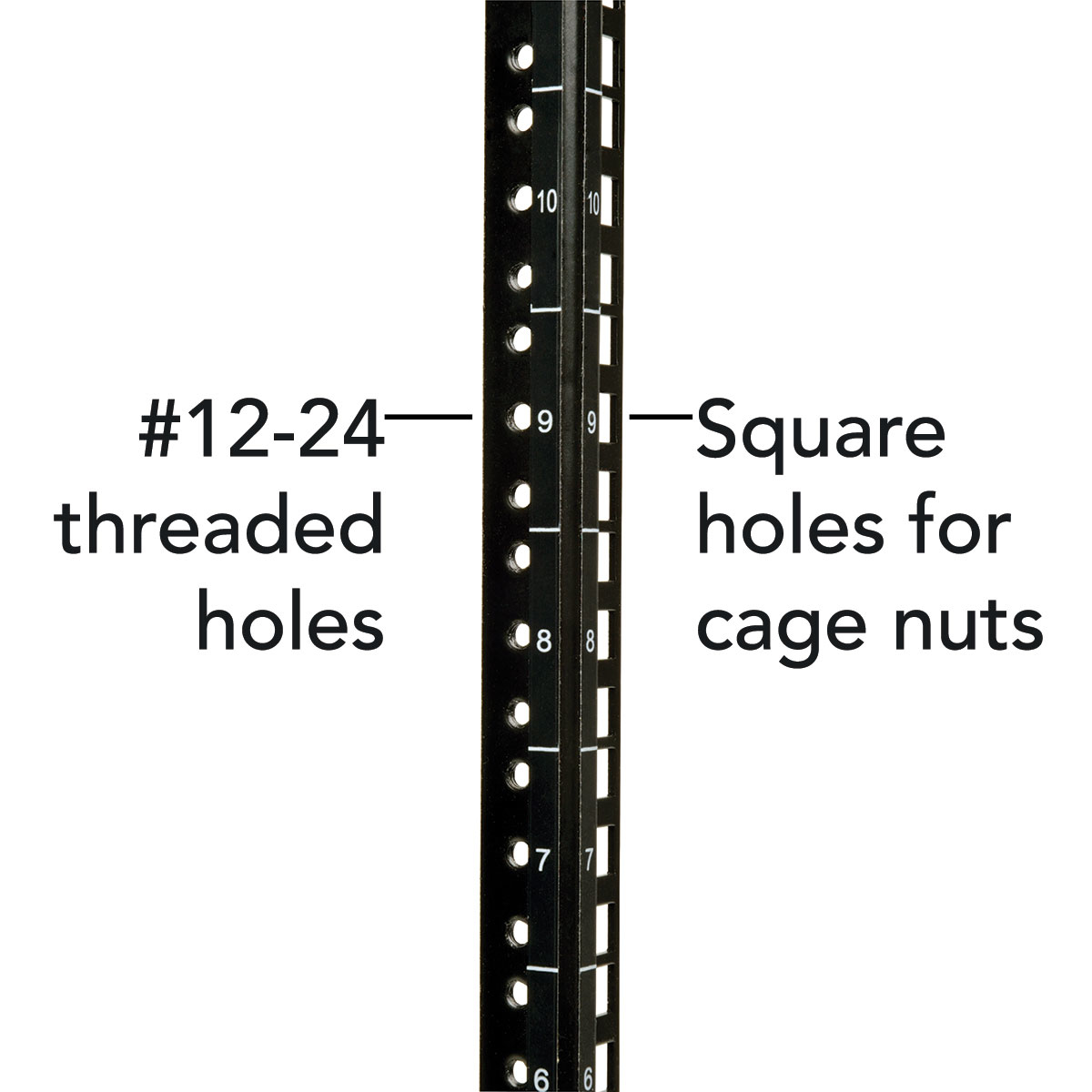

The SRW12U comes fully assembled and ready to mount to the wall, or use the optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

Specifications

Weight & dimensions
Package depth28.1" (713.7 mm)
Package width20.6" (523.2 mm)
Package height26.4" (670.6 mm)
Package weight44.1 lbs (20 kg)
Width23.5" (596.9 mm)
Depth17.5" (444.5 mm)
Height25.1" (637 mm)
Weight44.1 lbs (20 kg)
Maximum weight capacity200 lbs (90.7 kg)
Packaging content
Wall mounting kitYes
ManualYes
Features
Rack capacity12U
TypeWall mounted rack
Maximum weight capacity200 lbs (90.7 kg)
Product colourBlack
CertificationRoHS, EIA-310-E
Packaging data
Wall mounting kitYes
ManualYes
Package depth28.1" (713.7 mm)
Package width20.6" (523.2 mm)
Package height26.4" (670.6 mm)
Package weight44.1 lbs (20 kg)
Technical details
Package width20.6" (523.2 mm)
Package height26.4" (670.6 mm)
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity12U
Colour
Product colourBlack
Certificates
CertificationRoHS, EIA-310-E
Logistics data
Master (outer) case width20.6" (523.2 mm)
Master (outer) case length28.1" (713.7 mm)
Master (outer) case height26.4" (670.6 mm)
Master (outer) case gross weight44.1 lbs (20 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
