Tripp Lite SRW12USDP power rack enclosure 12U Wall Black

Tripp Lite SRW12USDP power rack enclosure 12U Wall Black

SmartRack 12U UPS-Depth Wall-Mount Small Rack Enclosure, Hinged Back

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 12U WALL MOUNT RACK ENCLOSURECAB SWINGING HINGED DOOR DEEPSRW12USDP 812731 Register free see stock
Anixter 12U WALL MOUNT RACK ENCLOSURECAB SWINGING HINGED DOOR DEEPSRW12USDP 812731-DIGICEL
Arlington Industries 12U HINDGED 24.5" WALL MOUNT RACK TRPSRW12USDP
ASI Corp CS SRW12USDP 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet 221047
BlueStar TRIPP LITE, 12U WALL MOUNT RACK ENCLOSURE HINGED WALLMOUNT WITH DOORS AND SIDES SRW12USDP
D&H 12U Wallmnt Rack Swing Door SRW12USDP
Ingram Micro 12U WALL MOUNT RACK ENCLOSURE 1V4232
ScanSource Tripp Lite SRW12USDP 12U Wall Mount Rack POW-SRW12USDP
Seventh Genius 12U Wall Mount Rack Enclosure Server Cabinet Black SRW12USDP SRW12USDP
TD Synnex 12U WALLMOUNT RACK DEEP W/HINGED BACK 4402589

Related Products

Description

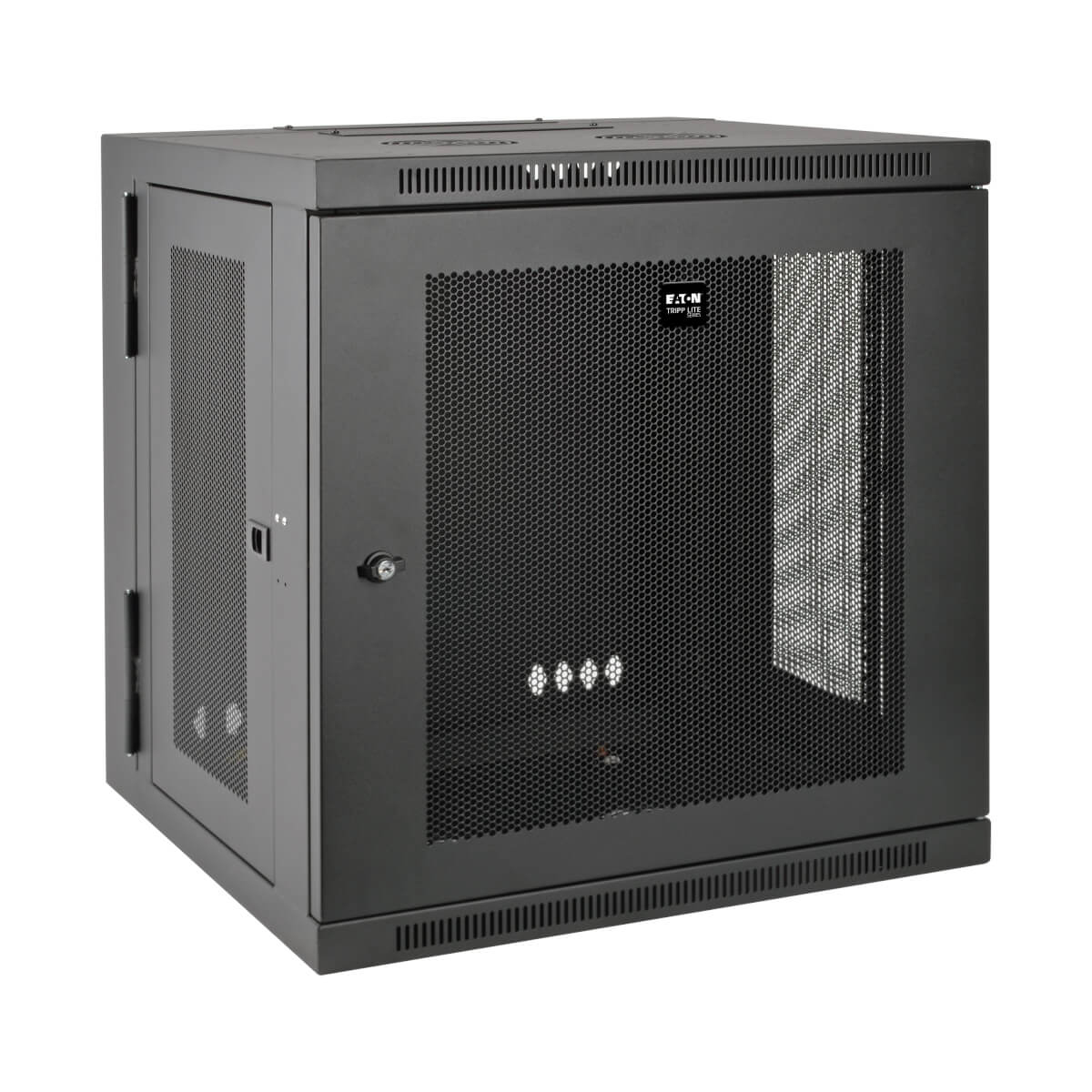

The SRW12USDP SmartRack® 12U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

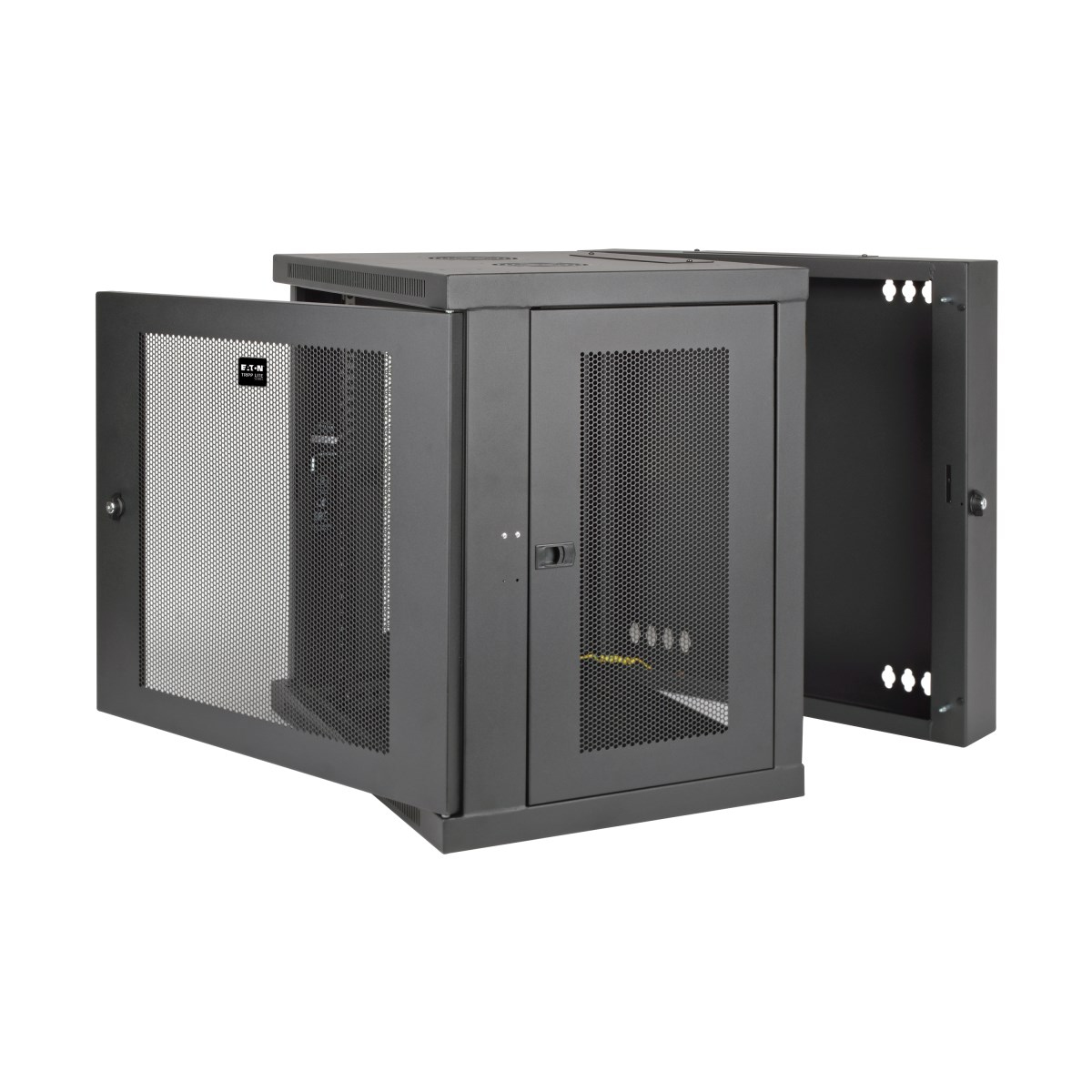

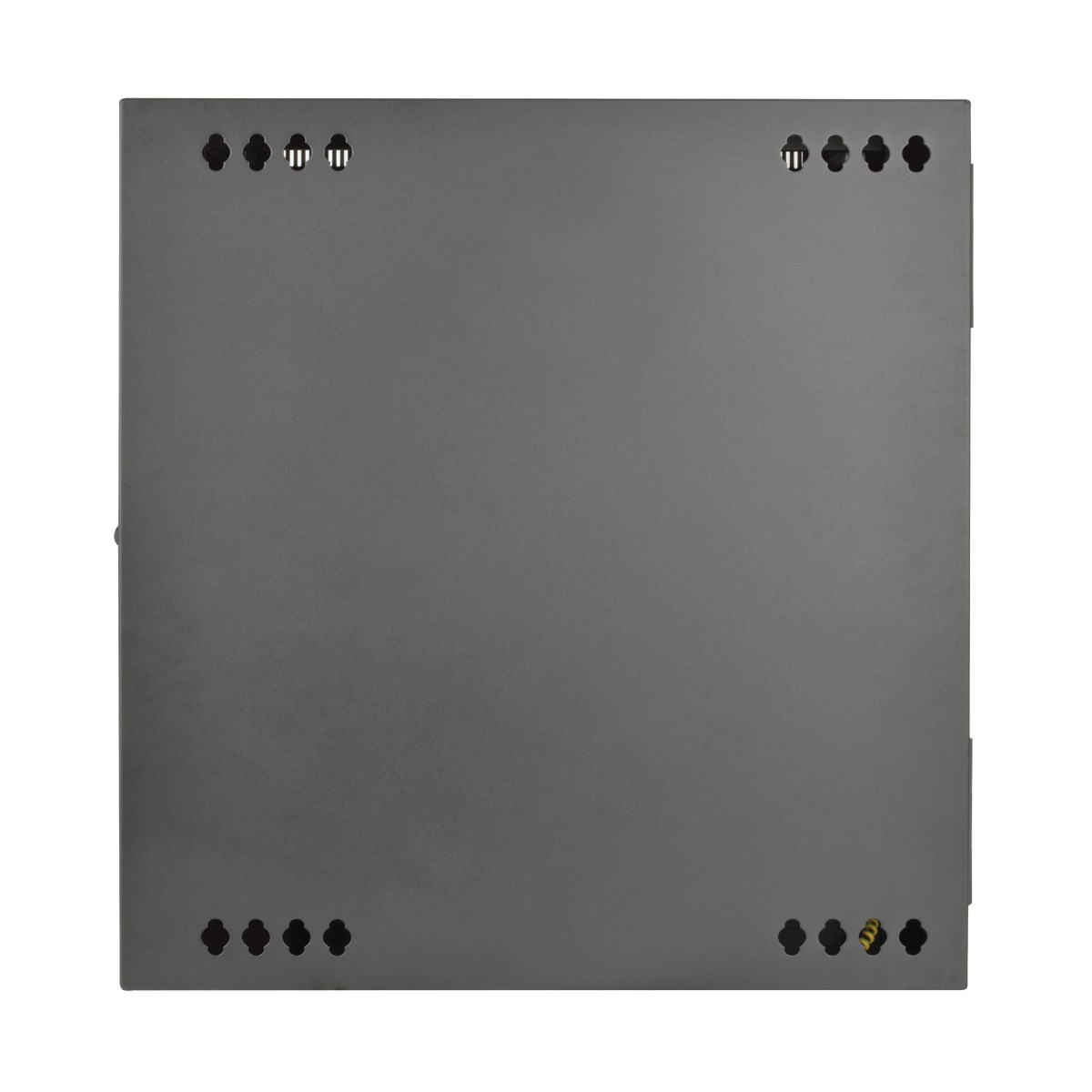

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

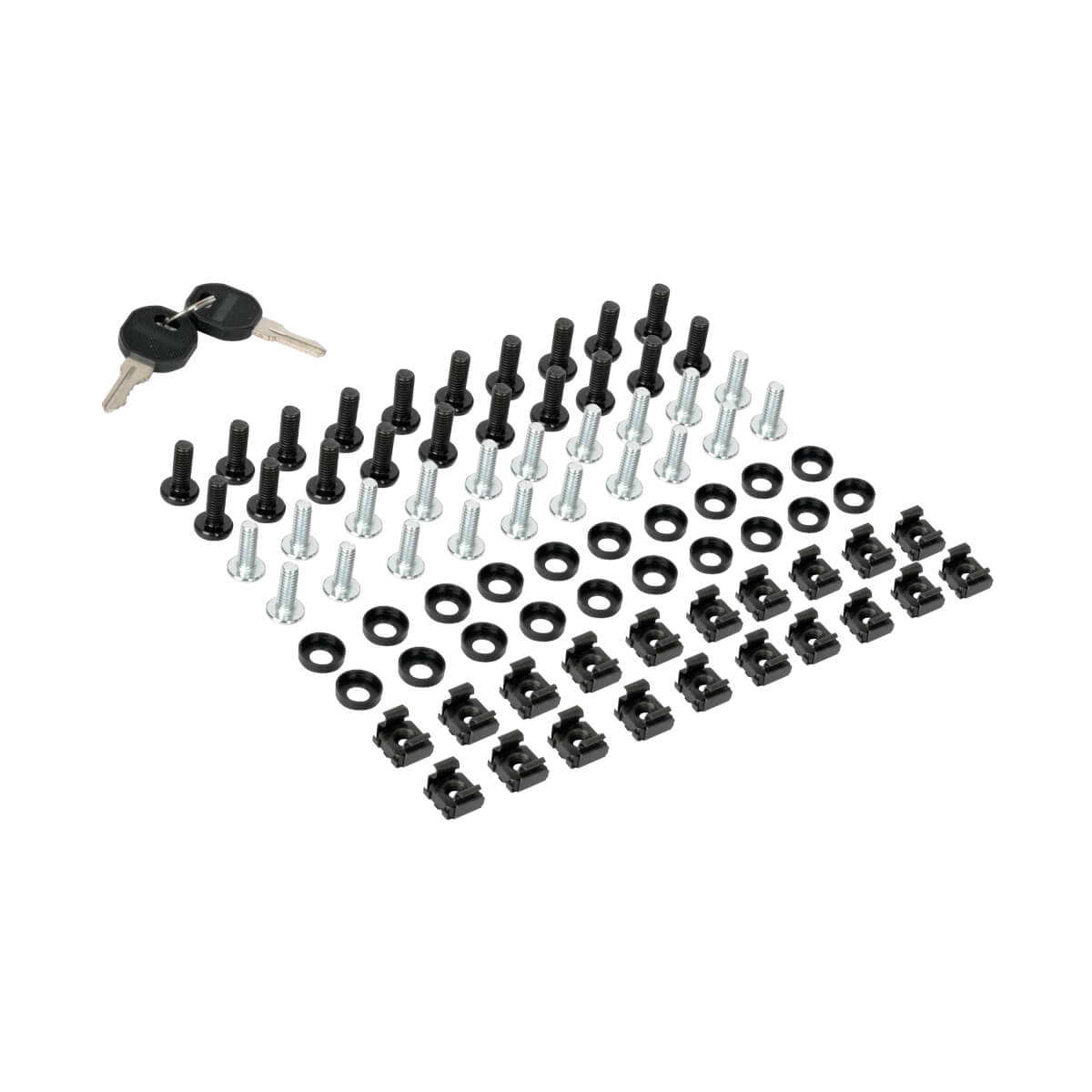

The SRW12USDP comes fully assembled and ready to mount to the wall, or use an optional SRCASTER rolling caster kit (sold separately) to make it a mobile rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

Specifications

Technical details
LockingYes
Rack capacity12U
Maximum weight capacity198.4 lbs (90 kg)
Mounting typeWall
Reversible doorsYes
Cable entry locationRear
Removable side panelsYes
International Protection (IP) codeIP20
MaterialSteel
Product colourBlack
Products per master (outer) case1 pc(s)
Master (outer) case width30" (762 mm)
Master (outer) case gross weight91.9 lbs (41.7 kg)
Master (outer) case length31" (787.4 mm)
Master (outer) case height30" (762 mm)
Package width30" (762 mm)
Package height30" (762 mm)
Package depth31" (787.4 mm)
Compliance certificatesRoHS
Weight & dimensions
Width23.6" (600.2 mm)
Depth25.5" (647.7 mm)
Height25.1" (636.5 mm)
Weight63.5 lbs (28.8 kg)
Packaging content
Side panels includedYes
ManualYes
Packaging data
Package dimensions (WxDxH)28.1 x 29.9 x 29.3" (715 x 760 x 745 mm)
Package weight91.9 lbs (41.7 kg)
Package width30" (762 mm)
Package height30" (762 mm)
Package depth31" (787.4 mm)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width30" (762 mm)
Master (outer) case gross weight91.9 lbs (41.7 kg)
Master (outer) case length31" (787.4 mm)
Master (outer) case height30" (762 mm)
