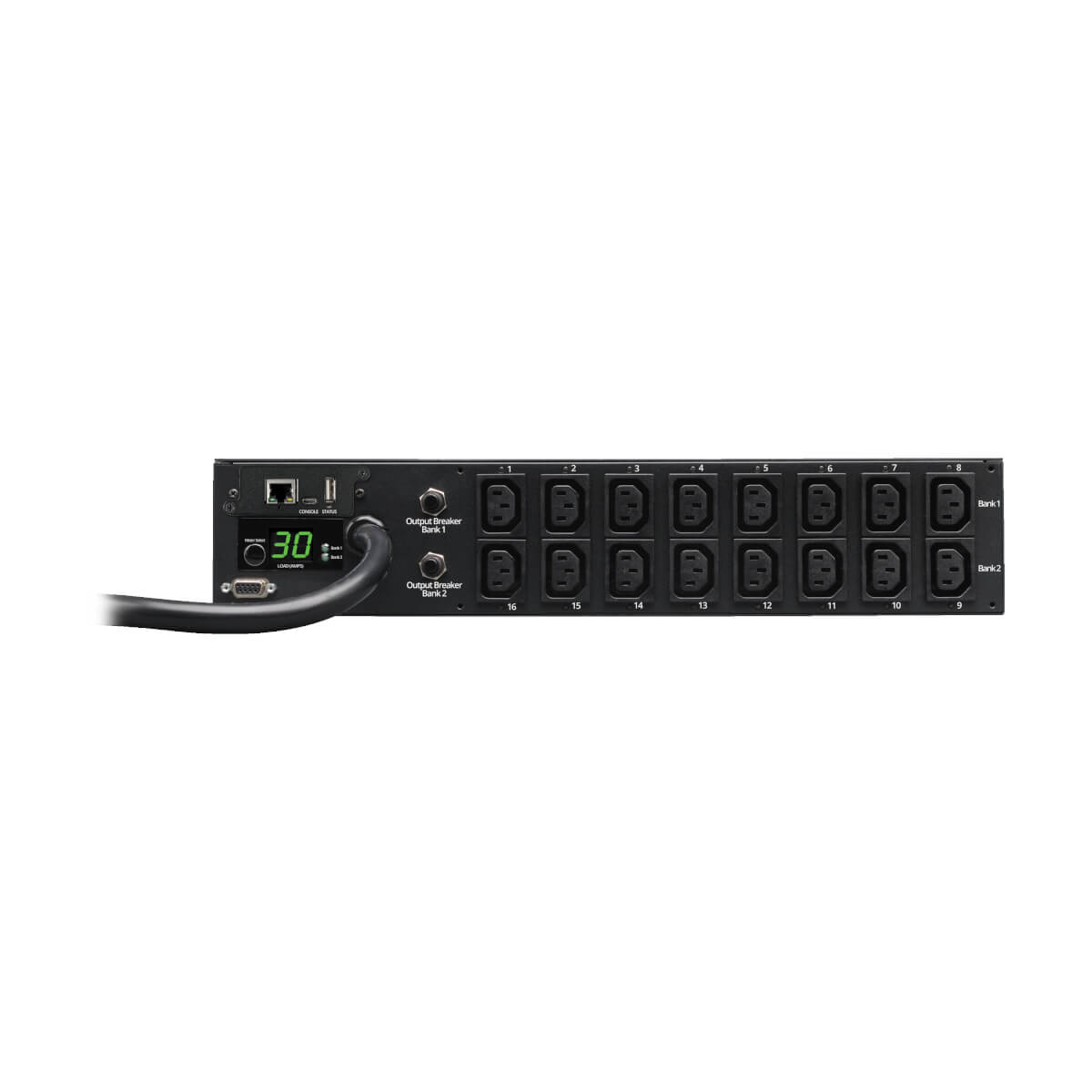

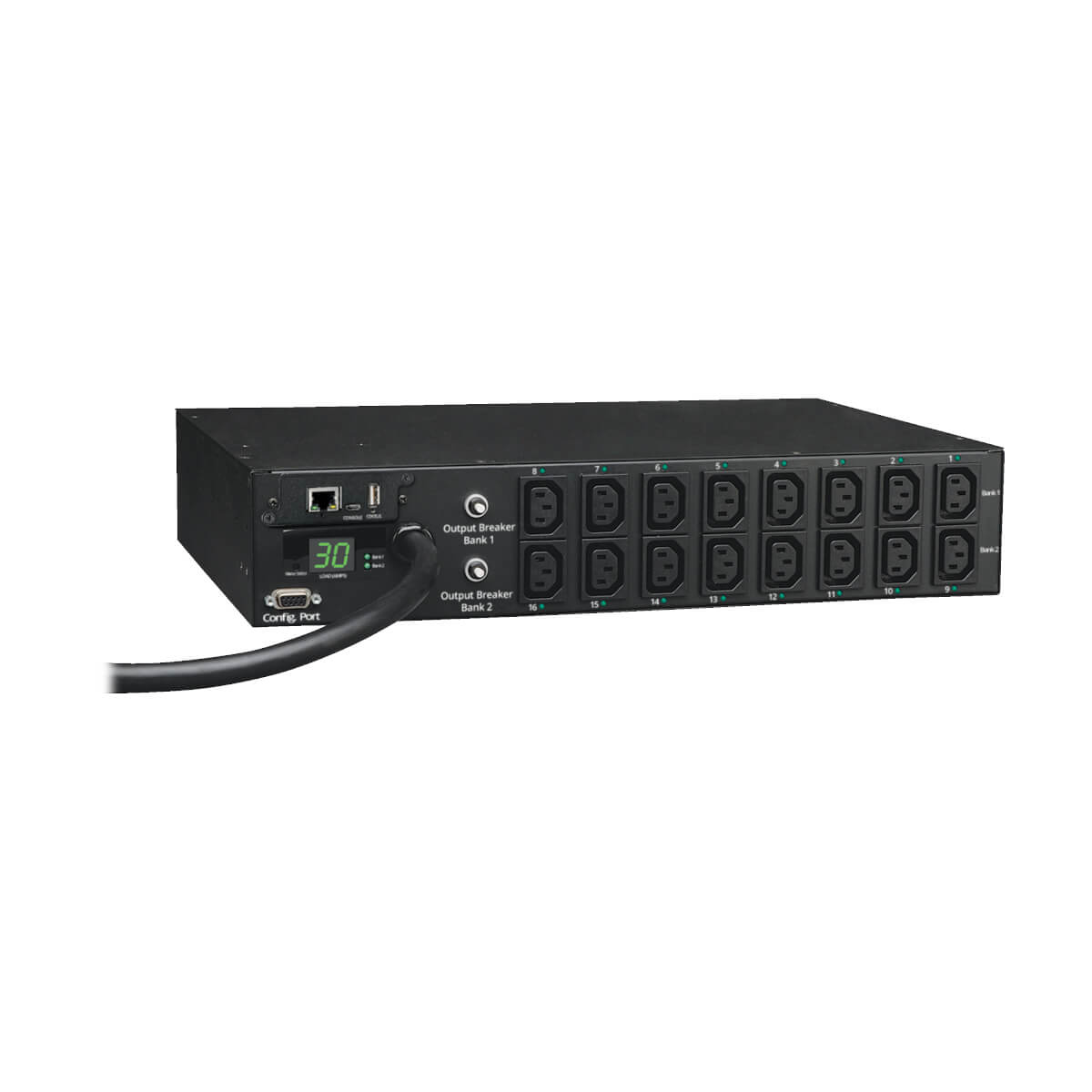

Tripp Lite PDUMH30HVNET power distribution unit (PDU) 16 AC outlet(s) 2U Black

Tripp Lite PDUMH30HVNET power distribution unit (PDU) 16 AC outlet(s) 2U Black

  • Brand: Tripp Lite
  • Category:
  • SKU: PDUMH30HVNET
  • EAN: 0803982827562 0999998302879 03 ...8302879 0373321393206 0151903073049 0763615950428 0132017941837 0806291857527 0163121196233more
5.8kW Single-Phase Switched PDU, 208/240V Outlets (16 C13), L6-30P Input, 3.66 m (12-ft.) Cord, 2U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

30A, 208V PDU HORIZONTALSWITCHED PDU, L6-30P16 C13 OUTLETS

 381569 Register free see stock
Arlington Industries

2U 16-OUT/230V 5500W SWITCH LX PDU TAA

 TRPPDUMH30HVNET

Related Products

Description

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
- Switched 30A 208/240V PDU, 2U horizontal rackmount format
- Reports voltage, frequency & load level via ethernet interface
- Visual current meter, Reversible housing
- NEMA L6-30P input plug with attached 12 ft. / 3.6m line cord
- 16 switched C13 outlets with cord retention brackets
- Temperature, humidity and contact closure monitoring options


- Rackmount PDU
- Installable 2U mounting brackets

- 30A 208/240V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 24A continuous)
- Attached L6-30P 208/240V single phase input, 12 ft. / 3.6m input cord
- 2U horizontal rackmount form factor
- 16 switched c13 outlets
- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis

- Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets

- Network interface provides PDU control and data regarding input voltage and total output load level in amps

- Digital display continuously reports output load in amps in 3 segments (load bank 1, load bank 2, total)

- Supports user-specified alarm notification thresholds

- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors

- DHCP/Manual configuration support

- 10/100 Mbps auto-sensing
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered

- Tiered access privileges allow an administrator and a guest to login via web browser

- Alert notifications via email or SNMP traps offer immediate event notification

- Firmware upgrade ability supports future product enhancements

- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols

- Fully compatible with FREE PowerAlert Network Management System / NMS Software

- 2U horizontal rack installation supported in 2 or 4 post racks with included mounting brackets
- Mounting brackets support wall-mount and under-counter installation in many applications
- Included cord retention brackets

Specifications

Design
PDU typesSwitched
MountingHorizontal
Product colourBlack
CertificationUL 60950-1, Class A, NOM
Rack capacity2U
Housing materialMetal
Ports & interfaces
AC outlets quantity16 AC outlet(s)
AC outlet typesC13 coupler
Power plugNEMA L6-30P
Features
Cable length141.7" (3.6 m)
CertificationUL 60950-1, Class A, NOM
Ergonomics
Cable length141.7" (3.6 m)
Power
Nominal input voltage200-240 V
Nominal output voltage200-240 V
Maximum current30 A
AC input frequency50 - 60 Hz
Certificates
CertificationUL 60950-1, Class A, NOM
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight13.7 lbs (6.21 kg)
Width17.5" (445 mm)
Depth12.5" (317.5 mm)
Height3.5" (89 mm)
Package width16.7" (424.2 mm)
Package depth19.6" (497.8 mm)
Package height7.8" (198.1 mm)
Package weight17 lbs (7.71 kg)
Packaging data
Package width16.7" (424.2 mm)
Package depth19.6" (497.8 mm)
Package height7.8" (198.1 mm)
Package weight17 lbs (7.71 kg)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
