Tripp Lite PDUB15 power distribution unit (PDU) 8 AC outlet(s) 2U Black

Tripp Lite PDUB15 power distribution unit (PDU) 8 AC outlet(s) 2U Black

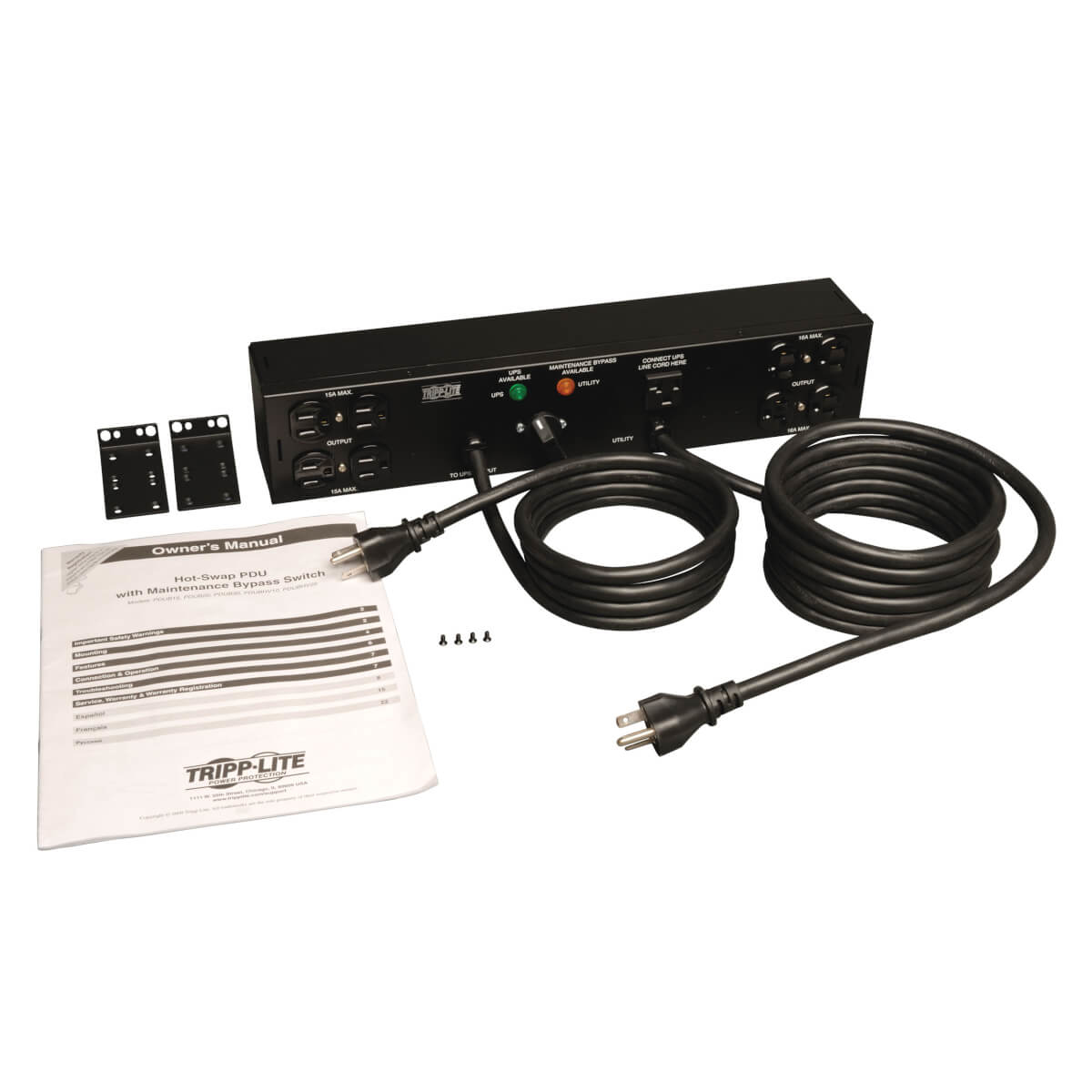

1.44kW Single-Phase Hot-Swap PDU, 120V 15A Outlets (8 5-15R), 2 5-15P, 10ft & 6ft Cords 2U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
BlueStar TRIPP LITE, MAINTENANCE BYPASS SWITCH FOR UPS 1500VA OR SMALLER PDUB15 Register free see stock

Related Products

Description

Tripp Lite’s Hot-swap PDU systems enable live-replacement of standard UPS systems for maintenance with no interruption of connected server or networking loads. Dual input power cables support PDU connection to separate Utility and UPS power sources. Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS. Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS. Set the switch to Utility to momentarily power connected equipment from the Utility line cord and bypass the UPS while the UPS system is removed and replaced with a fresh one. Once the new UPS is up and running with all data and electrical connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power to connected equipment.
- Tripp Lite Hot-swap PDU systems support live-replacement of standard UPS systems for maintenance with no interruption of connected server or networking loads
- PDUB15 is universally compatible with any Tripp Lite or other brand of 100-127V UPS rated up to 1500VA or 1440 watts with a NEMA 5-15P input cable
- 2U horizontal rackmount form factor compatible with 2 or 4 post racks
- Supports space saving rear-post mounting in the same rack space as many Tripp Lite Rackmount UPS systems (select installations, see manual)
- Pair of attached 5-15P PDU input cables connect to separate Utility and UPS power sources
- 8 high quality 5-15R outlets support critical networking loads in both Utility and UPS operating modes
- One additional 5-15R pass-through outlet supports UPS input power cord
- Dual input power cables support PDU connection to separate Utility and UPS power sources

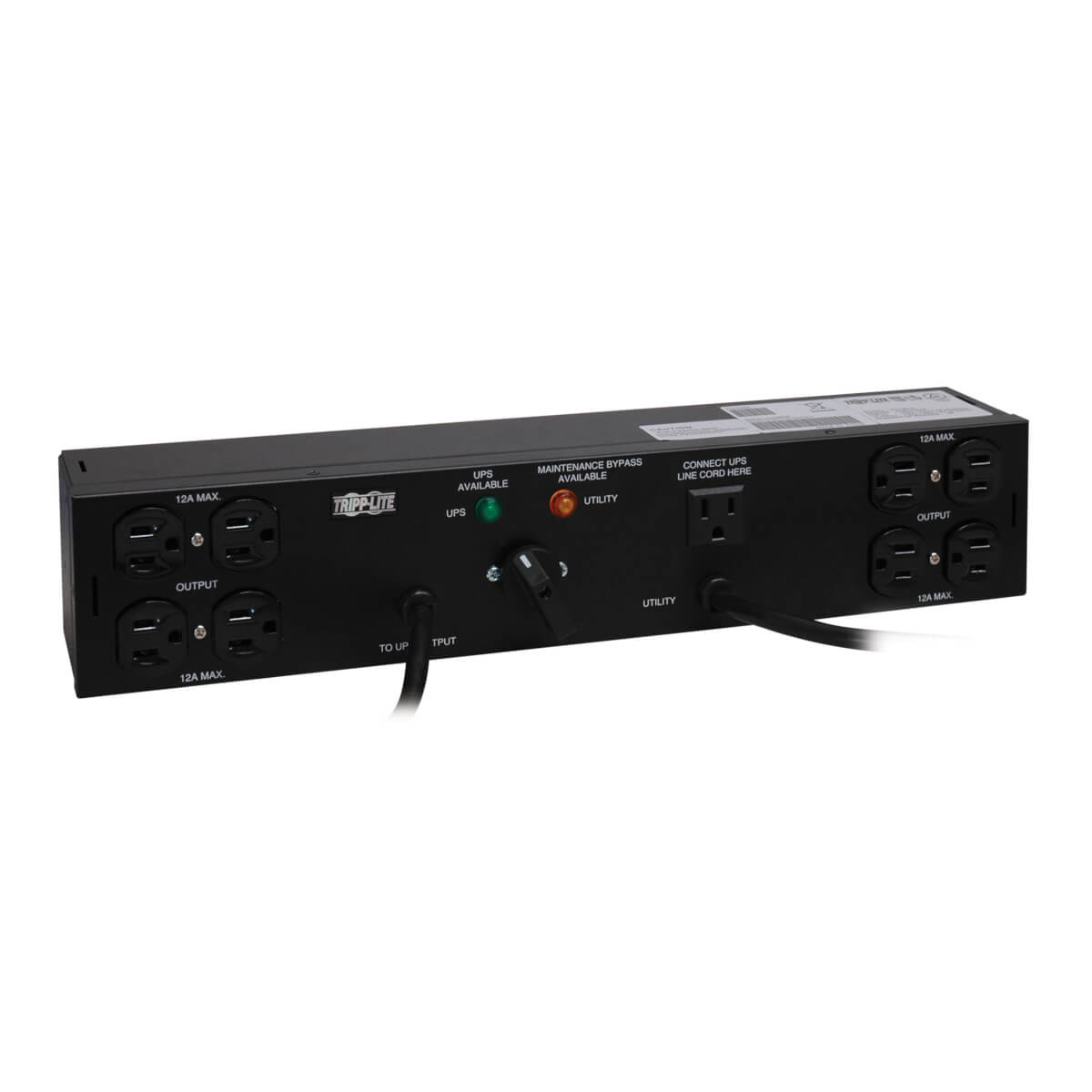

- Manual transfer switch with lighted status indicators controls the source of power to connected equipment between Utility and UPS
- Set the switch to UPS during normal operation and connected equipment will receive full-time conditioned power from the UPS
- Set the switch to Utility to bypass the UPS and provide connected equipment with unfiltered power directly from the Utility line cord while the UPS system is removed and replaced with a fresh one
- Once the new UPS is up and running with all connections restored, set the switch back to the UPS setting to once again provide fully-conditioned UPS power to connected equipment
- TAA Compliant Version Available - Order Tripp Lite PDUB15TAA

Specifications

Design
PDU typesBasic
MountingHorizontal
Product colourBlack
CertificationUL60950, CSA
Rack capacity2U
Housing materialSteel
Ports & interfaces
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5–15P
Features
Cable length70.9" (1.8 m)
LED indicatorsYes
CertificationUL60950, CSA
Ergonomics
Cable length70.9" (1.8 m)
LED indicatorsYes
Power
Nominal input voltage100-127 V
Nominal output voltage100 - 127 V
Maximum current12 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.3 x 3.03 x 3.43" (440 x 77 x 87 mm)
Weight6 lbs (2.72 kg)
Width17.3" (439.9 mm)
Depth3.03" (77 mm)
Height3.42" (86.9 mm)
Package width6.2" (157.5 mm)
Package depth20" (508 mm)
Package height12.3" (312.4 mm)
Package weight8.91 lbs (4.04 kg)
Packaging data
Package width6.2" (157.5 mm)
Package depth20" (508 mm)
Package height12.3" (312.4 mm)
Package weight8.91 lbs (4.04 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Master (outer) case GTIN (EAN/UPC)10037332153873
Compliance certificatesRoHS
Logistics data
Master (outer) case width20" (508 mm)
Master (outer) case length20.8" (528.3 mm)
Master (outer) case height28.1" (713.7 mm)
Master (outer) case gross weight57.1 lbs (25.9 kg)
Products per master (outer) case6 pc(s)
Country of originChina
