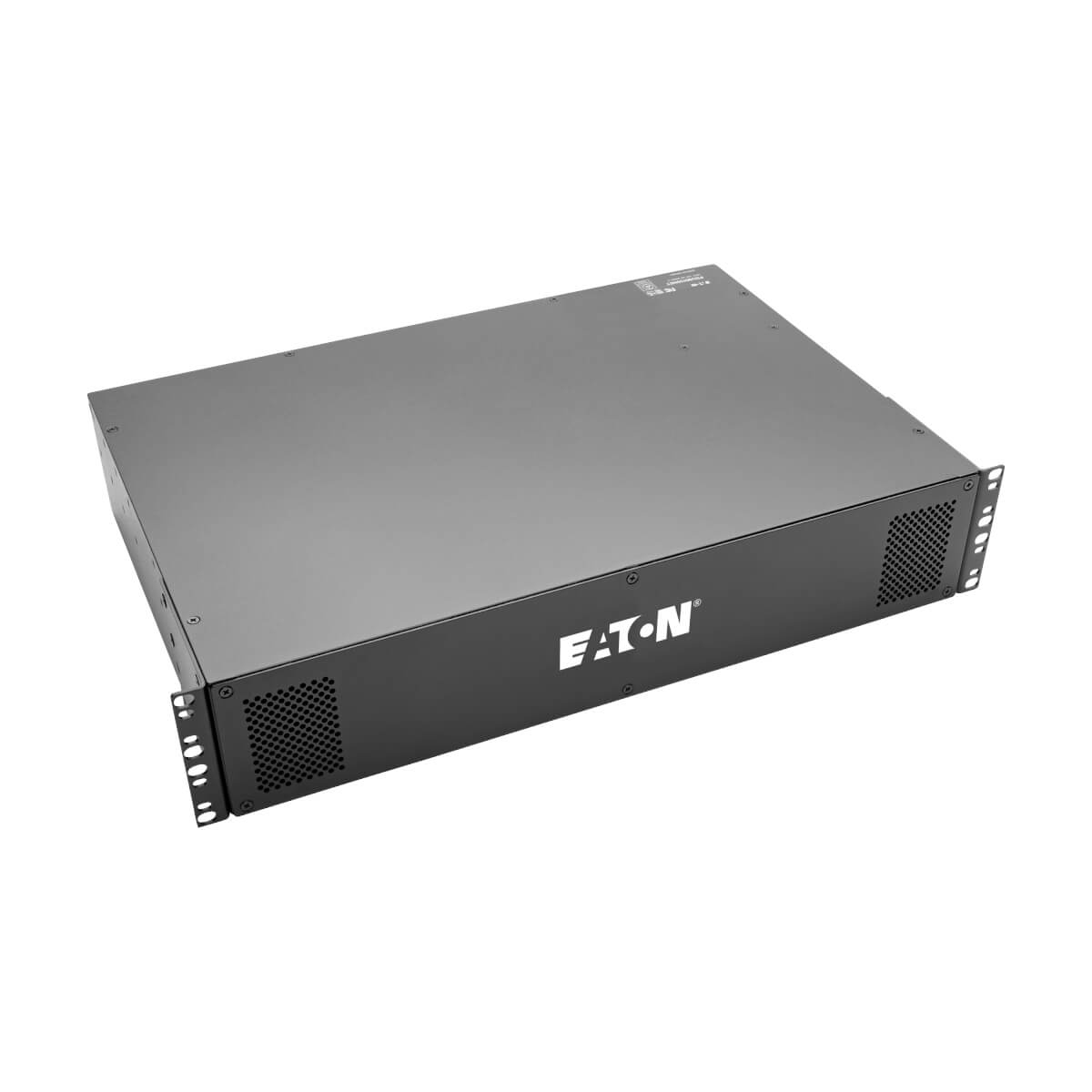

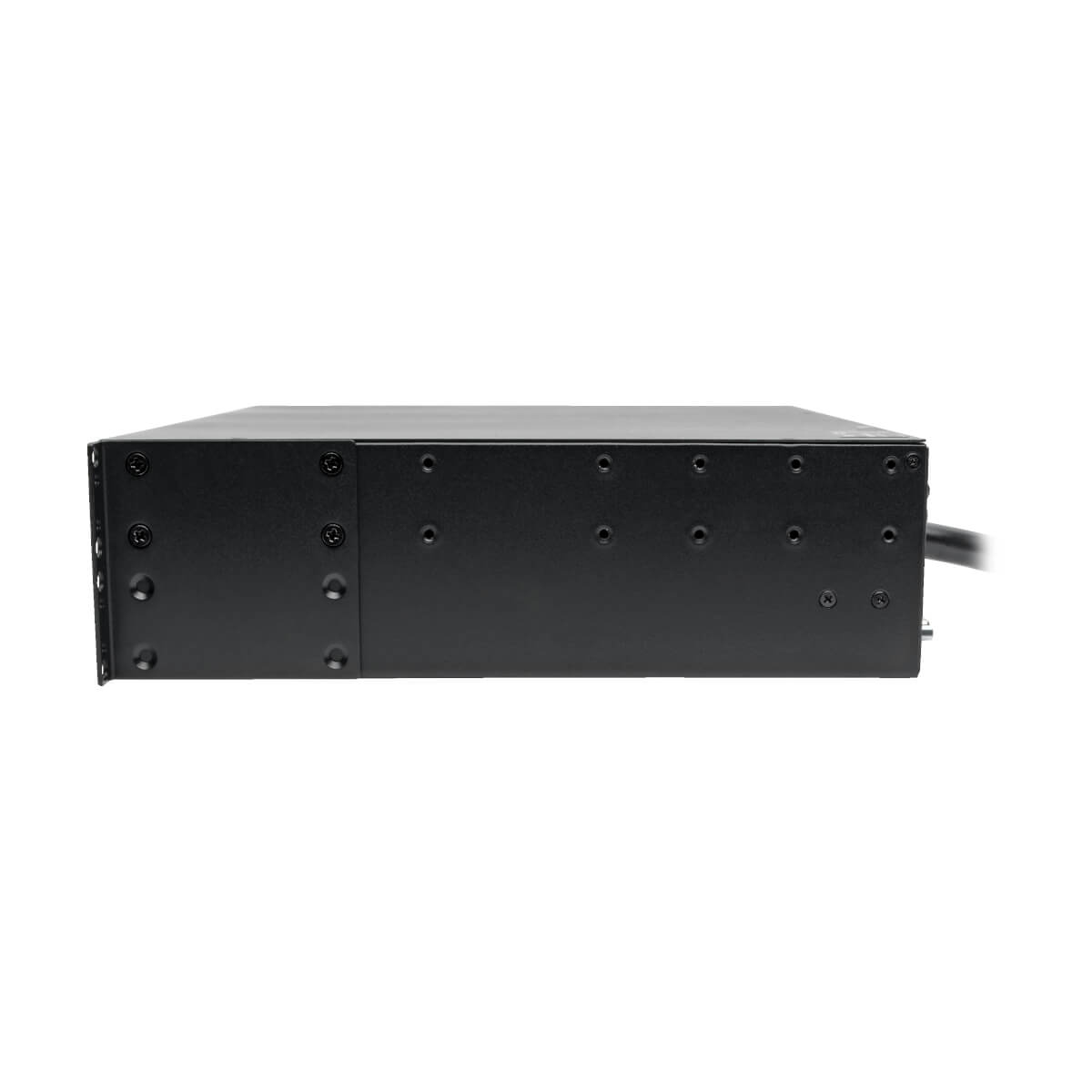

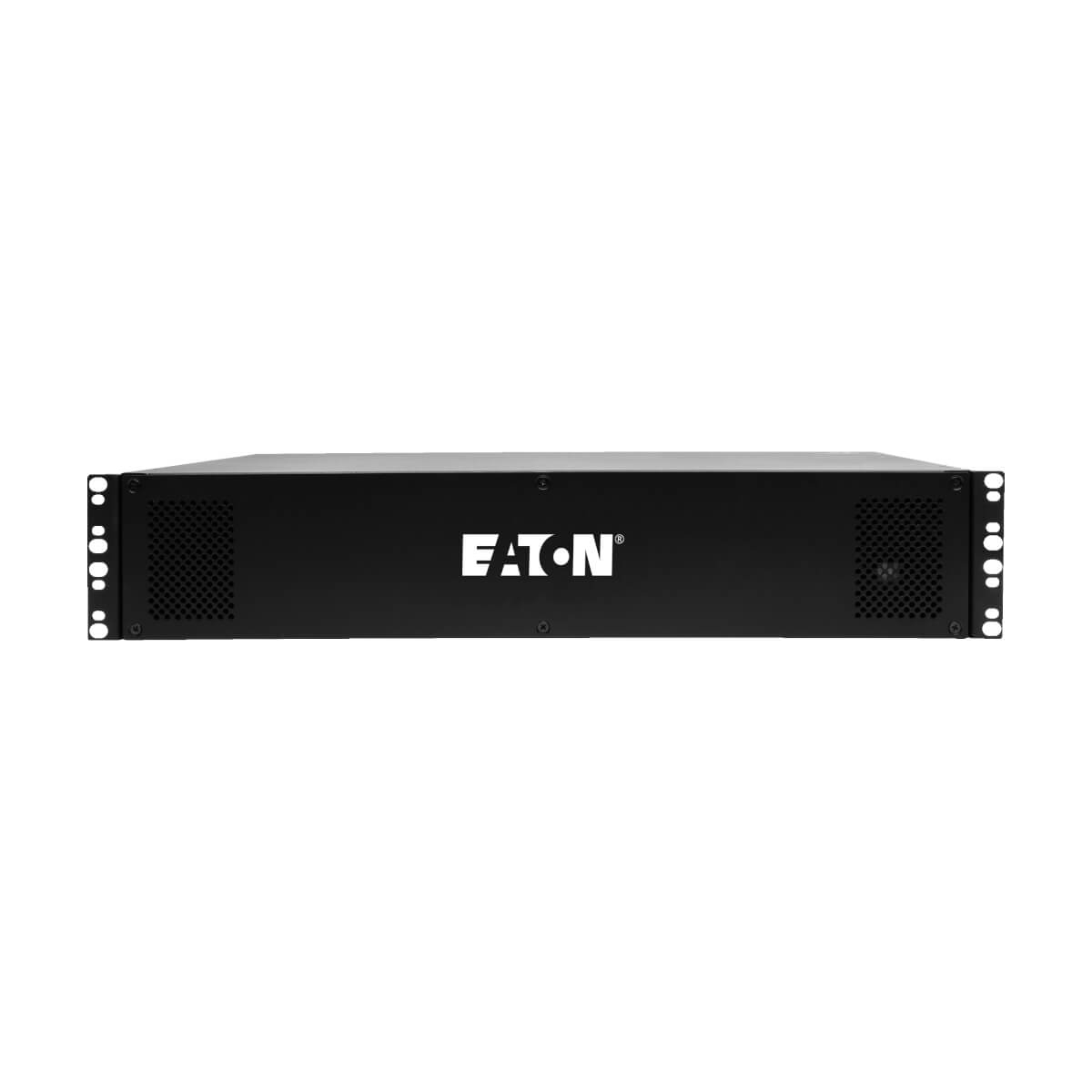

Tripp Lite PDUMH30NET power distribution unit (PDU) 16 AC outlet(s) 2U Black

Tripp Lite PDUMH30NET power distribution unit (PDU) 16 AC outlet(s) 2U Black

2.9kW Single-Phase Switched PDU, 120V Outlets (16 5-15/20R), L5-30P, 10ft Cord, 2U Rack-Mount

Trade Prices

Distributor Product SKU Stock Updated Price
Arlington Industries 2U 16-OUT LX 2900W SWITCHED PDU TAA TRPPDUMH30NET Register free see stock
D&H Digital PDU 120V PDUMH30NET
Ingram Micro PDU SWITCHED 2.9KW 120V 30A 2U Q45588
TD Synnex PDU SWITCHED 30A 120V 5-15/20R L5-30P 2U 2032637

Related Products

Description

Tripp Lite single phase Switched PDU / Power Distribution Unit offers advanced network control and monitoring with the ability to turn on, turn off, recycle or lock-out power to each individual receptacle, monitor site electrical conditions and remotely monitor output power consumption. PowerAlert interface supports remote control and custom notification of user-specified conditions via email, secure web, SNMP, Telnet or SSH interface. Individually switched outlets can be controlled in real-time to remotely reboot unresponsive network hardware, or be custom programmed for user-defined power-up and power-down sequences to ensure proper startup of interdependent IT systems and prevent inrush-related overloads as network equipment is first energized. Unused PDU outlets can be electronically locked off to prevent the connection of unauthorized hardware. PDU output current consumption in amps is continuously displayed locally via visual meter and remotely via web/network interface to warn of potential overloads before critical IT mains or branch breakers trip.
- 30A 120V Switched Power Distribution Unit / PDU with built-in web/network interface (Agency derated to 24A continuous)
- Attached L5-30P 120V single phase input, 10 ft. / 3m input cord
- 2U horizontal rackmount form factor

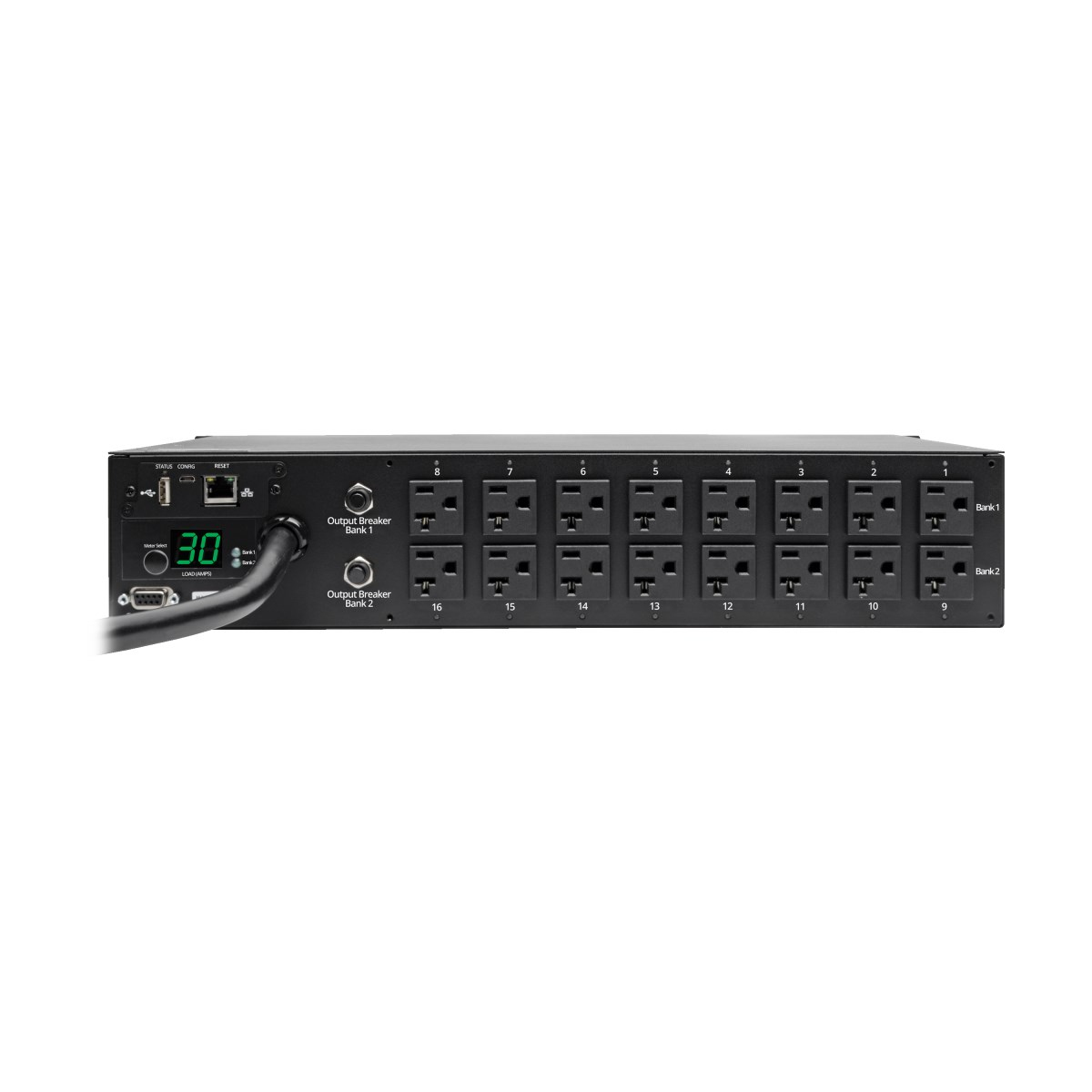

- 16 NEMA 5-15/20R switched outlets
- Supports power-on, power-off or reboot of each outlet on a real-time or programmable basis
- Enables reboot of locked equipment, custom power-on/power-off sequences, load-shedding of optional loads and disabling unused outlets
- Network interface provides PDU control and data regarding input voltage and total output load level in amps
- Digital display continuously reports output load in amps in 3 segments (load bank 1, load bank 2, total)
- Supports user-specified alarm notification thresholds
- In-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors
- DHCP/Manual configuration support
- 10/100 Mbps auto-sensing
- Real-time clock backup maintains the time of day and date even if the PDU is unpowered
- Tiered access privileges allow an administrator and a guest to login via web browser
- Alert notifications via email or SNMP traps offer immediate event notification
- Firmware upgrade ability supports future product enhancements
- Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Fully compatible with FREE PowerAlert Network Management System / NMS Software
- Mounting flanges support installation in 2 and 4 post racks, with additional support for wall-mount and under-counter installation formats
- Mounting ears are reversible for front or rear facing rackmount installation

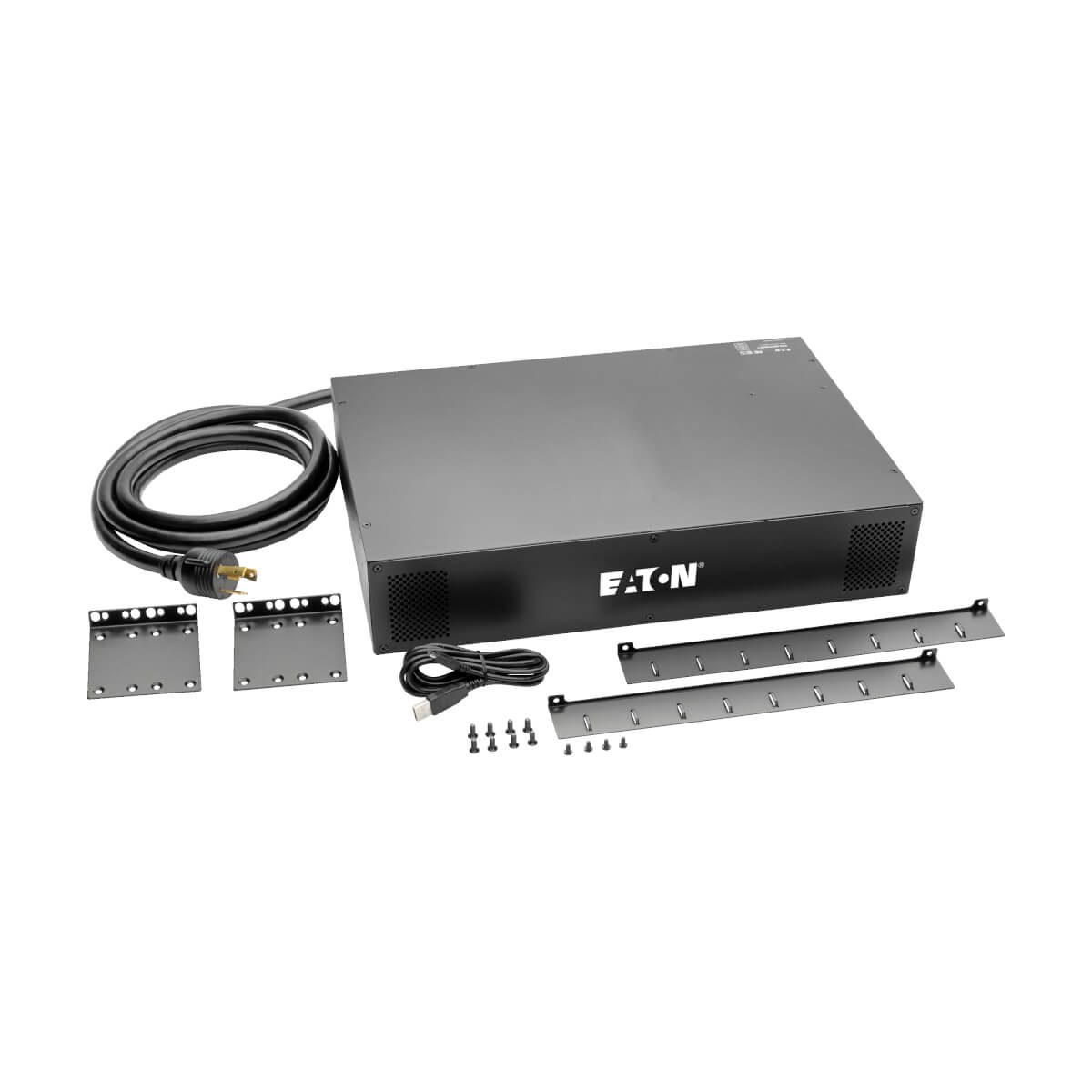

- Included cord retention brackets
- TAA Compliant Version Available - Order Tripp Lite PDUMH30NETAA

Specifications

Design
PDU typesSwitched
MountingHorizontal
Product colourBlack
CertificationUL 60950-1, Class A, NOM
Rack capacity2U
Housing materialMetal
Ports & interfaces
AC outlets quantity16 AC outlet(s)
AC outlet typesNEMA 5–20R
Power plugNEMA L5-30P
Features
Cable length118.1" (3 m)
CertificationUL 60950-1, Class A, NOM
Ergonomics
Cable length118.1" (3 m)
Power
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current30 A
AC input frequency50 - 60 Hz
Weight & dimensions
Dimensions (WxDxH)17.5 x 12.5 x 3.5" (445 x 317.5 x 89 mm)
Weight13.8 lbs (6.26 kg)
Width17.5" (444.5 mm)
Depth12.5" (317.5 mm)
Height3.5" (88.9 mm)
Package width16.8" (426.7 mm)
Package depth19.8" (502.9 mm)
Package height7.8" (198.1 mm)
Package weight17.3 lbs (7.85 kg)
Packaging data
Package width16.8" (426.7 mm)
Package depth19.8" (502.9 mm)
Package height7.8" (198.1 mm)
Package weight17.3 lbs (7.85 kg)
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
