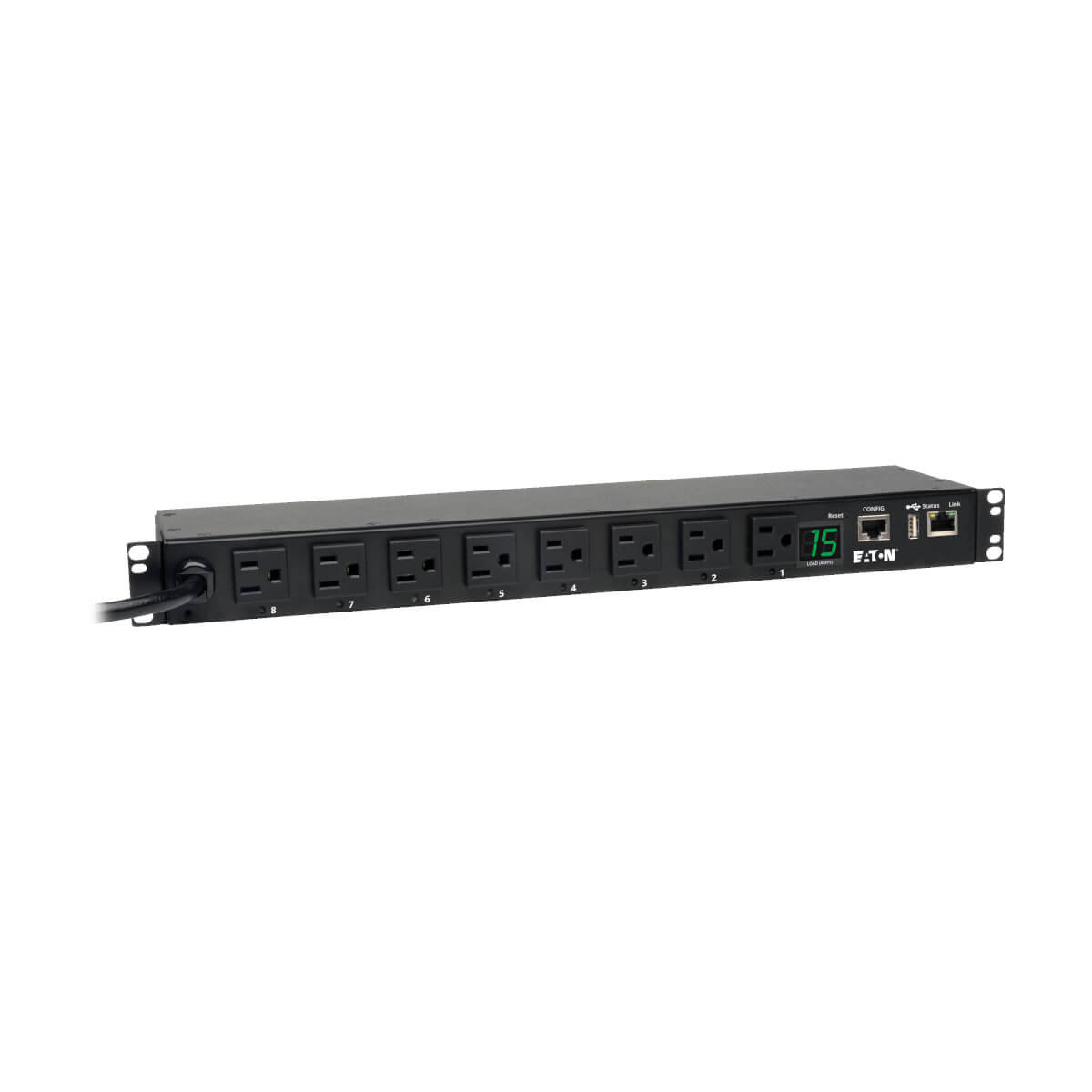

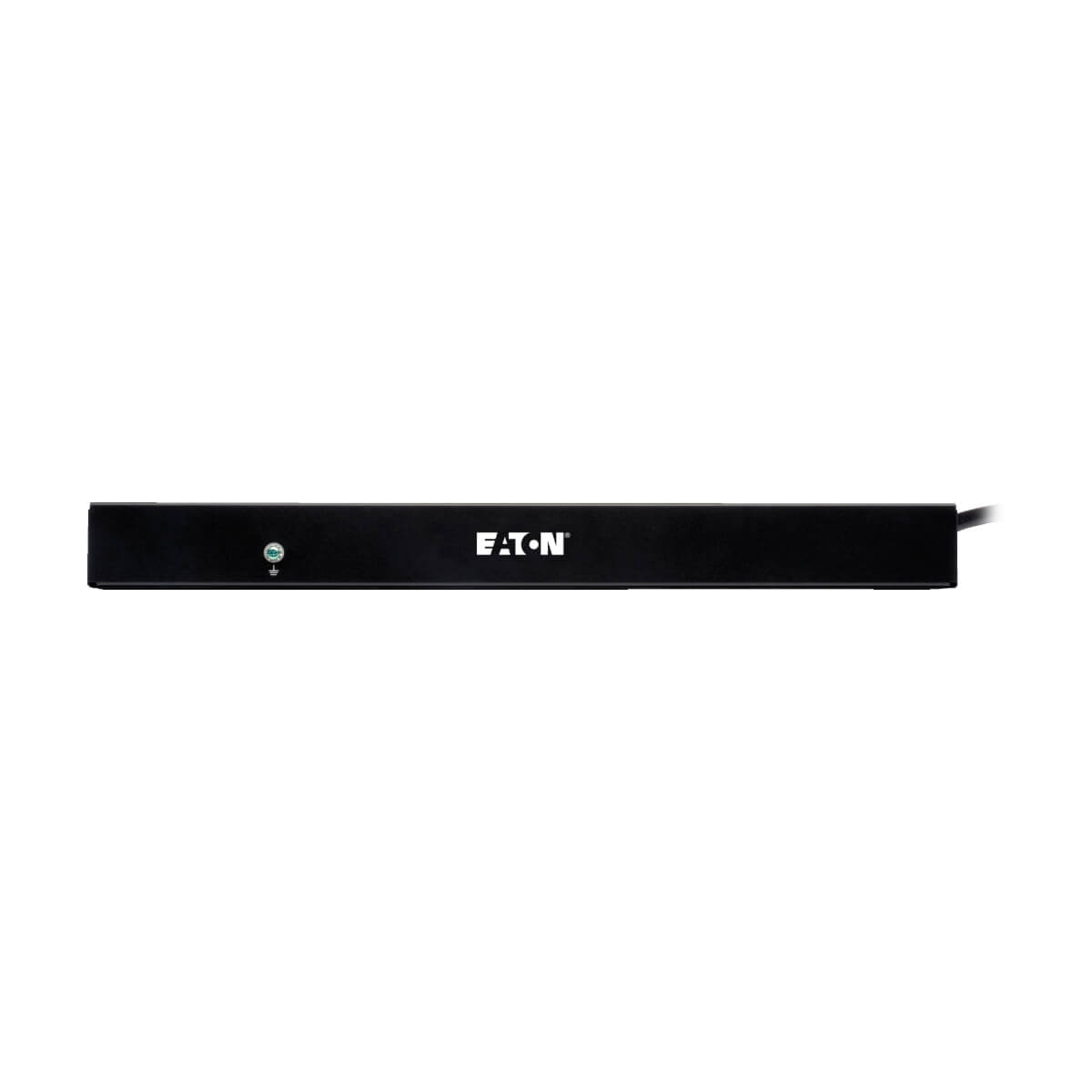

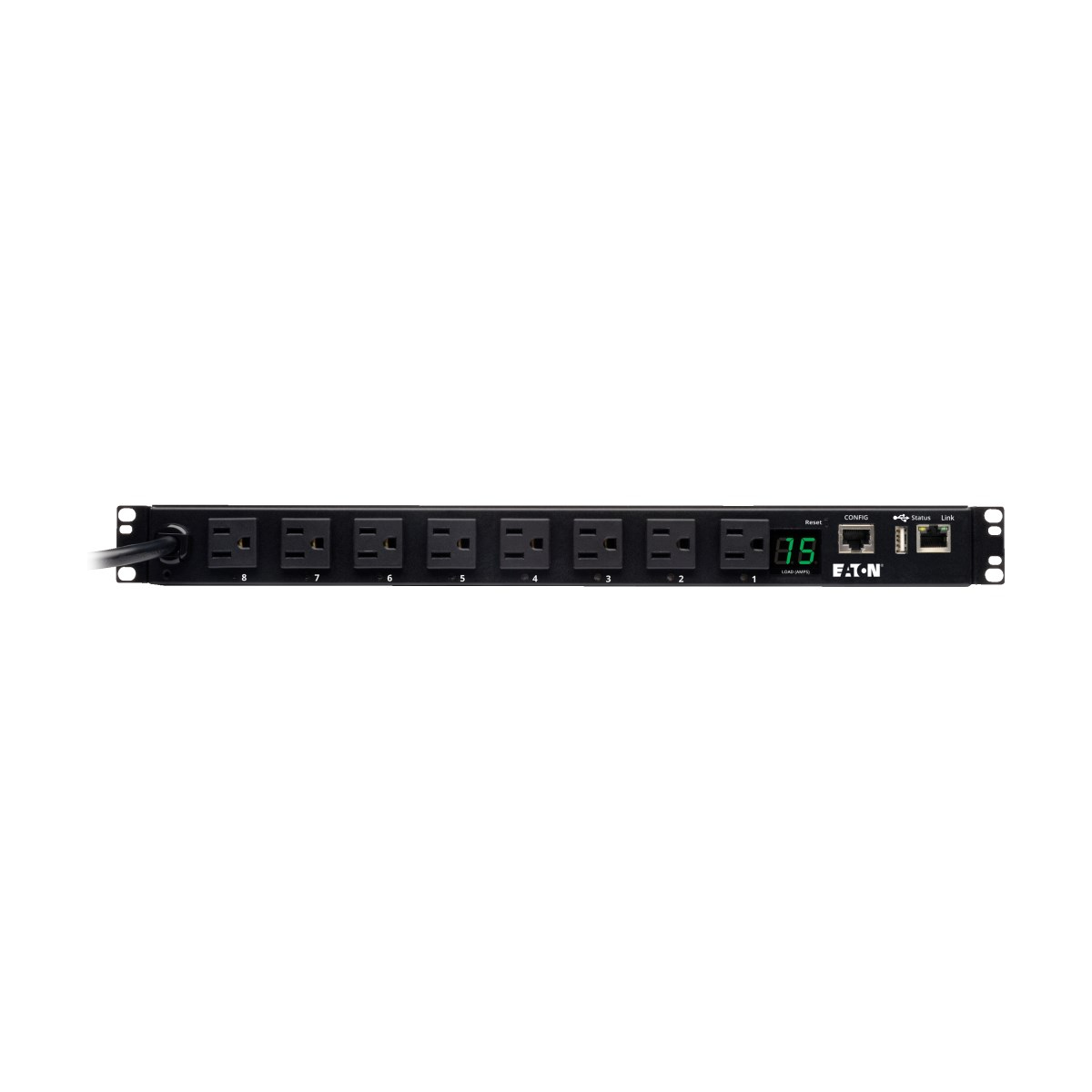

Tripp Lite PDUMH15NET2LX power distribution unit (PDU) 8 AC outlet(s) 1U Black

Tripp Lite PDUMH15NET2LX power distribution unit (PDU) 8 AC outlet(s) 1U Black

1.4kW Single-Phase Switched PDU, LX Platform Interface, 120V Outlets (8 5-15R), NEMA 5-15P, 12 ft. Cord, 1U Rack, TAA

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

1.4KW SINGLE PHASE SWITCH PDULX PLATFORM 120V, 8 5-15R NEMA5-15P 12FT CORD

 983942 Register free see stock
Anixter

1.4KW SINGLE PHASE SWITCH PDULX PLATFORM 120V, 8 5-15R NEMA5-15P 12FT CORD

 983942-ACUST
Arlington Industries

1U 8-OUT LX 1400W SWITCHED PDU TAA

 TRPPDUMH15NET2LX
ASI Corp

PDU PDUMH15NET2LX 1.4kW Single-Phase Switched PDU LX Platform

 245511
BlueStar

EATON, 1.4KW SINGLE-PHASE SWITCHED PDU, LX PLATFORM INTERFACE, 120V OUTLETS (8 5-15R), NEMA 5-15P, 12 FT. (3.66 M) CORD, 1U RACK, TAA

 PDUMH15NET2LX

Related Products

Description

The PDUMH15NET2LX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

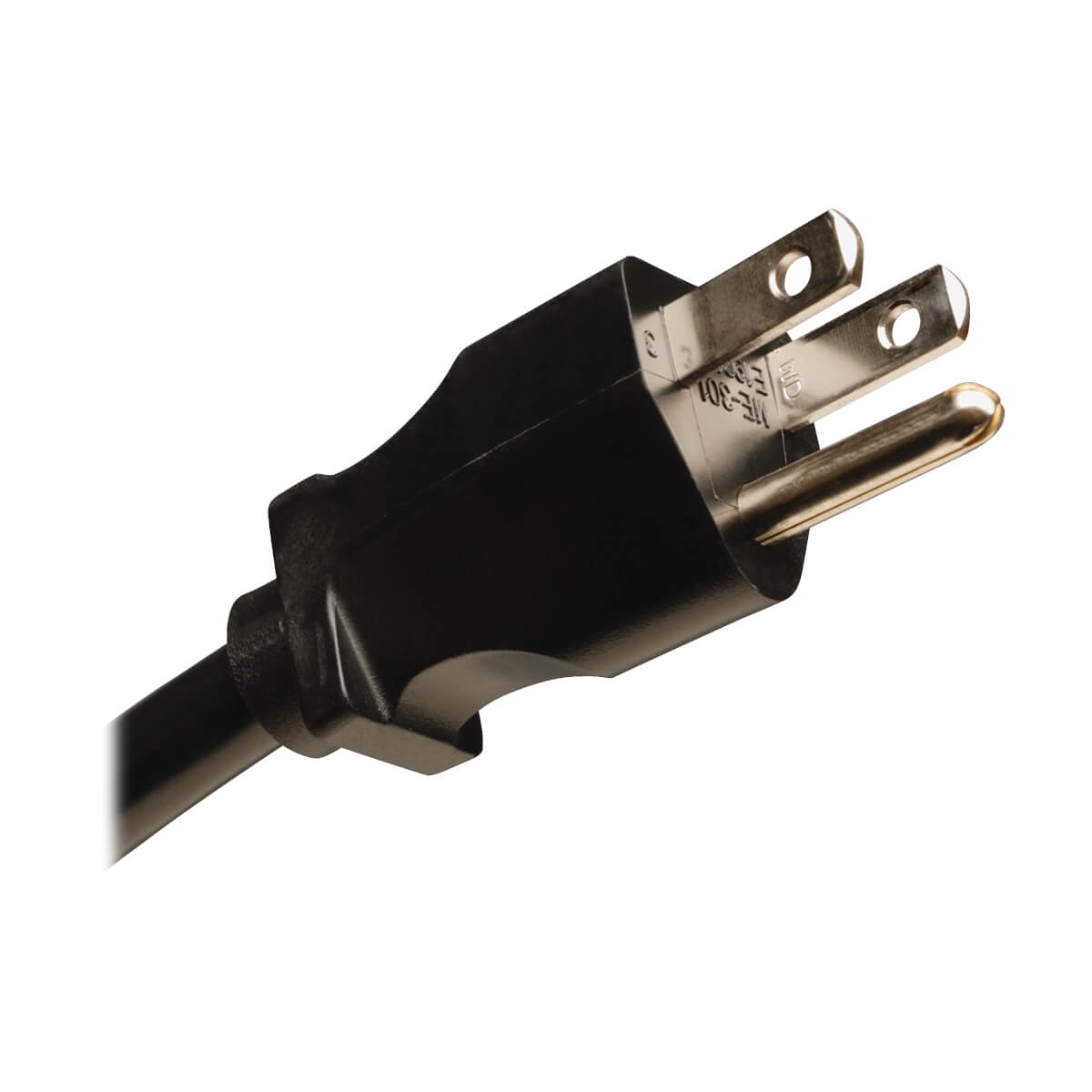

The 1U PDU features eight switched NEMA 5-15R outlets with an included cord retention bracket to prevent cables from becoming accidentally disconnected. A 12-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The rack-mount PDU installs in 1U of space in EIA-standard 19-inch racks. You can also mount it vertically in 0U of rack space or on a wall or under a counter with the included brackets and user-supplied screws.

Distributes, Monitors and Manages Network-Grade AC Power
- 1.4kW 120V switched PDU with single-phase input
- Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components
- NEMA 5-15P plug with 12 ft. cord connects to compatible AC power source
- Firmware upgrades support future product enhancements
- Digital ammeter reports total PDU load in real time

8 Switched NEMA 5-15R Outlets Distribute AC Power
- Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices
- Cord retention bracket prevents cables from becoming accidentally disconnected
- Individual LEDs indicate which outlets are live

Built-In LX Platform Interface
- Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
- Supports 10/100 Mbps auto-sensing for communication with an Ethernet network
- Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities
- No Java required

Broad Communications Compatibility
- Supports IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP
- Supports automatic and manual assignment of IP address

Essential Safety Features
- Immediate alert notifications via email or SNMP traps
- Supports user-specified alarm notification thresholds
- Real-time clock backup maintains day/date even if PDU is unpowered

Flexible Mounting Options

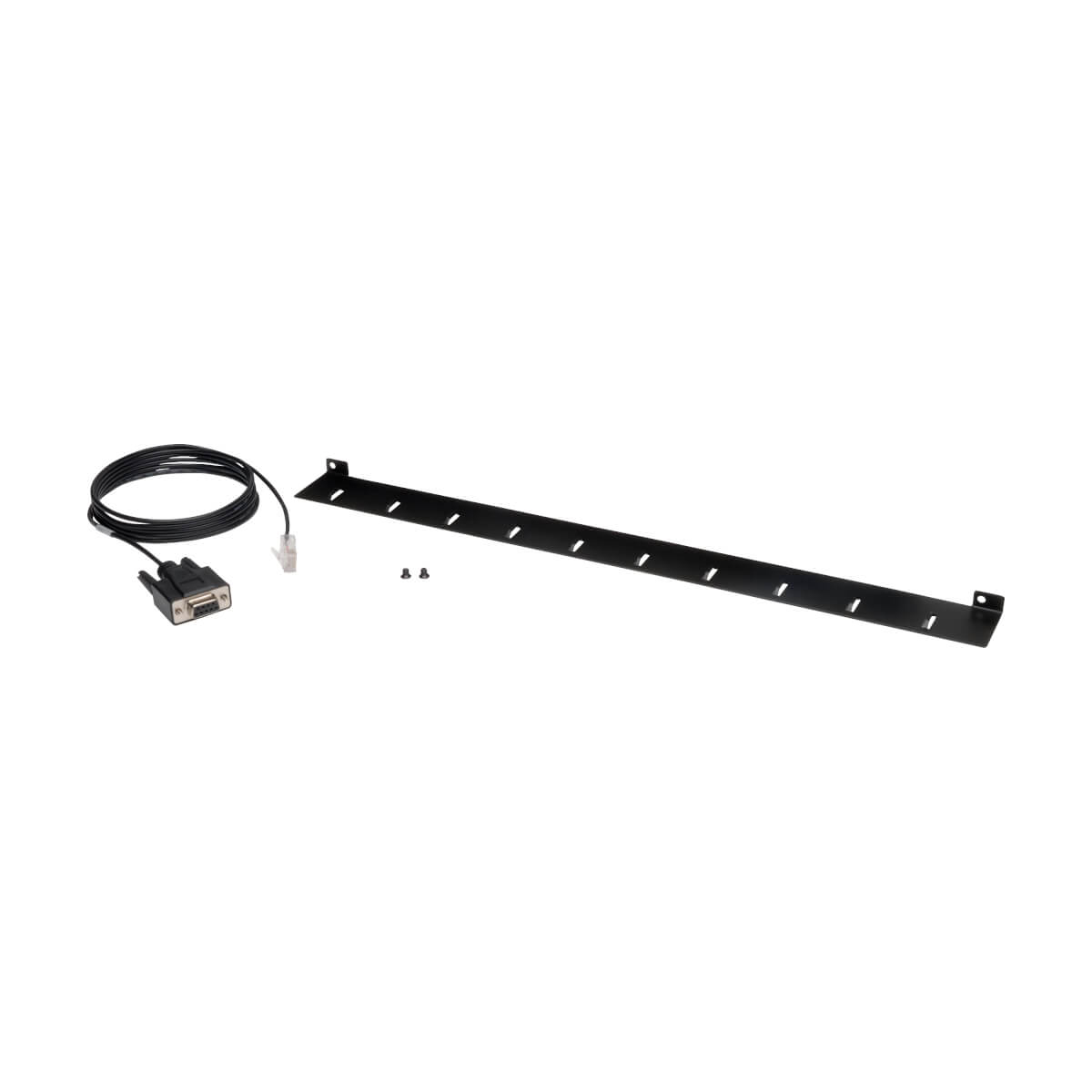

- Included rack-mounting brackets compatible with front- or rear-facing installation
- Compatible with 1U horizontal, 0U vertical, wall and under-counter mounting with included brackets and user-supplied screws

TAA-Compliant
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

Specifications

Design
On/off switchYes
TypeSingle-phase
PDU typesSwitched
MountingHorizontal
DisplayLCD
Product colourBlack
CertificationUL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), TAA Compliant
Rack capacity1U
Housing materialMetal
Ports & interfaces
AC outlets quantity8 AC outlet(s)
AC outlet typesNEMA 5–15R
Power plugNEMA 5–15P
Features
Cable length144.1" (3.66 m)
LED indicatorsYes
CertificationUL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), TAA Compliant
Management features
Supported network protocolsIPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP, NTP
Outlet controlLock-out, Recycle, Turn off, Turn on
Ergonomics
Cable length144.1" (3.66 m)
LED indicatorsYes
DisplayLCD
Power
Maximum power1520 W
Nominal input voltage100-127 V
Nominal output voltage100-127 V
Maximum current15 A
AC input frequency50 - 60 Hz
Certificates
CertificationUL 60950-1 (USA). CAN/CSA-C22.2 NO. 60950-1 (Canada), Class A Part 15 (Emissions), NOM (Mexico), TAA Compliant
Compliance certificatesRoHS
Operational conditions
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)5 - 122 °F
Operating altitude0 - 118110.2" (0 - 3000 m)
Weight & dimensions
Weight5.2 lbs (2.36 kg)
Width17.5" (444 mm)
Depth4.25" (108 mm)
Height1.75" (44.4 mm)
Package width11.8" (300 mm)
Package depth20.5" (520 mm)
Package height2.13" (54 mm)
Package weight6.92 lbs (3.14 kg)
Packaging content
ManualYes
Packaging data
Package width11.8" (300 mm)
Package depth20.5" (520 mm)
Package height2.13" (54 mm)
Package weight6.92 lbs (3.14 kg)
Technical details
Compliance certificatesRoHS
Logistics data
Products per master (outer) case1 pc(s)
Country of originTaiwan
