Tripp Lite PDUMH30ATNET power distribution unit (PDU) 25 AC outlet(s) 2U Black
- Brand: Tripp Lite
- Category:
- SKU: PDUMH30ATNET
- EAN: 0037332157294 0971473183265 03 ...3183265 0373321572946more
- Sell Price:
- Contract No:
- Account price:
2.9kW Single-Phase ATS / Switched PDU, 120V Outlets (24 5-15/20R, 1 L5-30R) 2 L5-30P, 2 10ft Cords, 2U Rack-Mount
Offer details
Trade Prices
Distributor | Product | SKU | Stock | Updated | Price |
---|---|---|---|---|---|
2U 25-OUT LX 2900W ATS SWITCH PDU TAA | TRPPDUMH30ATNET | Register free see stock | |||
TRIPP LITE, PDU 2.9KW SINGLE PHASE SWITCHED AUTOMATIC TRANSFER, 2 120V L5-30P INPUTS, 24 5-15/20R & 1 L5-30R OUTPUTS 2U | PDUMH30ATNET | ||||
PDU Switched ATS 120V 30A 24 | PDUMH30ATNET | ||||
PDU SWITCHED 2.9KW 120V 30A ATS | KU6722 | ||||
PDU ATS/SWITCHED 120V 5-15/20R L5-30R 2U | 3016124 |
Related Products
- Uninterruptible Power Supplies (UPSs)
- Power Cables
- Power Distribution Units (PDUs)
- Rack Accessories
- Temperature & Humidity Sensors
- Warranty & Support Extensions
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Uninterruptible Power Supplies (UPSs)
-
Category: Power Cables
-
Category: Power Cables
-
Category: Power Cables
-
Category: Power Cables
-
Category: Power Cables
-
Category: Power Cables
-
Category: Power Cables
-
Category: Power Cables
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Power Distribution Units (PDUs)
-
Category: Temperature & Humidity Sensors
-
Category: Temperature & Humidity Sensors
-
Category: Temperature & Humidity Sensors
-
Category: Temperature & Humidity Sensors
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
-
Category: Warranty & Support Extensions
Description

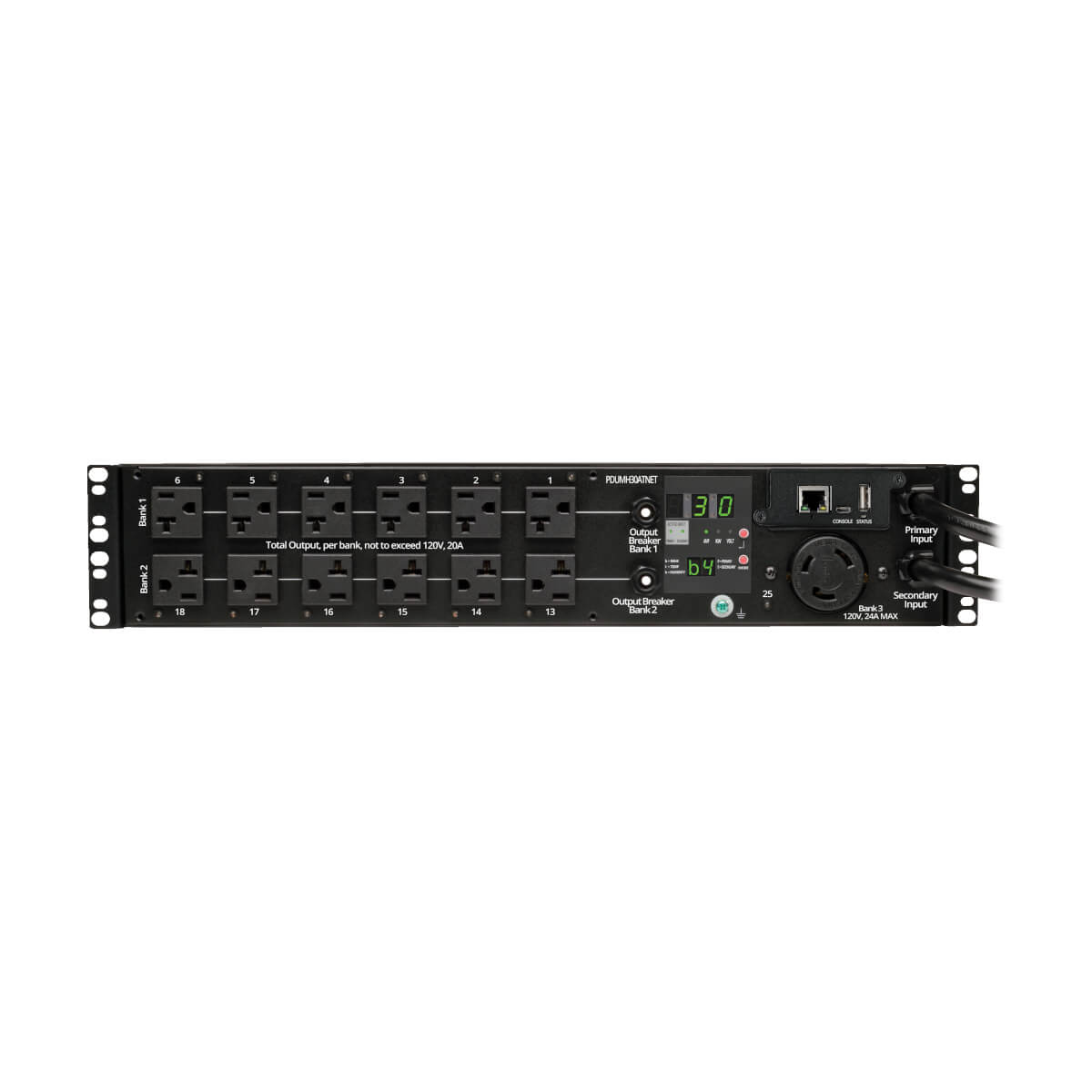

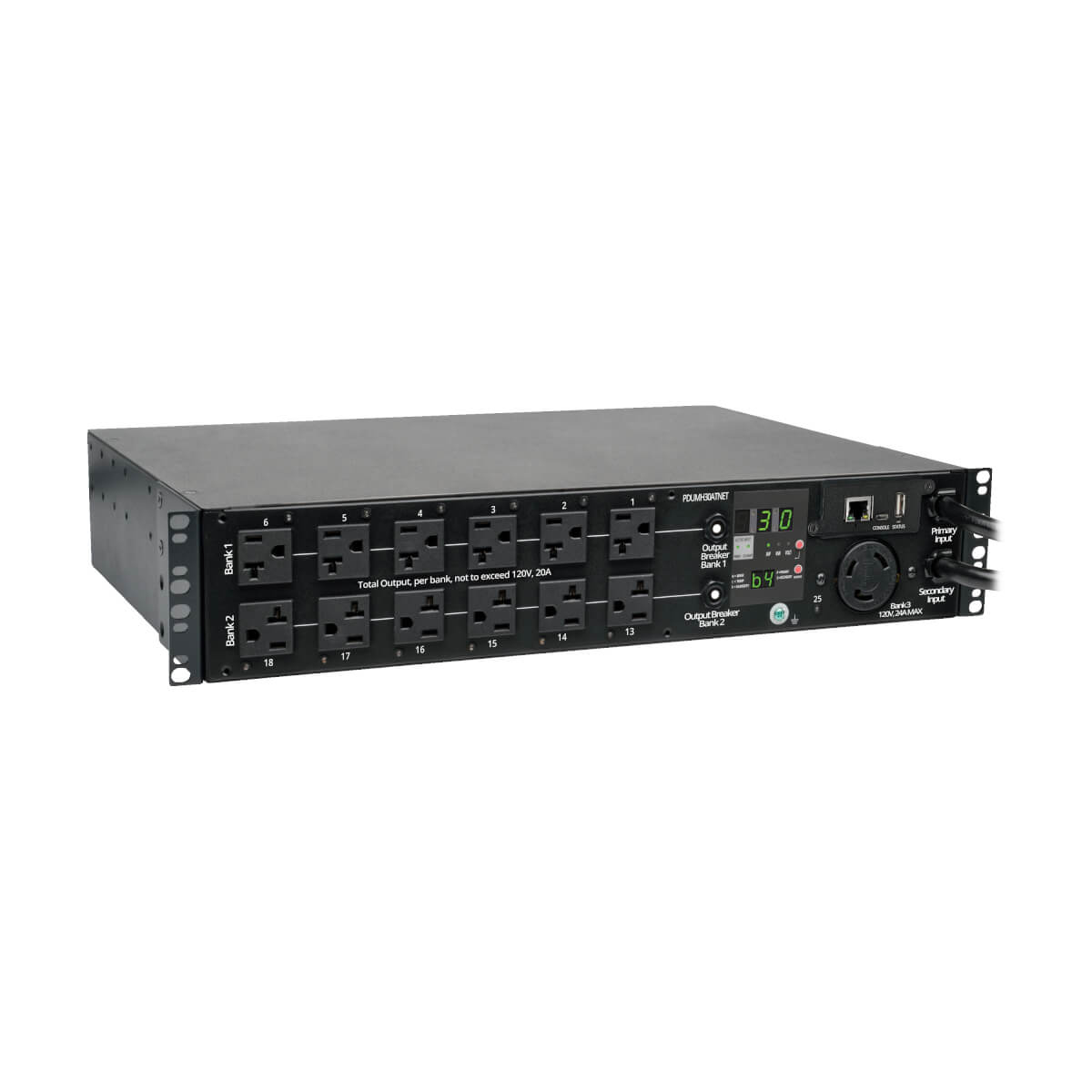

Tripp Lite Switched ATS / Auto Transfer Switch provides a redundant power option for single-corded network devices. Dual input cords support separate connection to PRIMARY and SECONDARY power sources. The ATS will normally maintain continuous output to all outlets as derived from the primary input cable. If the primary power source becomes unstable or fails altogether, the ATS will switch over to the secondary power source until the primary input is restored and stable. Highly reliable solid-state switching between primary and secondary inputs occurs in 1-5 milliseconds. Switched PDU features include individually controllable output receptacles and built-in network interface. Super-fast switchover between primary and secondary power sources occurs within milliseconds. ATS functionality is supported by any two compatible AC power sources, regardless of phase angle, to support a variety of advanced redundant power networking applications. Enables fault tolerant hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system. In a two-UPS environment, the primary input cable must be supported by a full time sine wave UPS with zero transfer time. Tripp Lite SmartOnline series is highly recommended for use as the primary UPS in a two-UPS application. ATS configurations utilizing separate mains circuits, backup generators and even separate utility power grid feeds are fully supported. On-board ATS processor constantly evaluates power quality on both input sources to prevent transfer to the secondary source when unavailable or of lower quality than the primary source. Front input LED's display primary or secondary power availability.
- 120V 30A Power Distribution Unit (PDU) with Auto-Transfer Switch (ATS) and Switched outlets (Agency de-rated to 24A)
- ATS features provide redundant power for critical network equipment with a single input power cord
- Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface

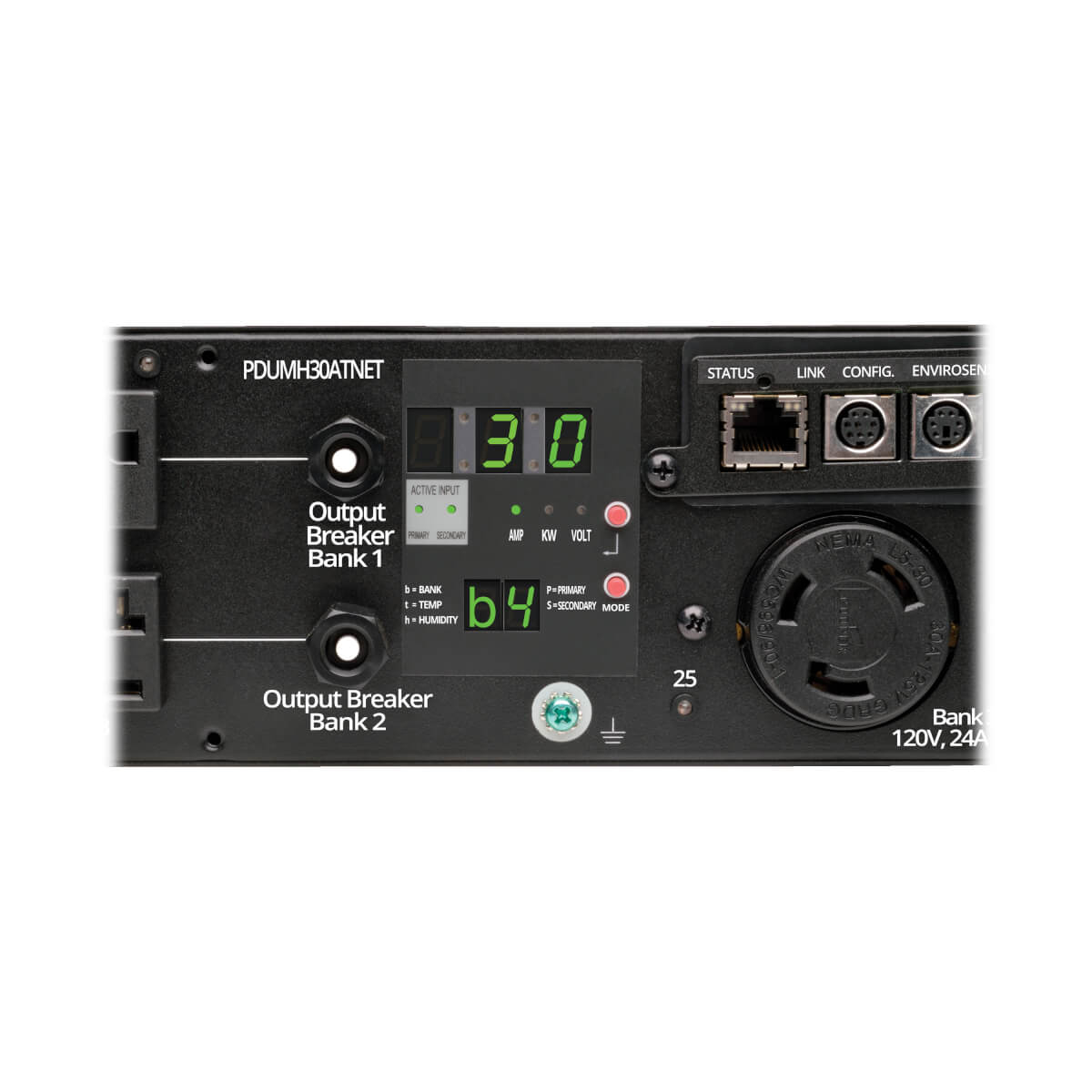

- Visual meter reports output amp and kW power consumption, plus voltage and temperature/humidity data with optional ENVIROSENSE sensor

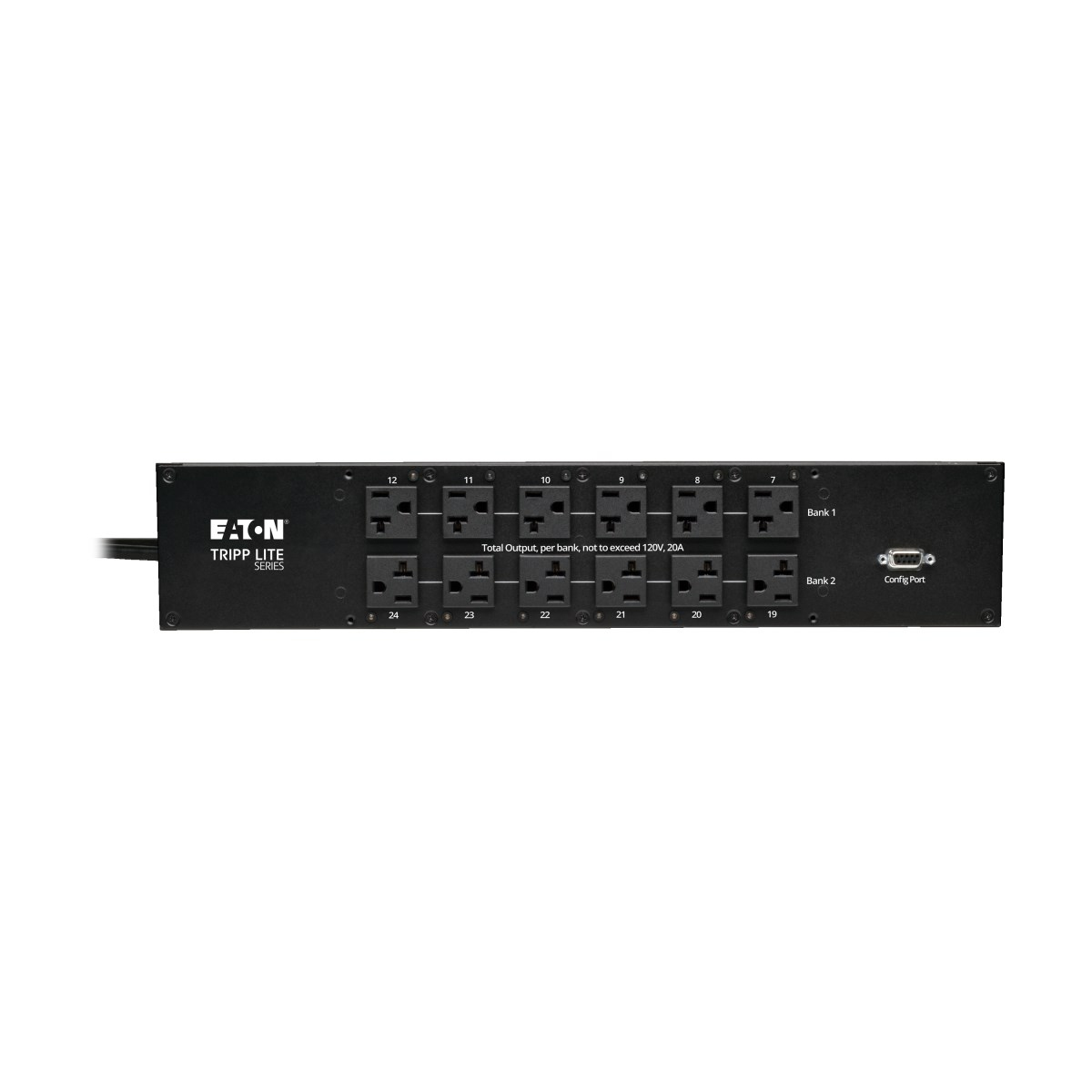

- 25 switched outlets (24 5-15/20R & 1 L5-30R)
- 2U horizontal rackmount form factor; 11.9 in. / 30.2cm depth

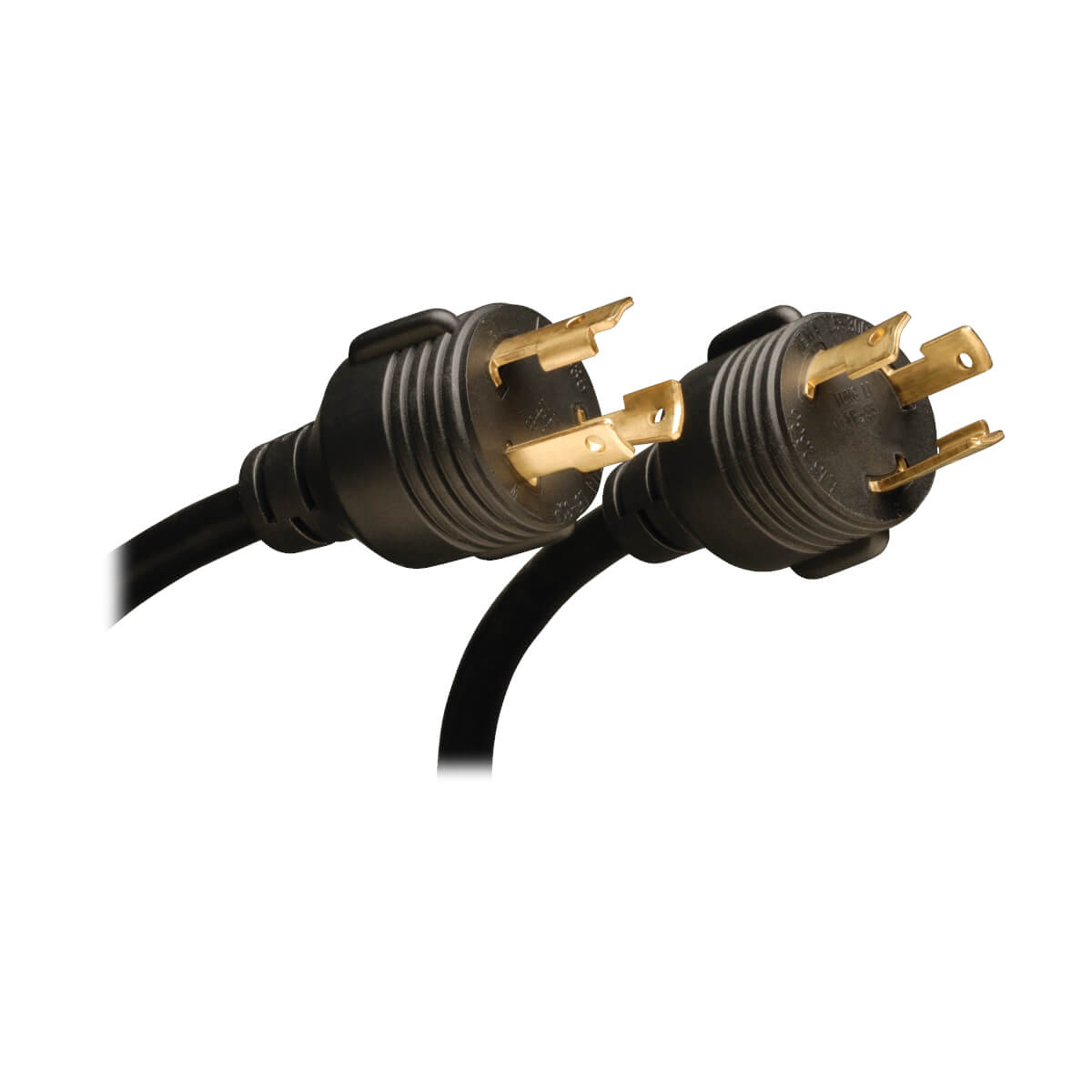

- Set of two 10 ft. / 3m NEMA L5-30P input line cords enable separate PRIMARY and SECONDARY input connections
- ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
- Highly reliable solid-state switching enables fast 1-5 millisecond trasfer between primary and secondary inputs
- ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
- Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
- On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
- DHCP/Manual configuration support; Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Compatible with optional ENVIROSENSE temperature monitor
- Outlets are factory programmed for sequential turn-on at 250 millisecond intervals as the PDU is first energized
- Front panel LEDs confirm power availability on both input lines
- TAA Compliant Version Available - Order Tripp Lite PDUMH30ATNETAA
- 120V 30A Power Distribution Unit (PDU) with Auto-Transfer Switch (ATS) and Switched outlets (Agency de-rated to 24A)
- ATS features provide redundant power for critical network equipment with a single input power cord
- Switched PDU features enable programmable or real-time power control of individual outlets via built-in network interface
- Visual meter reports output amp and kW power consumption, plus voltage and temperature/humidity data with optional ENVIROSENSE sensor
- 25 switched outlets (24 5-15/20R & 1 L5-30R)
- 2U horizontal rackmount form factor; 11.9 in. / 30.2cm depth
- Set of two 10 ft. / 3m NEMA L5-30P input line cords enable separate PRIMARY and SECONDARY input connections
- ATS circuits normally maintain output sourced from the primary input cable; As primary input power fails or becomes unstable, the ATS will switch to maintain output sourced from the secondary input cable until power on the primary input is restored and stable
- Highly reliable solid-state switching enables fast 1-5 millisecond trasfer between primary and secondary inputs
- ATS configurations enable fault-tolerant, hot-swappable UPS protection when used with a single UPS and fully redundant UPS protection when each cord is connected to a separate UPS system (in a two-UPS environment, the primary input cable must be supported by an online UPS with zero transfer time similar to Tripp Lite SmartOnline series)
- Advanced ATS configurations utilizing separate mains circuits, backup generators and even separate out of phase utility power grid feeds are fully supported
- On-board ATS processor constantly evaluates power quality on both inputs to prevent transfer to the secondary source when unavailable or of lower quality than the primary source
- DHCP/Manual configuration support; Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols
- Compatible with optional ENVIROSENSE temperature monitor
- Outlets are factory programmed for sequential turn-on at 250 millisecond intervals as the PDU is first energized
- Front panel LEDs confirm power availability on both input lines
- TAA Compliant Version Available - Order Tripp Lite PDUMH30ATNETAA
Specifications
Design | |
---|---|
PDU types | Switched |
Mounting | Horizontal |
Product colour | Black |
Certification | UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico) |
Rack capacity | 2U |
Housing material | Metal |
Ports & interfaces | |
AC outlets quantity | 25 AC outlet(s) |
AC outlet types | NEMA 5–15, NEMA 5–20R, NEMA L5-30R |
Power plug | NEMA L5-30P |
Features | |
Cable length | 118.1" (3 m) |
LED indicators | Yes |
Certification | UL 60950-1 (USA), CSA (Canada), Class A (Emissions), NOM (Mexico) |
Ergonomics | |
Cable length | 118.1" (3 m) |
LED indicators | Yes |
Power | |
Nominal input voltage | 100-127 V |
Nominal output voltage | 100-127 V |
Maximum current | 30 A |
AC input frequency | 60 Hz |
Weight & dimensions | |
Dimensions (WxDxH) | 17.3 x 17.3 x 3.39" (439 x 439 x 86 mm) |
Weight | 15.3 lbs (6.96 kg) |
Width | 17.3" (439.9 mm) |
Depth | 11.9" (302 mm) |
Height | 3.41" (86.6 mm) |
Package width | 16.7" (424.2 mm) |
Package depth | 19.7" (500.4 mm) |
Package height | 7.7" (195.6 mm) |
Package weight | 19.5 lbs (8.85 kg) |
Packaging data | |
Package width | 16.7" (424.2 mm) |
Package depth | 19.7" (500.4 mm) |
Package height | 7.7" (195.6 mm) |
Package weight | 19.5 lbs (8.85 kg) |
Operational conditions | |
Storage temperature (T-T) | -15 - 50 °C |
Operating altitude | 0 - 118110.2" (0 - 3000 m) |
Technical details | |
Compliance certificates | RoHS |
Logistics data | |
Products per master (outer) case | 1 pc(s) |
Country of origin | Taiwan |
