Tripp Lite SRW21UG rack cabinet 21U Wall mounted rack Black

Tripp Lite SRW21UG rack cabinet 21U Wall mounted rack Black

  • Brand: Tripp Lite
  • Category:
  • SKU: SRW21UG
  • EAN: 0037332187338
SmartRack 21U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure, Clear Acrylic Window

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter 21U WALL MOUNT RACK ENCLOSURESERVER CAB W/PLEXIGLASS DOORSRW21UG 812738 Register free see stock
BlueStar TRIPP LITE, SMARTRACK 21U LOW-PROFILE SWITCH-DEPTH WALL-MOUNT RACK ENCLOSURE CABINET WITH CLEAR ACRYLIC WINDOW SRW21UG
D&H 21U Wall Mount Rack Glass SRW21UG
Ingram Micro 21U WALL MOUNT RACK ENCLOSURE 1R2825
TD Synnex 21U WALLMOUNT RACK W/ ACRYLIC WINDOW 4317379

Related Products

Description

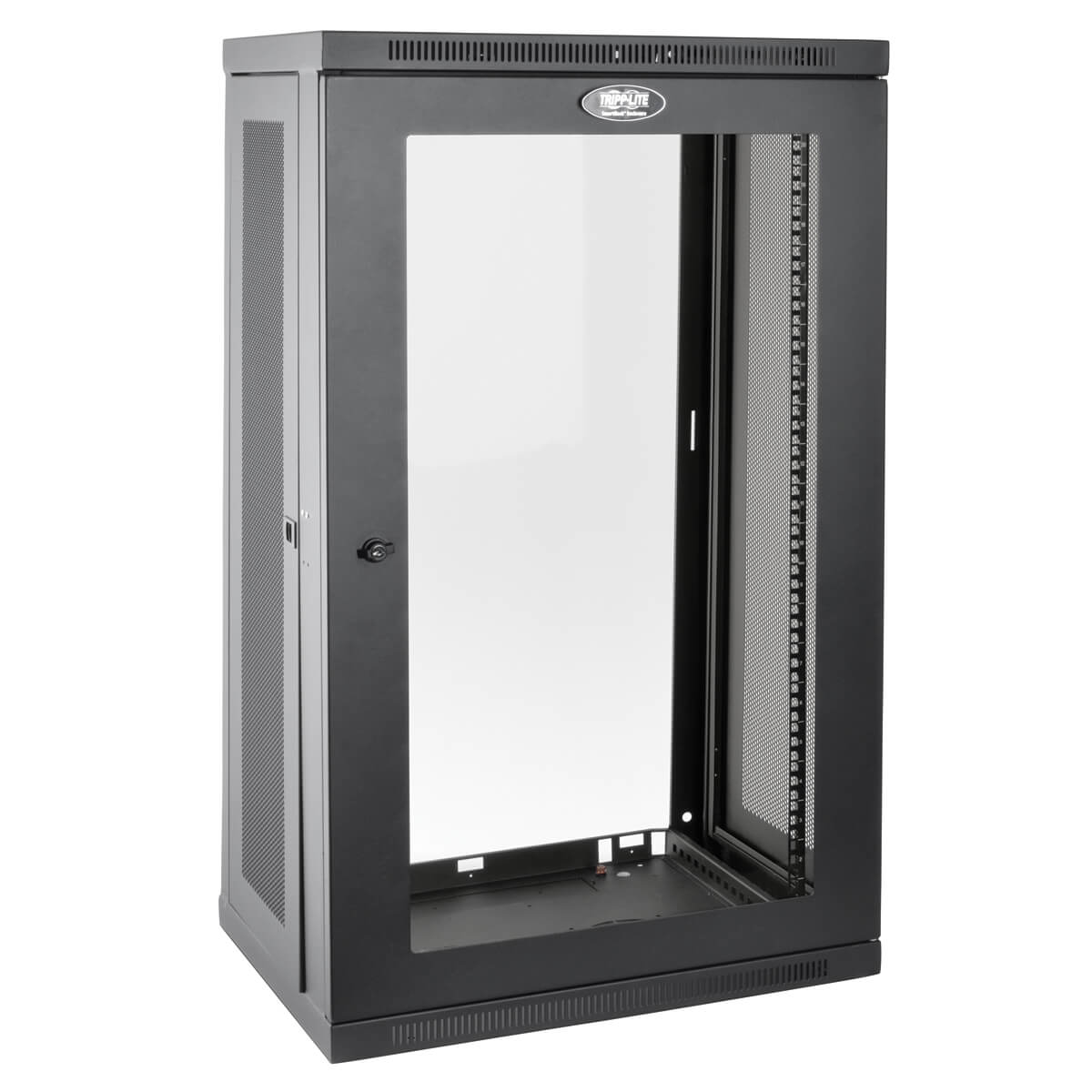

The SRW21UG SmartRack® 21U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is ideal for storing EIA-standard 19-inch rack equipment in network closets, retail locations, classrooms and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds (90.7 kilograms).

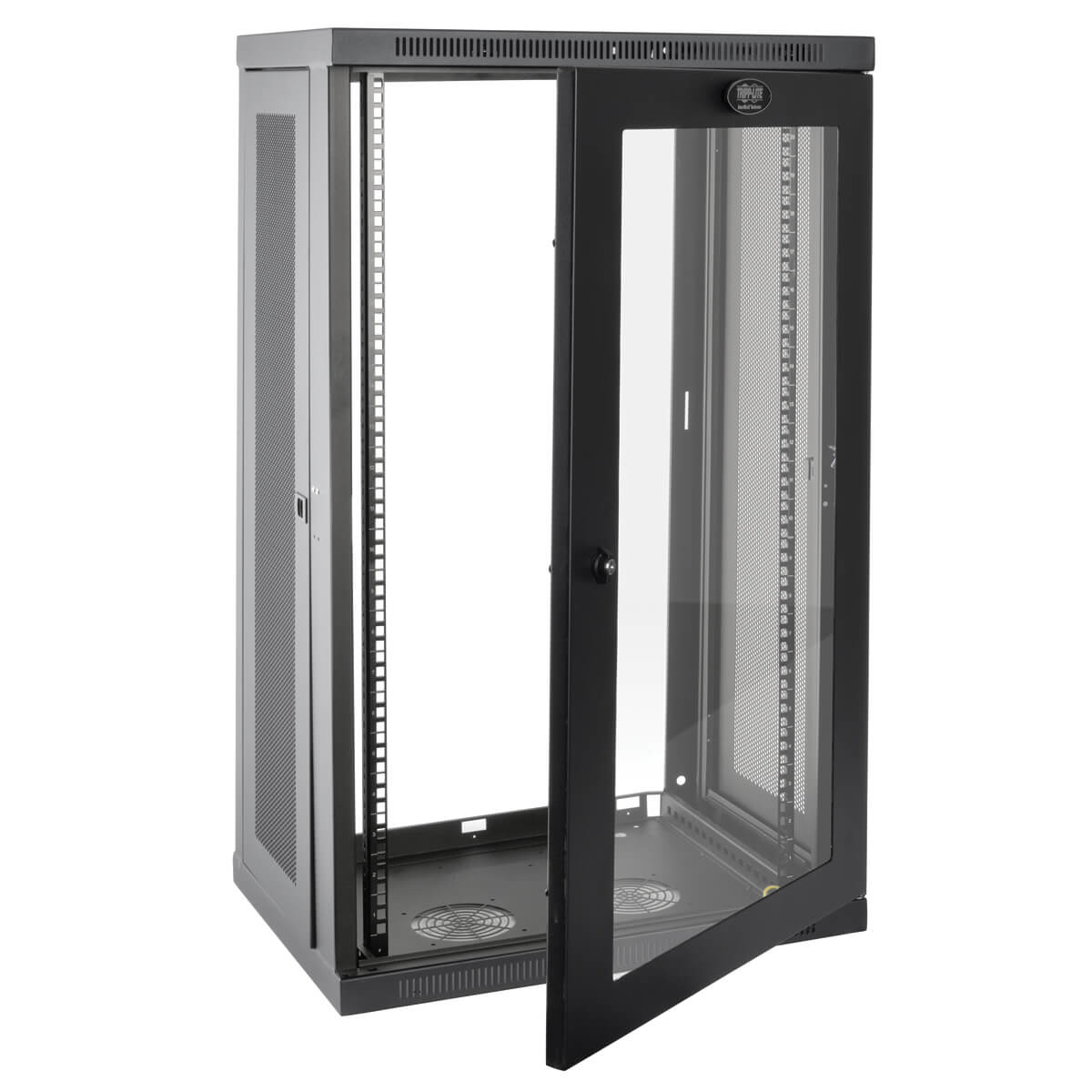

The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.

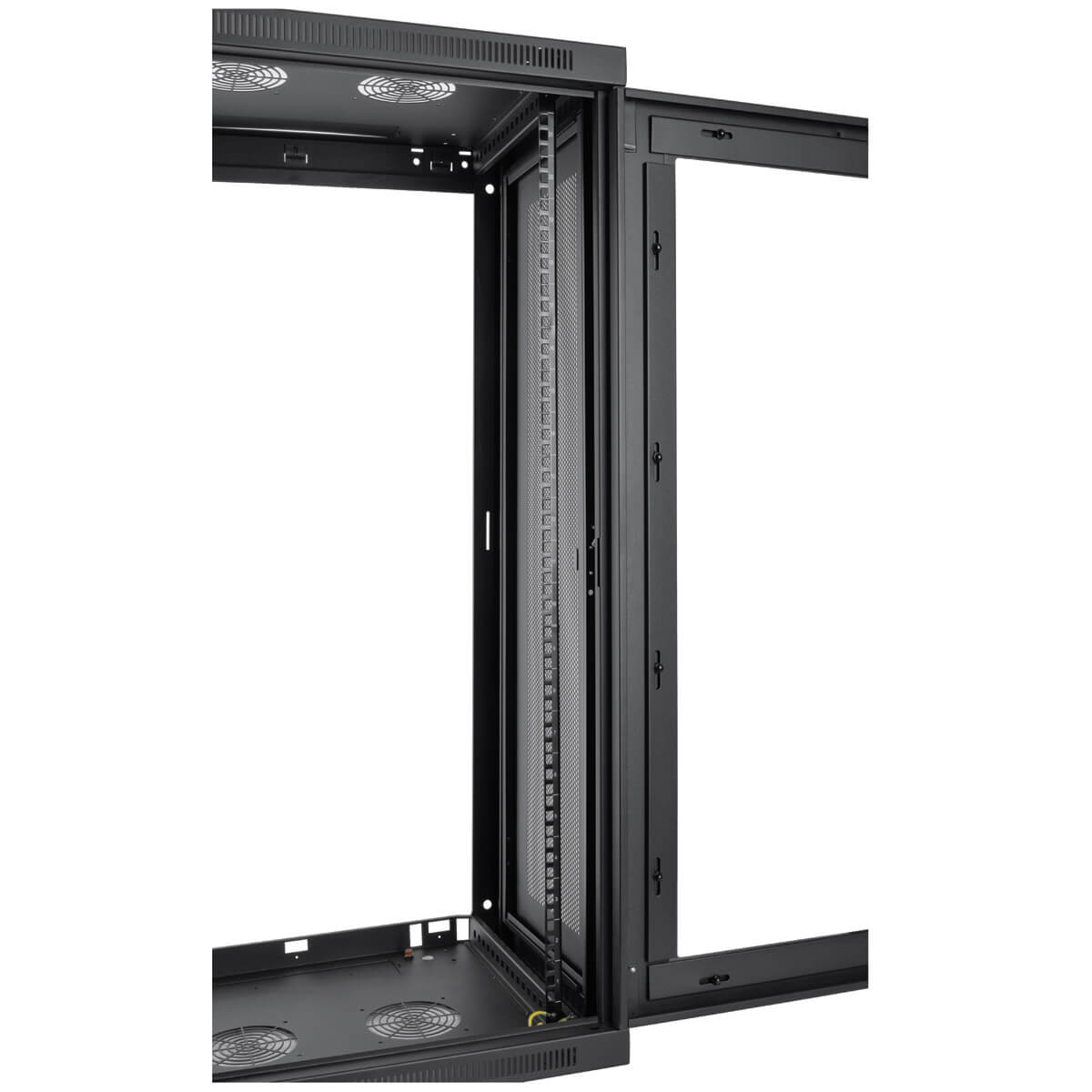

To ensure your valuable equipment stays secure, the side panels and front door lock. The top, bottom and removable side panels are vented, which allows air to flow freely through the cabinet to keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180 degrees before mounting. Convenient top and bottom ports allow easy cable routing through the cabinet.

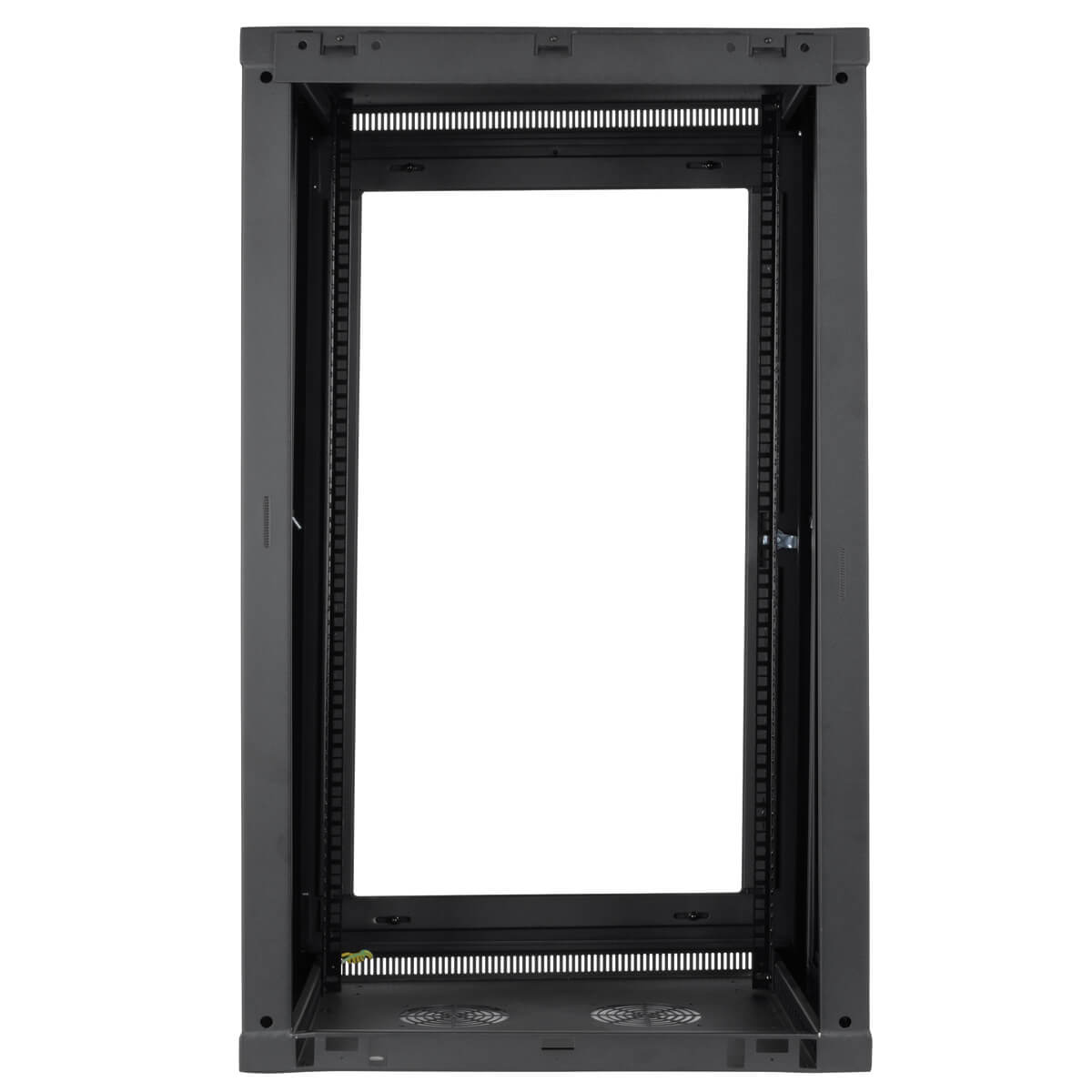

The SRW21UG comes fully assembled and ready to mount to the wall or use the optional SRCASTER caster kit (sold separately) to make it a mobile rolling rack. Square and 12-24 threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.

Specifications

Weight & dimensions
Package depth24.5" (622.3 mm)
Package width18.7" (475 mm)
Package height46.1" (1170.9 mm)
Package weight67.9 lbs (30.8 kg)
Width23.6" (600.2 mm)
Depth17.7" (450.1 mm)
Height40.9" (1038.1 mm)
Weight51.1 lbs (23.2 kg)
Maximum weight capacity200 lbs (90.7 kg)

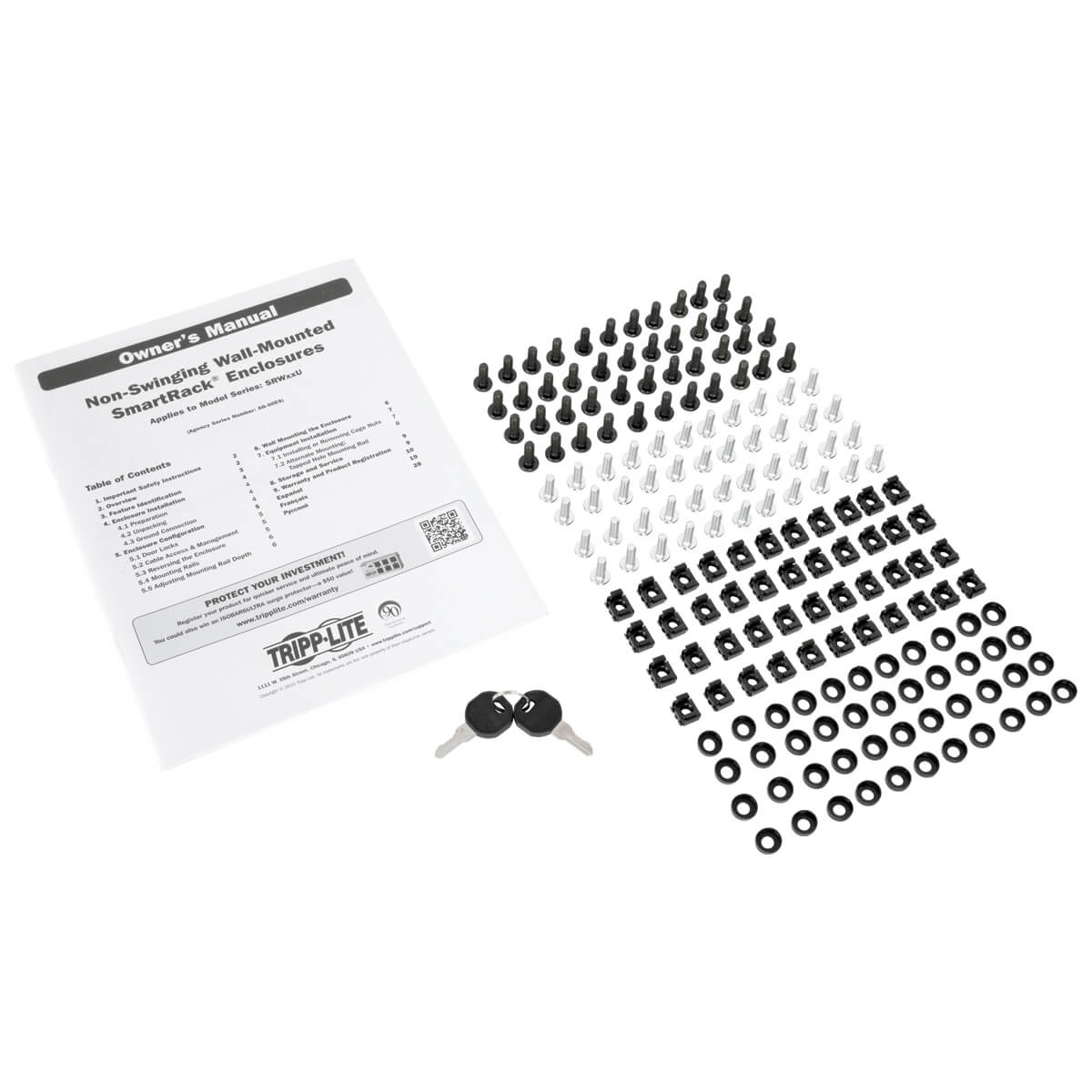

Packaging content
Wall mounting kitYes
ManualYes
Features
Key lockYes
Rack capacity21U
TypeWall mounted rack
Maximum weight capacity200 lbs (90.7 kg)
MaterialAcrylic glass, Steel
Product colourBlack
CertificationUL/CSA 60950-1, EIA-310-E, RoHS
Packaging data
Wall mounting kitYes
ManualYes
Package depth24.5" (622.3 mm)
Package width18.7" (475 mm)
Package height46.1" (1170.9 mm)
Package weight67.9 lbs (30.8 kg)
Technical details
Package width18.7" (475 mm)
Package height46.1" (1170.9 mm)
TypeWall mounted rack
Harmonized System (HS) code8517.79.0000
Rack capacity21U
Colour
Product colourBlack
Certificates
CertificationUL/CSA 60950-1, EIA-310-E, RoHS
Material
MaterialAcrylic glass, Steel
Logistics data
Master (outer) case width18.7" (475 mm)
Master (outer) case length24.5" (622.3 mm)
Master (outer) case height46.1" (1170.9 mm)
Master (outer) case gross weight67.9 lbs (30.8 kg)
Products per master (outer) case1 pc(s)
Country of originChina
Harmonized System (HS) code8517.79.0000
