Tripp Lite SmartOnline uninterruptible power supply (UPS) 16 kVA 14400 W 10 AC outlet(s)

Tripp Lite SmartOnline uninterruptible power supply (UPS) 16 kVA 14400 W 10 AC outlet(s)

16kVA On-Line Double-Conversion UPS, N+1, 12U Rack/Tower, 200-240V L6-20R L6-30R Outlets

Trade Prices

Distributor Product SKU Stock Updated Price
Anixter

16KVA UPS,N+1, 12U RACK/TOWER200-240V L6-20R L6-30R OUTLETSSMARTONLINE

 526047 Register free see stock

Related Products

Description

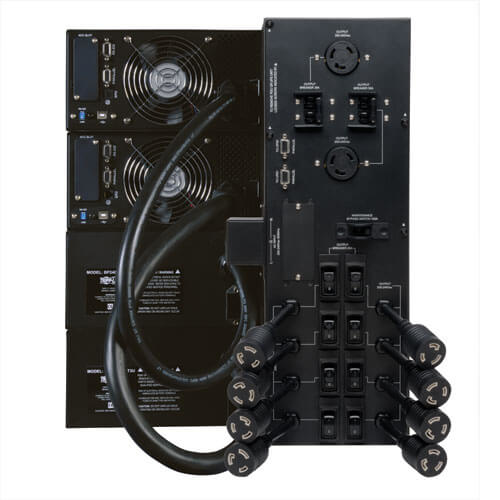

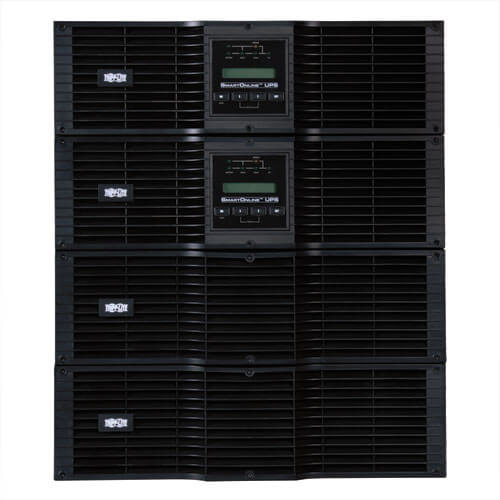

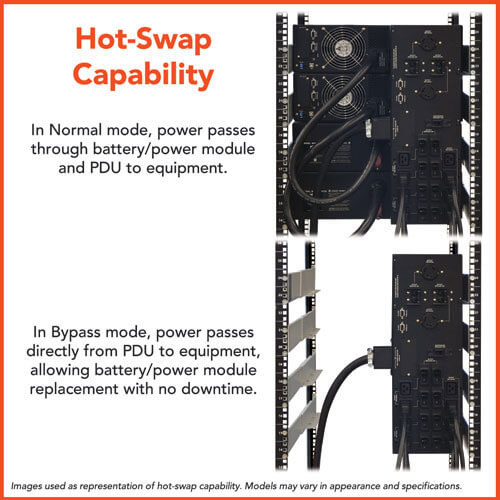

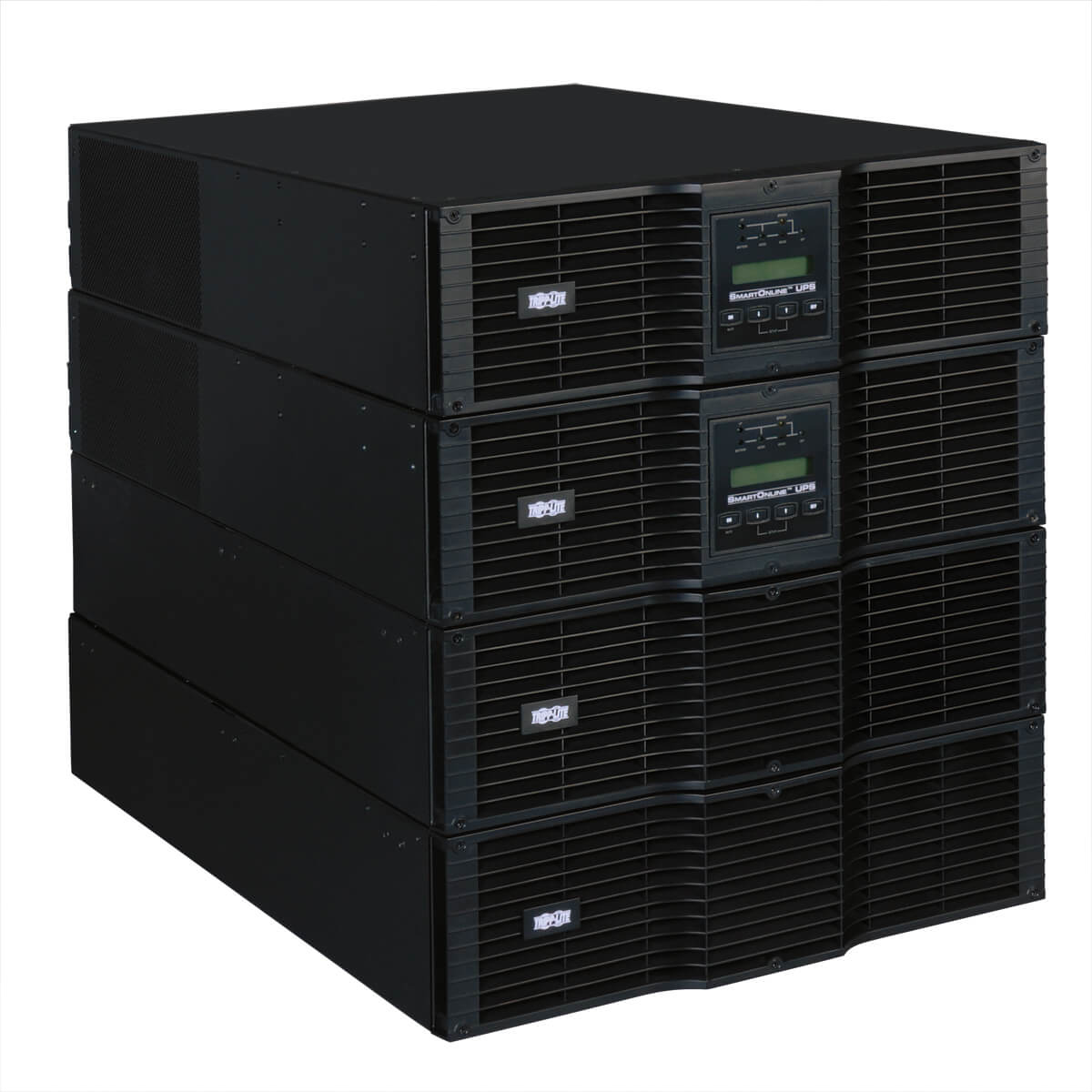

Tripp Lite SU16KRT8 16,000VA / 16kVA / 14,400 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 12U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 8kVA, and non-redundant operation at loads between 8 and 16kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Specifications

Power
Output voltage regulation4%
Output power factor0.9
Output power14400 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
Emergency Power Off (EPO)Yes
Output power capacity16 kVA
Input frequency50/60 Hz
Performance
WaveformSine
Number of input phases1
LED indicatorsYes
EMI/RFI noise filteringYes
Noise level60 dB
Audible alarm(s)Yes
Features
Country of originChina
WaveformSine
Output voltage regulation4%
Number of input phases1
Output power factor0.9
Output power14400 W
Input operation voltage (min)200 V
Input operation voltage (max)240 V
Output operation voltage (min)200 V
Output operation voltage (max)240 V
EMI/RFI noise filteringYes
Emergency Power Off (EPO)Yes
Noise level60 dB
Audible alarm(s)Yes
Output power capacity16 kVA
Input frequency50/60 Hz
Ports & interfaces
AC outlets quantity10 AC outlet(s)
AC outlet typesNEMA L6-20R, NEMA L6-30R
Power plugTerminal
USB 2.0 ports quantity1
Serial ports quantity1
Battery
Typical backup time at half load13.5 min
Typical backup time at full load5.5 min
Cold startYes
Design
Country of originChina
Rack capacity12U
Form factorRackmount/Tower
LED indicatorsYes
Product colourBlack
Cooling typeActive
CertificationUL1778 FCC
Housing materialSteel
Display typeLCD
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)0 - 95%
Operating altitude0 - 118110.2" (0 - 3000 m)
Non-operating altitude0 - 118110.2" (0 - 3000 m)
Technical details
Compliance certificatesRoHS
Packaging data
Package dimensions (WxDxH)40.2 x 51 x 36" (1022 x 1295 x 914 mm)
Package width40.3" (1022.4 mm)
Package depth51" (1295.4 mm)
Package height36" (914.4 mm)
Package weight601 lbs (272.6 kg)
Certificates
CertificationUL1778 FCC
Compliance certificatesRoHS
Cooling
Cooling typeActive
Weight & dimensions
Package width40.3" (1022.4 mm)
Package depth51" (1295.4 mm)
Package height36" (914.4 mm)
Width17.5" (445 mm)
Package weight601 lbs (272.6 kg)
Height5.16" (131 mm)
Depth25.8" (656 mm)
Logistics data
Country of originChina
Products per master (outer) case1 pc(s)
Master (outer) case width40.3" (1022.4 mm)
Master (outer) case length51" (1295.4 mm)
Master (outer) case height36" (914.4 mm)
Master (outer) case gross weight601 lbs (272.6 kg)
Other features
Package dimensions (WxDxH)40.2 x 51 x 36" (1022 x 1295 x 914 mm)
Output connection type8 x L6-20R & 2 x L6-30R
